Ice-O-Matic CIM1446FW Elevation Series™ Ice Machines
$8,833.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Ice-O-Matic CIM1446FW Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM1446FW Elevation Series™ Ice Machines
$8,833.00
Unit price
/
Unavailable
Description
Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – Water-Cooled
Model CIM1447W | Full-Size Cube | Approx. 1,560 lb/24 hrDeliver more ice, more cleanly, in less space. The Elevation Series CIM1447W pushes out up to 1,560 lb of crystal-clear cubes every day, yet stands just 26.8″ tall and cleans itself at the touch of a button.
Why You’ll Love It

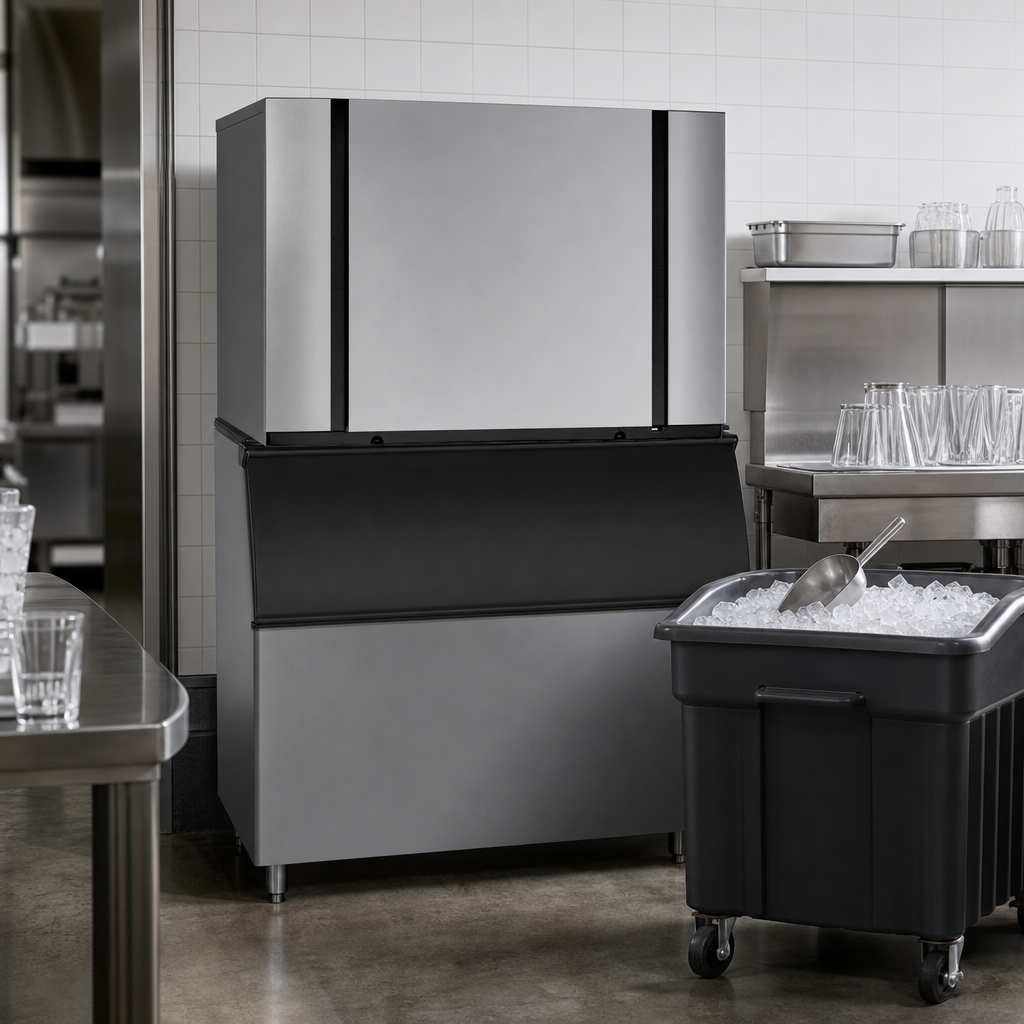

- High-volume output: 1,560 lb at 70 °F/50 °F (1,440 lb at 90 °F/70 °F).

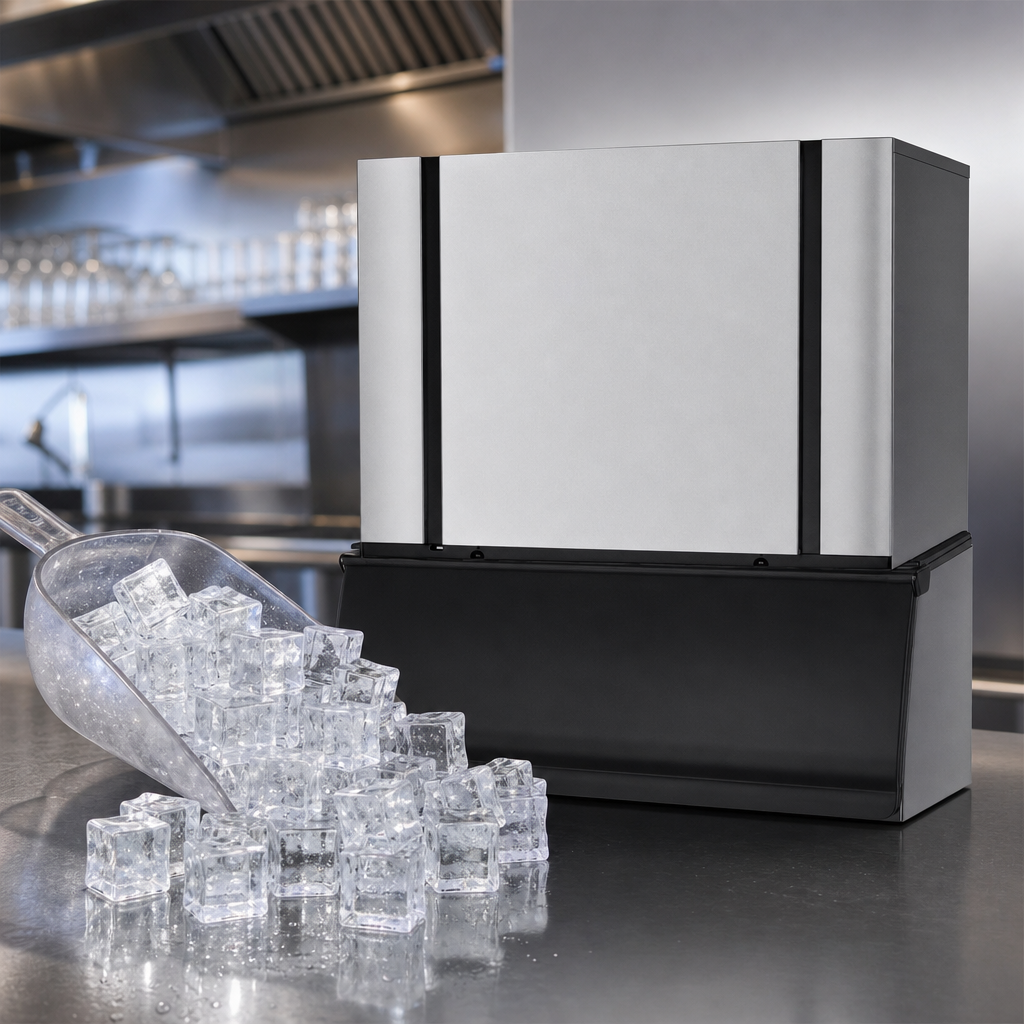

- Full cubes: ⅞″ × ⅞″ × ⅞″ slow-melting cubes perfect for cocktails, soft drinks and bulk cooling.
- Water-cooled condenser: Keeps kitchen temps down and requires zero side clearance.
- Dual exhaust (top or side): Flexible installs in tight built-in or low-ceiling locations.
- PURE ICE® protection: Built-in antimicrobial defense for the life of the machine.
- One-touch sanitize & descale: No tools or guesswork—just press and walk away.
- Dishwasher-safe food zone: Snap-out components clean up fast.
- Harvest Assist technology reduces energy use while maintaining peak capacity.
- Nickel-plated evaporator plates resist corrosion for years of worry-free service.
- Rugged stainless exterior with fingerprint-resistant plastic front.
Specifications
| Ice Production (@ 70 °F air / 50 °F water) | 1,560 lb / 24 hr (708 kg) |
|---|---|
| Ice Production (@ 90 °F air / 70 °F water) | 1,440 lb / 24 hr (653 kg) |
| Cube Size | ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm) |
| Dimensions (W × D × H) | 48.25″ × 24.25″ × 26.8″ (1,226 × 616 × 660 mm) |
| Condenser | Self-contained • Water-cooled |
| Electrical | 208-230 V / 60 Hz / 3-ph • MCA 12.6 A • Max breaker 20 A |
| Energy Use | 3.9 kWh / 100 lb (@ 90 °F/70 °F) |
| Water Use – Potable | 14.7 gal / 100 lb ice |
| Water Use – Condenser | 104 gal / 100 lb ice |
| Refrigerant | R-404A |
| Shipping Weight | ≈ 300 lb (136 kg) |
| Certifications | cULus • NSF • CE |
Smart Sanitation & Warranty
- Automatic LED status display for instant diagnostics.
- Enroll in the Ice-O-Matic filter program (IFQ2-XL manifold) to extend the evaporator warranty to 7 years parts & labor.
- Standard coverage: 3 yrs parts & labor on the ice maker • 5 yrs parts on evaporator & compressor.
Heads-up: This unit is the ice-maker head only. Pair it with a compatible 48″ Ice-O-Matic bin such as B1000-48, B1300-48 or B1325-60 for complete ice storage.
Add the optional SafeIce® Purification System to neutralize viruses, mold and odors—extending machine life by up to 30 %.
Features & Specs
Features & Specs
Manufacturer
Ice-O-Matic
Brand_name
Elevation Series™
Certifications
NSF, CE, cULus
Height
33.0in
Width
27.0in
Depth
51.0in
Shipping Weight
310.0lbs
Production per 24 hr
1501 - 1600 lb = 682 - 726 kg
Ice Type
full size / dice cubes
Width (side - side)
40 - 49" wide
Refrigeration
self-contained refrigeration
Condenser Type
water-cooled
Specifications
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48" W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), full size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406FW)
