Ice-O-Matic CIM1446FR Elevation Series™ Ice Machines
Description

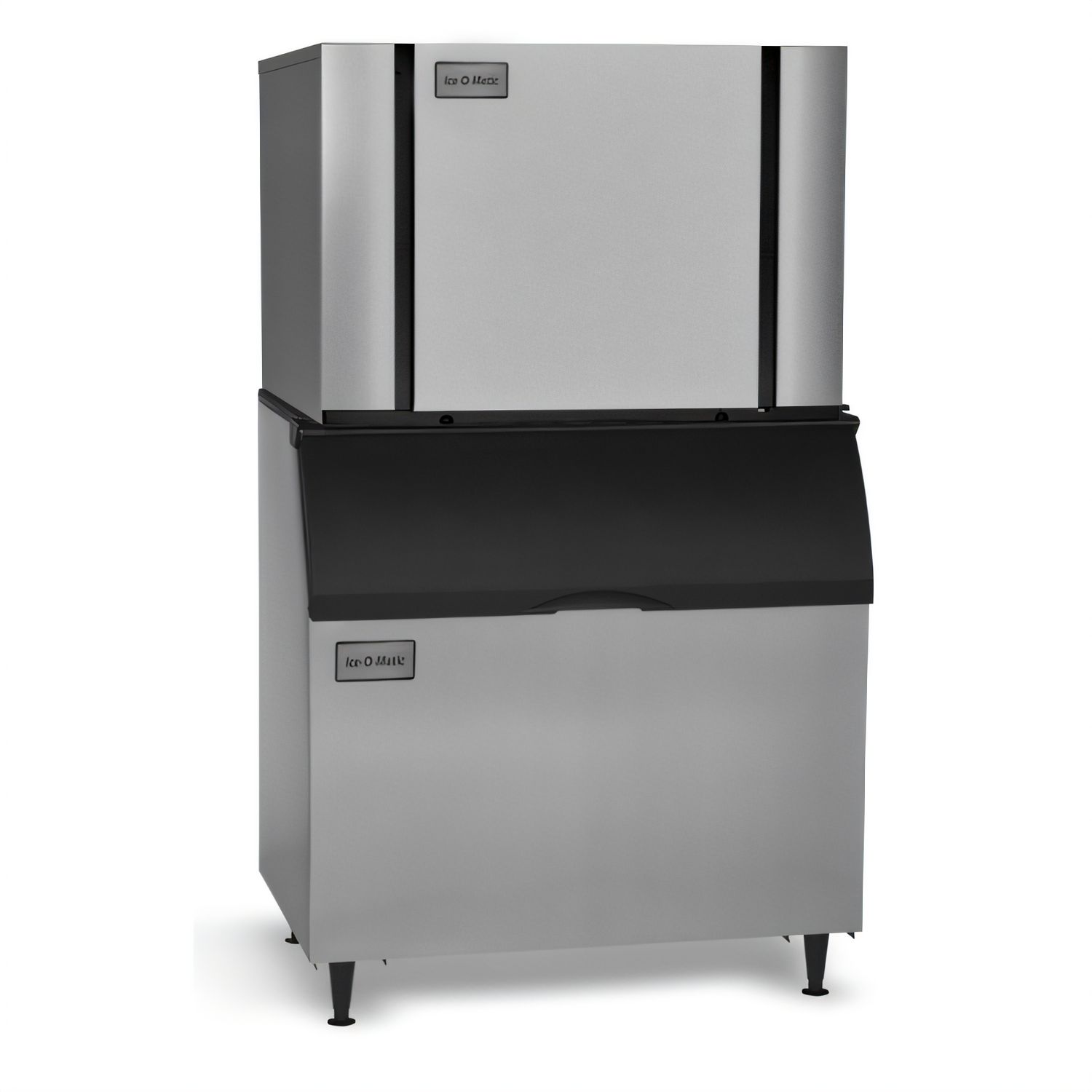

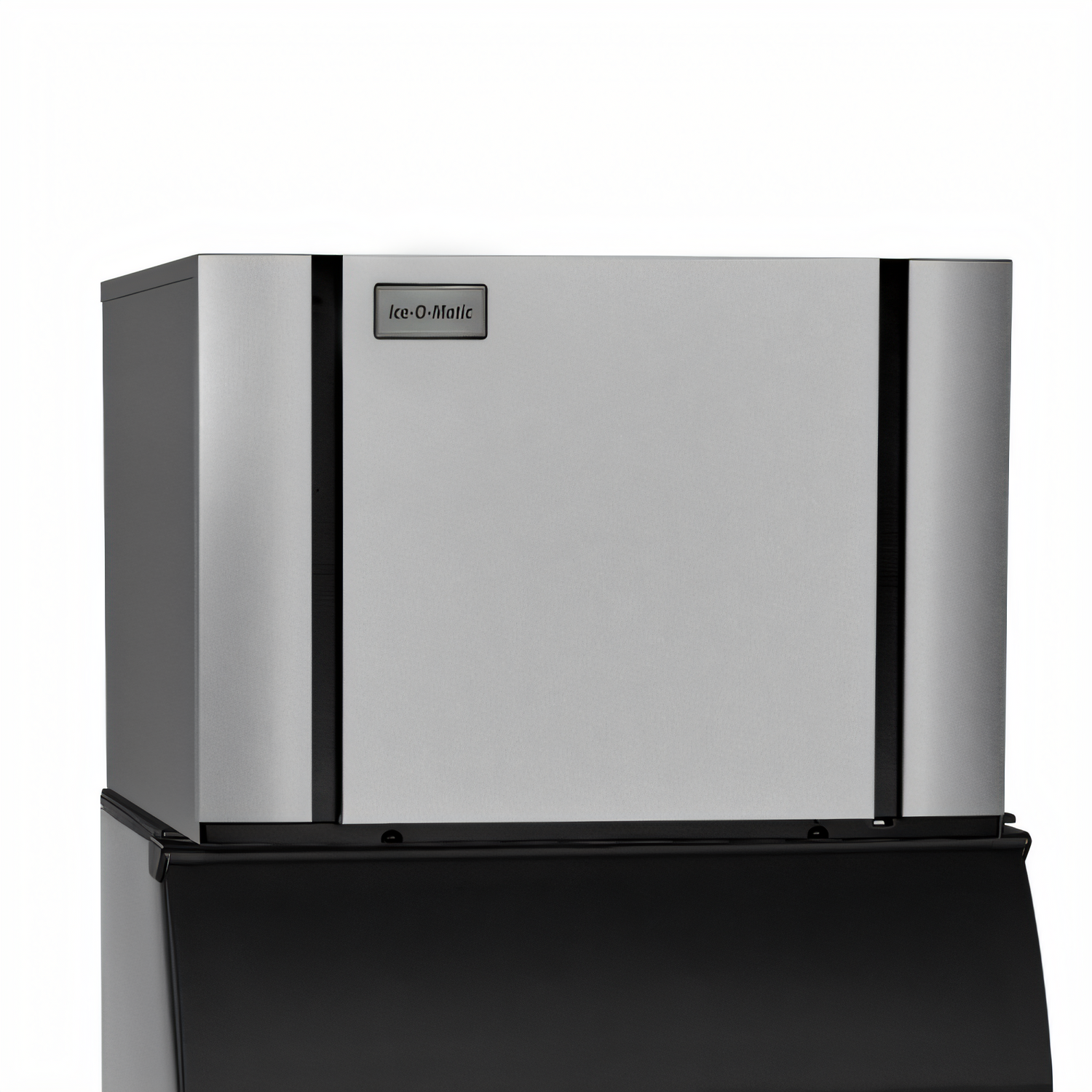

Elevation Series™ Modular Cube Ice Maker
48″ Remote Air-Cooled • ≈1,560 lb / 24 hr • Full-Size CubeBuilt for the busiest bars, restaurants and production rooms, Ice-O-Matic’s Elevation Series™ CIM1446/1447 remote cuber cranks out more than three-quarters of a ton of crystal-clear ice every day—all while slashing energy use and cleanup time. With its space-saving 26.8″ profile, dual top/side exhaust and one-touch cleaning, you’ll get industry-leading capacity without the installation headaches.
Why you’ll love it

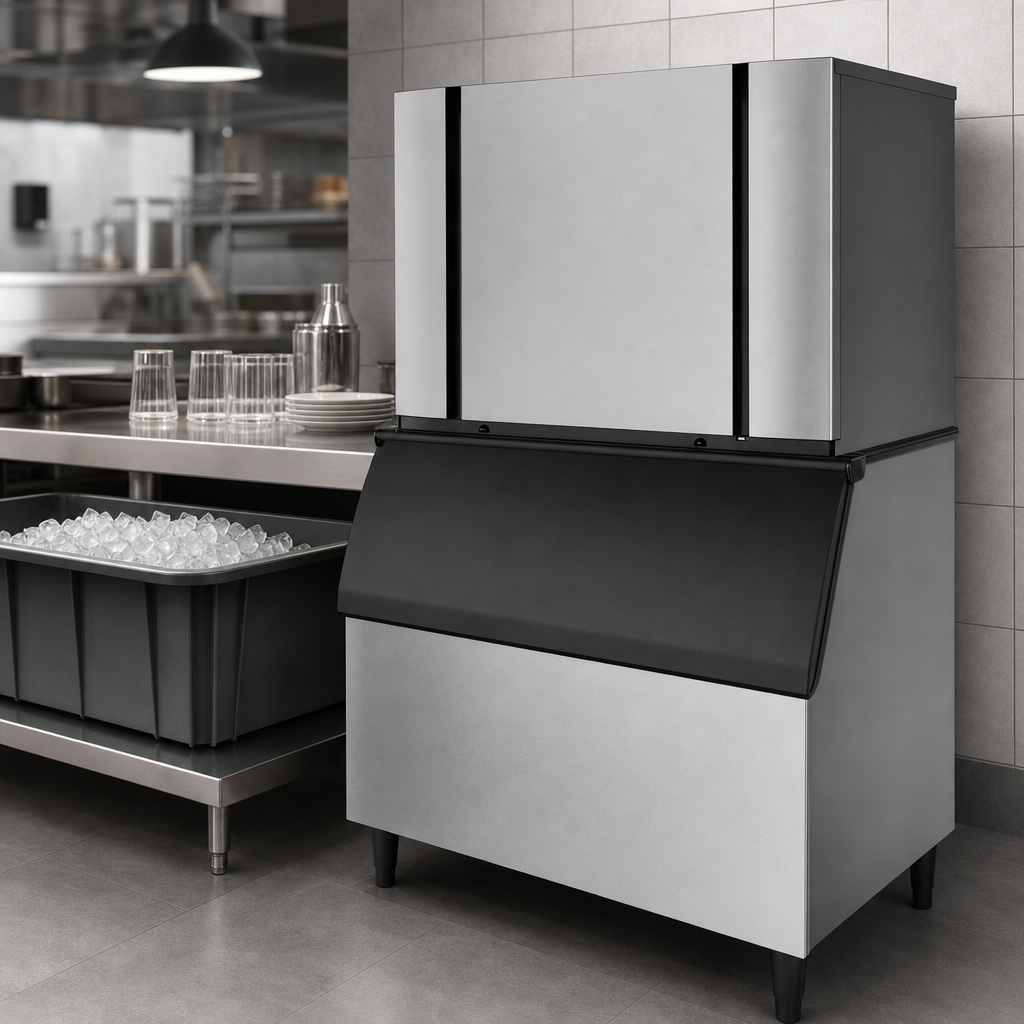

- High-volume output – up to 1,560 lb (708 kg) per 24 hr at 70 °F air / 50 °F water.

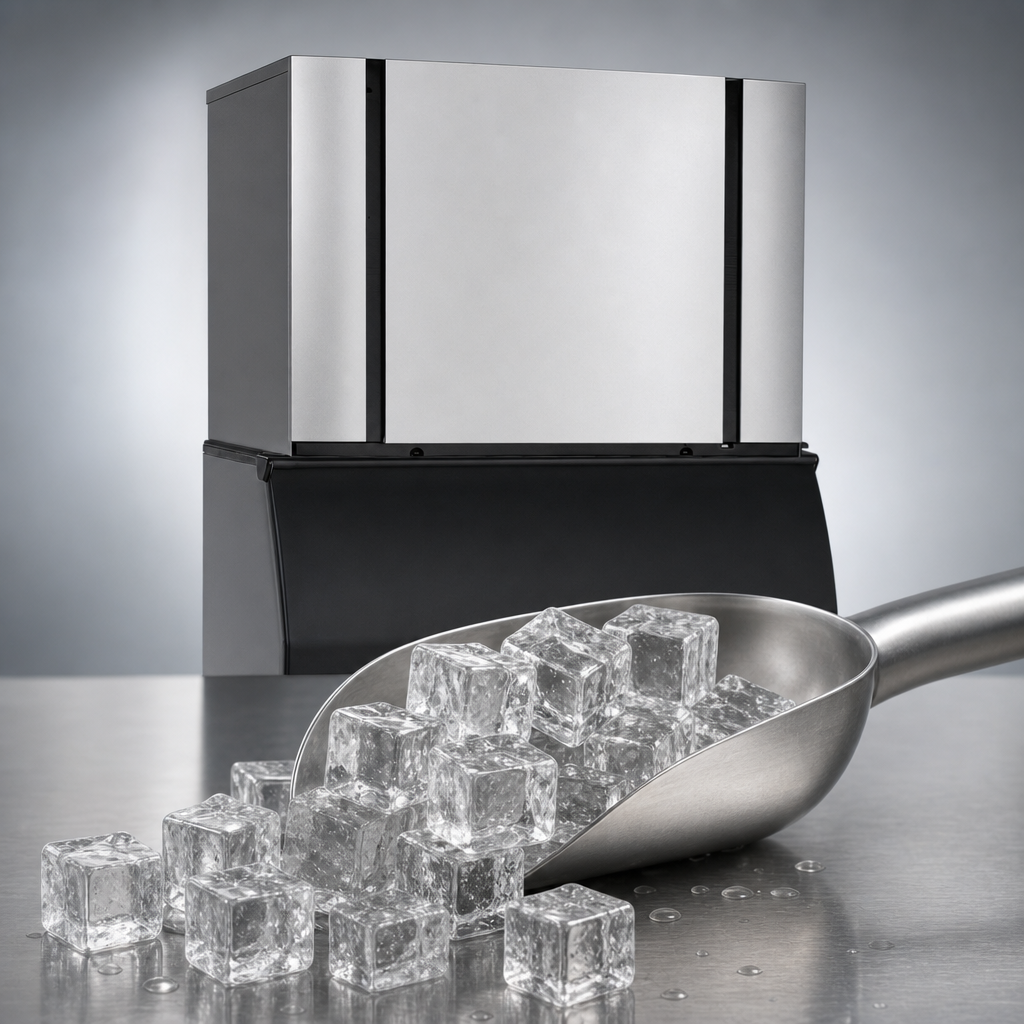

- Full-size ⅞″ cube (22 × 22 × 22 mm) perfect for cocktails, soft drinks and bagged ice.
- Remote air-cooled condenser keeps heat & noise outside the customer area (model RCA-3061, sold separately).
- Dual Exhaust – top or side air discharge lets you tuck the unit against walls or into corners.
- PURE ICE® antimicrobial protection is permanently built into every food-zone surface.
- LED status display clearly shows operating status and service reminders.
- One-touch sanitize / descale plus dishwasher-safe food-zone parts cut cleaning time to minutes.
- Harvest Assist™ boosts production while using less energy than conventional systems.
- Rugged stainless-steel exterior, electroless nickel-plated evaporator and fingerprint-proof front panel.
- Certified cULus, NSF & CE for worry-free code compliance.
At-a-glance specs
| Daily production @ 70 °F air / 50 °F water | Approx. 1,560 lb (708 kg) |
|---|---|
| Daily production @ 90 °F air / 70 °F water | Approx. 1,340 lb (608 kg) |
| Ice type | Full cube – ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm) |
| Dimensions (W × D × H) | 48.25″ × 24.25″ × 26.8″ (1 226 × 616 × 660 mm) |
| Electrical | 208-230 V / 60 Hz (1-Ph 19.9 A • 3-Ph 13.6 A) |
| Remote condenser | Ice-O-Matic RCA-3061 (ordered separately) |
| Refrigerant | R404A |
| Potable water pressure | 20–80 PSI (1.4–5.5 bar) |
| Shipping weight | ≈280 lb (127 kg) |
| Warranty | 3 yr parts & labor • 5 yr parts evaporator & compressor 7 yr parts & labor on evaporator with IOM filter program (USA/Canada) |
Recommended accessories
- RCA-3061 remote condenser – required for installation.
- IFQ2-XL water filtration manifold & IOMQXL cartridges – improves taste and extends evaporator warranty.
- SafeIce™ purification system – factory or field-installed ozone device that neutralizes viruses, mold & odors.
- Ice-O-Matic slope-front or upright bins (B700-30, B1000-48, B1300-48, etc.) for storage up to 1,000 lb.
Produced in an ISO-certified facility. Specifications, certifications and availability are subject to change without notice. Replaces legacy model ICE1406FR.
