Ice-O-Matic CIM1446FA Elevation Series™ Ice Machines

SKU: CIM1446FA
$8,306.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

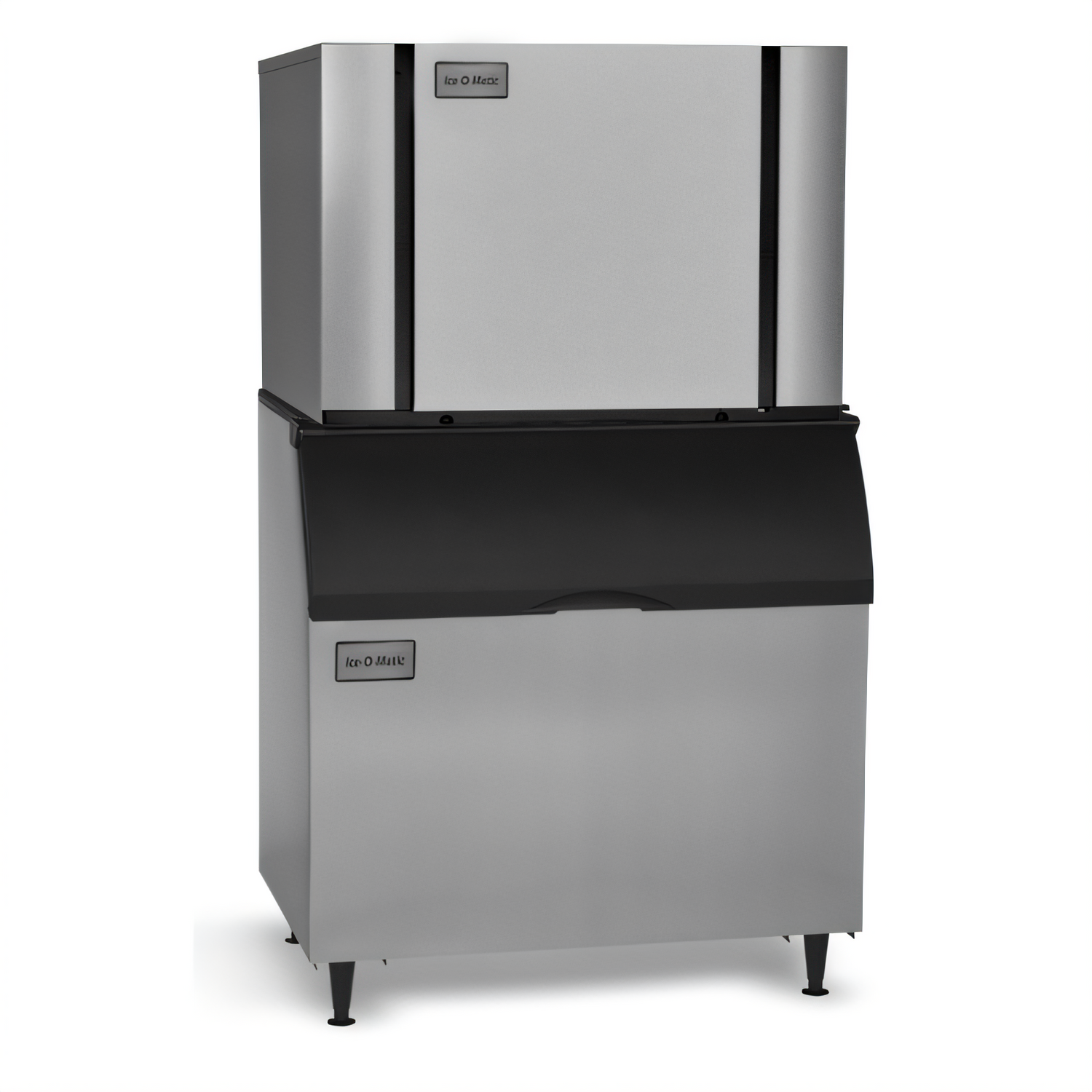

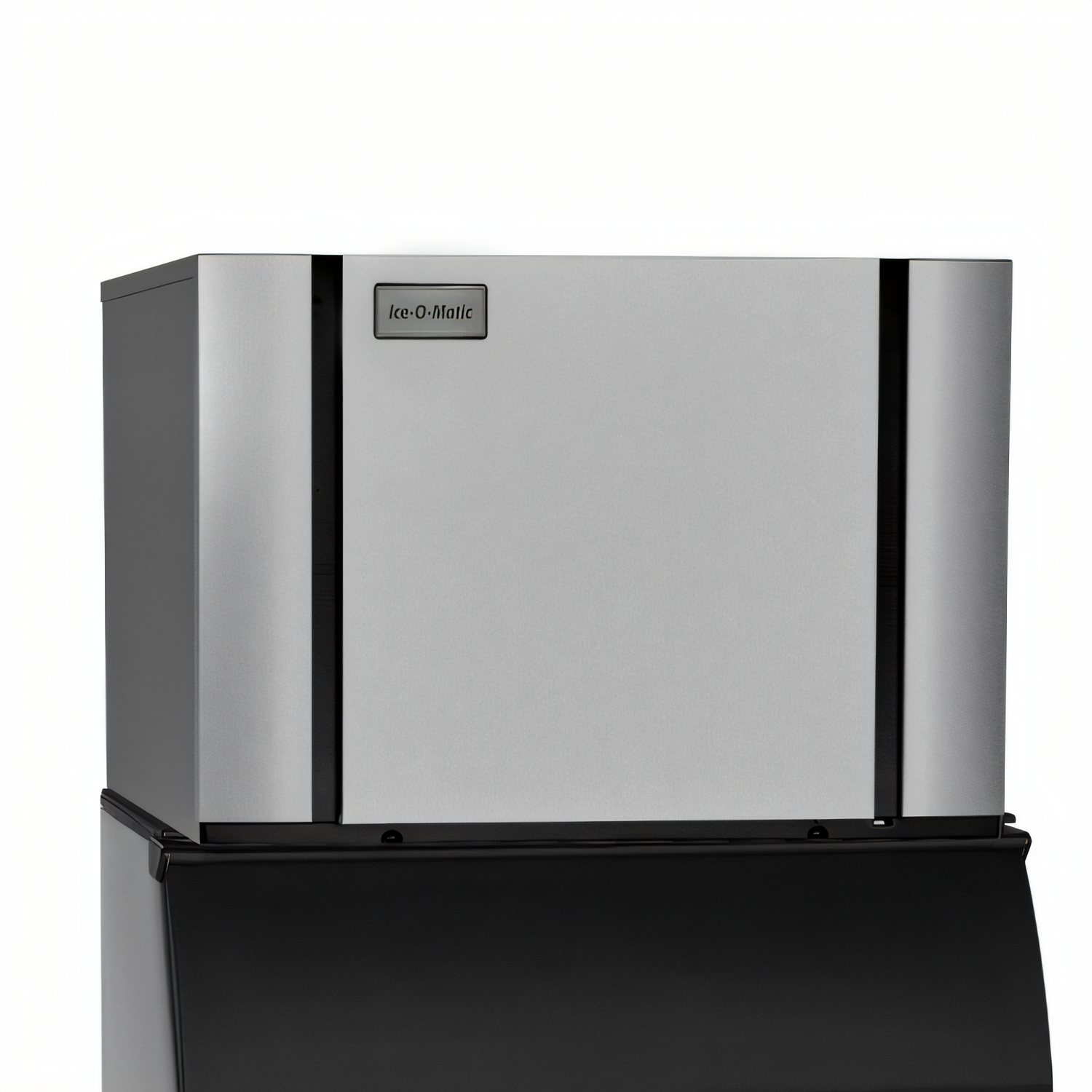

Ice-O-Matic Elevation Series™ CIM1446A Modular Cube Ice Maker

Air-Cooled • Full-Size Cube • Up to 1,560 lb / 24 hr

Engineered for high-volume, worry-free ice production, the CIM1446A delivers up to 1,560 lb of crystal-clear full cubes every day—while fitting under a 27″ hood. Dual top/side exhaust allows flexible installation, and one-touch cleaning keeps downtime to a minimum. From busy restaurants to healthcare facilities, get the ice you need, exactly when you need it.

Why you’ll love it

  • Pure Ice® protection – built-in antimicrobial inhibits bacteria for the life of the machine.
  • One-touch sanitize & descale with LED status display; dishwasher-safe food-zone parts pop out in seconds.
  • Harvest Assist technology boosts daily yield while trimming energy use.
  • Space-saving 26.8″ height pairs perfectly with 48″-wide Ice-O-Matic storage bins (sold separately).
  • Rugged construction – corrosion-resistant stainless steel and fingerprint-proof panels.
  • Longest warranty in the industry – up to 7-year parts & labor coverage on the evaporator when enrolled in the Ice-O-Matic filter program.

Performance & utilities

Daily production Approx. 1,560 lb @ 70 °F air / 50 °F water
Approx. 1,210 lb @ 90 °F air / 70 °F water
Ice type Full cube – ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm)
Dimensions (W × D × H) 48.25″ × 24.25″ × 26.8″ (1,226 × 616 × 660 mm)
Clearance 6″ (152 mm) air intake & exhaust
Electrical 208-230 V / 60 Hz / 1-ph – Min. circuit 19.2 A – Max. fuse 30 A
Energy usage 4.6 kWh per 100 lb of ice @ 90 °F / 70 °F
Water usage 14.4 gal potable water per 100 lb ice
Refrigerant R404A
Shipping weight 310 lb (141 kg)
Certifications cULus, NSF, CE

Recommended Ice-O-Matic storage bins

Compatible slope-front and upright bins include B55PS, B700-30, B1000-48, B110PS and larger 48″-wide models. Adapter kits may be required; see bin chart in the resources below or ask our team for a perfect match.

Peace-of-mind warranty

  • 3-year parts & labor on the entire ice maker
  • 5-year parts on the compressor & evaporator
  • 7-year parts & labor on the evaporator when installed with and registered under the Ice-O-Matic water filter program (USA/Canada)
Installation note: This air-cooled unit requires unrestricted airflow and must be installed with a minimum 6″ (152 mm) clearance on both air-discharge sides. Always use a dedicated 208-230 V/1-phase circuit and potable water line.

Downloads & resources

Overall Dimensions:

27.0"W x 51.0"D x 33.0"H

Product Weight:

310.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus"]
Height 33.0in
Width 27.0in
Depth 51.0in
Shipping Weight 310.0lbs
Refrigeration self-contained refrigeration
Width (side - side) 40 - 49" wide
Ice Type full size / dice cubes
Condenser Type air-cooled
Production per 24 hr 1501 - 1600 lb = 682 - 726 kg
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48" W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), full size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1406FA)

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Warranty sheet PDF Download
