Ice-O-Matic CIM1137HR Ice Machines
Description

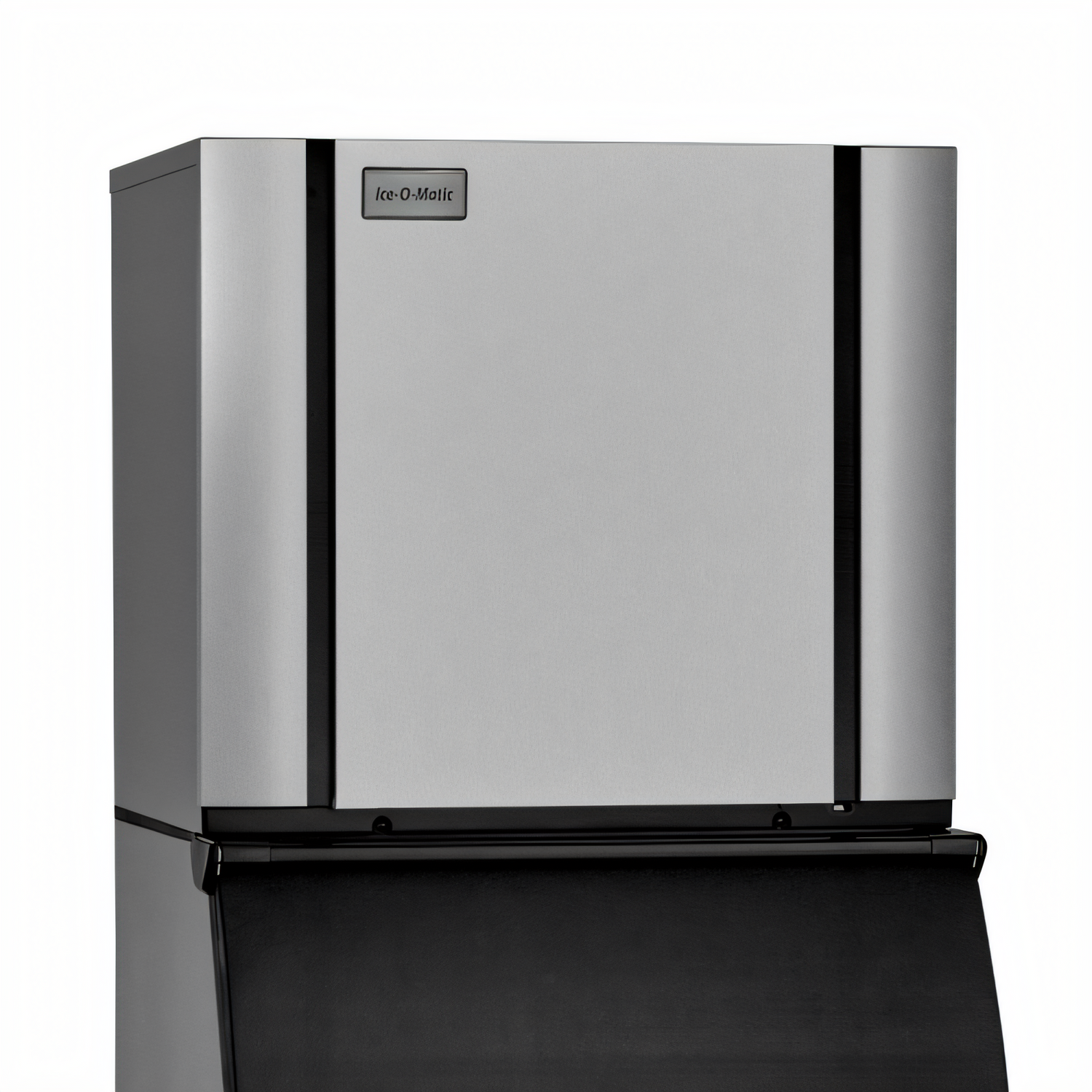

Ice-O-Matic CIM1137R Elevation Series™ Modular Cube Ice Maker
Remote air-cooled • 30 in wide • Half-cube • 973 lb / 24 hrDesigned for busy kitchens, bars and beverage stations, the CIM1137R delivers almost half a ton of crystal-clear half-size cubes every day while keeping energy, water and maintenance costs to a minimum. Ice-O-Matic’s Elevation Series pairs industry-leading food safety features with a compact 30 in footprint, giving you all the ice production you need without sacrificing valuable space.
Why Choose the CIM1137R?
- High output, compact size – up to 973 lb of ice per 24 hours in just 30.25 × 24.25 in of space.
- Remote air-cooled condenser (RCA-2061, sold separately) keeps heat and noise outside the kitchen for cooler, quieter operation.
- Dual exhaust discharges hot air from the top and side, giving you more installation options and reducing the risk of blocked vents.
- PURE ICE® antimicrobial protection – Agion®-treated food zone inhibits bacteria and mold growth for the life of the machine.
- Tool-free food zone – BPA-free, snap-in components remove in seconds and are dishwasher safe.
- One-touch sanitize & descale buttons dramatically simplify routine cleaning.
- Smart LED status light tells staff exactly when the machine needs attention, reducing downtime.
- Energy & environment leader – exceeds 2018 DOE standards and is up to 20 % more efficient than previous models.
- Universal Smart Harness™ control board streamlines installation and service with digital diagnostics and interchangeable parts.
- Certified & safe – cULus, NSF, CE and BPA-Free listed for worry-free compliance.
Performance & Electrical
| Ice production (70 °F air / 50 °F water) | 973 lb / 24 hr (442 kg) |
|---|---|
| Ice production (90 °F air / 70 °F water) | 830 lb / 24 hr (376 kg) |
| Ice type | Half-size cubes – ⅜ × ⅞ × ⅞ in (10 × 22 × 22 mm) |
| Potable water usage | 19 gal / 100 lb of ice |
| Energy consumption | 4.8 kWh / 100 lb (@ 90 °F/70 °F) |
| Refrigerant | R404A |
| Voltage / phase | 208-230 V / 60 Hz / 3-Ph |
| Minimum circuit ampacity | 9.9 A |
| Maximum fuse/breaker | 15 A |
| Dimensions (W × D × H) | 30.25 × 24.25 × 26.9 in (768 × 616 × 683 mm) |
| Approx. shipping weight | 235 lb (107 kg) |
| Certifications | cULus, NSF, CE, BPA-Free |
Installation Notes
- Requires RCA-2061 remote condenser and pre-charged line set (sold separately).
- Install with 6 in clearance for air intake/exhaust.
- 3/8 in FPT potable water inlet • 3/4 in FPT drain.

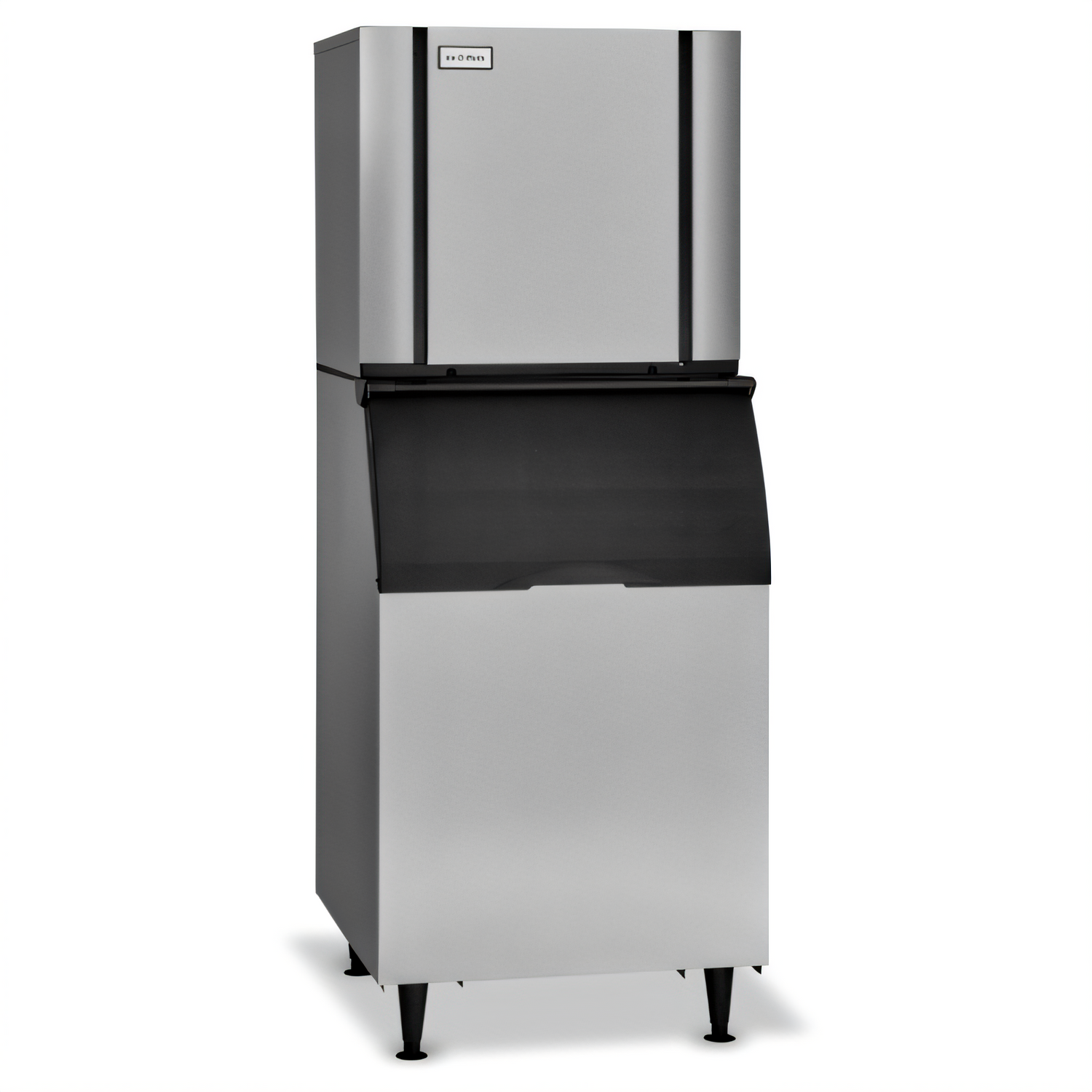

- Compatible with Ice-O-Matic B25, B40, B55, B110 and other 30 in-wide storage bins (adapter kits may be required).
Rock-Solid Warranty
- 3 years parts & labor on the entire ice maker.
- 5 years parts on the compressor & evaporator.
- 7 years parts & labor on the evaporator when enrolled in the Ice-O-Matic water-filter program.
Need help selecting a storage bin or accessories? Chat with our equipment specialists or see the Ice-O-Matic bin configurator.
