Ice-O-Matic CIM1136HW Elevation Series™ Ice Machines
Description

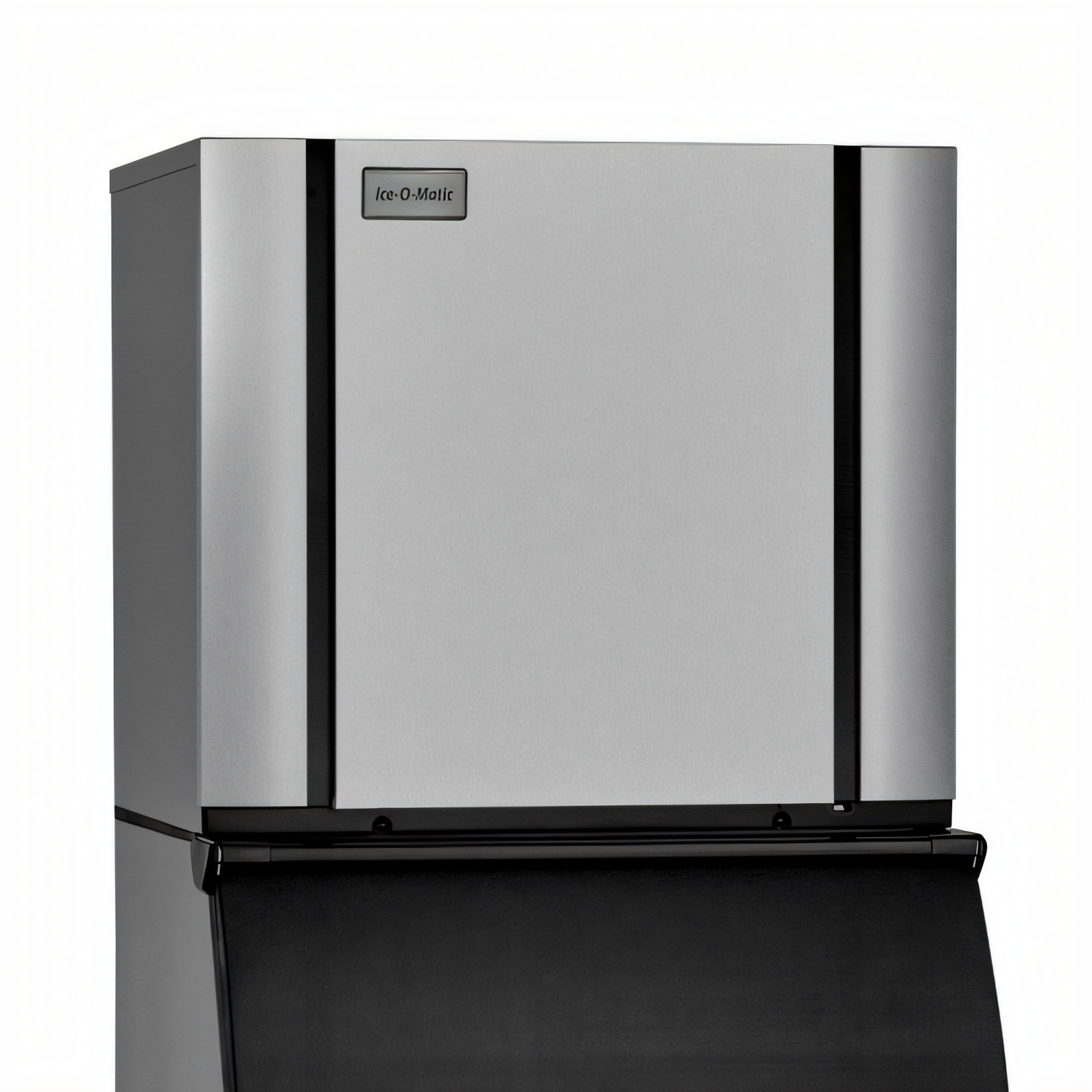

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – 968 lb/Day

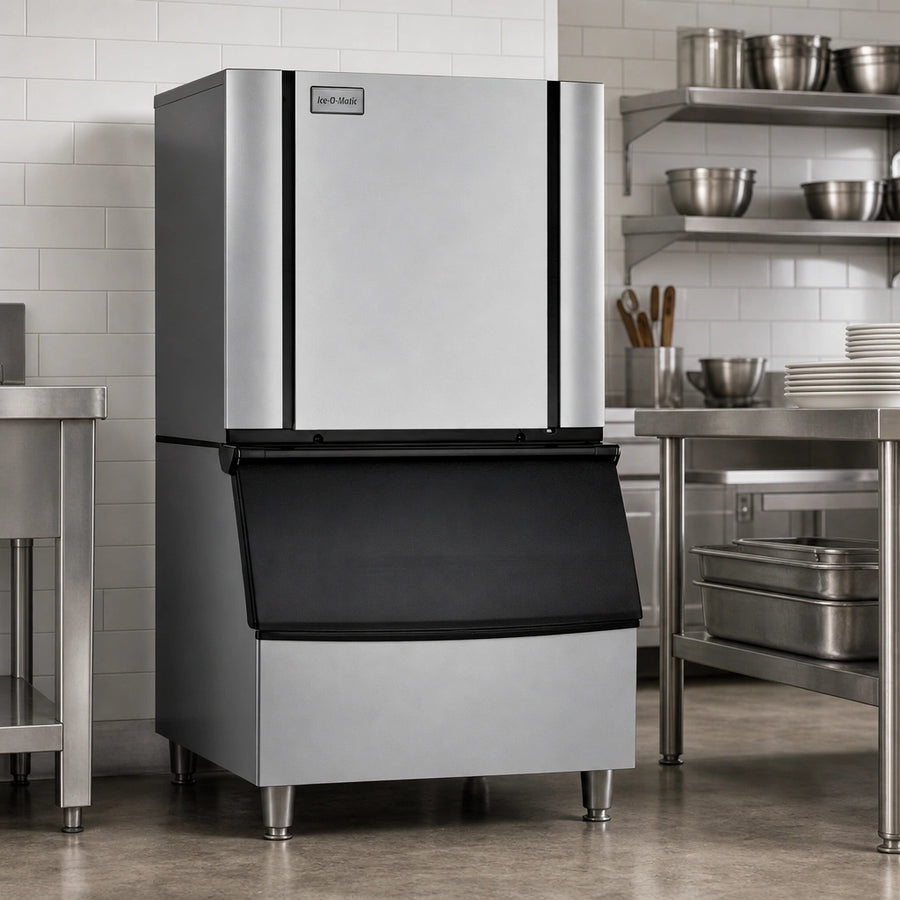

Model CIM1136W | Water-Cooled | Half-Size CubesEngineered for busy kitchens, bars and beverage stations, the Elevation Series™ CIM1136W delivers nearly half a ton of crystal-clear ice every 24 hours while taking only 30 inches of counter space. A water-cooled, self-contained condenser keeps heat and noise out of the room, and Ice-O-Matic’s PURE ICE® antimicrobial protection makes every cube as clean as it is cold.
Key Features

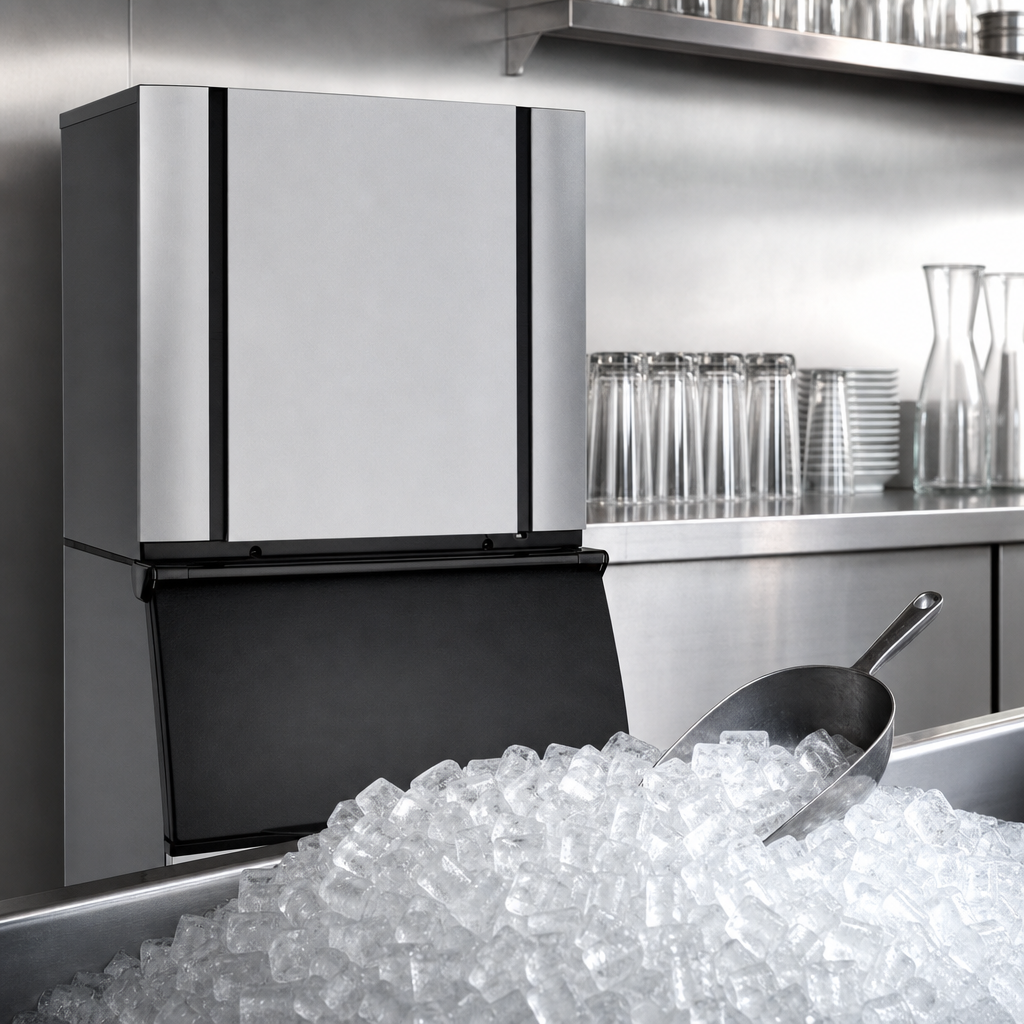

- High output – up to ≈ 968 lb (439 kg) per day at 70 °F air / 50 °F water (≈ 896 lb at 90 °F / 70 °F)
- Water-cooled, self-contained condenser for quiet, efficient performance in warm or poorly-ventilated areas

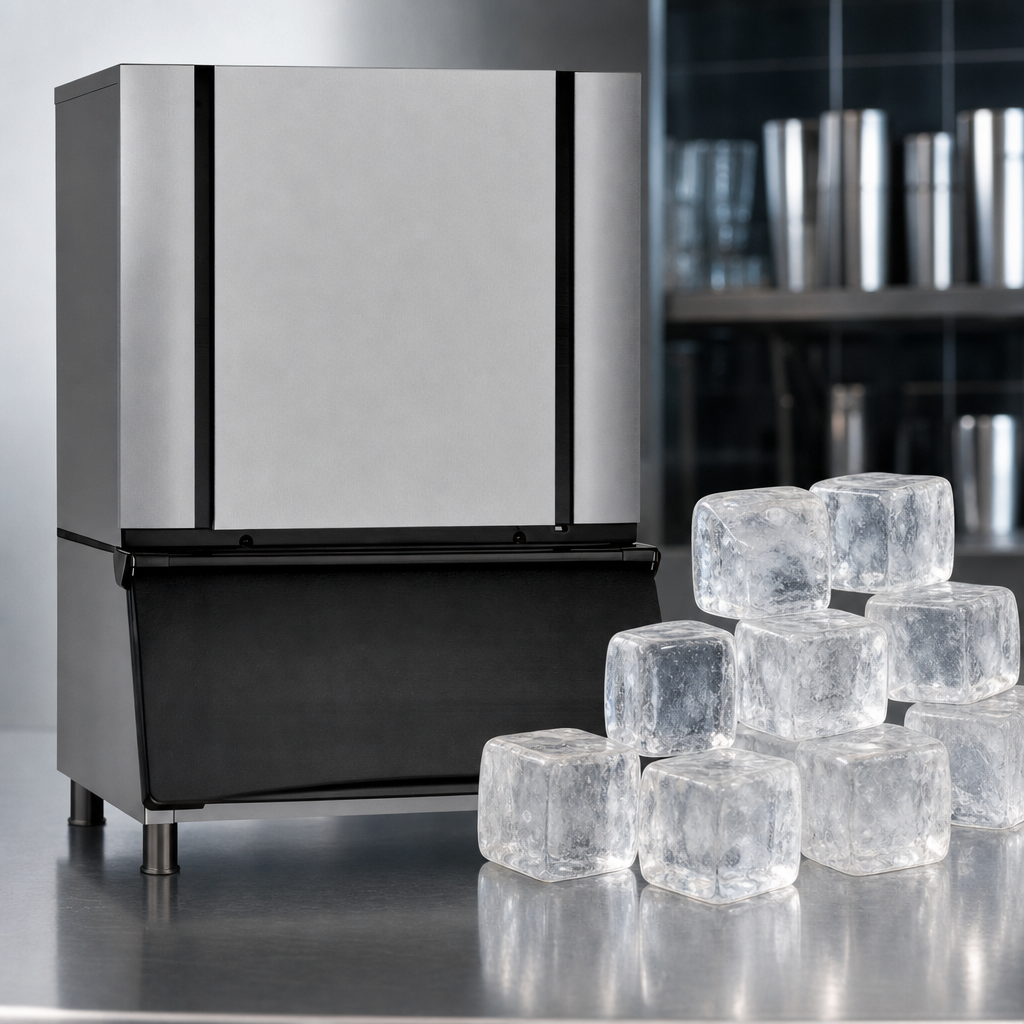

- Half-size cubes (⅜″ × ⅞″ × ⅞″) – perfect for soft drinks, cocktails and banquet service
- PURE ICE® built-in Agion® antimicrobial compounds inhibit bacteria, mold and slime growth
- BPA-free plastic Food Zone with snap-in, snap-out parts that are dishwasher safe
- Smart LED status display plus one-touch sanitize & descale buttons cut cleaning time dramatically
- Universal Smart Harness™ control board with digital diagnostics simplifies installation & service
- Exceeds 2018 DOE efficiency standards – up to 20 % more energy-efficient than previous models
- cULus, NSF & CE listed – built for commercial food-service applications worldwide
Technical Specifications
| Ice production (70 °F air / 50 °F water) | ≈ 968 lb (439 kg) / 24 hr |
|---|---|
| Ice production (90 °F air / 70 °F water) | ≈ 896 lb (406 kg) / 24 hr |
| Ice type | Half Cube – ⅜″ × ⅞″ × ⅞″ (10 × 22 × 22 mm) |
| Cooling system | Water-cooled, self-contained condenser |
| Dimensions (W × D × H) | 30.25″ × 24.25″ × 26.9″ (768 × 616 × 683 mm) |
| Electrical | 208-230 V / 60 Hz / 1-phase • 13.3 A MCA • 25 A max breaker |
| Energy consumption | 4.1 kWh per 100 lb of ice |
| Water usage (potable) | ≈ 4.0 gal per 100 lb of ice |
| Water usage (condenser) | ≈ 140 gal per 100 lb of ice |
| Operating ambient temperature | 50 °F – 100 °F (10 °C – 38 °C) |
| Water pressure range | 20 PSI – 80 PSI (1.4 – 5.5 bar) |
| Refrigerant | R404A |
| Shipping weight | ≈ 225 lb (102 kg) |
| Warranty | 3-year parts & labor (machine) • 5-year parts (evaporator & compressor) • 7-year parts & labor on evaporator when installed with Ice-O-Matic filter & registered |

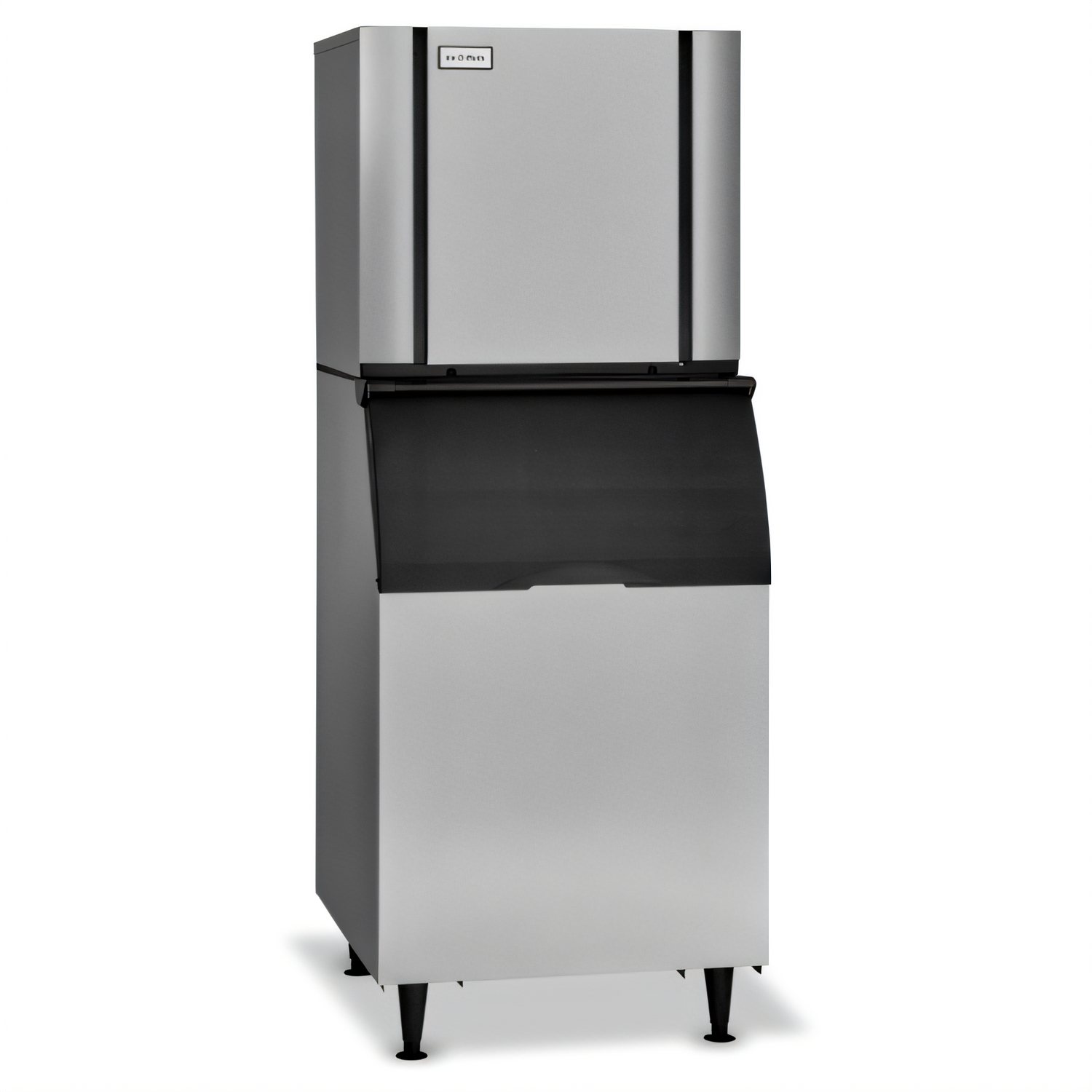

Compatible Ice Storage Bins (sold separately)
- B55PS – 510 lb capacity, 30″ wide (no adapter kit required)
- B110PS – 854 lb capacity, 48″ wide (requires adapter kit BPF-1)
Need help with bin sizing, filtration or installation? Reach out to our equipment specialists via the store chat or call the number on our Contact Us page.
