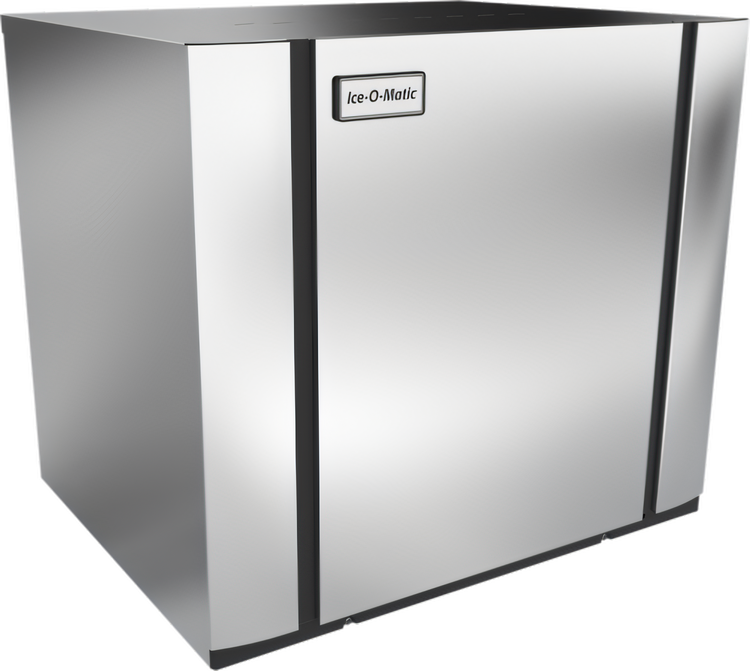

Ice-O-Matic Elevation Series Modular Half Cube Ice Maker, Remote Condenser Cooled, 930 lb/Day, 30.25-Inch Wide

208-230V / 60Hz / 1-Phase, Remote Condenser Required

Produce up to 930 lb of half-cube ice per day with a modular head built for remote-condenser installations and easy cleaning.

  • Produces up to 930 lb of half-cube ice per 24 hours at 70°F air / 50°F water.
  • Modular design installs on compatible bins or dispensers for flexible application.
  • Front-facing evaporator and dishwasher-safe food-zone parts simplify cleaning.
  • One-touch sanitize/descaling controls help reduce maintenance time.
  • Harvest Assist helps maintain consistent ice production while reducing energy consumption.
  • Remote condenser cooled design pairs with RC206C49 and RL49 precharged linesets.

Overall Dimensions:

30.25"W x 24.25"D x 26.9"H

Product Weight:

212.0 lb

Modular Design

Built to mount on top of compatible bins or dispensers for flexible installation.

Half-Cube Ice

Produces half-size cubes measuring 3/8 x 7/8 x 7/8 inches.

Harvest Assist

Helps deliver consistent ice production while reducing energy consumption.

Easy-To-Clean Food Zone

Front-facing evaporator and dishwasher-safe plastic components make cleaning faster and easier.

Sanitize/Descale Controls

One-touch controls streamline cleaning and maintenance.

LED Status Display

Provides quick operational feedback at a glance.

Durable Construction

Corrosion-resistant, fingerprint-proof aluminum construction with electroless nickel-plated evaporator plates.

Remote Condenser Compatibility

Pairs with RC206C49 remote condenser and RL49-25, RL49-40, and RL49-75 precharged linesets.

Type Modular Cube Ice Maker
Style Half Cube
Refrigeration Type Remote Air-Cooled
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 14.2 Amps
Breaker Size 20 Amps
BTU 17,400 BTU Per Hour
Refrigerant Type R449A
Material Aluminum
Production Per 24 Hr 930 lb at 70°F Air / 50°F Water
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Options PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-cube ice, sized at 3/8 x 7/8 x 7/8 inches.
No. This model is remote condenser cooled, so a compatible remote condenser and lineset are required.
It produces approximately 930 lb per 24 hours at 70°F air / 50°F water and 803 lb per 24 hours at 90°F air / 70°F water.
It includes a front-facing evaporator, dishwasher-safe food-zone components, and one-touch sanitize/descaling controls.
The cutsheet lists the RC206C49 remote condenser, RL49-25, RL49-40, and RL49-75 precharged linesets, KSI-1 Safe Ice Module, KCUBEDISPB ice level control, and IFQ2 water filter manifold system.
