Ice-O-Matic CIM1136HR Elevation Series™ Ice Machines
Description

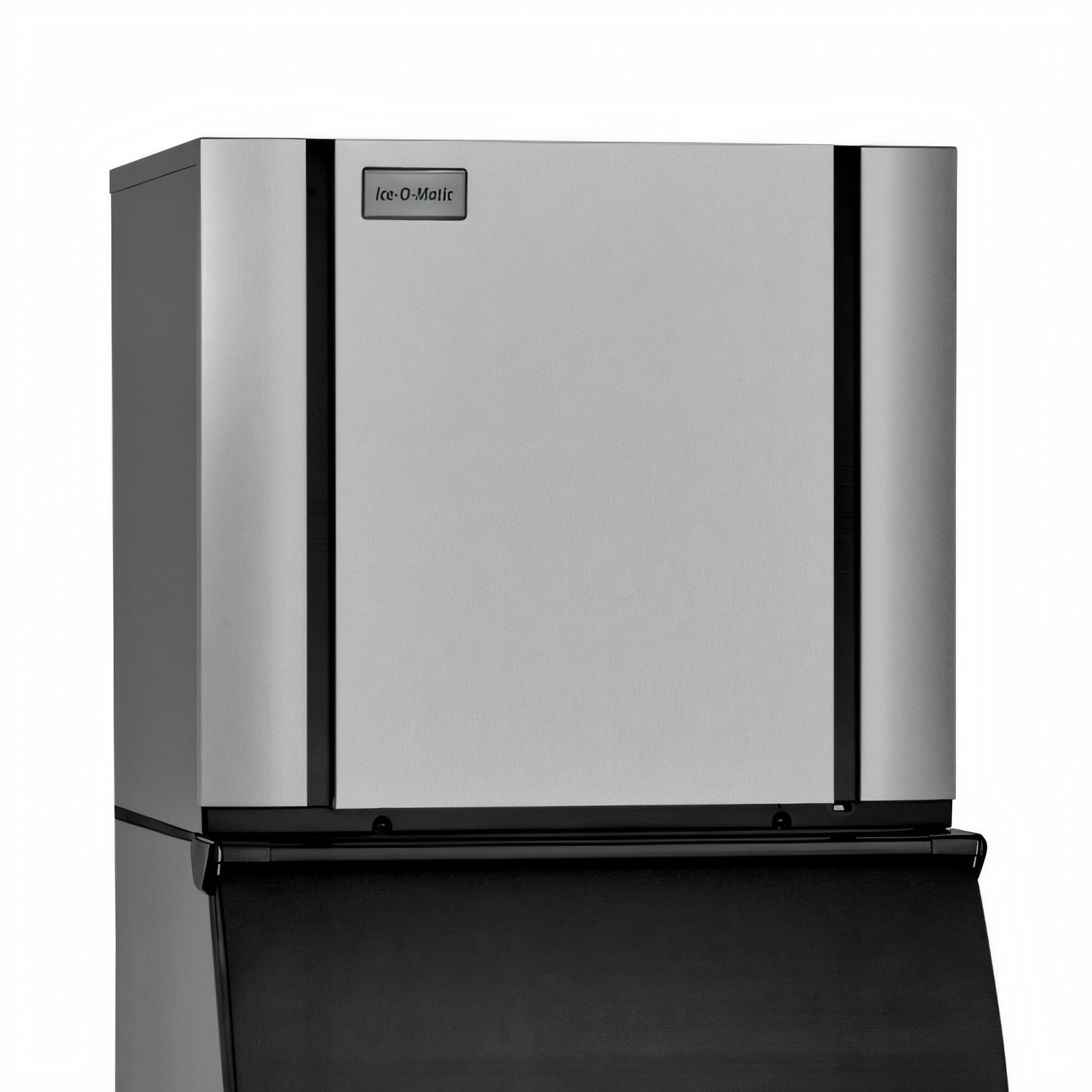

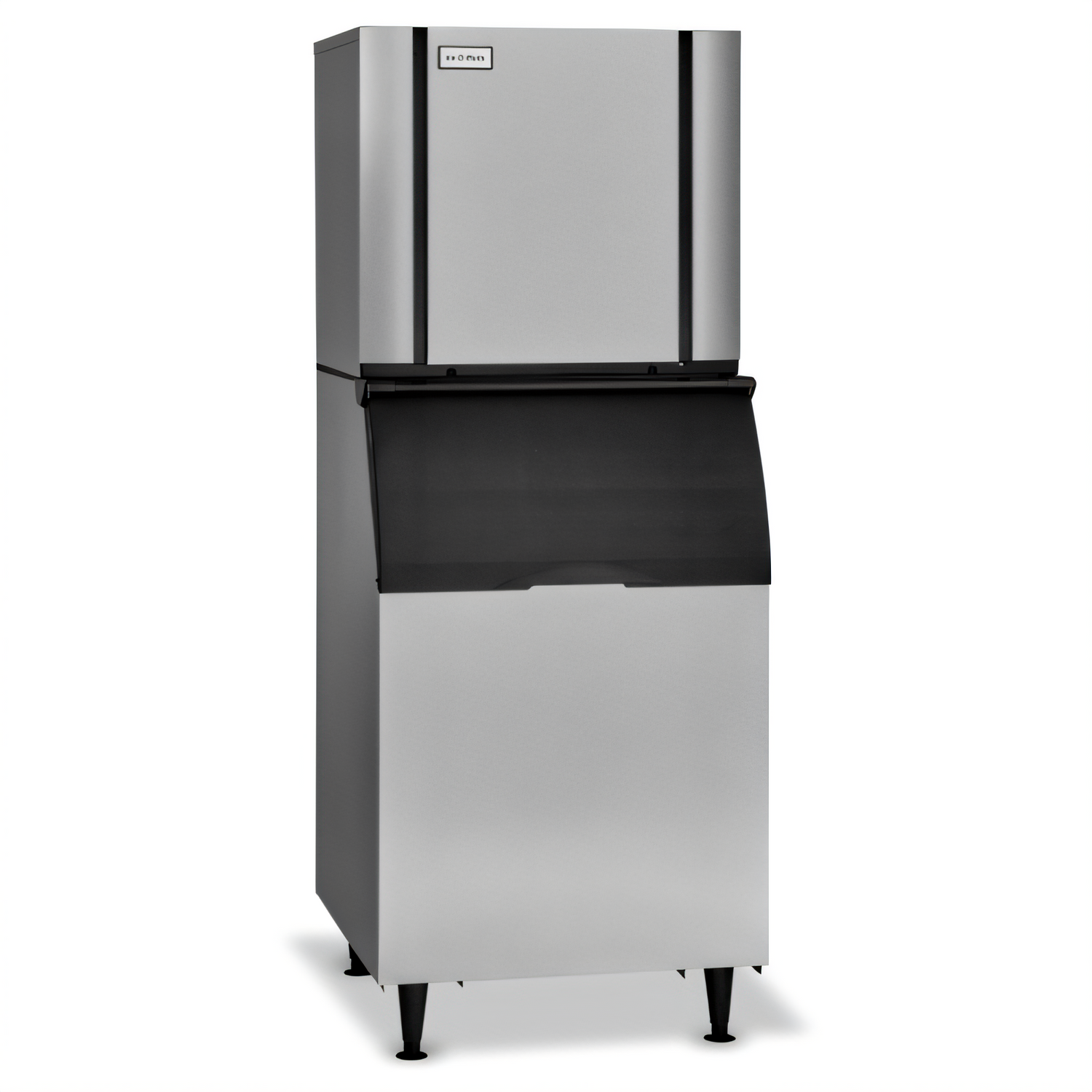

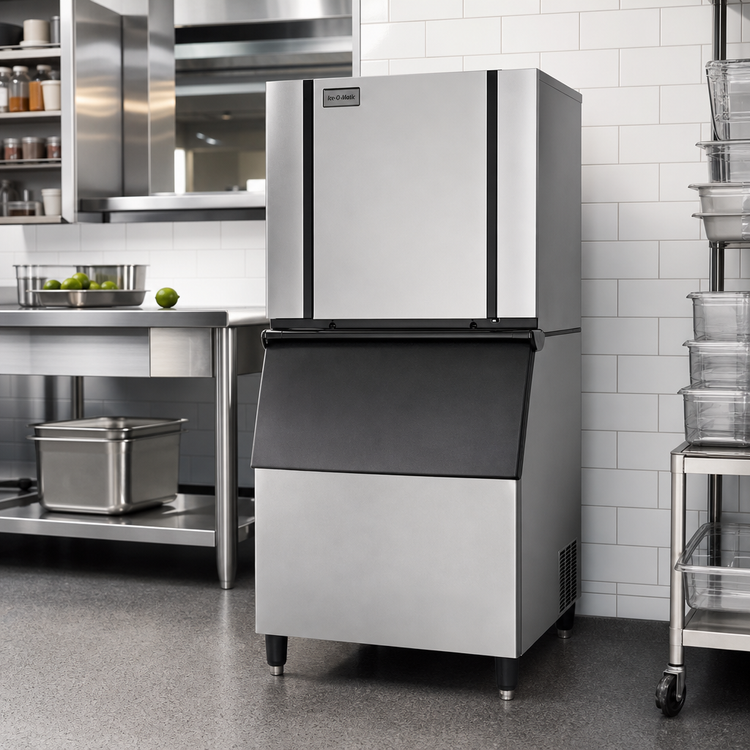

Ice-O-Matic Elevation Series™ CIM1136R Modular Cube Ice Maker
968 lb remote air-cooled half-cube production • 30 in wide headBuilt for high-demand kitchens, bars and beverage stations, the Elevation Series CIM1136R pushes nearly half a ton of crystal-clear ice every day while removing heat and noise from the room with a remote condenser. Pair effortless sanitation with leading energy savings, and you have the next generation of dependable Ice-O-Matic performance.
Why You’ll Love It

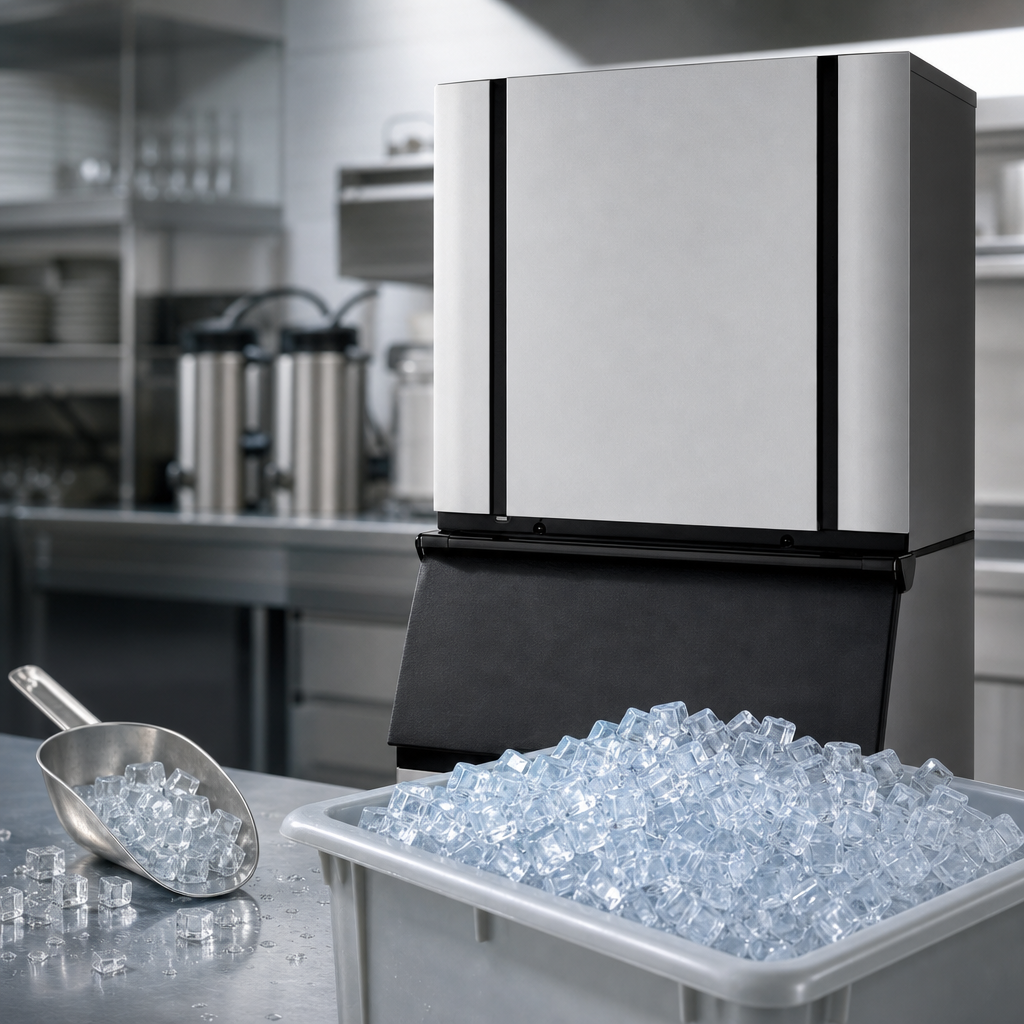

- Big output in a small footprint – up to 968 lb of half cubes in 24 hours (at 70 °F air / 50 °F water).
- Remote air-cooled condenser keeps hot exhaust outside the kitchen (RCA-2061, line set sold separately).
- PURE ICE® antimicrobial protection with Agion® additive fights bacteria, mold and slime for the life-time of the unit.
- Plastic Food Zone – smooth, BPA-free interior surfaces snap out and go straight into the dishwasher.
- One-touch Sanitize & Descale buttons reduce preventive-maintenance time to minutes.
- Smart LED status display shows operating mode, cleaning reminders and diagnostics at a glance.
- Universal Smart Harness™ control board = fewer unique parts and faster service calls.
- Exceeds 2018 DOE standards and is up to 20 % more energy-efficient than earlier models.
- Made with recyclable, BPA-free plastics and carries cULus, NSF & CE approvals.
Performance & Specs
| Ice type | Half cube – ⅜ × ⅞ × ⅞ in (10 × 22 × 22 mm) |
|---|---|
| 24 hr production @ 70 °F / 50 °F | ≈ 968 lb (439 kg) |
| 24 hr production @ 90 °F / 70 °F | ≈ 855 lb (388 kg) |
| Water usage | 19 gal per 100 lb of ice |
| Energy usage | 4.9 kWh per 100 lb of ice |
| Electrical | 208-230 V / 60 Hz / 1-ph • 14.3 A MCA • 15 A max breaker |
| Refrigerant | R-404A |
| Dimensions (W × D × H) | 30.25 × 24.25 × 26.9 in (768 × 616 × 683 mm) |
| Shipping weight | ≈ 230 lb (105 kg) |
| Certifications | cULus, NSF, CE, BPA Free |
Compatible Ice Bins (sold separately)
- Slope-front B25, B40, B42 & B55 bins – 242 – 510 lb storage.
- Upright B110 bin – 854 lb storage (requires BPF-1 adapter).
- Adapter kits available for beverage-dispenser mounting.
Refer to Ice-O-Matic bin chart for complete compatibility and adapter requirements.
Rock-Solid Warranty
• 3-year parts & labor on the entire machine
• 5-year parts on the evaporator & compressor
• 7-year parts & labor on the evaporator when enrolled in the Ice-O-Matic water-filter program
