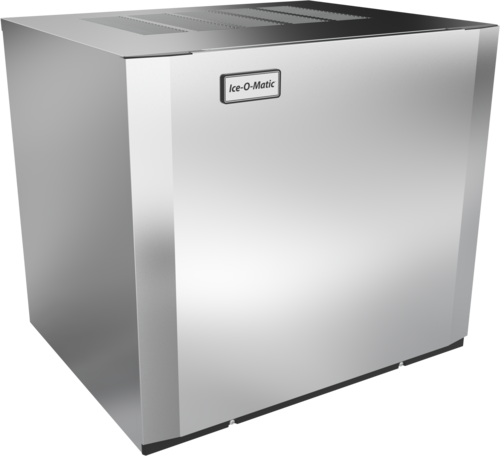

Ice-O-Matic CIM1136HA90

Ice-O-Matic CIM1136HA90 Modular Half-Size Cube Ice Maker, Air-Cooled Self-Contained, Approx. 1,000 lb/Day, 30.25 in. Wide

$6,849.00
/each
Ships in 16–19 business days
Phase
1
Dimensions
30.25"W × 24.25"D × 26.9"H
Condenser Type
Air-cooled
Refrigeration
Self-contained
Air Discharge
Dual exhaust, top/side
Ice Type
Half-size cubes

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Condenser Type Air-cooled
Refrigeration Self-contained
Air Discharge Dual exhaust, top/side
Ice Type Half-size cubes
Ice Form 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm)
Ice Production at 70°F Air / 50°F Water 1,000 lb (454 kg) per 24 hours
Ice Production at 90°F Air / 70°F Water 812 lb (368 kg) per 24 hours
Refrigerant R290
Voltage 208-230 V
Frequency 60 Hz
Phase 1
Minimum Circuit Ampacity 13.6 A
Maximum Breaker Size 20 A
Ambient Temperature Range 50°F to 100°F (10°C to 38°C)
Water Temperature Range 40°F to 100°F (4°C to 38°C)
Water Pressure 20-80 PSIG (1.4-5.5 bar)
Water Usage 18 gal per 100 lb of ice at 90°F air / 70°F water
Electrical Connection 3 wires, including ground
Potable Water Inlet 3/8 in. FPT
Ice Maker Drain 3/4 in. FPT
Condensate Base Drain 0.50 in.
Food-Zone Components Dishwasher-safe up to 180°F

Description

The Ice-O-Matic CIM1136HA90 is an Elevation Series modular cube ice maker with an air-cooled, self-contained condenser. It produces half-size cubes and provides dual exhaust with top/side air discharge.

  • Produces 1,000 lb (454 kg) of ice per 24 hours at 70°F air and 50°F water, or 812 lb (368 kg) at 90°F air and 70°F water.
  • Includes an LED status display and one-touch sanitize and descaling controls.
  • Features a front-facing evaporator and dishwasher-safe food-zone components rated up to 180°F.
  • Uses R290 refrigerant and includes Harvest Assist for consistent ice production and reduced energy consumption.
  • Constructed from corrosion-resistant, fingerprint-proof aluminum with electroless nickel plating on the evaporator plates.

Overall Dimensions:

30.25"W x 24.25"D x 26.9"H

Product Weight:

212.0 lb

Air-cooled, self-contained refrigeration

The unit uses an air-cooled, self-contained condenser.

Dual exhaust

Top/side air discharge supports flexible installation requirements.

Half-size cube ice

Produces half-size cubes measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).

LED status display

Provides status information during operation.

Sanitize and descaling controls

One-touch controls support sanitize and descaling functions.

Dishwasher-safe food-zone components

Food-zone components are dishwasher-safe up to 180°F.

Harvest Assist

Specified to provide consistent ice production while reducing energy consumption.

Corrosion-resistant construction

Constructed from corrosion-resistant, fingerprint-proof aluminum, with electroless nickel plating on the evaporator plates.

Documentation

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Frequently Asked Questions

It produces 1,000 lb (454 kg) per 24 hours at 70°F air and 50°F water, and 812 lb (368 kg) per 24 hours at 90°F air and 70°F water.
It makes half-size cubes measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
The machine requires 208-230 V, 60 Hz, single-phase power, with a 13.6 A minimum circuit ampacity and a 20 A maximum breaker size.
The warranty provides 3 years of parts and labor coverage, 5 years of parts coverage on the evaporator and compressor, and 7 years of parts and labor coverage on the evaporator when enrolled in the IOM filter program in the USA and Canada.
