Ice-O-Matic CIM1136HA Elevation Series™ Ice Machines

SKU: CIM1136HA
$6,849.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

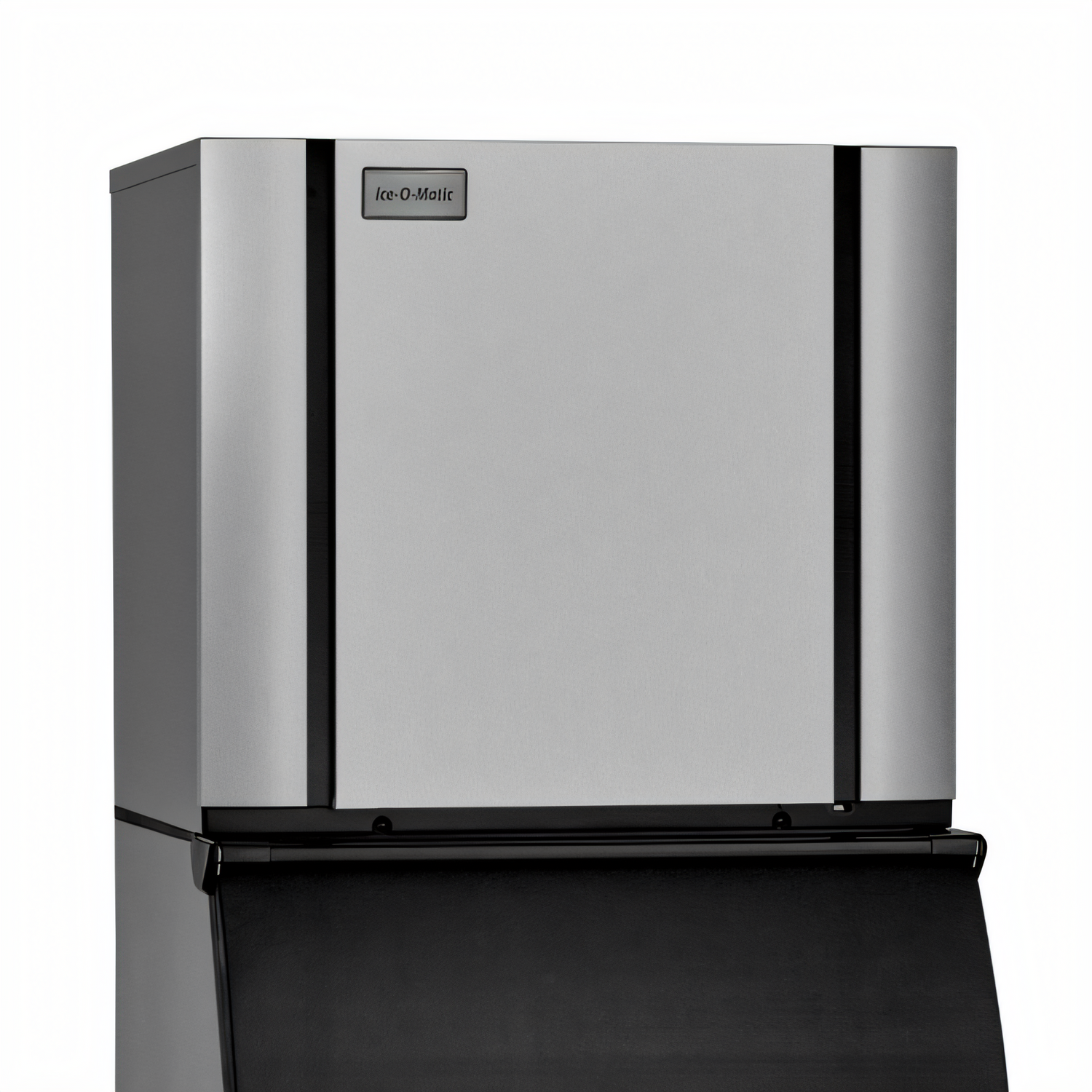

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – Model CIM1136A

30″ Wide • 932 lb / 24 hr • Half-Size Cubes • Air-Cooled

Engineered for busy kitchens, bars and beverage stations, the Elevation Series™ CIM1136A delivers high-volume, crystal-clear ice while slashing energy, water and maintenance costs. Its dual-exhaust, self-contained design drops effortlessly onto a 30″ bin and keeps service simple with snap-out, dishwasher-safe components.

Why You’ll Love It

  • Big output, small footprint — up to 932 lb (423 kg) of ice every 24 hours from a 30″-wide head.
  • Half-size cube (⅜″ × ⅞″ × ⅞″) ideal for soft-drink and cocktail applications.
  • Dual top / side exhaust lets you tuck the machine against walls or under low ceilings without overheating.
  • PURE ICE® antimicrobial protection with Agion®-treated Food Zone keeps bacteria and slime at bay.
  • One-touch sanitize & descale cycles cut cleaning time to minutes, not hours.
  • Smart LED status lights instantly show machine health and cleaning reminders.
  • Universal Smart Harness™ control board offers plug-and-play diagnostics and common parts.
  • Efficient & green—exceeds 2018 DOE standards, uses only 5.1 kWh and 13.9 gal of water per 100 lb of ice, and is built from BPA-free, recyclable materials.

Performance Data

Ice production @ 70 °F air / 50 °F water Up to 932 lb (423 kg) / 24 hr
Ice production @ 90 °F air / 70 °F water Up to 739 lb (335 kg) / 24 hr
Energy usage 5.1 kWh per 100 lb of ice
Water usage 13.9 gal potable water per 100 lb of ice
Electrical 208–230 V / 60 Hz / 1-phase (MCA 14.3 A, Max Fuse 25 A)
Refrigerant R404A
Ice type Half-Size Cube – ⅜″ × ⅞″ × ⅞″

Dimensions & Clearances

Width 30.25″ (768 mm)
Depth 24.25″ (616 mm)
Height 26.9″ (683 mm) – ice head only
Air-cooled clearance 6″ (152 mm) top or side
Shipping weight 230 lb (105 kg)

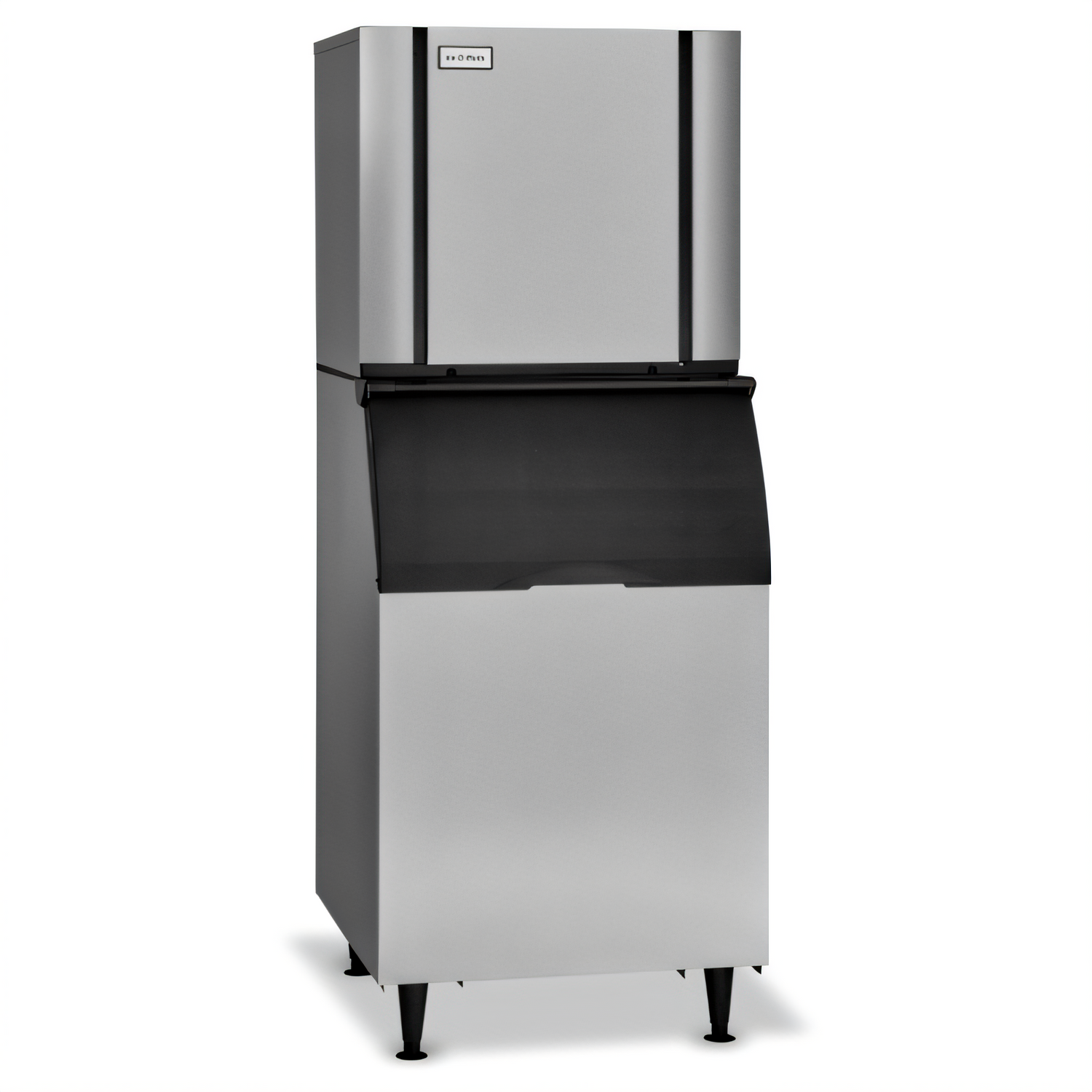

Recommended bins (no adapter kit required): B25, B40, B42 or B55. Larger bins such as B110 and above require hold-down kit BPF-1.

Certifications & Warranty

  • cULus, NSF, CE & BPA Free
  • 3-year parts & labor on the entire ice maker
  • 5-year parts on evaporator & compressor
  • 7-year parts & labor on evaporator when enrolled in the Ice-O-Matic water-filter program

Popular Accessories

  • IFQ2 manifold water-filtration system (extends warranty & reduces scale)
  • SafeIce™ ozone purification system for continuous pathogen control
  • Ice scoops, paddles & shovels: KLSCO, KSSCO, KSHOV, KICEP
Installation note: Supply 20–80 PSI potable water and maintain level mounting on a compatible bin. Always leave the full 6″ clearance for proper airflow and maximum ice yield.

Questions about bin sizing, filtration or lead time? Call our ice experts at 1-866-PURE-ICE.

Overall Dimensions:

30.25"W x 24.25"D x 26.9"H

Product Weight:

230.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free"]
Height 26.9in
Width 30.25in
Depth 24.25in
Shipping Weight 230.0lbs
Condenser Type air-cooled
Width (side - side) 30 - 39" wide
Ice Type half size / half dice cubes
Refrigeration self-contained refrigeration
Production per 24 hr 901 - 1000 lb = 409 - 454 kg
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Web site PDF Download PDF Slope front storage bins PDF Download PDF Diagram PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download
