Ice-O-Matic CIM1136FW Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ Modular Cube Ice Maker
Model CIM1136W | 30" Water-Cooled | Full-CubeEngineered for demanding food-service, hospitality and healthcare operations, the CIM1136W delivers up to 968 lb of crystal-clear, full-size cubes every 24 hours while eliminating excess heat with a self-contained water-cooled condenser. With built-in antimicrobial defense, tool-free food-zone removal and one-touch cleaning, it’s the hassle-free path to PURE ICE®.
Why You’ll Love It

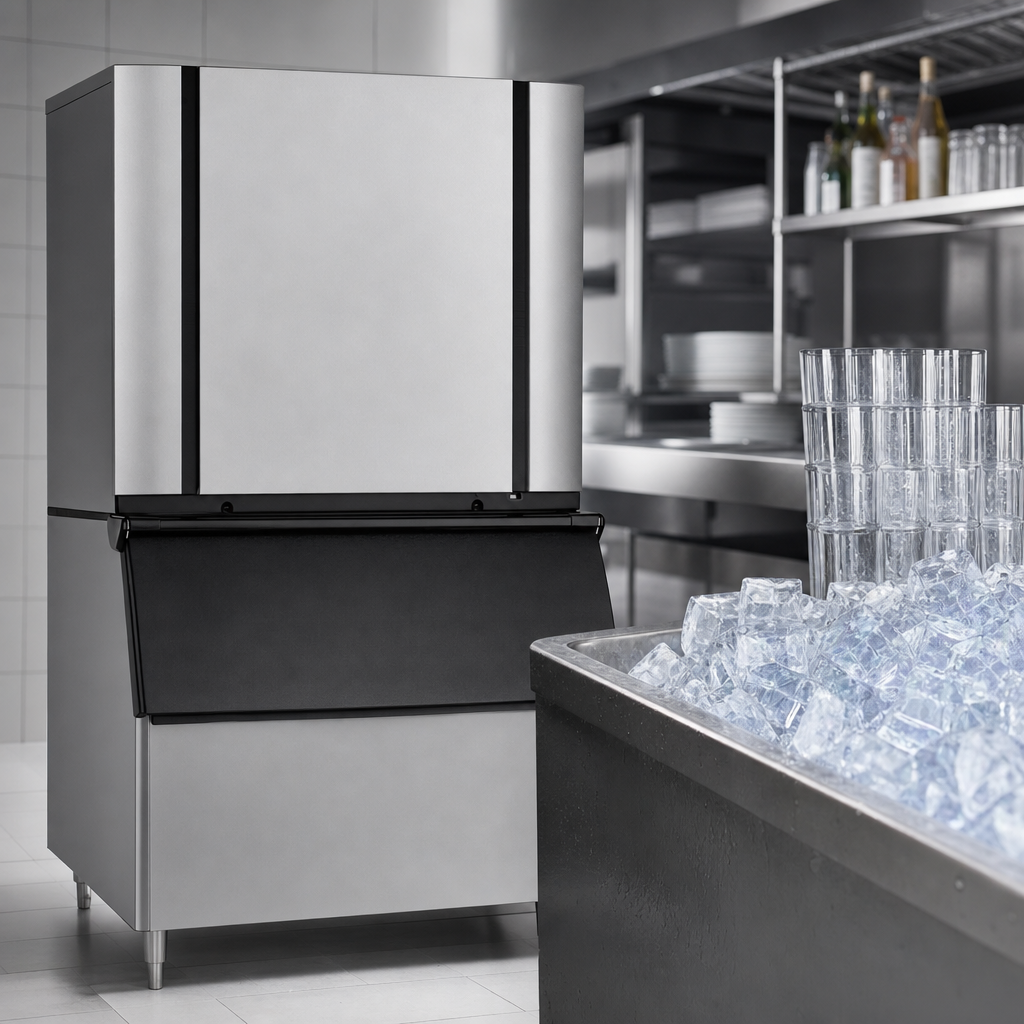

- High Output: 968 lb/day at 70 °F air / 50 °F water (851 lb at 90 °F / 70 °F).
- Full-Size Cubes: ⅞ in × ⅞ in × ⅞ in (22 mm × 22 mm × 22 mm) – perfect for drinks that stay colder, longer.
- Water-Cooled, Self-Contained: No hot-air discharge – ideal for tight or high-temperature kitchens.
- PURE ICE® Antimicrobial Protection: Agion®-treated BPA-free plastic inhibits bacteria and slime growth 24/7.
- EasyClean™ Food Zone: Snap-in/snap-out, dishwasher-safe components remove in seconds – no tools, no fuss.
- Touch-Free Sanitize & Descale: One-button cycles slash labor time and ensure consistent hygiene.
- Smart LED Status: At-a-glance lights tell staff when the machine is making ice, on standby or needs cleaning.
- Energy & Eco-Smart: Exceeds 2018 DOE efficiency standards; parts are recyclable & BPA-free.
- Universal Smart Harness™: Simplifies installation with plug-and-play wiring and onboard digital diagnostics.
Performance & Specifications
| Ice production (70 °F air / 50 °F water) | 968 lb | 439 kg / 24 h |
|---|---|
| Ice production (90 °F air / 70 °F water) | 851 lb | 386 kg / 24 h |
| Cube style / size | Full cube – ⅞ in × ⅞ in × ⅞ in (22 mm × 22 mm × 22 mm) |
| Condenser type | Water-cooled, self-contained |
| Potable water use | Approx. 4.1 gal per 100 lb of ice |
| Electrical | 208-230 V / 60 Hz / 1-phase • MCA 13.3 A • Max fuse 25 A |
| Dimensions (W × D × H) | 30.25 in × 24.25 in × 26.9 in (768 mm × 616 mm × 683 mm) |
| Refrigerant | R404A |
| Approx. shipping weight | 225 lb | 102 kg |
| Certifications | cULus • NSF • CE • BPA-Free |
Designed for Effortless Sanitation
- Dishwasher-Safe Food Zone: Removable water-distribution tube, curtain, pump & more – all washable at high heat.
- One-Touch Clean: Automatic sanitize and descale cycles reduce chemical handling and training.
- Slime-Free Operation: Agion® antimicrobial slows biofilm growth on internal surfaces.
- Optional SafeIce™ UV-Ozone System: Destroys viruses, mold and odors, extending machine life up to 30% (factory or field install).
Installation & Bin Compatibility
This 30-inch modular head pairs perfectly with Ice-O-Matic B-series slope-front or upright bins such as the B55PS, B110PS or B700-30 (adapter kits may be required). Plumbing for potable water, condenser water and drain lines is necessary; see spec sheet for connections and clearances.
Strong Warranty Coverage
- Ice Maker: 3 years parts & labor
- Evaporator & Compressor: 5 years parts
- 7-year evaporator parts & labor when installed with an Ice-O-Matic water filter and registered in the Filter Program (USA/Canada)
