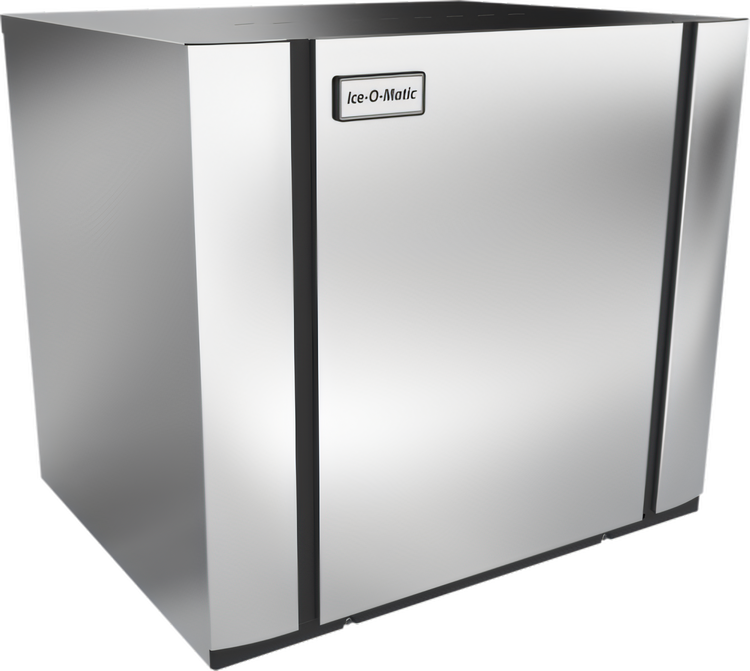

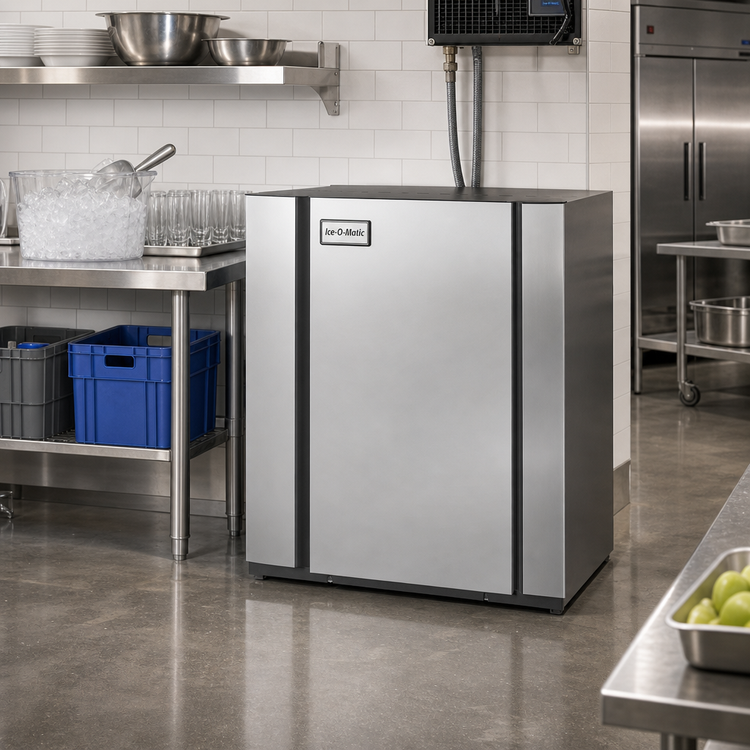

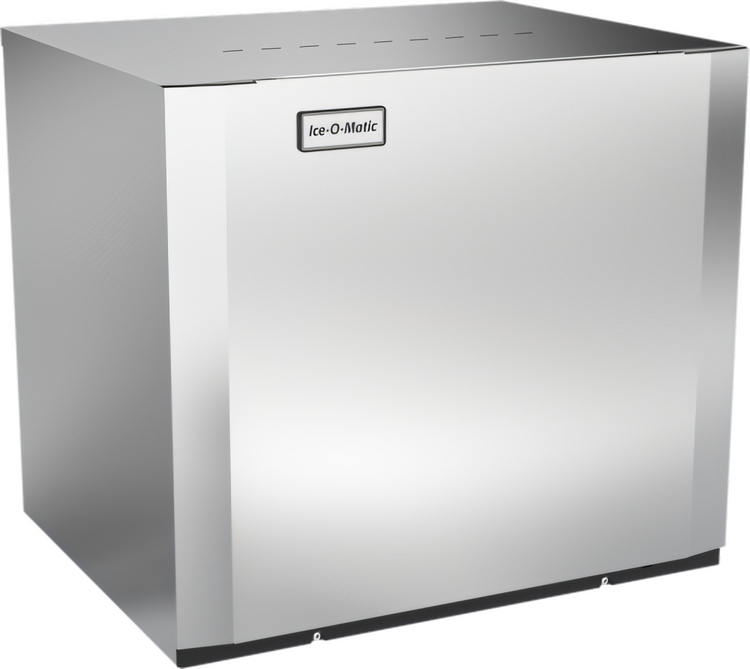

Ice-O-Matic Elevation Series Modular Full-Size Cube Ice Maker, Remote-Cooled, 930 lb/Day, 30-Inch Wide

Remote Refrigeration Required, 208-230V, 1-Phase, R449A

High-output modular ice maker built for easy cleaning, flexible bin/dispenser installation, and remote refrigeration setups.

  • Produces about 930 lb of full-size cube ice per day at standard conditions.
  • Remote-cooled modular design installs on bins or dispensers for flexible layouts.
  • LED status display and one-touch sanitize/descaling controls simplify operation.
  • Front-facing evaporator and dishwasher-safe food-zone components help speed cleaning.
  • Harvest Assist technology supports consistent production while reducing energy use.
  • Runs on 208-230V/60Hz/1-phase power and uses R449A refrigerant.

Overall Dimensions:

30.25"W x 24.25"D x 26.9"H

Product Weight:

211.0 lb

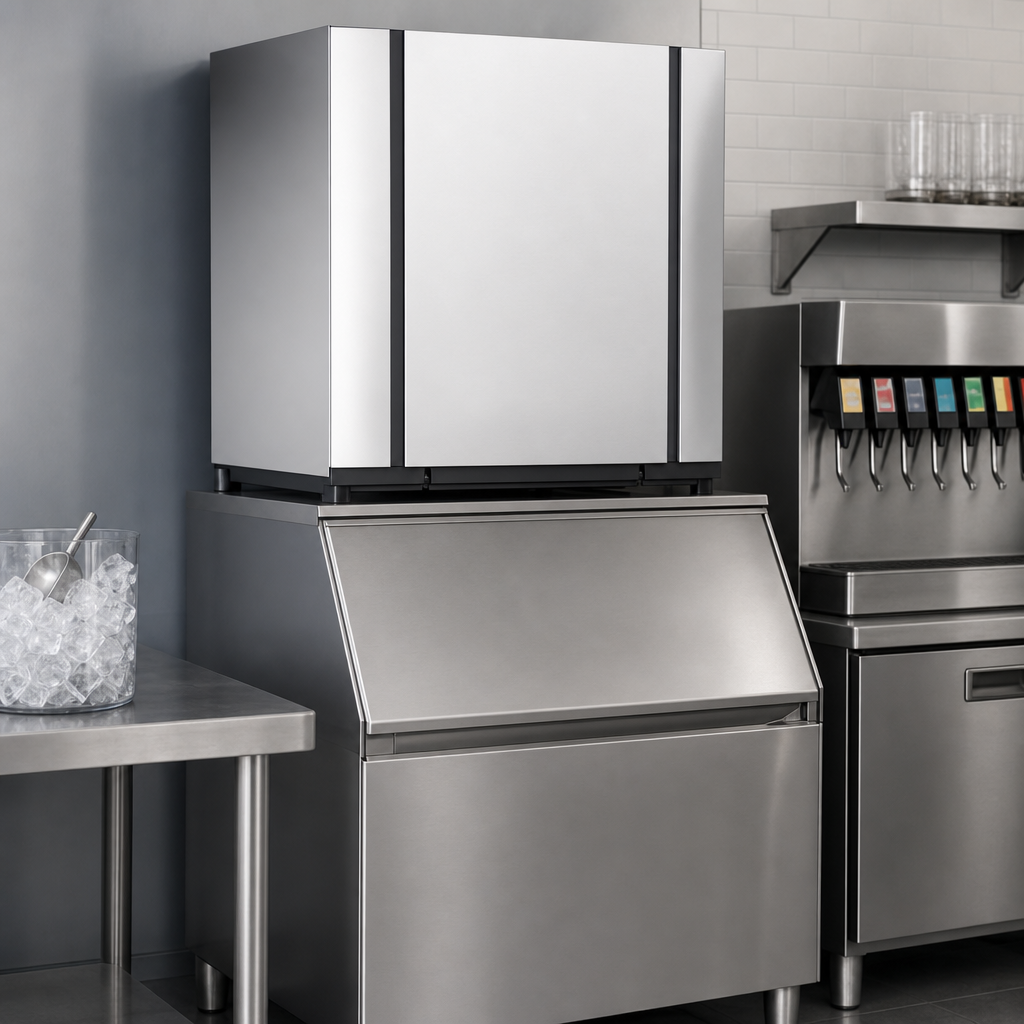

Modular Top-Mount Design

Designed for flexible installation on ice bins or beverage dispensers.

Modular Top-Mount Design

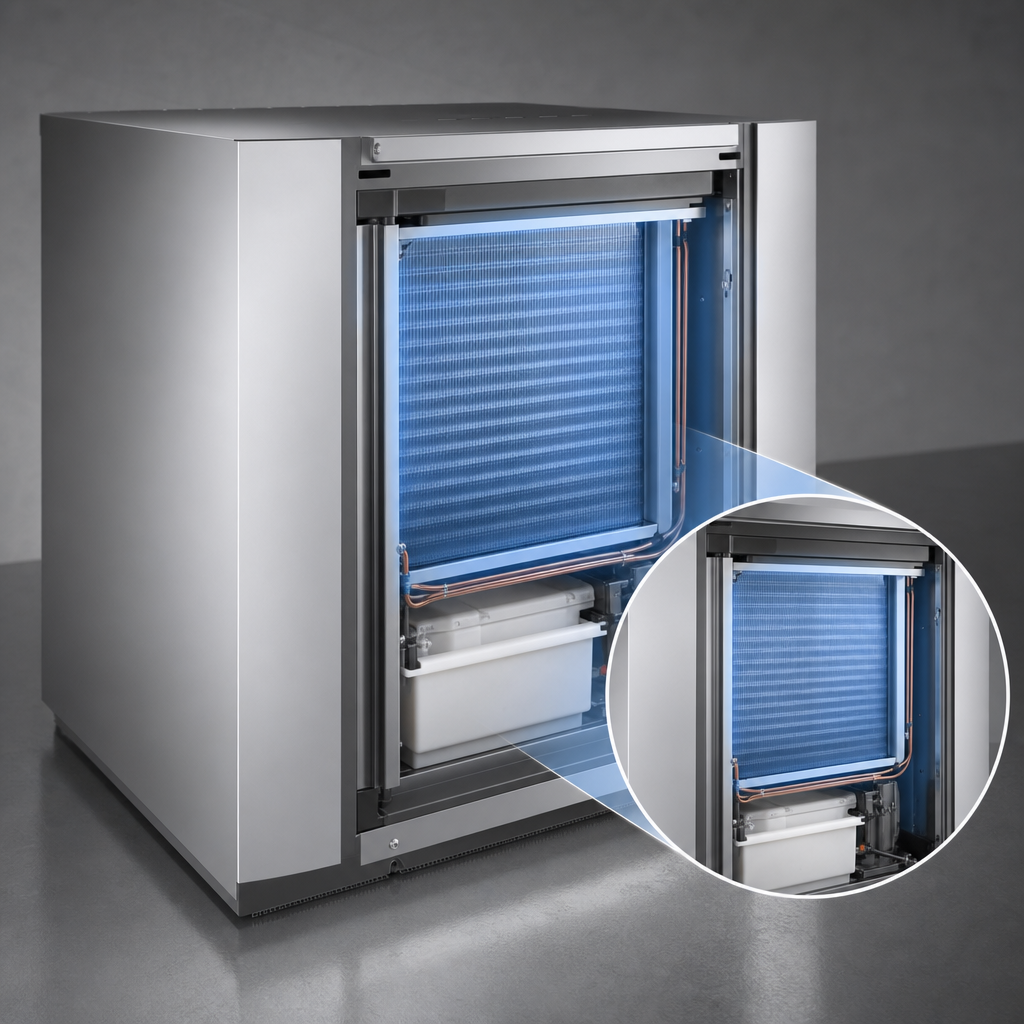

Front-Facing Evaporator

Improves access for cleaning and servicing.

Front-Facing Evaporator

Dishwasher-Safe Food Zone Components

Plastic food-zone parts are dishwasher safe up to 180°F for easier maintenance.

Harvest Assist Technology

Helps deliver consistent ice production over the life of the machine while reducing energy consumption and increasing capacity.

Electroless Nickel-Plated Evaporator Plates

Adds durability and helps support long-term reliability.

Corrosion-Resistant Aluminum Construction

Fingerprint-proof aluminum construction supports durability in busy environments.

LED Status Display And One-Touch Cleaning Controls

LED status display and one-touch sanitize/descaling controls simplify routine operation.

Remote Condenser Compatibility

Pairs with the RC206C49 remote condenser and RL49-25, RL49-40, and RL49-75 precharged linesets.

Type Modular Cube Ice Maker
Style Elevation Series
Ice Type Full Size Cube
Ice Production 930 lb per 24 Hours
Refrigeration Type Remote
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 14.2 Amps
Breaker Size 20 Amps
BTU 17,400 BTU per Hour
Refrigerant Type R449A
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator with filter program enrollment.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Options PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces full-size cube ice, measuring 7/8 x 7/8 x 7/8 in.
Approximately 930 lb per 24 hours at 70°F air / 50°F water, or 803 lb per 24 hours at 90°F air / 70°F water.
It requires 208-230V/60Hz/1-phase power, with a 14.2A minimum circuit and a 20A max breaker.
No. This is a remote-cooled model and pairs with the RC206C49 remote condenser and RL49-25, RL49-40, or RL49-75 linesets.
It has a front-facing evaporator, dishwasher-safe food-zone components, and one-touch sanitize/descaling controls.
