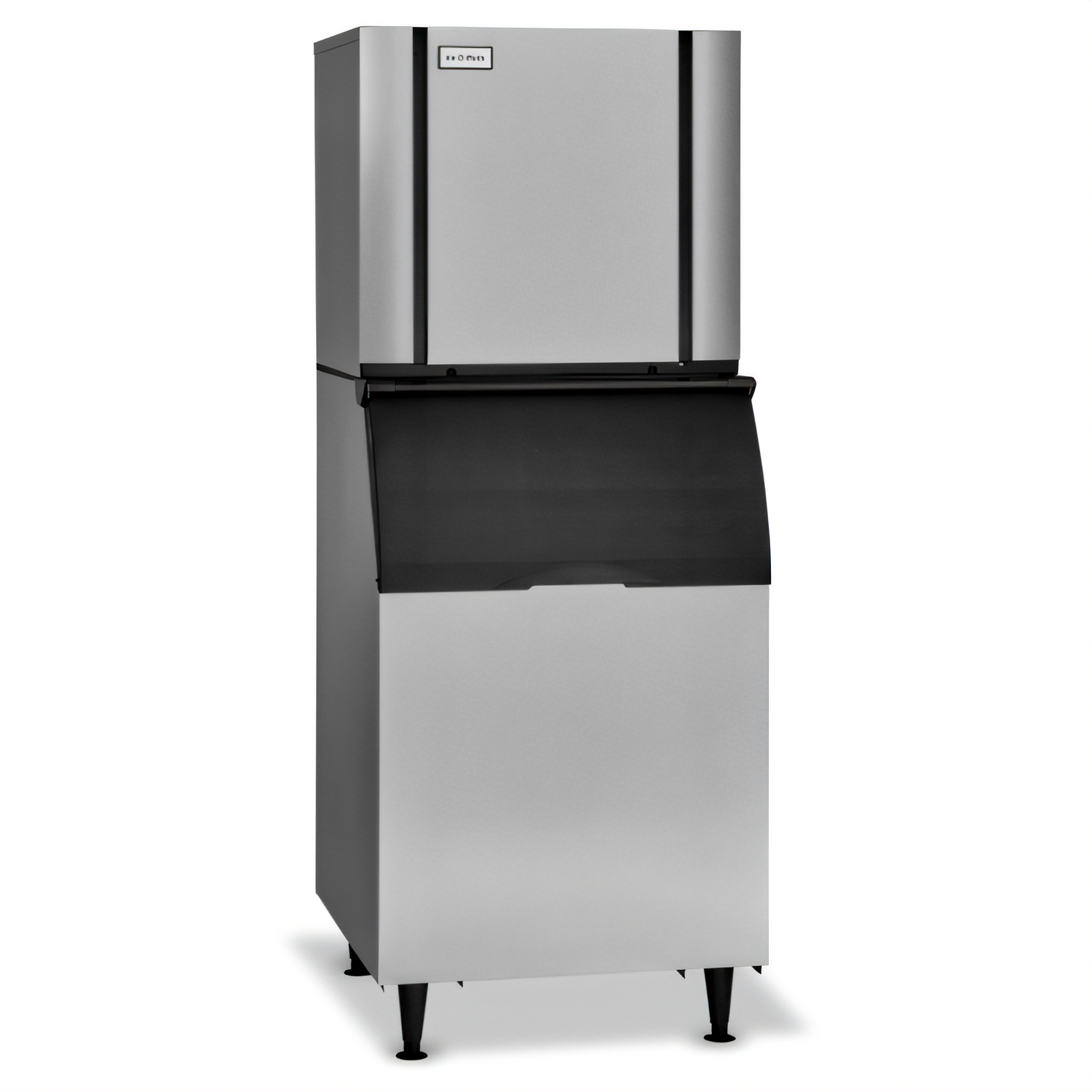

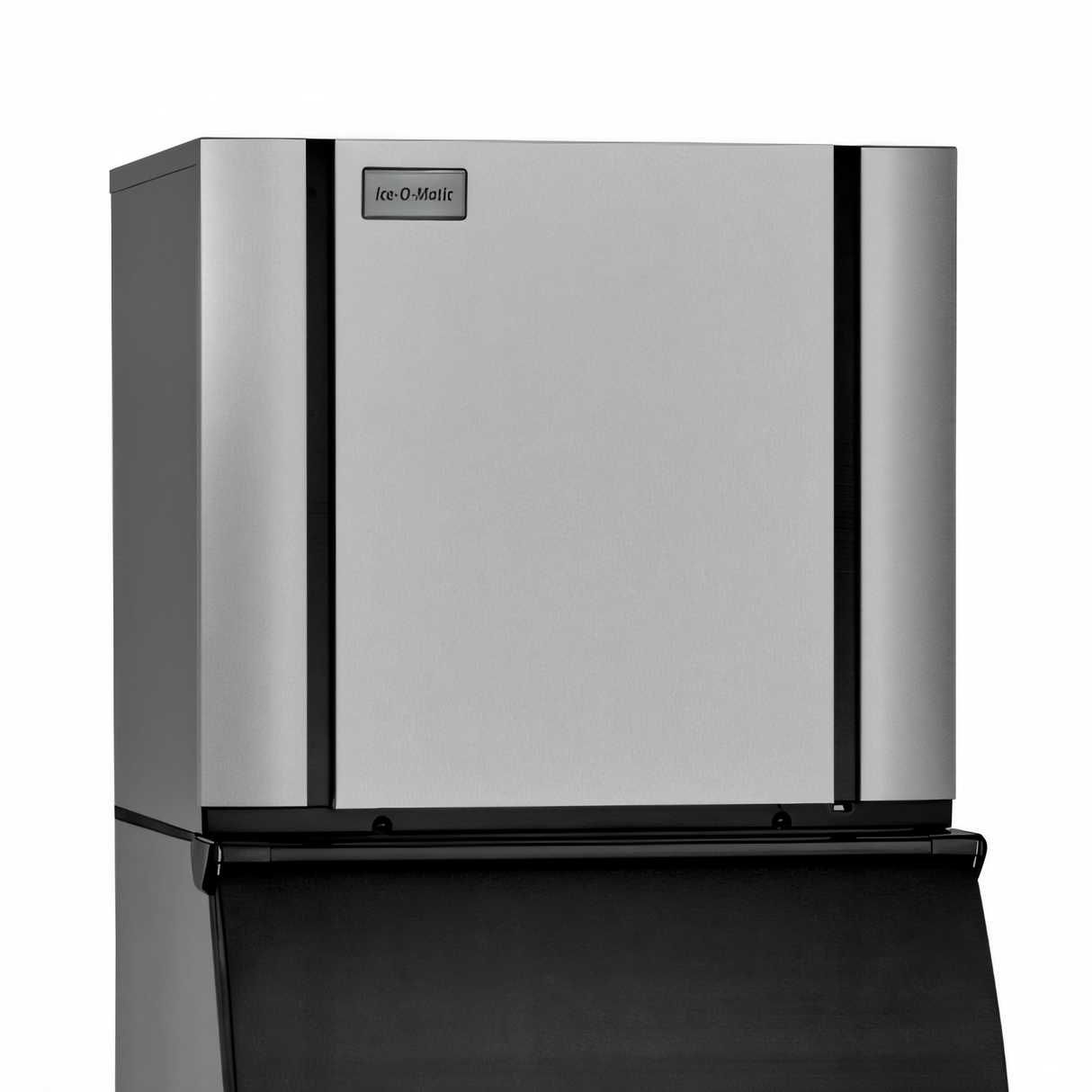

Elevation Series™ CIM1136R Remote Modular Cube Ice Maker
Full-Cube | ≈ 968 lb / 24 hr | 30 in wideEngineered for high-volume, high-sanitation food-service environments, the Ice-O-Matic Elevation Series™ CIM1136R delivers nearly half a ton of crystal-clear full cubes every day while keeping upkeep as easy as a single button-press. Pair it with the remote air-cooled condenser (sold separately) and enjoy cooler kitchens, lower energy bills, and dependable PURE ICE® antimicrobial protection shift after shift.
Performance & Efficiency

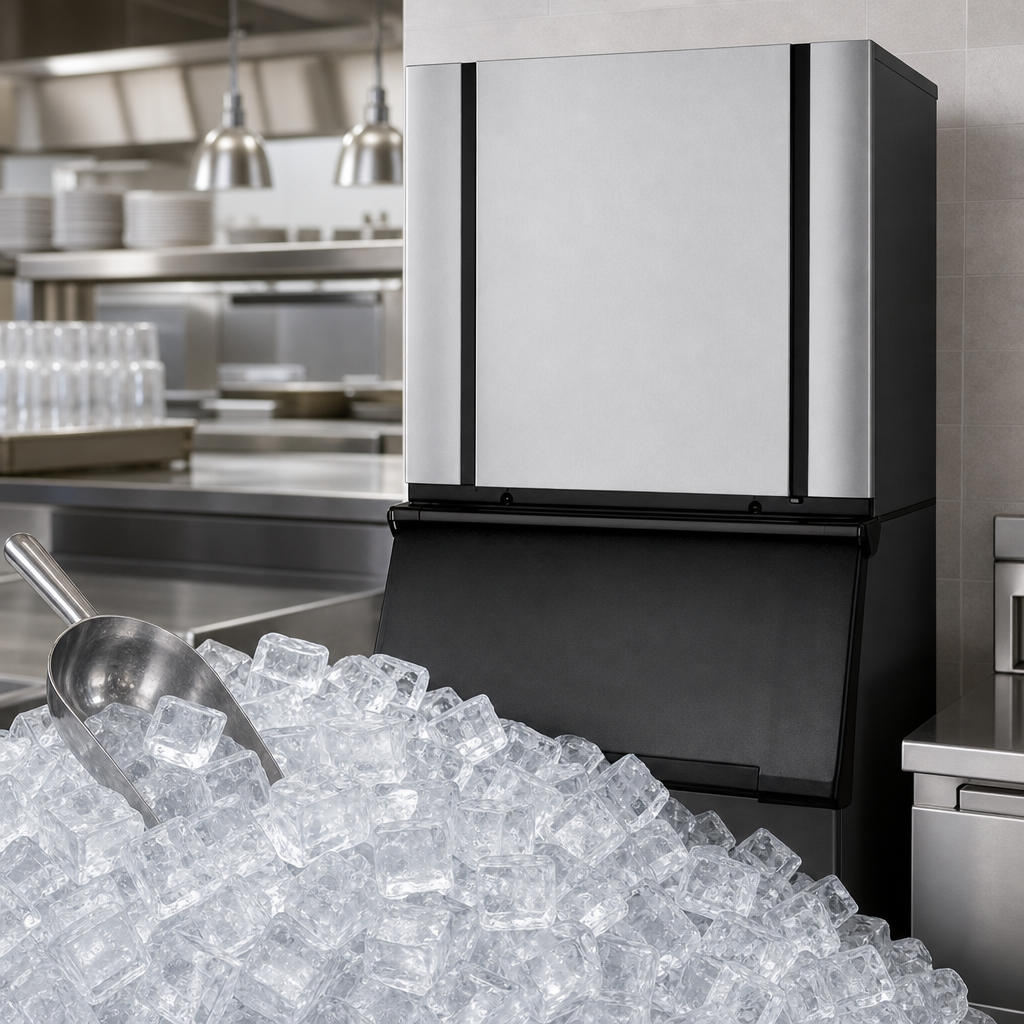

- Approximately 968 lb (439 kg) of ice per 24 hr at 70 °F air / 50 °F water.
- 855 lb production at 90 °F air / 70 °F water keeps pace during peak summer demand.
- Remote air-cooled condenser removes heat from the kitchen, lowering ambient temps and HVAC load.
- Exceeds 2018 DOE energy standards; only 4.9 kWh and 19 gal of potable water per 100 lb of ice.
Simplified Sanitation
- PURE ICE® Agion® antimicrobial protection is molded directly into key components.
- Color-coded LED status light tells staff exactly when cleaning is needed.
- One-touch sanitize & descale cycle—no complex menus.
- Food-zone parts are BPA-free, snap-in / snap-out, and completely dishwasher safe.
Smart Construction
- Universal Smart Harness™ control board with digital diagnostics speeds installation & service.
- Plastic food zone eliminates hard-to-reach nooks found in stainless designs.

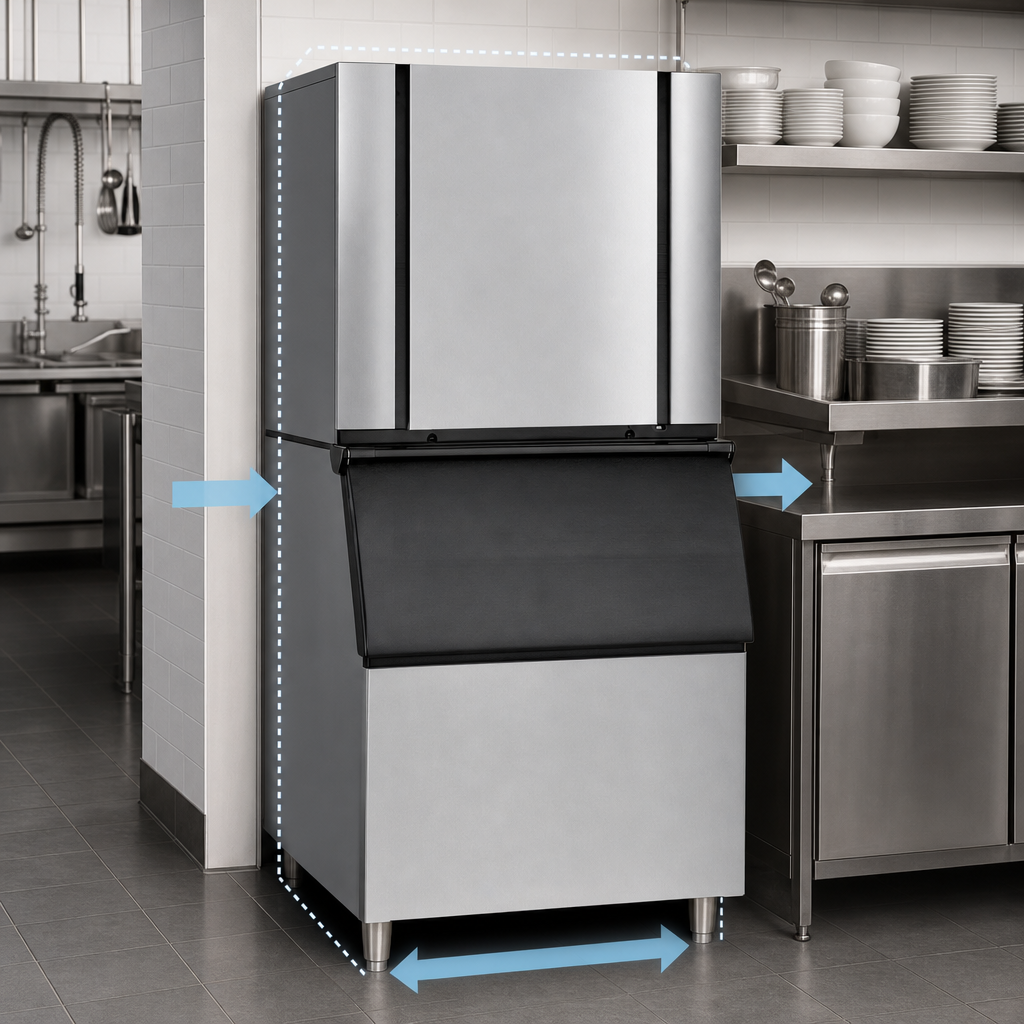

- 30.25 in (768 mm) space-saving width fits on 30 in bins or beverage dispensers with adapter kits.
- Optional SafeIce™ UV-ozone purification system destroys viruses, mold, and odors—factory or field install.
Certifications & Warranty
- cULus, NSF, CE listed — meets code worldwide.
- BPA-Free construction for food-safety peace of mind.
- 3-year parts & labor warranty on the entire machine.
- 5-year parts coverage on the compressor & evaporator (7 years with Ice-O-Matic filter program).
Technical Specifications
| Ice type | Full cube | ⅞ in × ⅞ in × ⅞ in (22 × 22 × 22 mm) |
|---|---|
| Daily production @ 70 °F / 50 °F | ≈ 968 lb / 439 kg |
| Daily production @ 90 °F / 70 °F | ≈ 855 lb / 388 kg |
| Energy consumption | 4.9 kWh per 100 lb of ice |
| Water usage (potable) | 19 gal per 100 lb of ice |
| Dimensions (W × D × H) | 30.25 × 24.25 × 26.9 in (768 × 616 × 683 mm) |
| Electrical | 208–230 V / 60 Hz / 1-phase | MCA 14.3 A | Max breaker 15 A |
| Refrigerant | R-404A |
| Shipping weight | 235 lb / 107 kg (machine head only) |
| Compatible bins (Ice-O-Matic) | B25, B40, B42, B55, B110 (adapter kits may be required) |
| Remote condenser | Model RCA-2061 (required, sold separately) |
Ice production ratings are approximate and based on ARI test conditions. Actual performance may vary with site-specific water and air temperatures.
$6,910.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
High-capacity Ice-O-Matic CIM1136FR Elevation modular cube maker—968 lb/day, PURE ICE antimicrobial, LED display, one-touch sanitize, NSF cULus certified.
Manufacturer
Ice-O-Matic
Brand name
Elevation Series™
Certifications
NSF, CE, cULus, BPA Free
Height
33.0in
Width
27.0in
Depth
33.0in
Shipping Weight
218.0lbs
Production per 24 hr
901 - 1000 lb = 409 - 454 kg
Condenser Type
air-cooled
Ice Type
full size / dice cubes
Width (side - side)
30 - 39" wide
Refrigeration
remote (refrigeration not included)
Specifications
Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30" W, approximately 968 lb production/24 hours at 70°/50° (855 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
