Ice-O-Matic Elevation Series Modular Full Cube Ice Maker, Air-Cooled, Self-Contained, 960 lb/24 Hr, 30.25 Inch Wide

SKU: CIM1136FA49
$6,875.37
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Machines & Ice Equipment Ice Makers & Bins Ice-O-Matic New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

Ice-O-Matic Elevation Series Modular Full Cube Ice Maker, Air-Cooled, Self-Contained, 960 lb/24 Hr, 30.25 Inch Wide

Dual Exhaust Air Discharge, LED Status Display, One-Touch Sanitize/Descale

This modular cube ice maker delivers up to 960 lb of full-size ice per day in an easy-to-clean, service-friendly design built for bins or dispensers.

  • Produces approximately 960 lb of full cube ice per 24 hours at 70°F air / 50°F water.
  • Modular 30.25-inch-wide design mounts on top of compatible bins or dispensers.
  • Air-cooled, self-contained condenser with dual top/side exhaust supports flexible installation.
  • Front-facing evaporator and dishwasher-safe food zone components help speed cleaning.
  • Harvest Assist technology supports consistent production while reducing energy use.
  • LED status display and one-touch sanitize/descale controls simplify operation and maintenance.

Overall Dimensions:

30.25"W x 24.25"D x 26.9"H

Product Weight:

211.0 lb

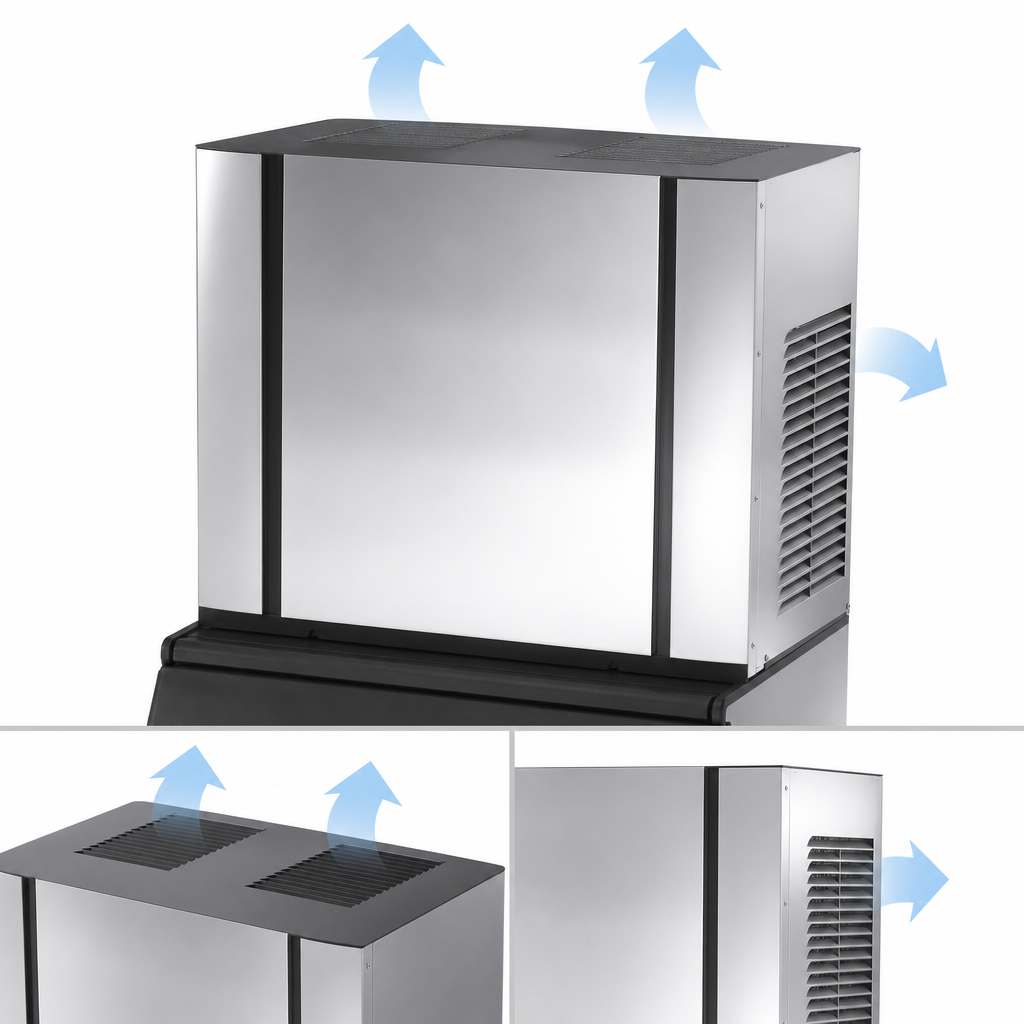

Modular Dual-Exhaust Design

Designed for flexible use on bins or dispensers with top/side air discharge for easier installation.

Modular Dual-Exhaust Design

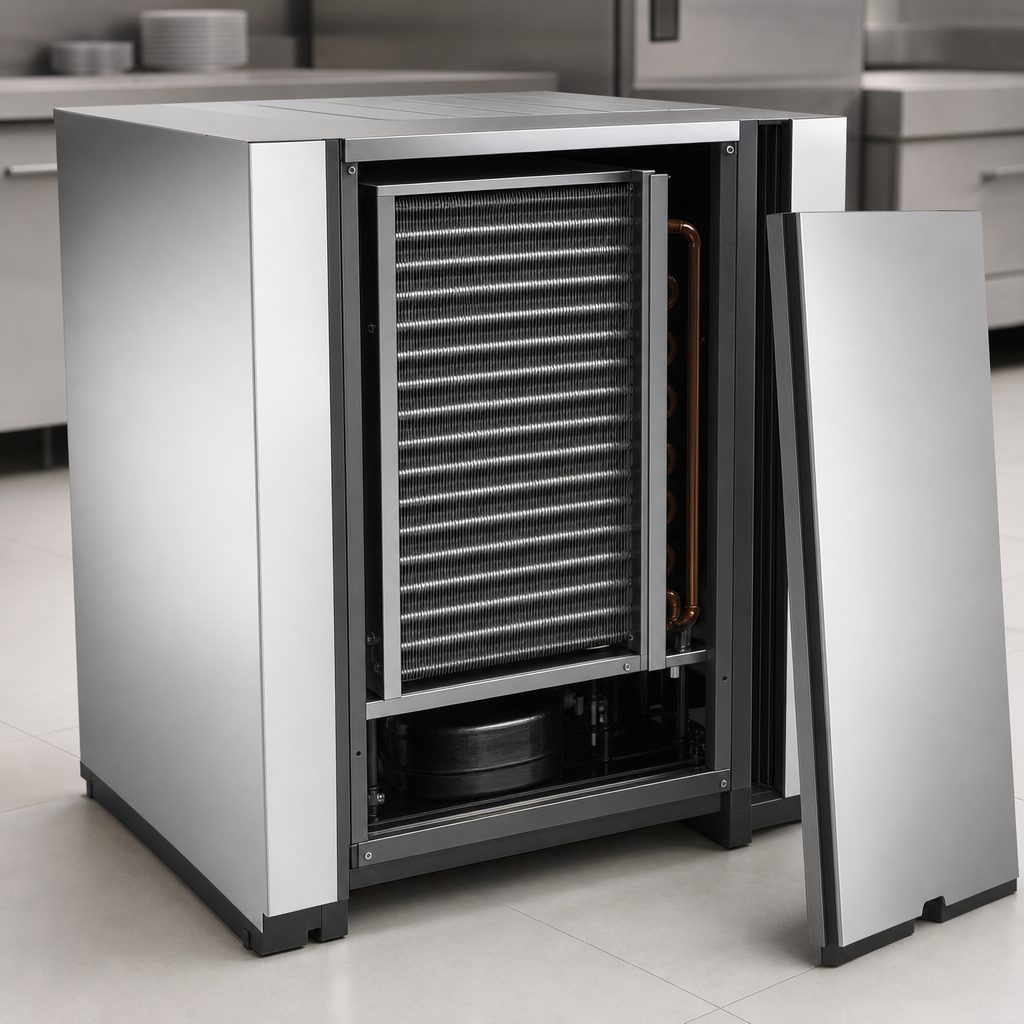

Front-Facing Evaporator

Improves access for cleaning and routine maintenance.

Front-Facing Evaporator

Dishwasher-Safe Food Zone Components

Plastic components can be cleaned in a dishwasher up to 180°F.

Harvest Assist Technology

Helps maintain consistent ice production while reducing energy consumption and increasing capacity.

Electroless Nickel-Plated Evaporator Plates

Adds reliability and long-term durability.

Corrosion-Resistant Aluminum Construction

Fingerprints and corrosion are reduced to help the machine stay looking clean.

LED Status Display and Sanitize/Descale Controls

Provides clear machine status and simple one-touch cleaning functions.

Full Cube Ice Form

Produces full-size cubes measuring 7/8 x 7/8 x 7/8 in. (22 x 22 x 22 mm).

Type Ice Maker
Style Modular
Ice Type Full Cube
Condenser Type Air-Cooled
Refrigeration Type Self-Contained
Capacity 960 lb per 24 Hours
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 13.8 Amps
Breaker Size 25 Amps
BTU 17,400 BTU/hr
Refrigerant Type R449A
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Controls Electronic
Material Aluminum
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces full cube ice measuring 7/8 x 7/8 x 7/8 in. (22 x 22 x 22 mm).
Approximately 960 lb per 24 hours at 70°F air / 50°F water.
Yes. The modular design with dual exhaust is intended for flexible installation on top of bins or dispensers.
It has a front-facing evaporator, dishwasher-safe plastic components, and one-touch sanitize/descale controls.
It requires 208-230V, 60 Hz, single-phase power, a 3/8 in. FPT potable water inlet, and a 3/4 in. FPT ice maker drain.
The ice maker has a 3-year parts and labor warranty, the evaporator and compressor have a 5-year parts warranty, and the evaporator has a 7-year parts and labor warranty if enrolled in the filter program.
