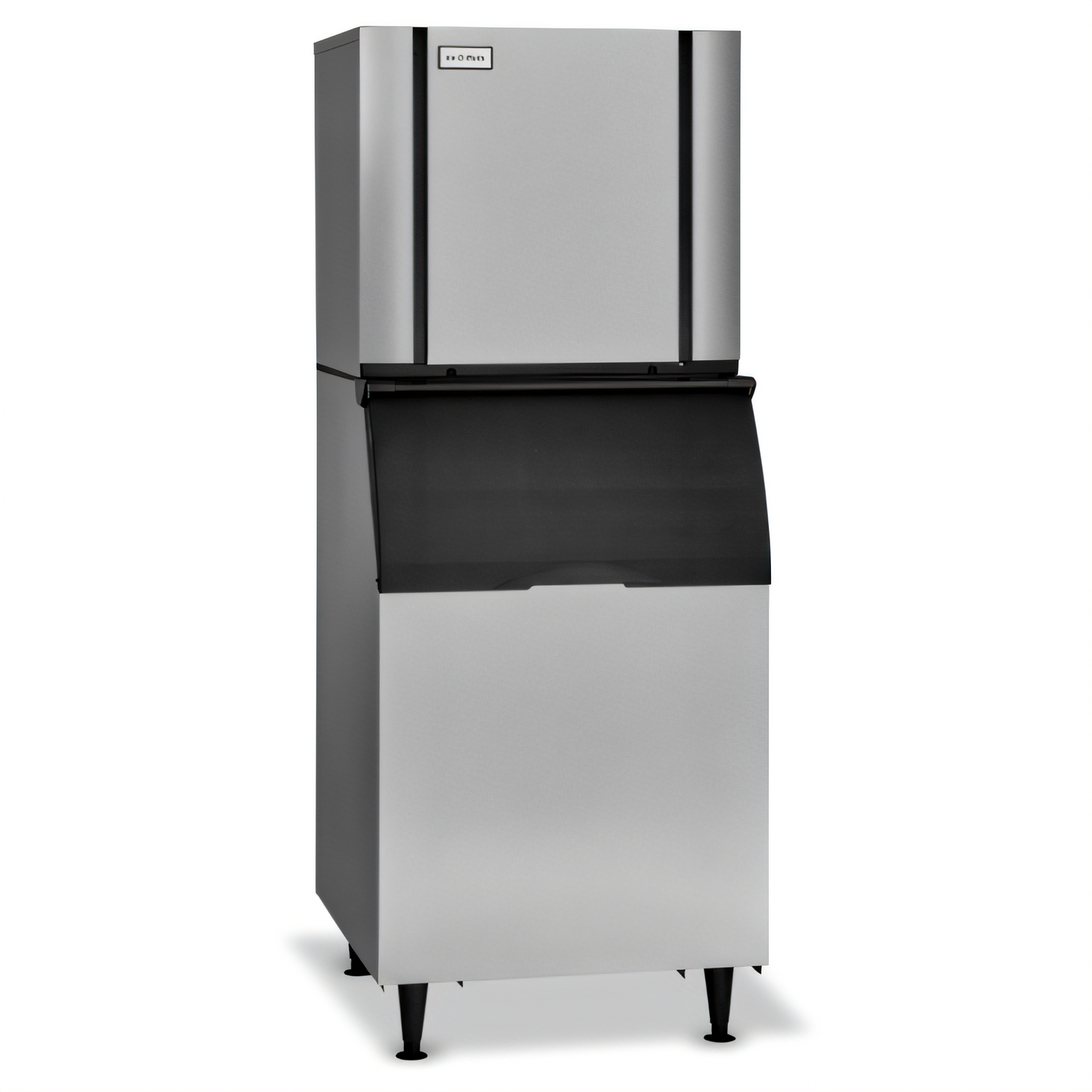

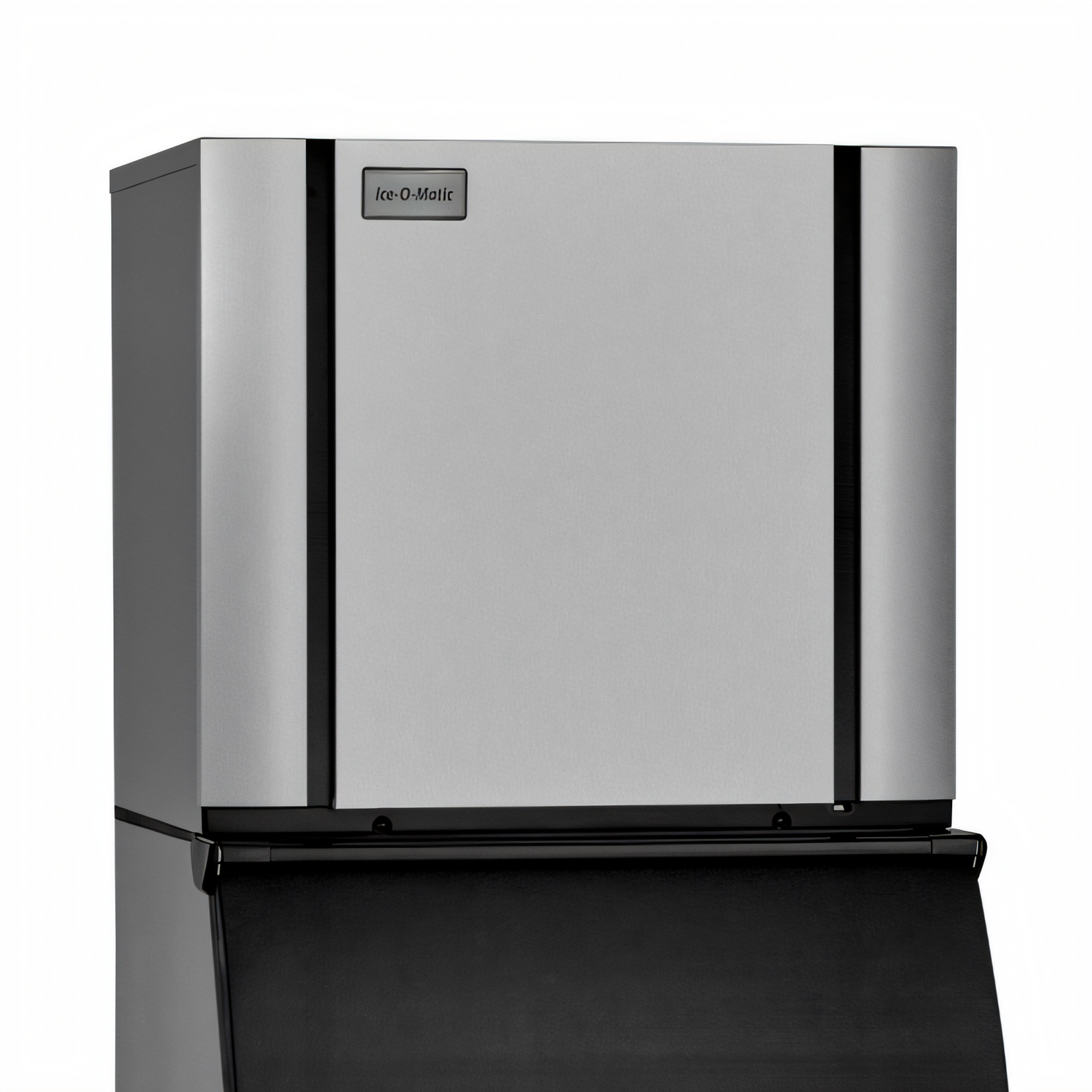

Ice-O-Matic Elevation Series™ CIM1136A Modular Cube Ice Maker

Air-cooled • 30 in (768 mm) wide • Full-size cubes

Built for high-demand kitchens, bars, hotels, and healthcare facilities, the Elevation Series™ CIM1136A powers through up to 932 lb / 24 hr of crystal-clear, full-size cubes— all while making cleaning and compliance practically effortless.

Performance & Convenience

  • High output: 932 lb (423 kg) at 70 °F air / 50 °F water; 762 lb (346 kg) at 90 °F / 70 °F.
  • Full cube (7/8 in³) delivers maximum cooling with slower melt for beverages & bulk storage.
  • Self-contained air-cooled condenser with unique dual exhaust (top & side) for tight installs.
  • Exceeds 2018 DOE energy standards—up to 20 % more efficient than previous models.

Sanitation Made Simple

  • PURE ICE® Agion antimicrobial is infused directly into food-zone components.
  • One-touch sanitize & descale cycles slash downtime and labour.
  • BPA-free, snap-in / snap-out parts are 100 % dishwasher safe.
  • Smart LED status light shows machine health and when cleaning is due.

Smart Engineering

  • Universal Smart Harness™ control board with digital diagnostics speeds service calls.
  • R404A refrigeration, recyclable plastics, and ENERGY-wise design for a lower footprint.
  • cULus, NSF, CE listed & BPA Free for worry-free code compliance.

Specifications

Model CIM1136A
Ice type Full cube – 7/8 in x 7/8 in x 7/8 in (22 × 22 × 22 mm)
Production @ 70 °F/50 °F Approx. 932 lb / 423 kg per 24 hr
Production @ 90 °F/70 °F Approx. 762 lb / 346 kg per 24 hr
Condenser Self-contained, air-cooled (dual exhaust)
Dimensions (W × D × H) 30.25 in × 24.25 in × 26.9 in (768 × 616 × 683 mm)
Electrical 208-230 V / 60 Hz / 1 ph – 14.3 MCA – 15 A max breaker
Energy usage 13.9 kWh per 100 lb of ice
Water usage 5.1 gal potable water per 100 lb of ice
Net / Shipping weight ≈ 210 lb / 230 lb (95 / 105 kg)
Refrigerant R404A
Certifications cULus, NSF, CE, BPA Free

Popular Add-Ons

  • IFQ2 water filter manifold – improves ice quality & extends evaporator warranty to 7 years.
  • B55PS or B110PS bins – slope-front storage from 510 lb to 854 lb (sold separately).
  • SafeIce™ purification system – actively destroys viruses, bacteria & mould (factory or field install).

Need help pairing a bin or filter? Our team will size the perfect combination for you.

Warranty Coverage

3 years parts & labor on the entire ice maker, plus 5 years parts on the evaporator and compressor. Register an Ice-O-Matic filter at install to extend evaporator protection to 7 years parts & labor.

Heads-up: This listing is for the ice maker head only. Ice bin, water filter, and SafeIce device are not included and must be purchased separately.

Overall Dimensions:

27.0"W x 33.0"D x 33.0"H

Product Weight:

209.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free"]
Height 33.0in
Width 27.0in
Depth 33.0in
Shipping Weight 209.0lbs
Width (side - side) 30 - 39" wide
Condenser Type air-cooled
Ice Type full size / dice cubes
Production per 24 hr 901 - 1000 lb = 409 - 454 kg
Refrigeration self-contained refrigeration
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
