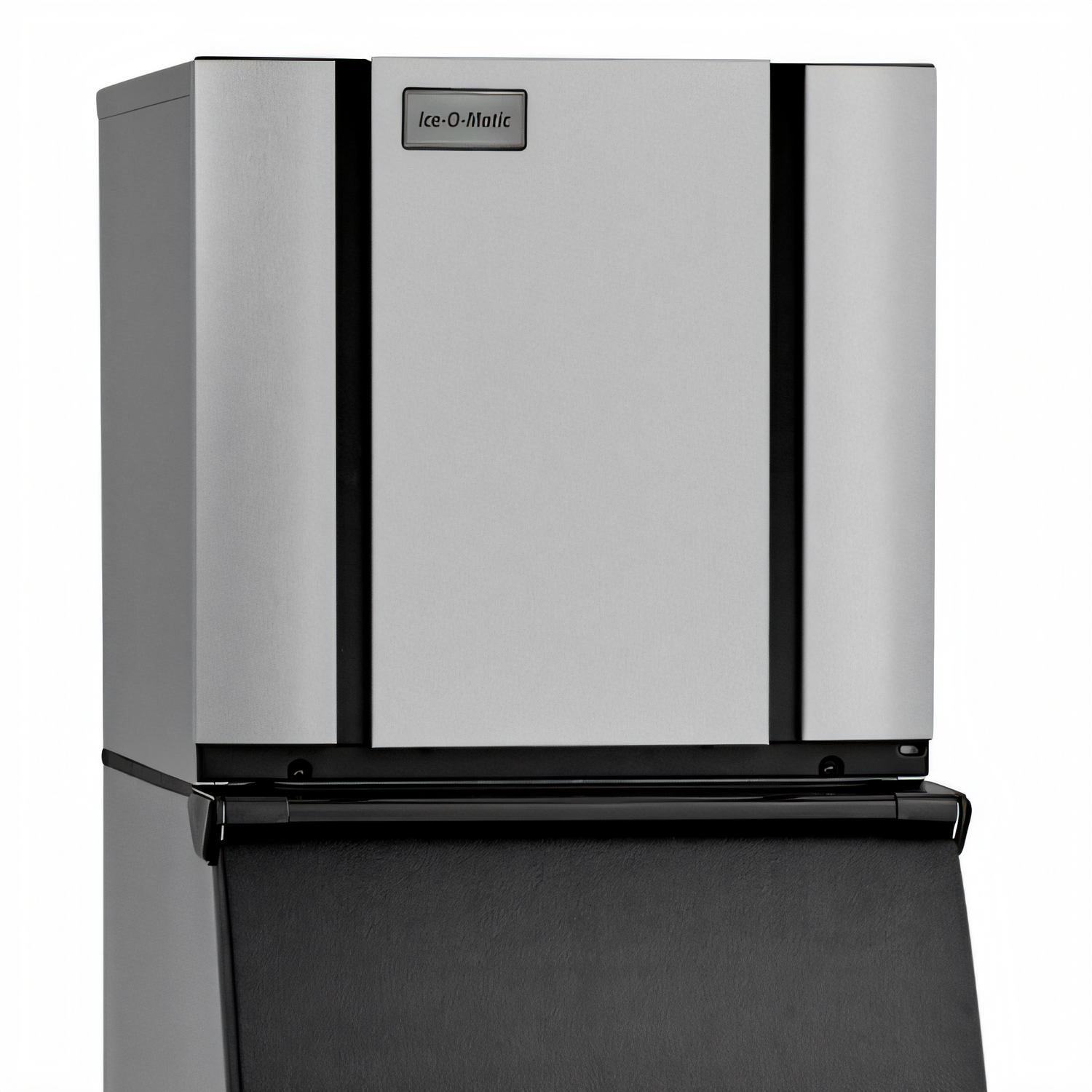

Ice-O-Matic CIM1126HW Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ Modular Cube Ice Maker – Water-Cooled
Model CIM1126W • 22 in wide • Half-Cube Ice • Replaces ICE0926HWProduce nearly a half-ton of crystal-clear ice every day in a compact 22 inch footprint. Ice-O-Matic’s Elevation Series™ CIM1126W combines PURE ICE® antimicrobial protection, intuitive one-touch sanitation, and a water-cooled, self-contained condenser to deliver dependable ice production even in hot, restricted-ventilation environments.
Why Choose the Elevation Series™ CIM1126W
- High production, small space – up to 968 lb of ice in 24 hours at 70 °F/50 °F water.
- Stays cleaner, longer – PURE ICE® built-in Agion® antimicrobial plus a seamless, BPA-free plastic food zone.
- One-touch hygiene – sanitize or descale the entire food zone with a single button; core components are snap-out & dishwasher safe.
- Smart LED status display – instant feedback on machine health and cleaning reminders.
- Universal Smart Harness™ – digital diagnostics and common parts simplify service and reduce downtime.
- Energy & environment forward – exceeds 2018 DOE regulations; recyclable parts & BPA-free plastics.
- Certified safe – cULus, NSF, CE listed.
Performance & Specifications
| Ice production (70 °F air / 50 °F water) | ≈ 968 lb (439 kg) / 24 hr |
|---|---|
| Ice production (90 °F air / 70 °F water) | ≈ 896 lb (406 kg) / 24 hr |

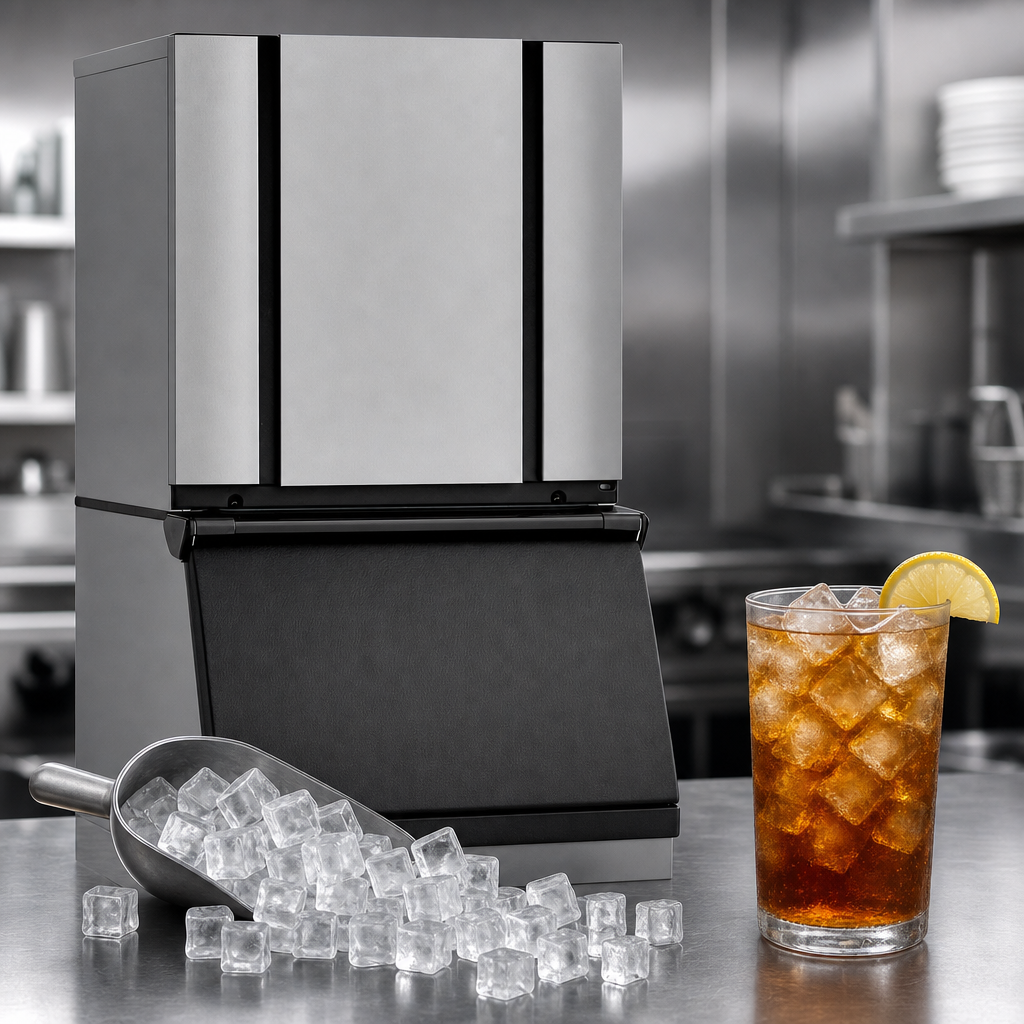

| Ice type | Half Cube – ⅜ in × ⅞ in × ⅞ in (10 × 22 × 22 mm) |

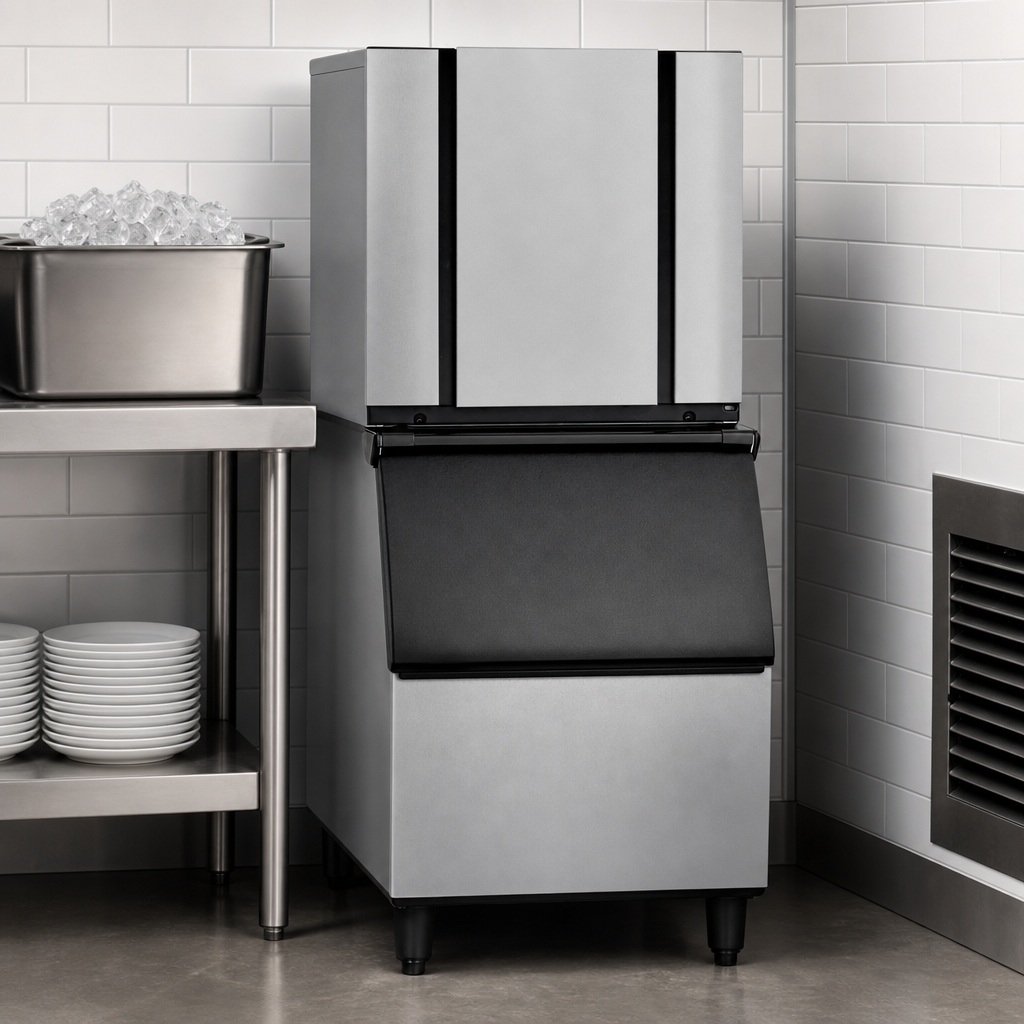

| Condenser | Self-contained, water-cooled |
| Dimensions (W × D × H) | 22.25 in × 24.25 in × 26.9 in 565 mm × 616 mm × 683 mm |
| Electrical | 208-230 V / 60 Hz / 1-ph – 12.8 MCA – 25 A max fuse |
| Water usage | ≈ 140 gal potable water per 100 lb of ice |
| Refrigerant | R404A |
| Certifications | cULus, NSF, CE, BPA Free |
| Warranty | 3 yr parts & labor / 5 yr parts on evaporator & compressor 7 yr evaporator parts & labor with Ice-O-Matic filter program |
Recommended Accessories

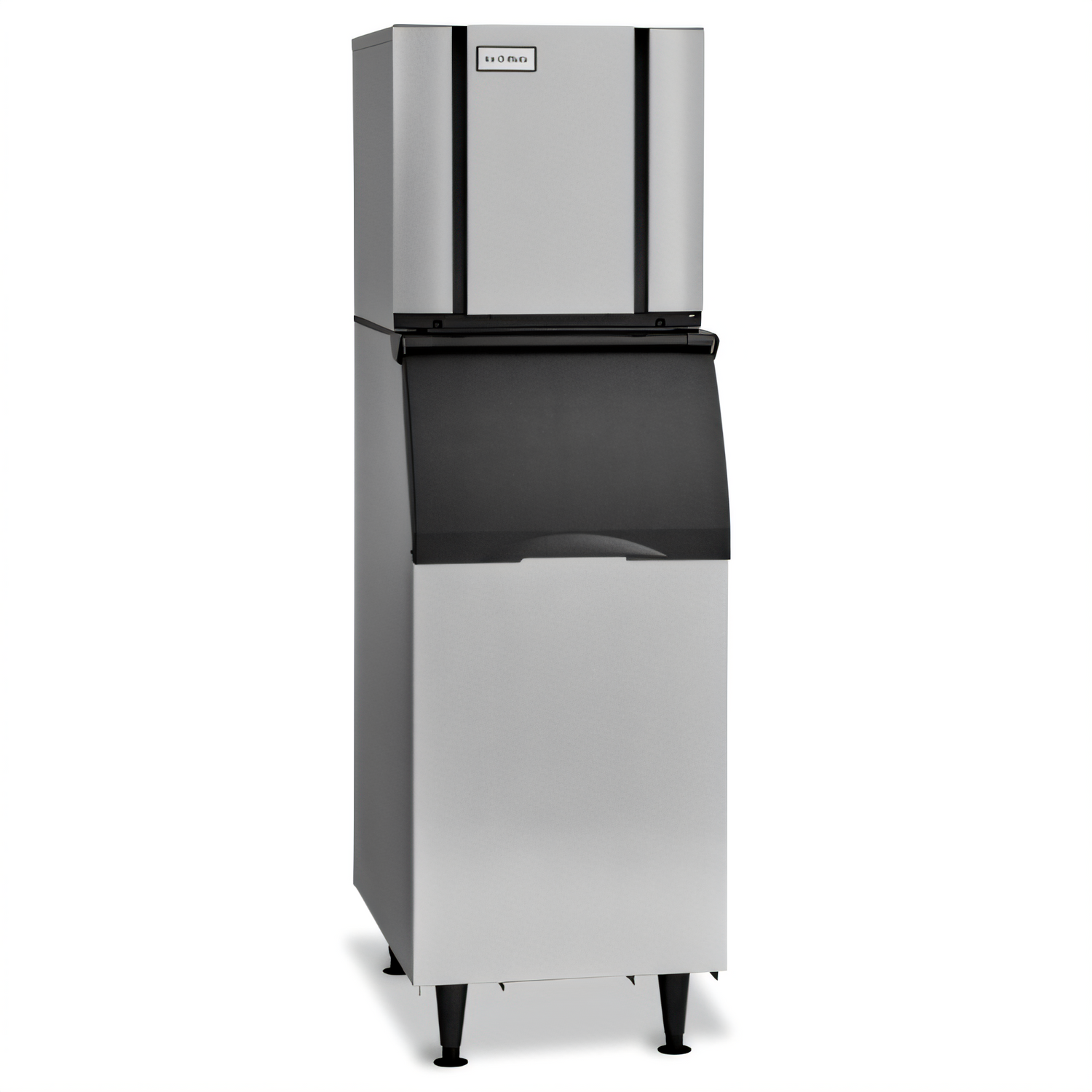

- Storage bins – 22 in wide B25, B42, or B55 slope-front bins (no adapter kit required).
- IFQ2 Water filter manifold (IOMQ cartridges) to maximize ice quality and qualify for the extended evaporator warranty.
- SafeIce™ ozone purification system for continuous, chemical-free sanitation (factory or field installed).
Operating Requirements
- Ambient temperature: 50 °F – 100 °F (10 °C – 38 °C)
- Incoming water temperature: 40 °F – 100 °F (4 °C – 38 °C)
- Water pressure: 20 psi – 80 psi (1.4 – 5.5 bar)
Need a custom configuration or larger bin? Contact our food-service specialists for help tailoring the perfect ice solution for your operation.
