Description

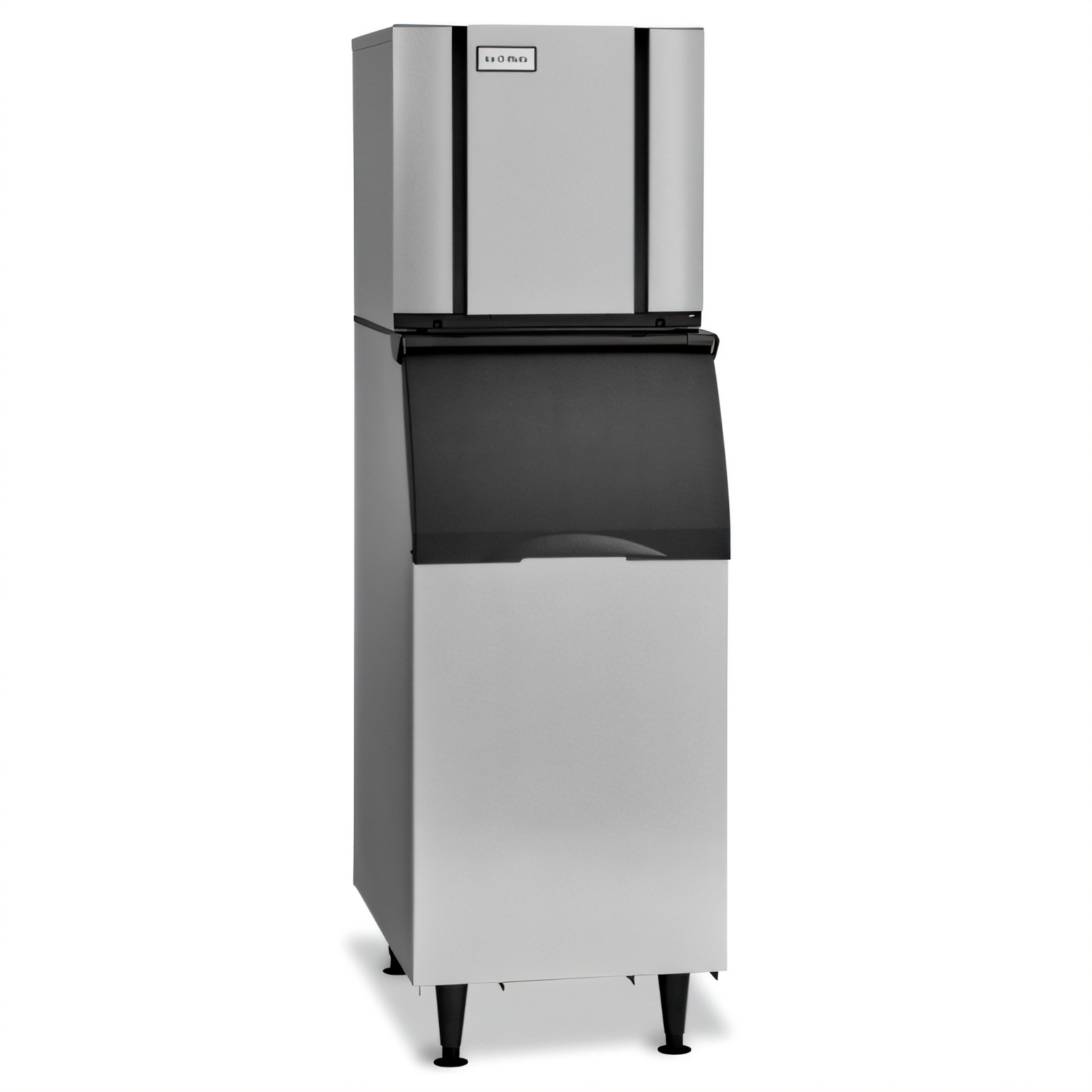

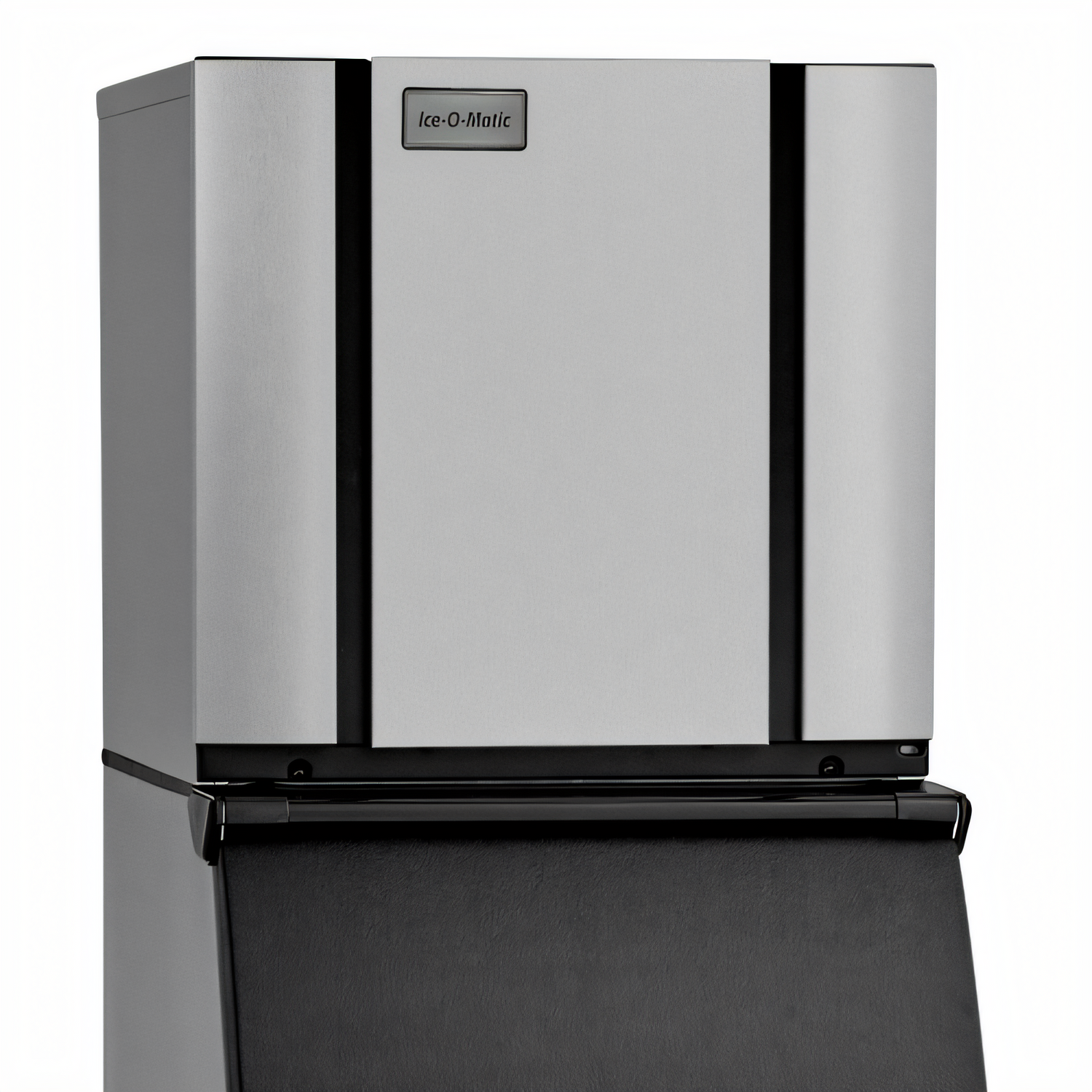

Ice-O-Matic Elevation Series™ CIM1126R
22" Remote Air-Cooled Modular Cube Ice MakerChurn out up to 968 lb of crystal-clear half-size cubes every 24 hours in the most hygienic, energy-efficient way possible. Engineered for food-service workhorses that can’t afford downtime, this next-generation Elevation Series™ replacement for the ICE0926HR keeps ice production high and maintenance low.
Why You’ll Love It
- Massive Output, Minimal Footprint – 968 lb/24 hr at 70 °F/50 °F in only 22.25 in (565 mm) of width.
- Remote Air-Cooled Efficiency – Heat and noise stay outside the kitchen when paired with the RCA-2061 condenser (sold separately).
- PURE ICE® Antimicrobial – Agion®-treated food zone inhibits microbes for the life of the machine.
- One-Touch Sanitizing & Descaling – Push a button, walk away; LED status lights tell you when it’s done.
- Dishwasher-Safe Food Zone – Snap-in/snap-out BPA-free components clean up in the rack, no tools required.
- Universal Smart Harness™ – Digital diagnostics and common parts speed up installation & service.
- Exceeds 2018 DOE standards – Up to 20 % more energy-efficient than previous models.
Cleaner Ice, Safer Guests
- Smooth Plastic Food Zone eliminates hard-to-reach nooks and crannies.
- Optional SafeIce™ Purification System destroys viruses, mold and odors, extending machine life by up to 30 %.
- Half-size cubes (⅜ in × ⅞ in × ⅞ in) chill drinks quickly without watering them down.
- cULus, NSF, CE & BPA-Free listed for worry-free compliance.
At-a-Glance Specs
Ice Production (70 °F air / 50 °F water) | Approx. 968 lb (439 kg) / 24 hr |
---|---|
Ice Production (90 °F air / 70 °F water) | Approx. 855 lb (388 kg) / 24 hr |
Cube Style | Half-Size Cubes – ⅜″ W × ⅞″ D × ⅞″ H (10 × 22 × 22 mm) |
Condenser Type | Remote Air-Cooled (RCA-2061, field-supplied) |
Refrigerant | R404A |
Dimensions (W × D × H) | 22.25″ × 24.25″ × 26.9″ (565 × 616 × 683 mm) |
Electrical | 208-230 V / 60 Hz / 1-ph, 12.8 A MCA |
Energy Usage | 4.9 kWh per 100 lb of ice |
Potable Water Usage | 19 gal per 100 lb of ice |
Shipping Weight | 215 lb (98 kg) |
Industry-Leading Warranty
- Ice maker – 3 years parts & labor
- Compressor & evaporator – 5 years parts
- 7-year parts & labor evaporator coverage when enrolled in the Ice-O-Matic water-filter program
On-site warranty offered within 30 mi of an authorized Ice-O-Matic technician (USA & Canada).
Choose Your Ice Bin
Pair this 22″ head with any Ice-O-Matic slope-front bin below for perfect fit and finish:
Bin Model | Ice Capacity | Installation Kit |
---|---|---|
B25/B40/B55 | 242 – 510 lb | KBT19 |
B42 | 351 lb | Not Required |
B110 | 854 lb | KBT23C (Hold-Down Recommended) |
Upgrade to the Elevation Series™ today and experience ice—pure and simple, shift after shift.
