Ice-O-Matic

Ice-O-Matic CIM1126HA Elevation Series™ Ice Machines

SKU: CIM1126HA
$5,911.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

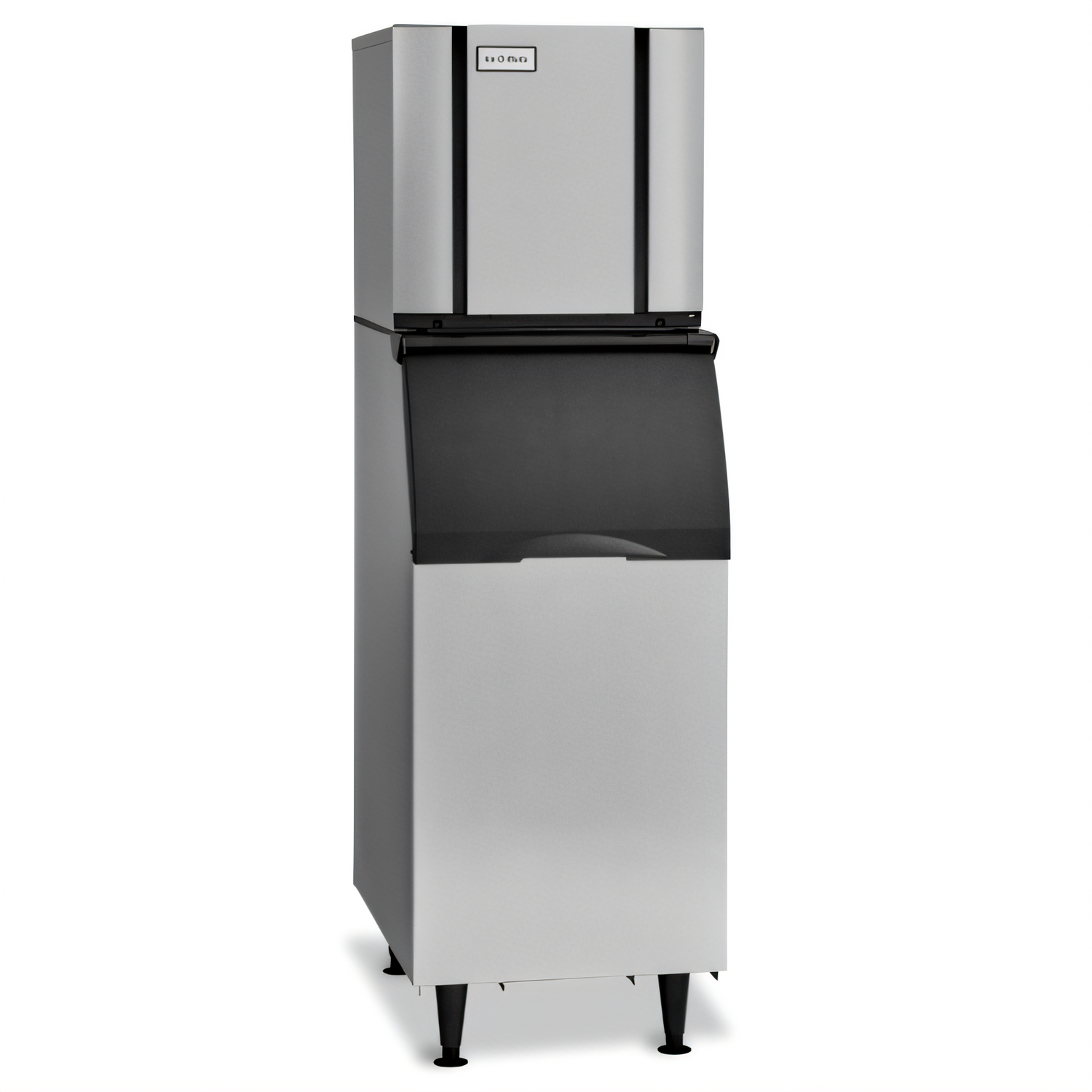

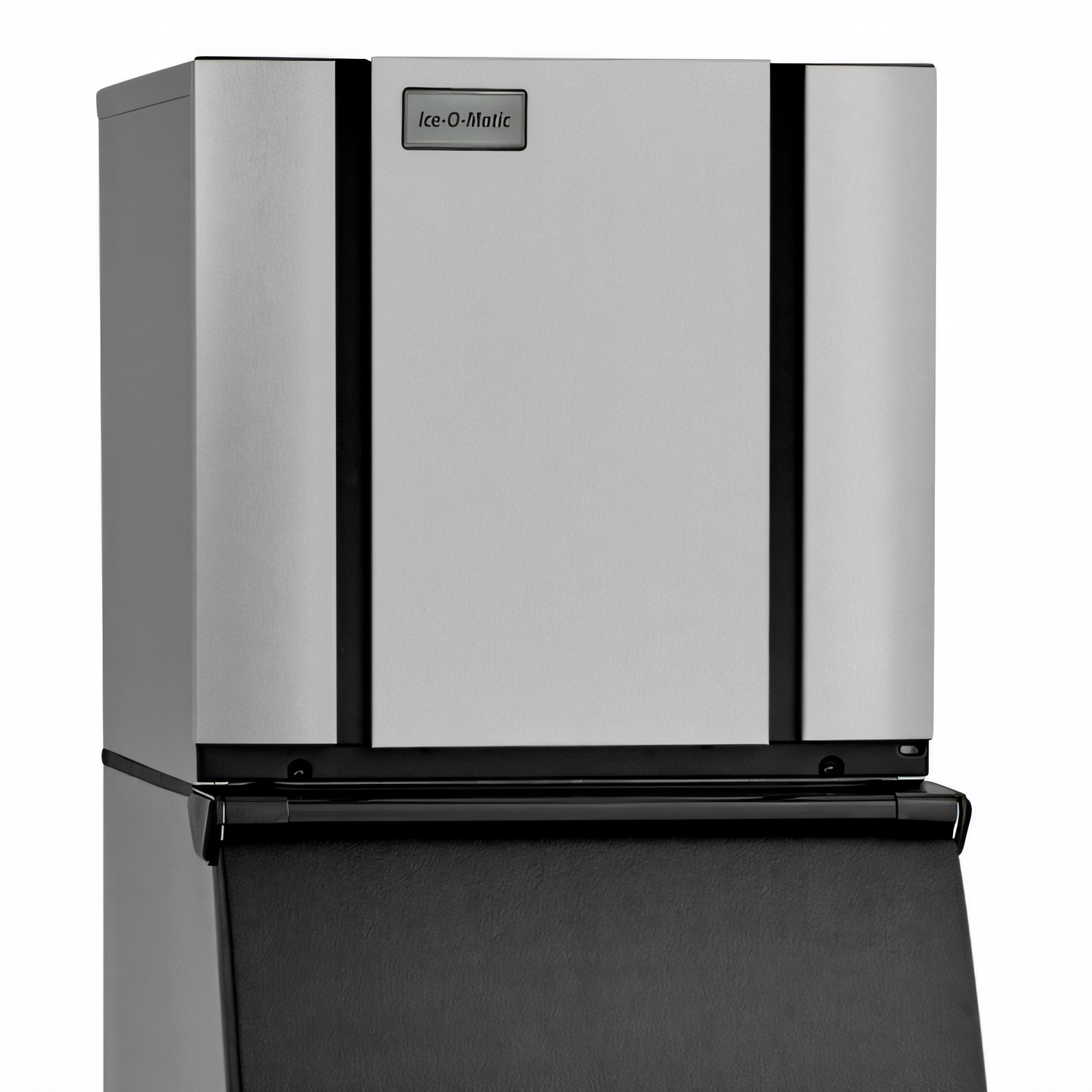

Elevation Series™ CIM1126A Modular Cube Ice Maker

Air-Cooled • 22″ Wide • 932 lb Half-Cube Production

Pack half a ton of crystal-clear ice into even the tightest spaces. The Ice-O-Matic Elevation Series™ CIM1126A couples a space-saving 22″ footprint with dual top/side exhaust, delivering PURE ICE® antimicrobial protection, one-touch cleaning, and industry-leading energy efficiency.

Why You’ll Love It

  • High output: ~932 lb (423 kg) every 24 hr at 70 °F air / 50 °F water.
  • Half-size cube (⅜″ × ⅞″ × ⅞″) perfect for soft drinks & cocktails.
  • Self-contained, air-cooled condenser—no remote system to install.
  • Dual top/side exhaust allows flush right- or left-hand installation.
  • PURE ICE® Agion® antimicrobial protection built into all food-zone parts.
  • One-touch sanitize / descale buttons slash maintenance time.
  • BPA-free, snap-in food-zone components are dishwasher safe.
  • Smart LED status light shows machine health and cleaning reminders.
  • Universal Smart Harness™ board with digital diagnostics for quick service.
  • Exceeds 2018 DOE regulations—up to 20 % more efficient than prior models.
  • Safety & compliance: cULus, NSF, CE listed and 100 % BPA Free.

Performance & Technical Specs

Daily capacity (70 °F / 50 °F) Approx. 932 lb / 423 kg
Daily capacity (90 °F / 70 °F) Approx. 762 lb / 346 kg
Ice type Half Cube – ⅜″ × ⅞″ × ⅞″ (10 × 22 × 22 mm)
Cooling Self-contained air-cooled
Energy use 5.1 kWh / 100 lb of ice
Water use 5.1 gal / 100 lb of ice
Electrical 208-230 V / 60 Hz / 1-ph • 12.8 A MCA
Refrigerant R404A
Dimensions (W × D × H) 22.25″ × 24.25″ × 26.9″ (565 × 616 × 683 mm)
Shipping weight Approx. 230 lb / 105 kg
Required clearance 6″ (152 mm) top for air intake & exhaust
Certifications cULus • NSF • CE • BPA Free

Compatible Ice Bins

  • B25, B40, B55 slope-front bins – use KBT19 bin-top kit.
  • B42 slope-front bin – mounts directly (no kit required).
  • B110 upright bin – use KBT23C securement kit.

Looking for a different storage capacity? Chat with us for the full Ice-O-Matic bin lineup.

Ice-O-Matic Warranty

  • 3-year parts & labor coverage on the entire machine.
  • 5-year parts on compressor & evaporator.
  • 7-year parts & labor on the evaporator when enrolled in the Ice-O-Matic water-filter program.
Installation note: This commercial ice maker requires a dedicated 208–230 V electrical connection, potable water supply, drain, and professional set-up by a certified refrigeration technician to maintain warranty coverage.

Overall Dimensions:

22.25"W x 24.25"D x 26.9"H

Product Weight:

230.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free"]
Height 26.9in
Width 22.25in
Depth 24.25in
Shipping Weight 230.0lbs
Condenser Type air-cooled
Ice Type half size / half dice cubes
Width (side - side) 20 - 29" wide
Refrigeration self-contained refrigeration
Production per 24 hr 901 - 1000 lb = 409 - 454 kg
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free (Replaces ICE0926HA)

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Web site PDF Download PDF Brochure PDF Download PDF Diagram PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download
