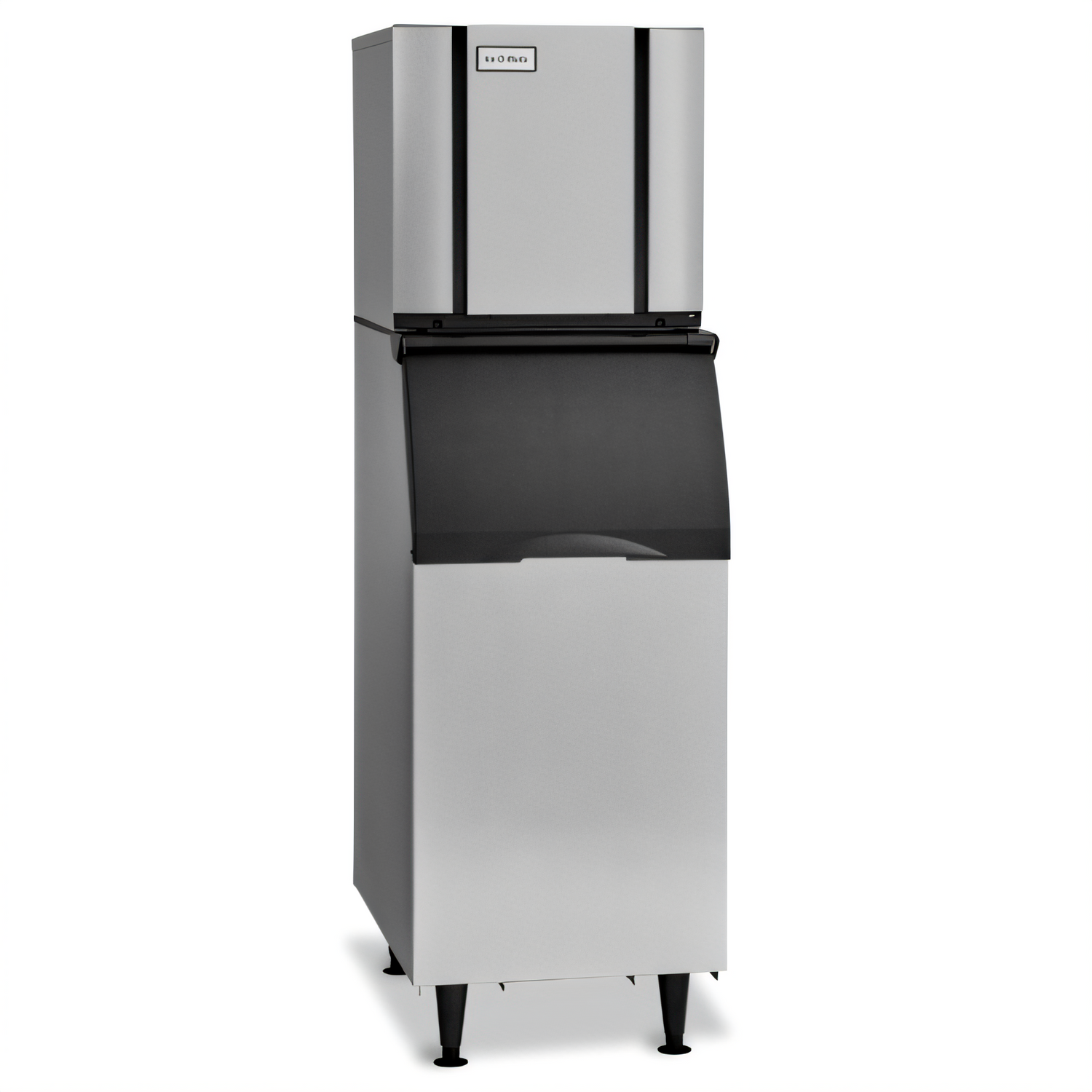

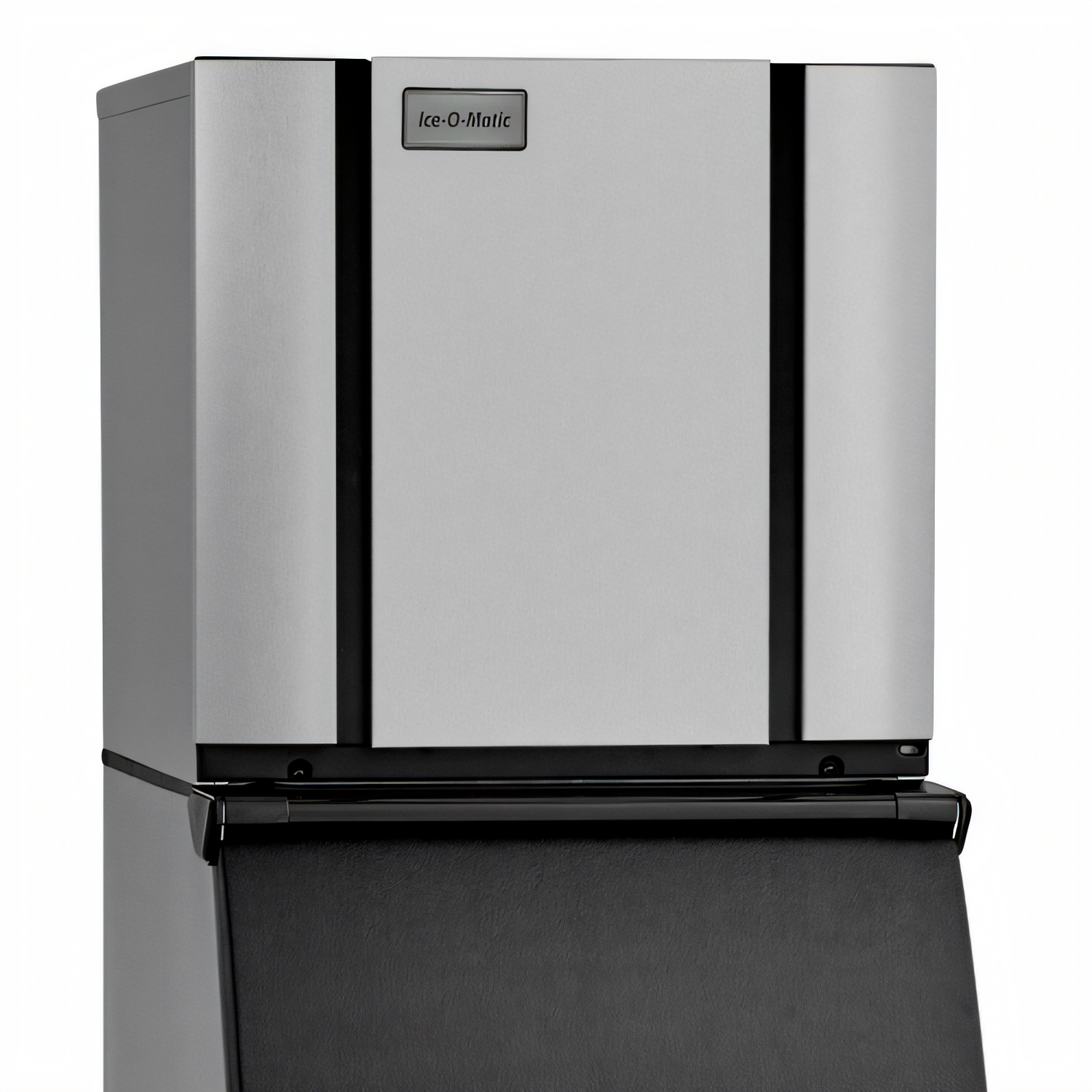

Ice-O-Matic CIM1126FW Elevation Series™ Ice Machines
Ice-O-Matic CIM1126FW Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM1126FW Elevation Series™ Ice Machines
Description
Elevation Series™ Modular Cube Ice Maker – CIM1126W
22″ Water-Cooled | Full-Size Cubes | Up to 968 lb per dayBuilt for high–volume kitchens and beverage programs that demand absolute reliability, the Ice-O-Matic Elevation Series™ CIM1126W delivers nearly half a ton of crystal-clear ice every 24 hours while slashing energy, water and labor costs. Pure Ice® antimicrobial protection, one-touch cleaning and dishwasher-safe components make it the easiest, safest and most sustainable way to keep the cubes coming.
Key advantages

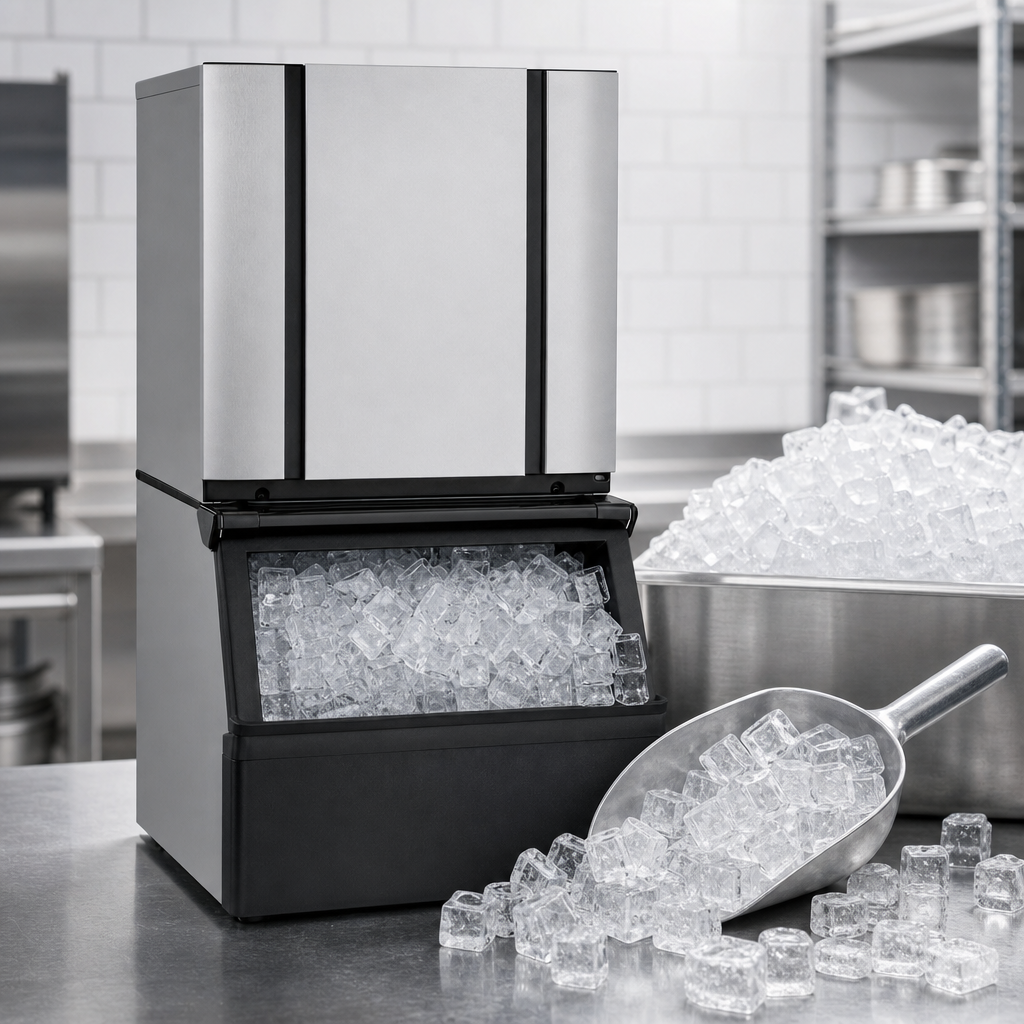

- Produces ≈ 968 lb (439 kg) of full cubes in 24 hrs at 70 °F/50 °F*
- Space-saving 22.25″ wide modular design fits popular 22″ ice bins & beverage dispensers

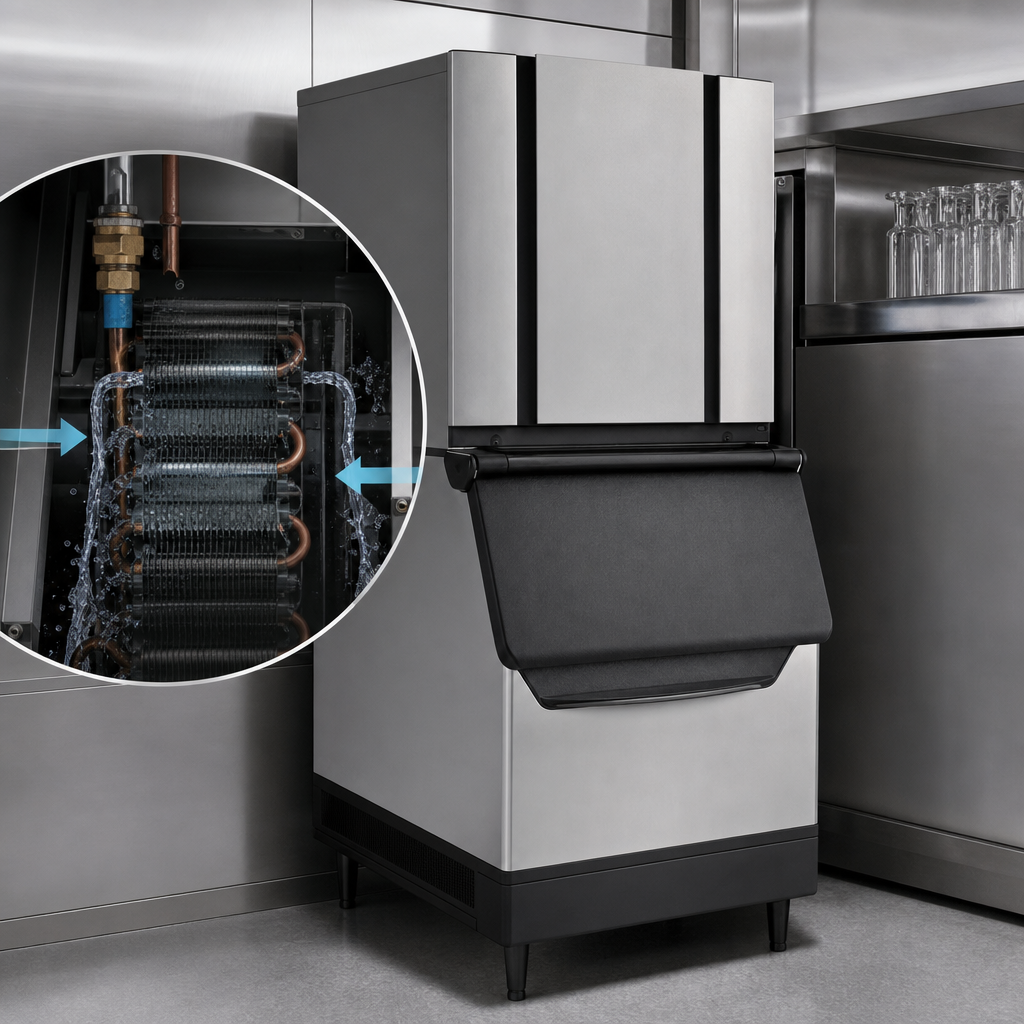

- Self-contained water-cooled condenser – no hot-air exhaust in the kitchen
- Dual exhaust ports (top & side) add placement flexibility if converted to air-cooled
- Pure Ice® built-in antimicrobial protection powered by Agion® silver ion technology
- One-touch sanitize / descale cycle with Smart LED status light – know exactly when to clean
- BPA-free, snap-in / snap-out food-zone parts are 100 % dishwasher safe
- Exceeds 2018 DOE energy standards – up to 20 % more efficient than prior models
- Universal Smart Harness™ control board – simplified installation & digital diagnostics
- cULus, NSF & CE listed; BPA-Free plastics
Full Cube dimensions
- ⅞″ × ⅞″ × ⅞″ (22 mm × 22 mm × 22 mm)
- Hard, slow-melting cubes perfect for cocktails, soft drinks and bulk cooling
Performance & utilities
| Daily production @ 70 °F air / 50 °F water | ≈ 968 lb (439 kg) |
|---|---|
| Daily production @ 90 °F air / 70 °F water | ≈ 896 lb (406 kg) |
| Energy usage | 11.8 kWh per 100 lb of ice |
| Water usage – potable | 4.1 gal per 100 lb of ice |
| Water usage – condenser | 140 gal per 100 lb of ice (water-cooled loop) |
| Electrical | 208-230 V / 60 Hz / 1-phase · MCA 12.8 A · Max fuse 25 A |
| Dimensions (W × D × H) | 22.25″ × 24.25″ × 26.9″ (565 mm × 616 mm × 683 mm) |
| Refrigerant | R404A |
| Certifications | cULus, NSF, CE, BPA-Free |
Recommended ice bins (select separately)
- B42 – 351 lb storage (no adapter kit required)
- B25, B40, B55 – use adapter kit KBT19
- Upright bins B700-30 through B1600-60 for large-capacity applications
*Ice production ratings are at standard AHRI conditions. Actual output will vary with ambient and water temperatures.
Industry-leading warranty
- 3 years parts & labor on the entire ice maker
- 5 years parts on the evaporator & compressor
- 7 years parts & labor on the evaporator when enrolled in Ice-O-Matic filter program (USA/Canada)
The Elevation Series™ CIM1126W is the direct, energy-saving replacement – same 22″ footprint with higher production, easier cleaning and lower operating costs.
Ice maker only – bin, water filter and SafeIce™ purification system sold separately.
