Ice-O-Matic

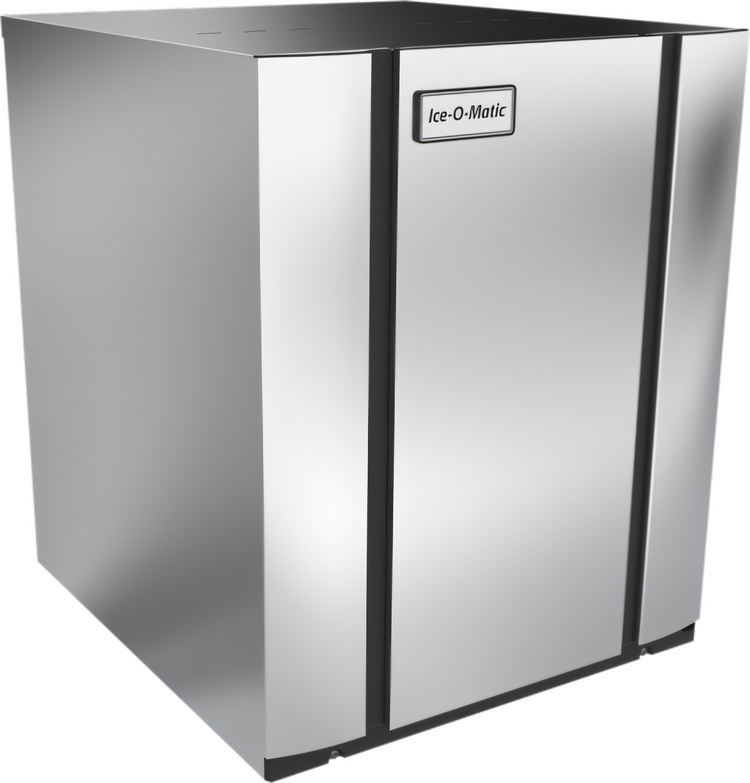

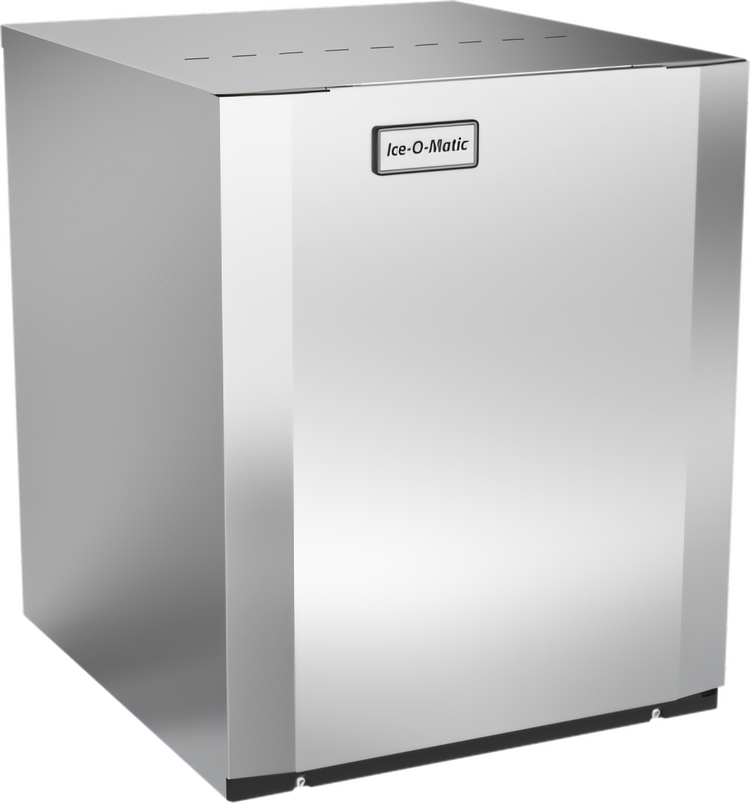

Ice-O-Matic Elevation Series Modular Full Cube Ice Maker, Remote Condenser Cooled, 22.25-Inch Wide, 930 lb/Day

SKU: CIM1126FR49
$7,054.01
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic Elevation Series Modular Full Cube Ice Maker, Remote Condenser Cooled, 22.25-Inch Wide, 930 lb/Day

208-230V, 1-Phase, R449A Refrigerant

A compact modular ice maker that delivers high-volume full-cube production with easy-clean features and remote condenser compatibility.

  • Modular design installs on compatible bins or dispensers for flexible application.
  • Produces about 930 lb of ice per day at 70°F air / 50°F water and 803 lb/day at 90°F air / 70°F water.
  • Makes 7/8-inch full cubes for versatile beverage service.
  • Front-facing evaporator, dishwasher-safe components, and one-touch sanitize/descale controls simplify maintenance.
  • Remote condenser cooled and designed to pair with the RC206C49 remote condenser, sold separately.
  • Harvest Assist technology and nickel-plated evaporator plates support consistent, durable performance.
  • 208-230V, single-phase electrical setup with 14.2A draw and 20A max breaker.

Overall Dimensions:

22.25"W x 24.25"D x 26.9"H

Product Weight:

197.0 lb

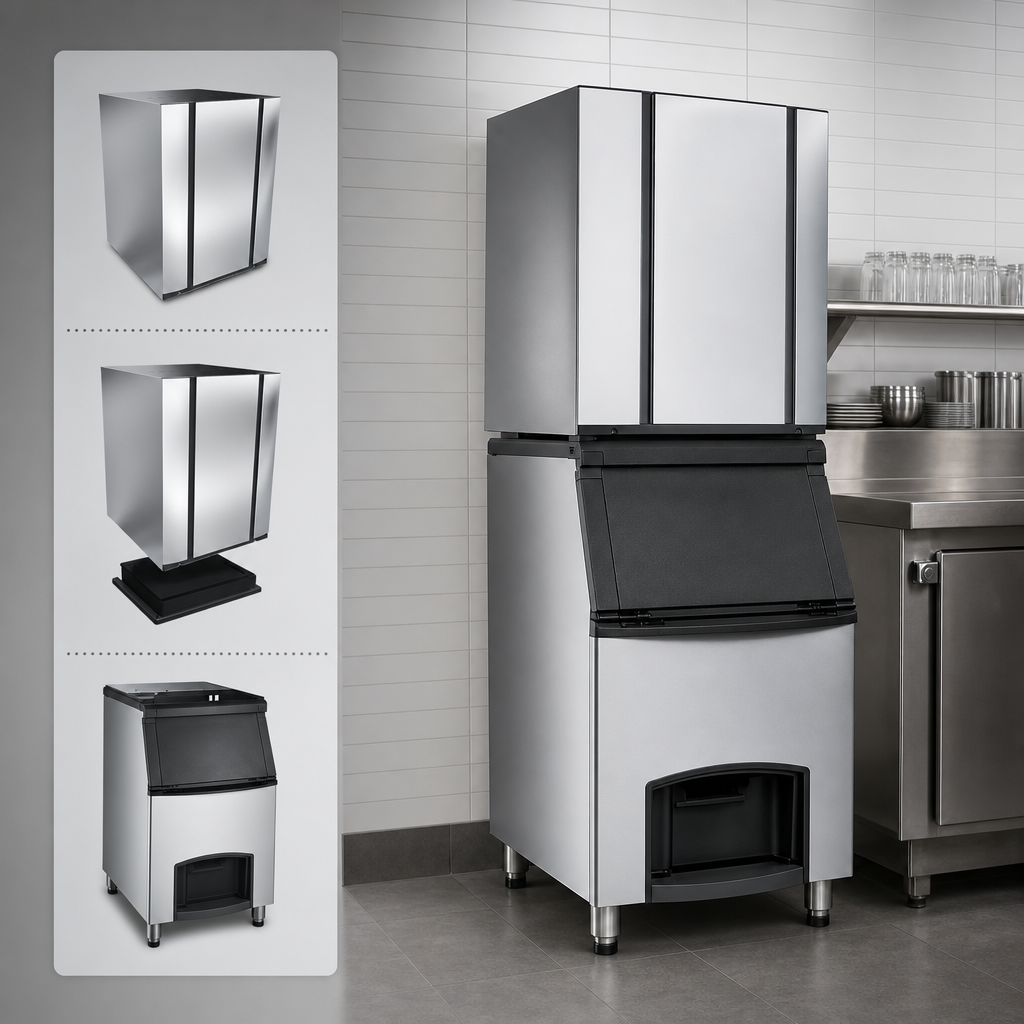

Modular Bin/Dispenser Design

Designed for flexible installation on top of compatible bins or dispensers.

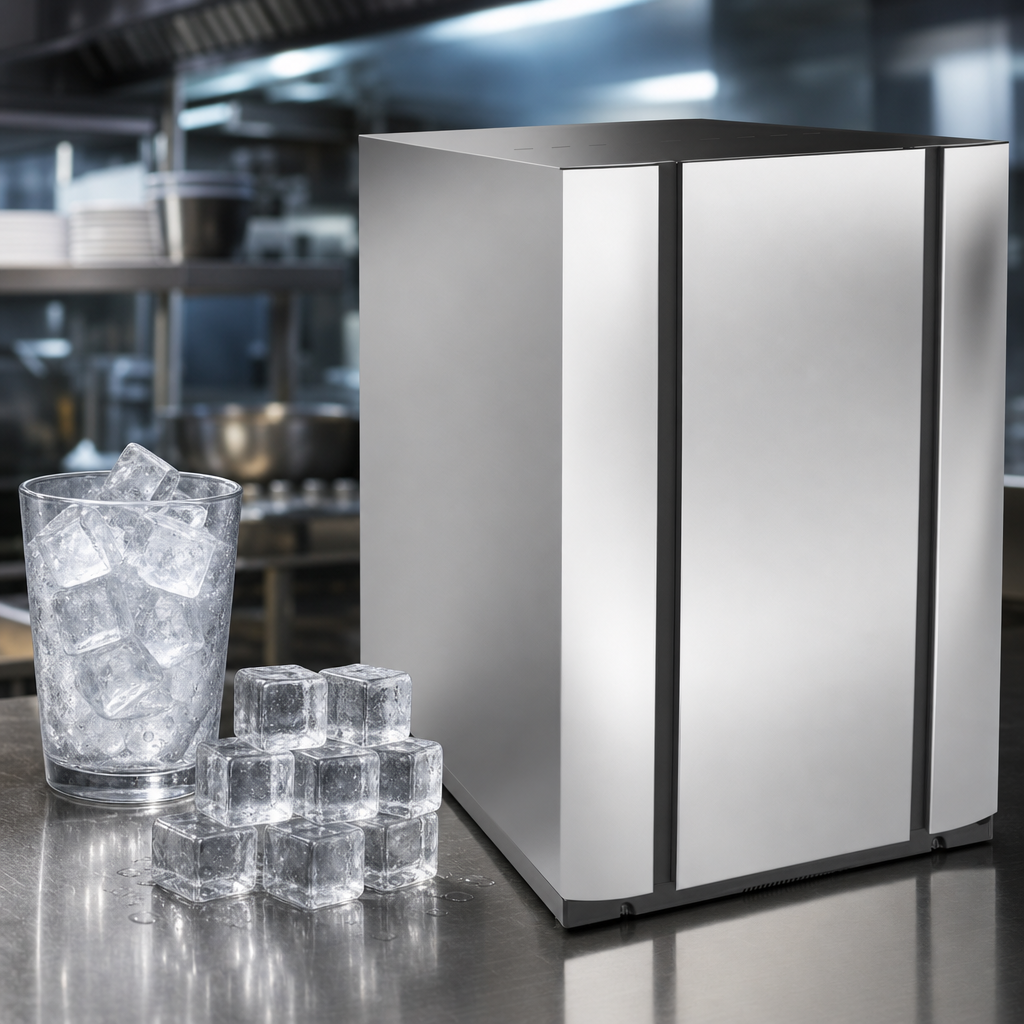

Full-Cube Ice Form

Produces 7/8 x 7/8 x 7/8 in. full cubes (22 x 22 x 22 mm).

Front-Facing Evaporator

Improves access for cleaning and routine service.

Dishwasher-Safe Food Zone Components

Plastic components can be washed in a dishwasher up to 180°F.

Harvest Assist Technology

Helps maintain consistent production while reducing energy consumption and increasing capacity.

LED Status Display

Provides quick visual feedback on machine status.

One-Touch Sanitize and Descaling Controls

Simplifies routine sanitation and scale removal.

Electroless Nickel-Plated Evaporator Plates

Adds reliability and durability to the evaporator surface.

Corrosion-Resistant Aluminum Construction

Fingerprint-proof aluminum helps resist wear and keep the unit looking clean.

Remote Condenser Pairing

Pairs with the RC206C49 remote condenser, sold separately.

Type Cube Ice Maker
Style Modular
Ice Type Full Cube
Refrigeration Type Remote
Refrigerant Type R449A
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 14.2 Amps
Breaker Size 20 Amps
BTU 17,400 BTU/Hr
Capacity 930 lb. per 24 Hours at 70°F Air / 50°F Water
Capacity at High Ambient 803 lb. per 24 Hours at 90°F Air / 70°F Water
Water Usage 18 Gallons per 100 lb. of Ice at 90°F Air / 70°F Water
Ambient Temperature Range 50°F to 100°F
Water Temperature Range 40°F to 100°F
Water Pressure 20 to 80 PSIG
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Refrigerant Charge 176 oz.
Material Aluminum
Shipping Width 25 Inches
Shipping Depth 27 Inches
Shipping Height 33 Inches
Shipping Weight 197 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Options PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces full cube ice, sized 7/8 x 7/8 x 7/8 in. (22 x 22 x 22 mm).
The cutsheet lists approximately 930 lb per day at 70°F air / 50°F water and 803 lb per day at 90°F air / 70°F water.
The cutsheet lists compatible bins B40, B42, B55, B700-30, B110, B1000-48, B1300-48, B1325-60, and B1660-60; the unit is shown atop a B42 bin.
No. It is remote condenser cooled and pairs with the RC206C49 remote condenser, which is sold separately.
It features a front-facing evaporator, dishwasher-safe plastic food zone components, and one-touch sanitize/descaling controls for easier maintenance.
The unit operates on 208-230V, 60 Hz, single-phase power, draws 14.2 amps, and uses a 20 amp max breaker.
