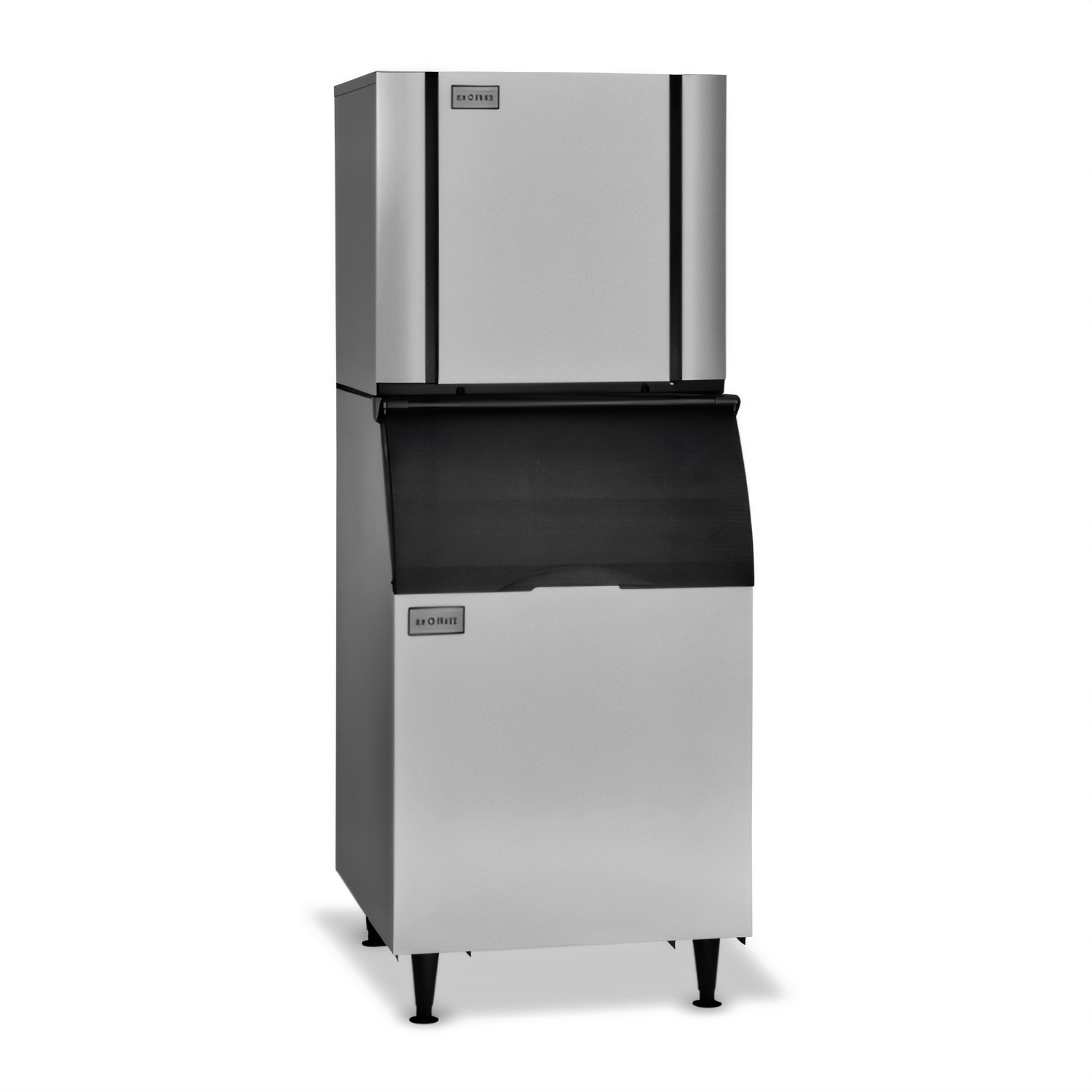

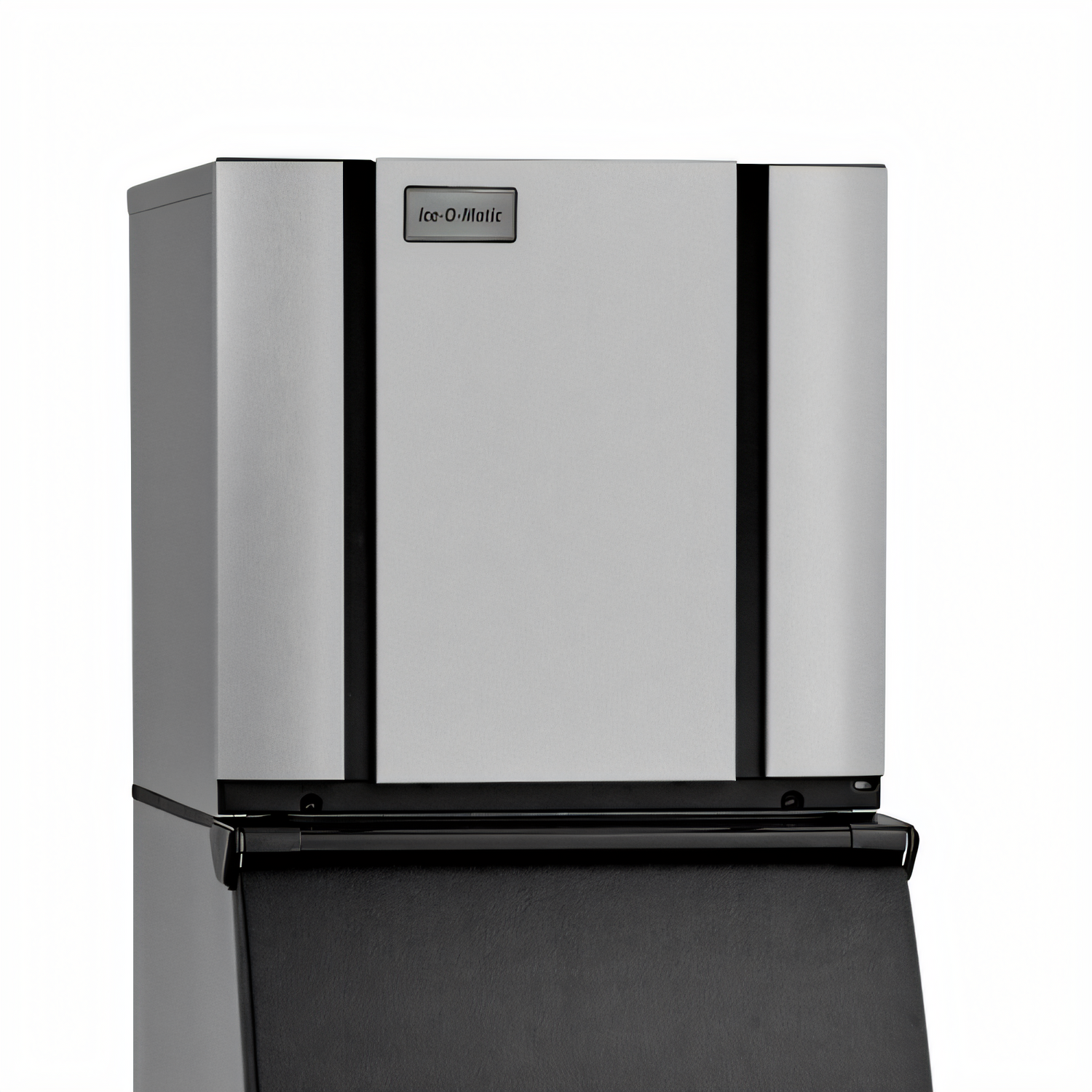

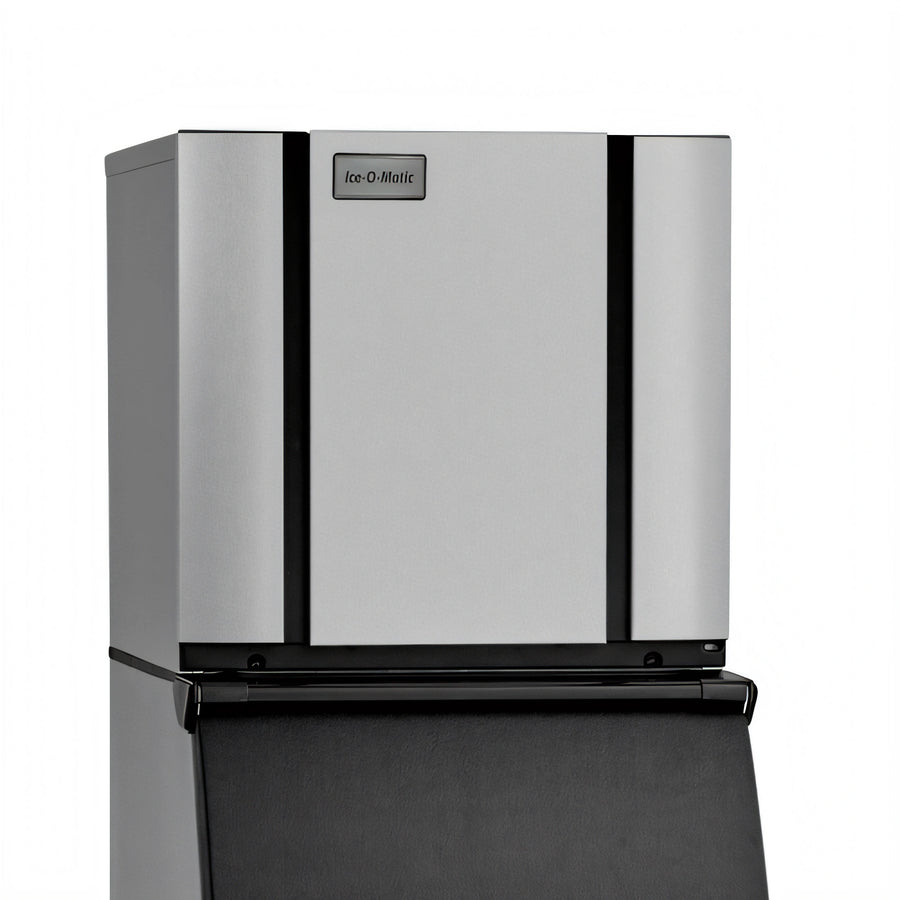

Ice-O-Matic CIM0836HW Elevation Series™ Ice Machines
Ice-O-Matic CIM0836HW Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM0836HW Elevation Series™ Ice Machines
Description
Elevation Series™ Modular Cube Ice Maker — Water-Cooled
Model CIM0836W | Half-Cube | 30 in WideTurn peak-hour beverage demand into pure profit with Ice-O-Matic’s Elevation Series™ CIM0836W. Engineered for relentless, around-the-clock production, this water-cooled cuber delivers about 896 lb of ice in 24 hours* while safeguarding food safety, energy efficiency, and operator uptime.
Why You’ll Love It
- Massive output in a compact footprint — 30 in W x 24.25 in D x 26.9 in H fits on most 30-inch bins & dispensers.
- PURE ICE® antimicrobial protection (Agion®-treated food zone) inhibits bacteria, mold, and slime for the life of the unit.
- One-touch sanitize & descale buttons cut scheduled maintenance time by up to 50 %.
- LED status display gives instant feedback on machine health and cleaning alerts.
- BPA-free, dishwasher-safe components snap in/out without tools for a true 2-minute tear-down.
- Universal Smart Harness™ control board with digital diagnostics simplifies service and reduces parts inventory.
- DOE 2018 compliant; up to 20 % more energy-efficient than previous models.
Performance At-A-Glance
| Daily Production* | 896 lb @ 70 °F air / 50 °F water 798 lb @ 90 °F air / 70 °F water |
|---|---|
| Ice Style | Half-Cube (⅜ × ⅞ × ⅞ in | 10 × 22 × 22 mm) |
| Condenser Type | Water-cooled, self-contained |
| Energy Usage | 4.2 kWh per 100 lb of ice |
| Water Usage | 140 gal potable per 100 lb of ice (plus condenser water) |
| Electrical | 208-230 V / 60 Hz / 1-phase | MCA 12.8 A | Std. breaker 20 A |
| Unit Dimensions (WxDxH) | 30.25 × 24.25 × 26.9 in (768 × 616 × 683 mm) |
| Shipping Weight | Approx. 210 lb (96 kg) |
Food-Safe by Design
- Seamless plastic food zone eliminates hard-to-reach crevices.
- Field-proven Agion® antimicrobial compound is molded directly into key components.
- Optional SafeIce™ UV/ozone purification (factory or retrofit) available for venues requiring the highest microbial control.
Install & Pairing Tips
- Modular head requires an ice storage bin or beverage dispenser (sold separately). Popular single-unit pairings include Ice-O-Matic B25, B40, B55, and B110 series bins.
- 3 ⁄8 in FPT potable water in; ¾ in FPT drain line out.
- Factory-charged with eco-friendly R404A refrigerant.
Rock-Solid Warranty
| Ice Maker | 3 years parts & labor |
|---|---|
| Evaporator & Compressor | 5 years parts |
| Evaporator (with IOM filter program) | 7 years parts & labor |
Certifications
- cULus
- NSF
- CE
- BPA Free
*Ice capacity will vary based on water/air temperature, installation location, and maintenance frequency. Bin or dispenser required for operation and sold separately.
