Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0836HR

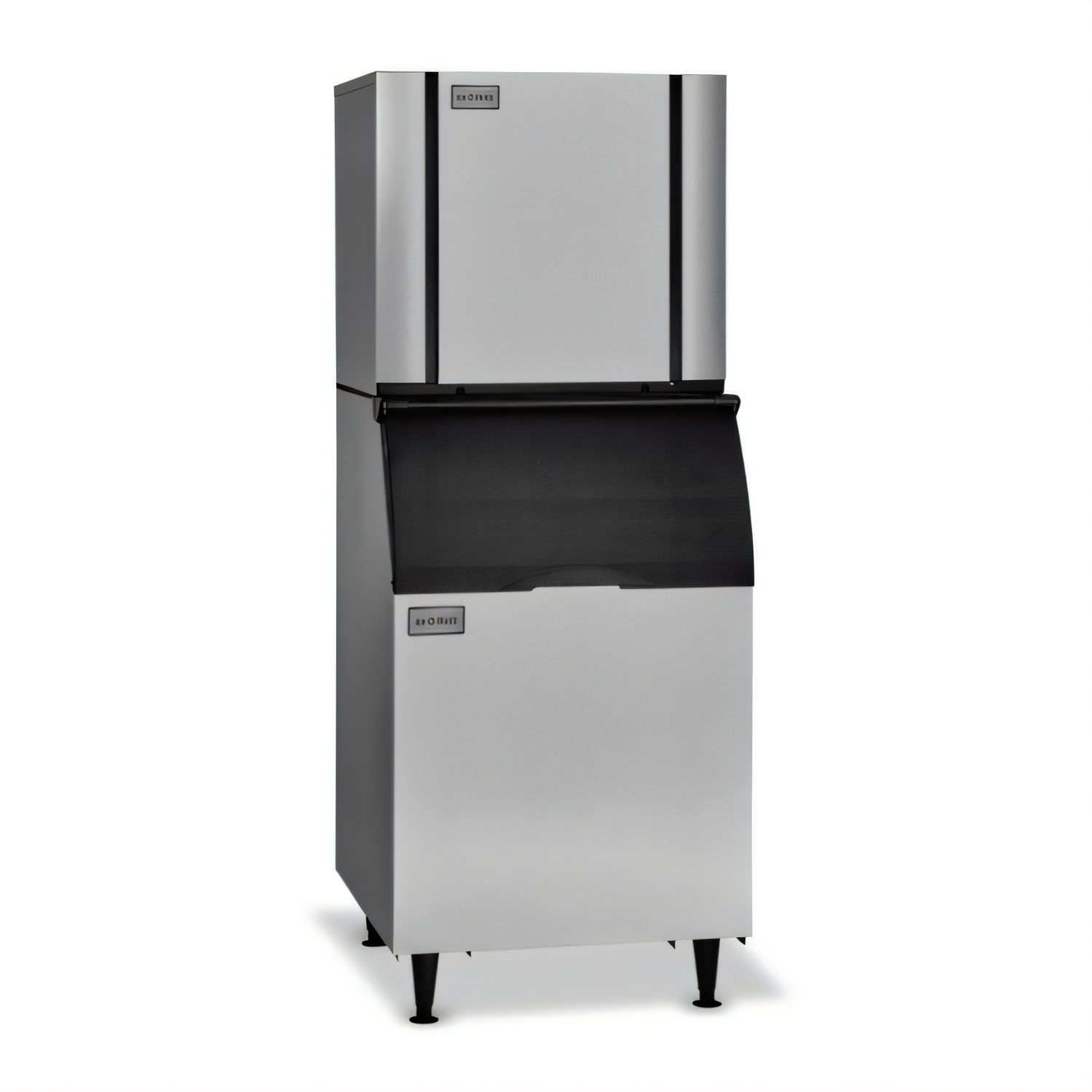

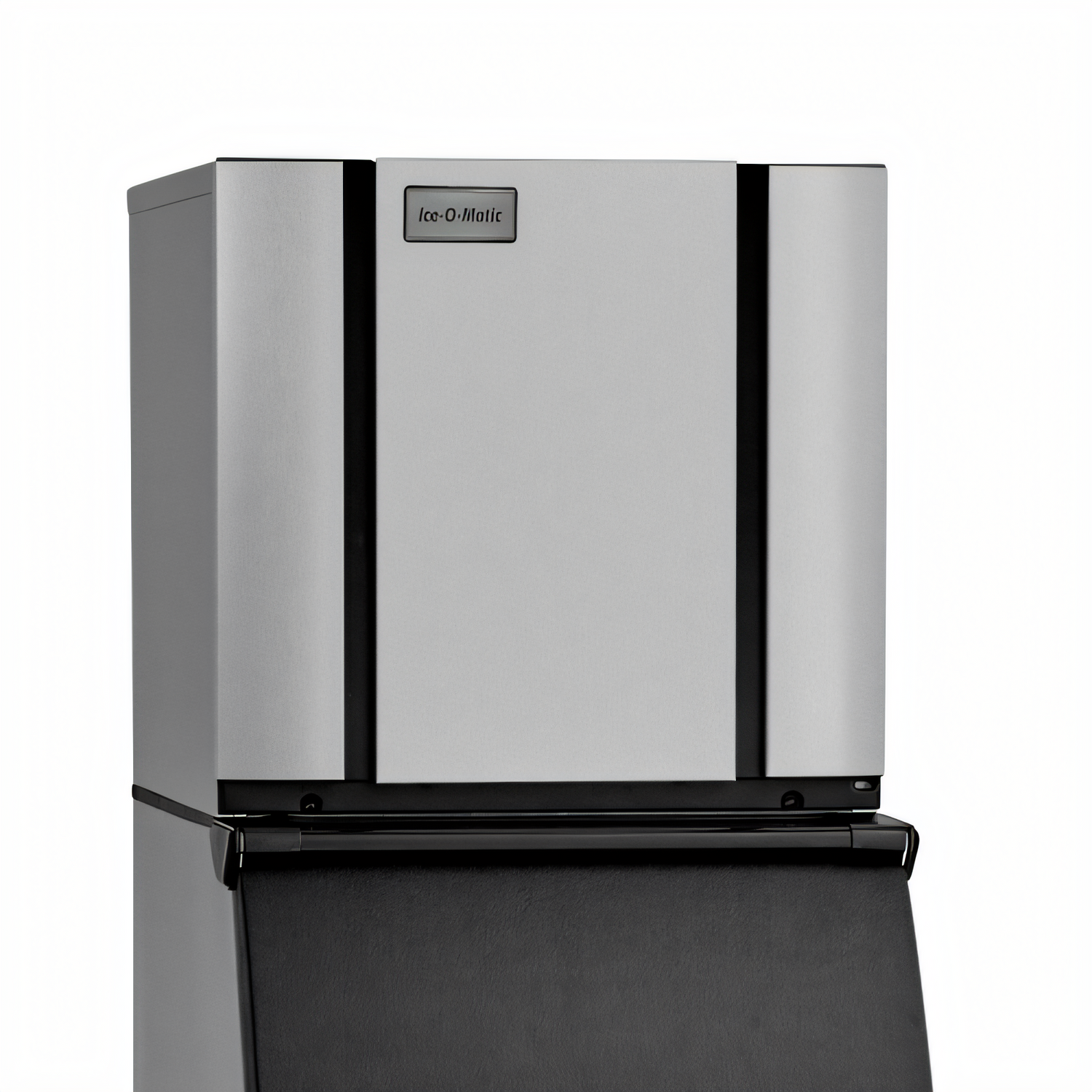

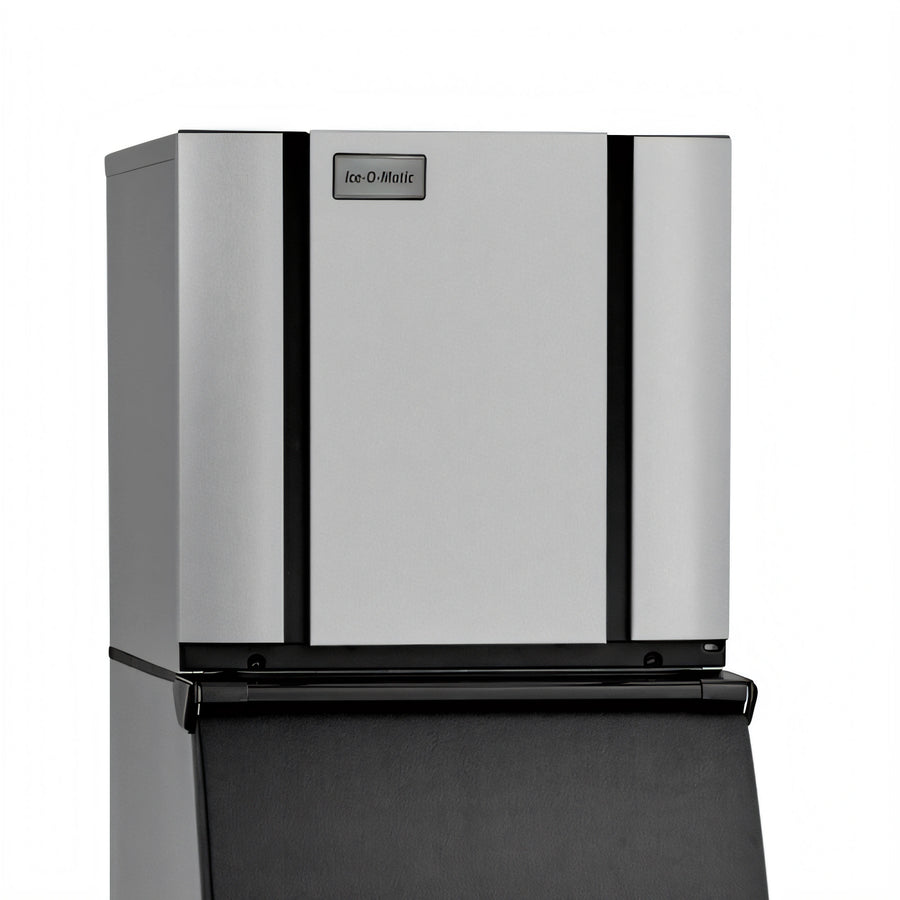

Ice-O-Matic CIM0836HR Elevation Series™ Ice Machines

$6,566.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Diagram Slope front storage bins Owner's manual Service manual Web site Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ice-O-Matic Elevation Series™ Modular Cube Ice Maker

Model CIM0836R • 30" Remote Air-Cooled • Half Cube • 906 lb/24 hr

Boost beverage service while cutting energy and cleaning time. The Elevation Series™ CIM0836R pushes out nearly half a ton of crystal-clear ice every day, yet fits neatly on a 30-inch bin or dispenser—perfect for busy restaurants, hotels, stadiums and healthcare facilities.

Key Advantages

  • High-volume output: up to 906 lb (411 kg) of half-size cubes at 70 °F/50 °F.

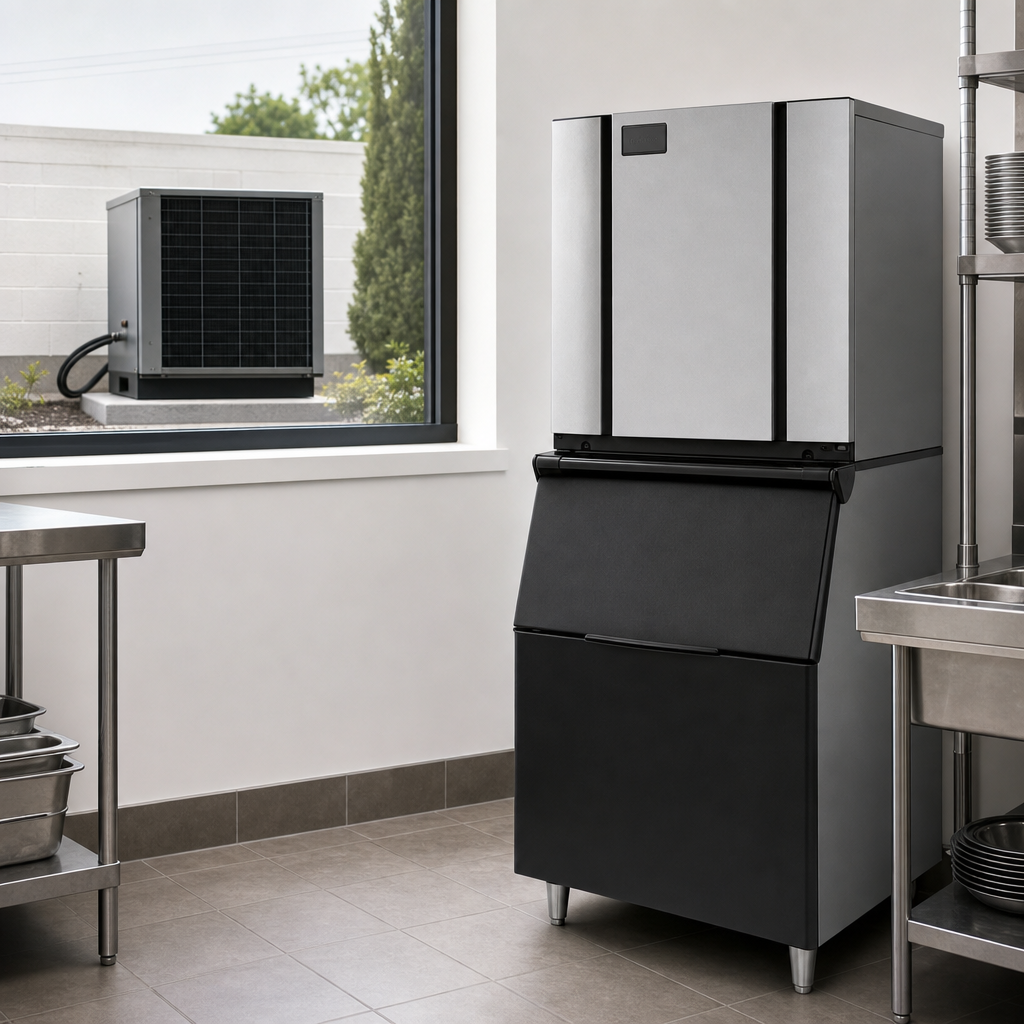

  • Remote, air-cooled design moves heat & noise outdoors for a cooler, quieter kitchen.
  • PURE ICE® food-zone with Agion® antimicrobial and BPA-free components.
  • LED status panel plus one-touch sanitize and descale functions.
  • All food-zone parts snap in/out and are dishwasher-safe—no tools required.
  • Dual side & top exhaust for flexible installs; only 6" clearance needed.
  • Exceeds 2018 DOE regulations and is up to 20 % more energy-efficient than prior models.
  • Universal Smart Harness™ simplifies wiring, diagnostics and service.

Performance & Specifications

Daily Production @ 70 °F air / 50 °F water 906 lb / 411 kg
Daily Production @ 90 °F air / 70 °F water 793 lb / 360 kg

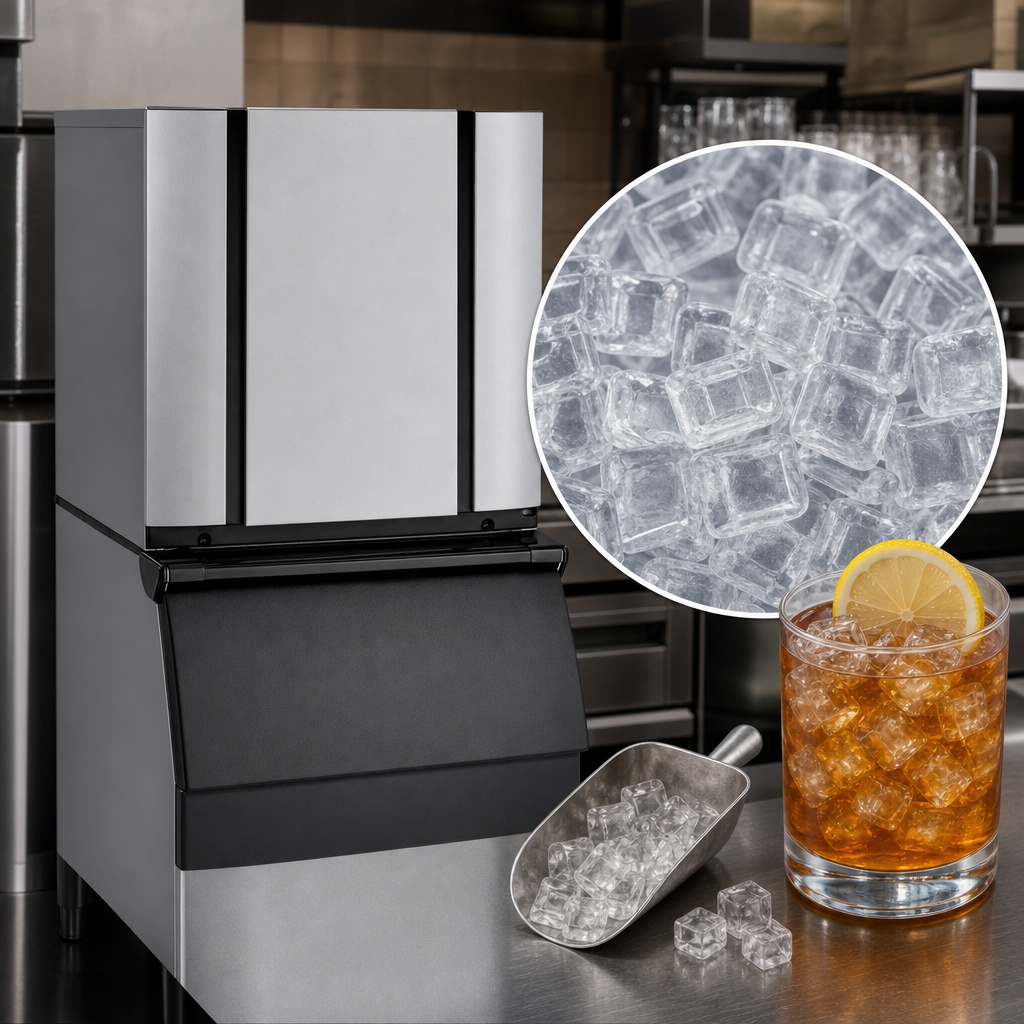

Ice Style Half Cube – ⅜" × ⅞" × ⅞" (10 × 22 × 22 mm)
Cooling Configuration Remote air-cooled (R404A)
Energy Use ≈ 4.8 kWh per 100 lb of ice
Water Use ≈ 19 gal per 100 lb of ice
Electrical 208-230 V / 60 Hz / 1-ph • 13.8 A
Dimensions (W × D × H) 30.25" × 24.25" × 26.9" (768 × 616 × 683 mm)
Approx. Ship Weight 220 lb / 100 kg
Compatible Remote Condenser RCA-2061 (ordered separately)

Installation Requirements

  • Ambient temperature: 50 °F – 100 °F (–20 °F – 120 °F at condenser).
  • Water temperature: 40 °F – 90 °F • Water pressure: 20 – 80 PSI.
  • Connections: 3/8" FPT water inlet • 3/4" FPT drain.
  • Allow 6" clearance for side/top air discharge.

Certifications

  • cULus Listed
  • NSF Certified
  • CE Marked
  • BPA Free Plastics

Recommended Accessories

  • IFQ2 Water Filtration System – improves taste, extends component life.
  • SafeIce™ Purification System – ozone treatment that destroys viruses, mold and odors.
  • 30" slope-front bins: B55PS (510 lb) or B110PS (854 lb) for optimal capacity.

Warranty

  • 3 years parts & labor on the ice maker.
  • 5 years parts on compressor & evaporator.
  • 7 years parts & labor on evaporator when registered in Ice-O-Matic filter program.

Production, energy and water figures are based on lab testing. Actual results can vary with site conditions.

Important: Remote condenser and ice storage bin are required for operation and must be purchased separately.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free

Height

33.0in

Width

27.0in

Depth

33.0in

Shipping Weight

219.0lbs

Ice Type

half size / half dice cubes

Condenser Type

air-cooled

Width (side - side)

30 - 39" wide

Refrigeration

remote (refrigeration not included)

Production per 24 hr

901 - 1000 lb = 409 - 454 kg

Specifications

Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30" W, approximately 906 lb production/24 hours at 70°/50° (793 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
