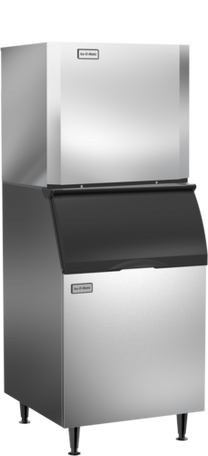

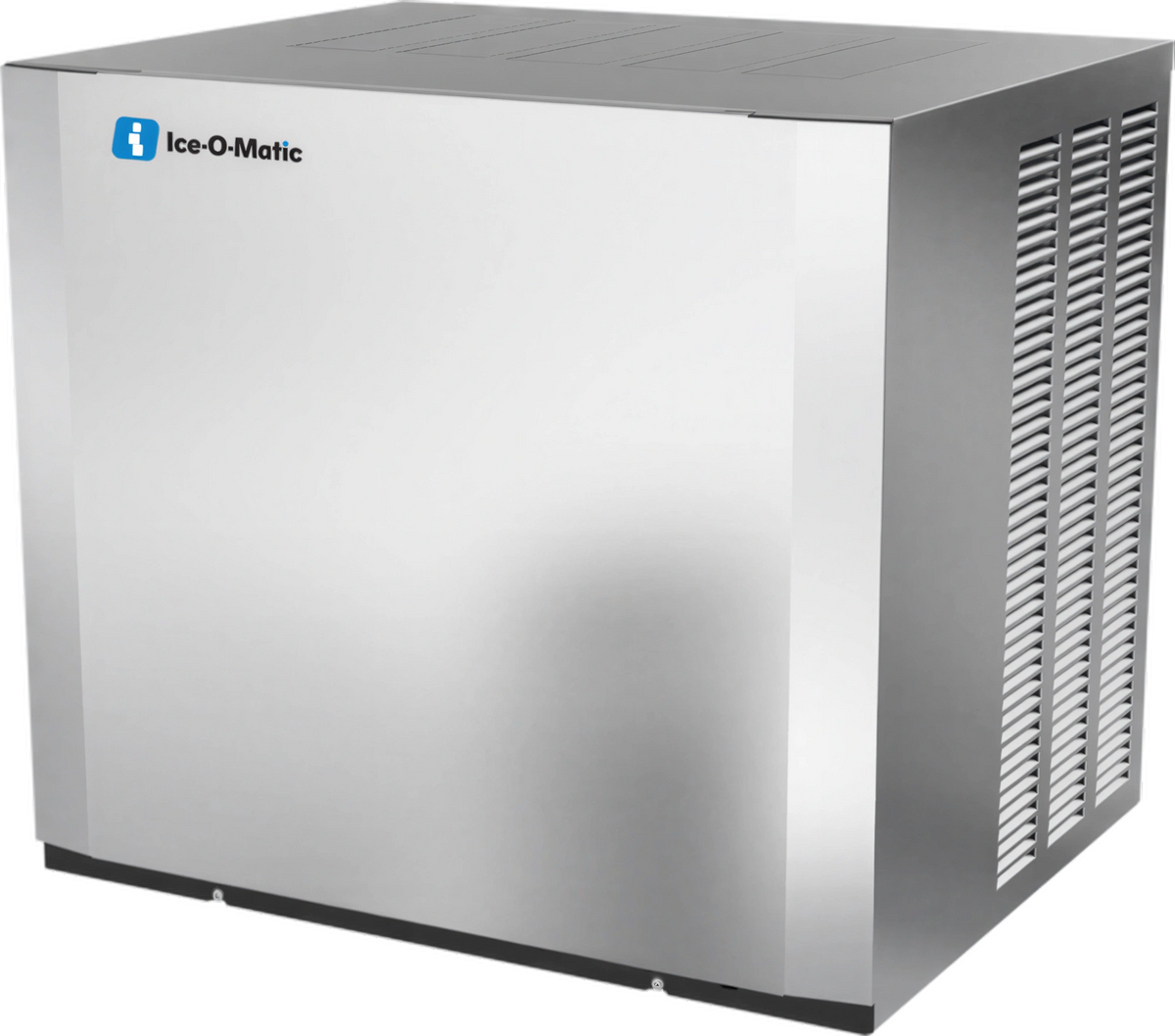

Ice-O-Matic CIM0836HA90 Modular Half-Size Cube Ice Maker, Air-Cooled, Self-Contained, 900 lb/Day
- Condenser Type
- Air-cooled
- Refrigeration
- Self-contained refrigeration
- Air Discharge
- Dual exhaust; top/side air discharge
- Ice Type
- Half-size / half-dice cubes
- Cube Size
- 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm)
- Ice Production at 70°F Air / 50°F Water
- Approximately 900 lb (408 kg) per 24 hours
Specifications
Description
Ice-O-Matic CIM0836HA90 is an Elevation Series modular cube ice maker with an air-cooled, self-contained condenser and dual top/side air discharge.
It produces approximately 900 lb of half-size cube ice per 24 hours at 70°F air and 50°F water, or 695 lb at 90°F air and 70°F water. The unit includes an LED status display, one-touch sanitize and descaling controls, and dishwasher-safe food-zone components.
- Half-size cube ice form measuring 3/8 x 7/8 x 7/8 in.
- R290 refrigerant
- Front-facing evaporator for cleaning access
- Harvest Assist for consistent ice production
- Electroless nickel-plated evaporator plates
Overall Dimensions:
30.25"W x 24.25"D x 26.9"HProduct Weight:
220.0 lbHalf-size cube ice
Produces 3/8 x 7/8 x 7/8 in. half-size cubes, also specified as 10 x 22 x 22 mm.
Air-cooled self-contained refrigeration
Uses an air-cooled, self-contained condenser.
Dual exhaust
Provides top and side air discharge.
Production capacity
Produces approximately 900 lb per 24 hours at 70°F air and 50°F water, or 695 lb at 90°F air and 70°F water.
Cleaning controls
Includes one-touch sanitize and descaling controls, a front-facing evaporator, and dishwasher-safe food-zone components.
LED status display
Provides an LED status display for the ice maker.
Harvest Assist
Supports consistent ice production while reducing energy consumption and increasing capacity.
Evaporator and cabinet construction
Uses electroless nickel plating on evaporator plates and corrosion-resistant, fingerprint-proof aluminum construction.
