Ice-O-Matic

Ice-O-Matic CIM0836HA Elevation Series™ Ice Machines

SKU: CIM0836HA
$6,043.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

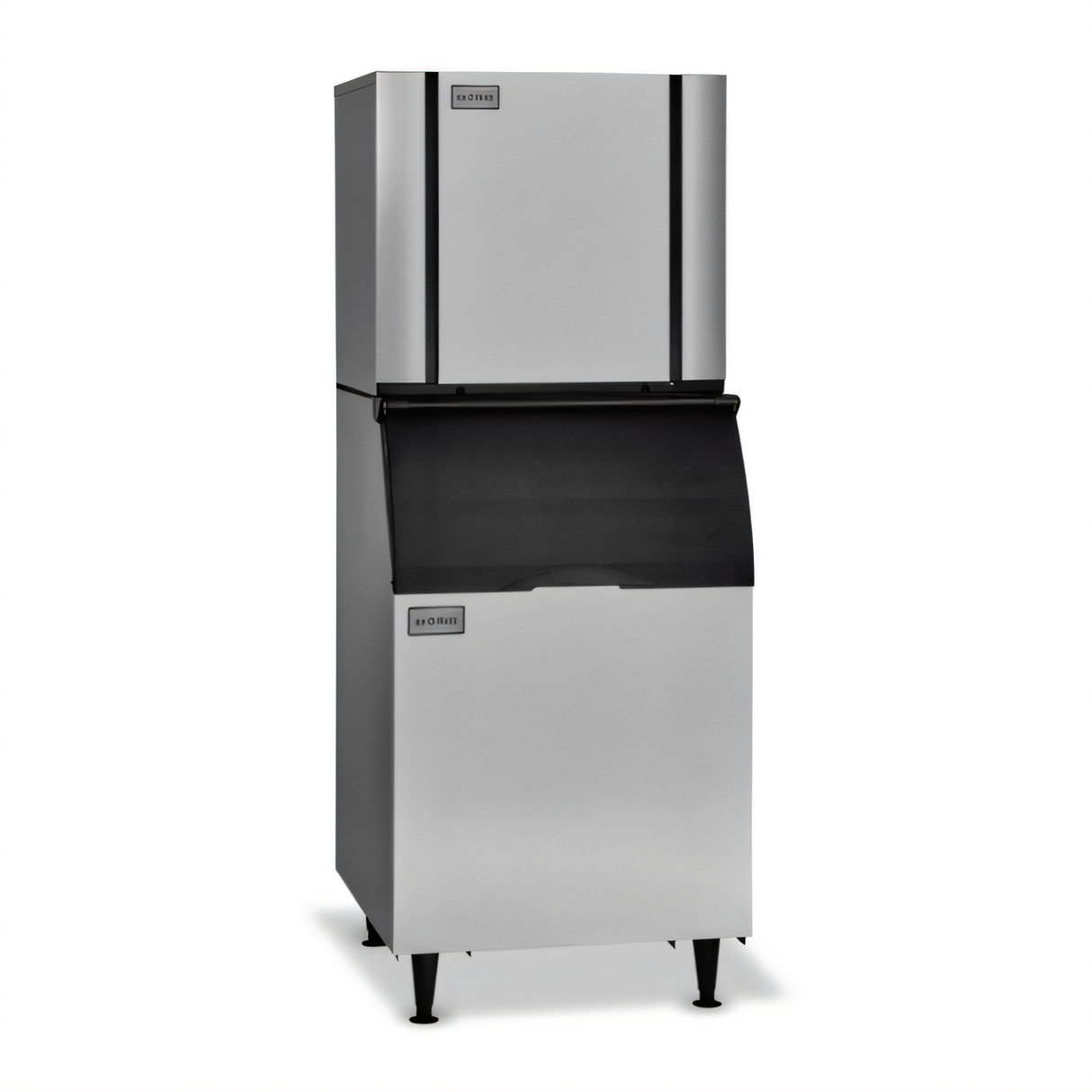

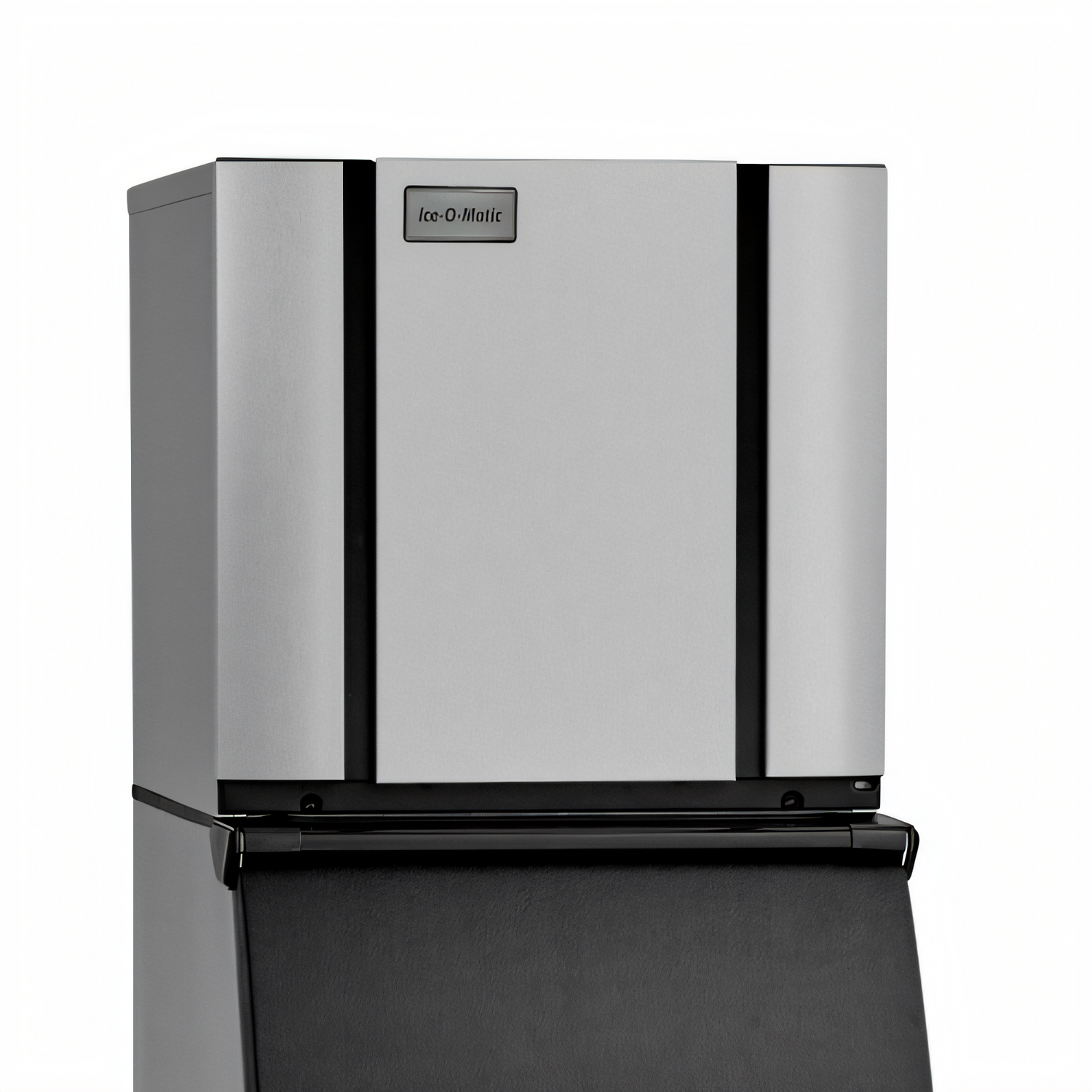

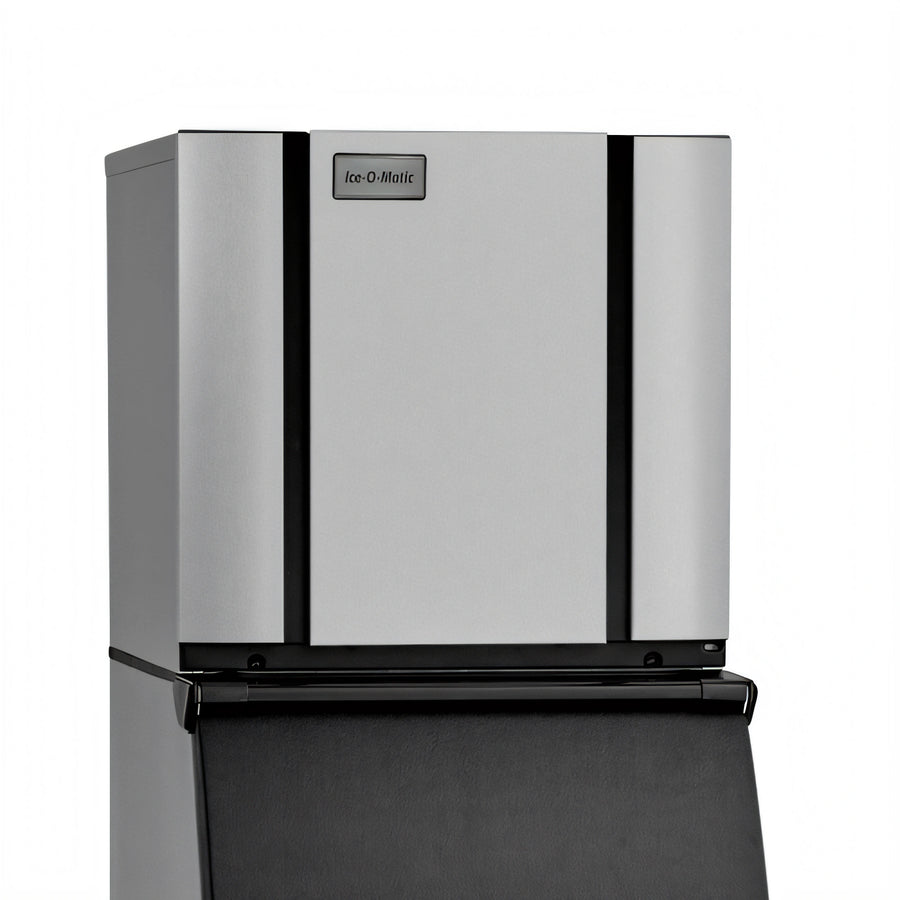

Elevation Series™ Modular Cube Ice Maker – Air-Cooled

Ice-O-Matic Model CIM0836A | Half-Cube

Engineered for high-volume beverage programs that can’t compromise on hygiene or efficiency, the Elevation Series™ sets a new benchmark in ice production. Its 30 inch footprint delivers nearly 900 lb of PURE ICE® every day while the exclusive dual-exhaust design lets you tuck the machine into spaces where other cubers simply can’t breathe.

Why you’ll love it

  • Massive output: up to 896 lb (406 kg) in 24 hr at 70 °F air / 50 °F water  •  711 lb (323 kg) at 90 °F / 70 °F.
  • Half-cube ice (3/8 × 7/8 × 7/8") – the industry standard for soft drinks, bagging and bulk cooling.
  • Dual Top/Side Exhaust removes hot air vertically or horizontally, giving you true installation flexibility against walls or beneath low ceilings.
  • PURE ICE® antimicrobial protection with built-in Agion® guards every internal surface 24/7.
  • Food-Zone Simplified: BPA-free parts snap in  /  out and are 100 % dishwasher-safe—no tools, no hassle.
  • One-Touch Care: LED status display plus single-button sanitize and descaling cycles keep maintenance quick and fool-proof.
  • Universal Smart Harness™ control board with auto-diagnostics speeds up installation and service calls.
  • Exceeds 2018 DOE standards – up to 20 % more energy efficient than prior generation Ice-O-Matic cubers.
  • cULus, NSF, CE & BPA Free listed for food safety and global compliance.

Technical specifications

Ice production (24 hr) 896 lb @ 70 °F air / 50 °F water
711 lb @ 90 °F air / 70 °F water
Ice type Half-cube  •  3/8" × 7/8" × 7/8"
(10 × 22 × 22 mm)
Dimensions (W × D × H) 30.25" × 24.25" × 26.9"
(768 × 616 × 683 mm)
Condenser Air-cooled, self-contained – dual top/side discharge
Electrical 208-230 V / 60 Hz / 1-ph  •  13.4 A (max)
Energy & water use 5.2 kWh / 100 lb ice  •  13.4 gal water / 100 lb ice
Refrigerant R-404A
Certifications cULus, NSF, CE, BPA Free
Warranty 3 yr parts & labor (ice maker)
5 yr parts (compressor & evaporator)
7 yr parts & labor on evaporator when enrolled in Ice-O-Matic filter program
Heads-up: This is a modular ice head. Pair it with a compatible 30" or 48" Ice-O-Matic bin or beverage dispenser (sold separately) for a complete ice station. Maintain a minimum of 6" clearance on the air-intake side.

Performance data based on AHRI test conditions. Actual results may vary with site-specific water quality and ambient temperatures.

Overall Dimensions:

27.0"W x 33.0"D x 33.0"H

Product Weight:

212.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free"]
Height 33.0in
Width 27.0in
Depth 33.0in
Shipping Weight 212.0lbs
Production per 24 hr 801 - 900 lb = 364 - 408 kg
Ice Type half size / half dice cubes
Condenser Type air-cooled
Width (side - side) 30 - 39" wide
Refrigeration self-contained refrigeration
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
