Ice-O-Matic CIM0836GA90

Ice-O-Matic CIM0836GA90 30-Inch Modular Air-Cooled Cube Ice Maker, Self-Contained, Grande Cube, 850 lb/24 Hr

$6,489.00
/each
Ships in 16–19 business days
Condenser Type
Air-cooled
Refrigeration
Self-contained
Ice Type
Grande cube
Ice Cube Dimensions
1 1/4 x 1 1/8 x 7/8 in (31 x 29 x 22 mm)
Production at 70°F Air / 50°F Water
850 lb (386 kg) per 24 hours
Production at 90°F Air / 70°F Water
693 lb (314 kg) per 24 hours

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Condenser Type Air-cooled
Refrigeration Self-contained
Ice Type Grande cube
Ice Cube Dimensions 1 1/4 x 1 1/8 x 7/8 in (31 x 29 x 22 mm)
Production at 70°F Air / 50°F Water 850 lb (386 kg) per 24 hours
Production at 90°F Air / 70°F Water 693 lb (314 kg) per 24 hours
Width 30.25 in (768.35 mm)
Depth 24.25 in (615.95 mm)
Height 26.9 in (683.26 mm)
Weight 212 lb
Electrical 208–230 V / 60 Hz / 1 phase
Minimum Circuit Amp 13.6 A
Maximum Breaker Size 20 A
Refrigerant R290
Refrigerant Charge 190 g
Energy Consumption at 70°F Air / 50°F Water 3.8 kWh per 100 lb of ice
Energy Consumption at 90°F Air / 70°F Water 5.23 kWh per 100 lb of ice
Potable Water Usage 17 gal per 100 lb of ice at 90°F air / 70°F water
Ambient Temperature Range 50°F–100°F (10°C–38°C)
Water Temperature Range 40°F–100°F (4°C–38°C)
Water Pressure Range 20–80 psig (1.4–5.5 bar)
Ice Maker Drain 3/4 in FPT
Potable Water Inlet 3/8 in FPT

Description

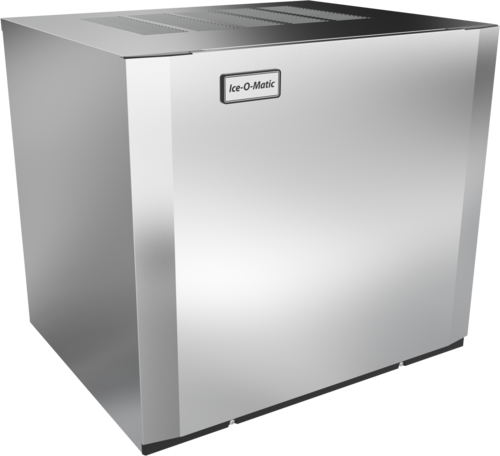

Ice-O-Matic CIM0836GA90 is an Elevation Series modular cube ice maker with an air-cooled, self-contained condenser. It produces grande cubes at 850 lb per 24 hours under 70°F air and 50°F water conditions.

  • Dual exhaust provides top or side air discharge.
  • LED status display and one-touch sanitize and descaling controls simplify operation.
  • Front-facing evaporator and dishwasher-safe food zone components support cleaning.
  • R290 refrigerant and Harvest Assist are designed into the ice maker.

At 90°F air and 70°F water, rated production is 693 lb per 24 hours. The unit measures 30.25 in W x 24.25 in D x 26.9 in H.

Overall Dimensions:

30.25"W x 24.25"D x 26.9"H

Product Weight:

212.0 lb

Air-cooled, self-contained refrigeration

Uses an air-cooled condenser with self-contained refrigeration.

Dual exhaust

Provides top or side air discharge.

Grande cube ice

Produces grande cubes measuring 1 1/4 x 1 1/8 x 7/8 in (31 x 29 x 22 mm).

Harvest Assist

Supports consistent ice production while reducing energy consumption and increasing capacity.

Cleaning controls

Includes one-touch sanitize and descaling controls.

Dishwasher-safe food zone components

Food zone components are dishwasher safe up to 180°F.

LED status display

Provides an LED status display for the ice maker.

Corrosion-resistant construction

Constructed from corrosion-resistant, fingerprint-proof aluminum with electroless nickel-plated evaporator plates.

Documentation

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Frequently Asked Questions

It produces 850 lb (386 kg) per 24 hours at 70°F air and 50°F water, or 693 lb (314 kg) per 24 hours at 90°F air and 70°F water.
It makes grande cubes measuring 1 1/4 x 1 1/8 x 7/8 in (31 x 29 x 22 mm).
It uses an air-cooled, self-contained condenser and refrigeration system.
The unit is 30.25 in wide, 24.25 in deep, and 26.9 in high, with a listed weight of 212 lb.
The specification is 208–230 V, 60 Hz, single phase, with a 13.6 A minimum circuit rating and 20 A maximum breaker size.
It uses R290 refrigerant with a 190 g charge.
The CIM Series warranty provides 3 years of parts and labor, 5 years of parts on the evaporator and compressor, and 7 years of parts and labor on the evaporator when enrolled in the IOM filter program in the United States and Canada.
