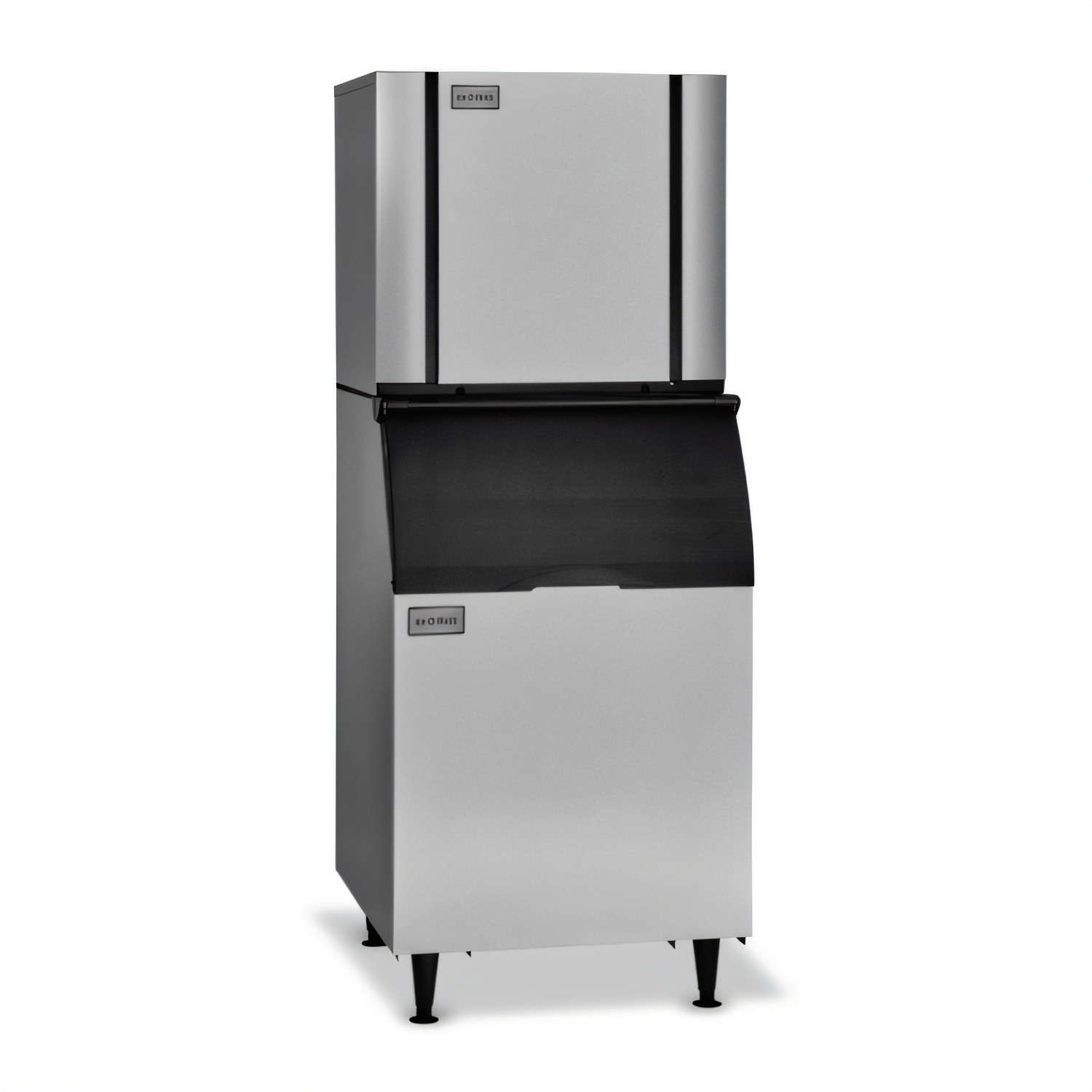

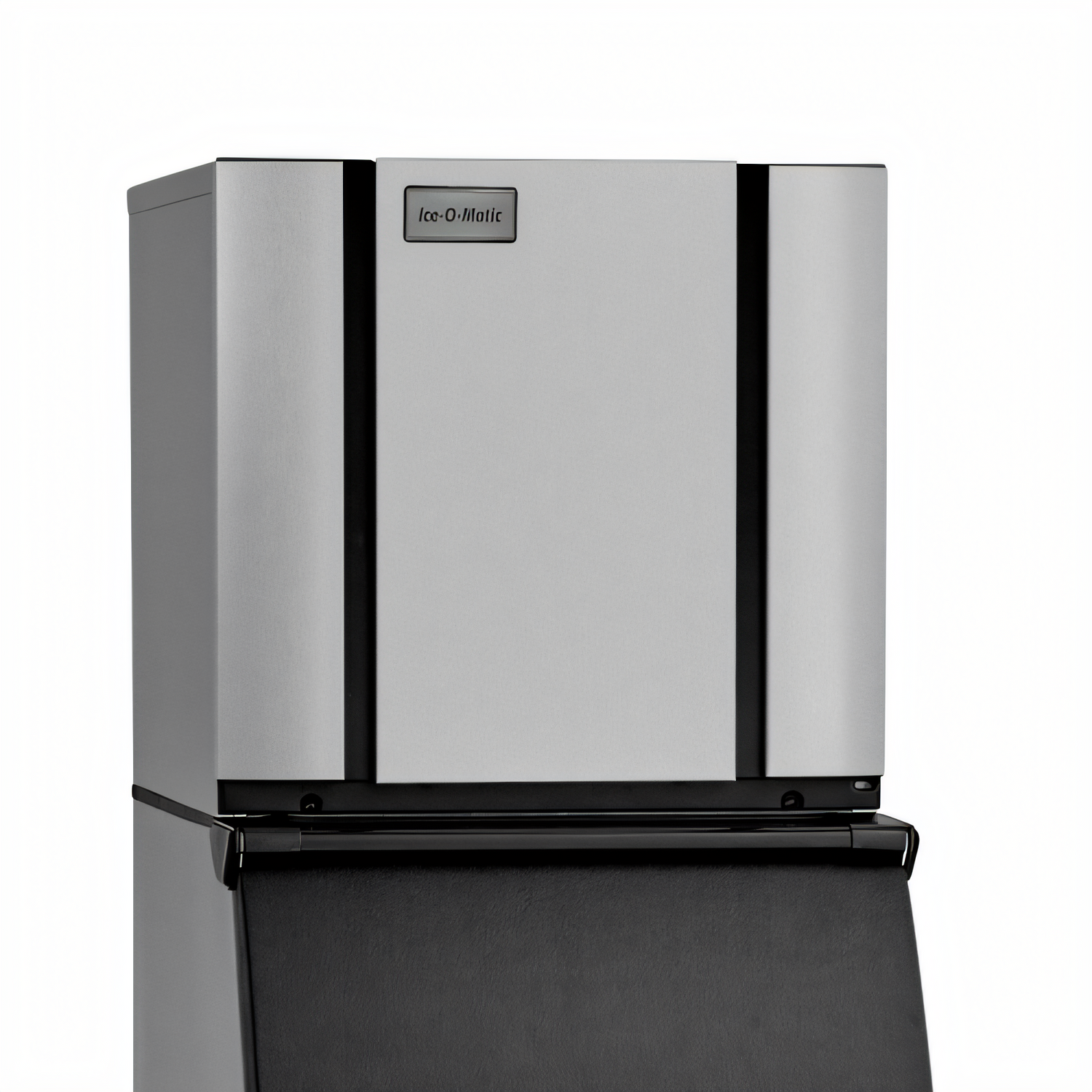

Ice-O-Matic Elevation Series™ CIM0836W Modular Cube Ice Maker
30" Water-Cooled Head • Full-Size Cubes • ~896 lb / 24 hrEngineered for demanding food-service environments, the Elevation Series™ CIM0836W delivers nearly half a ton of crystal-clear ice every day while making cleaning and maintenance faster than ever.
Stand-Out Features

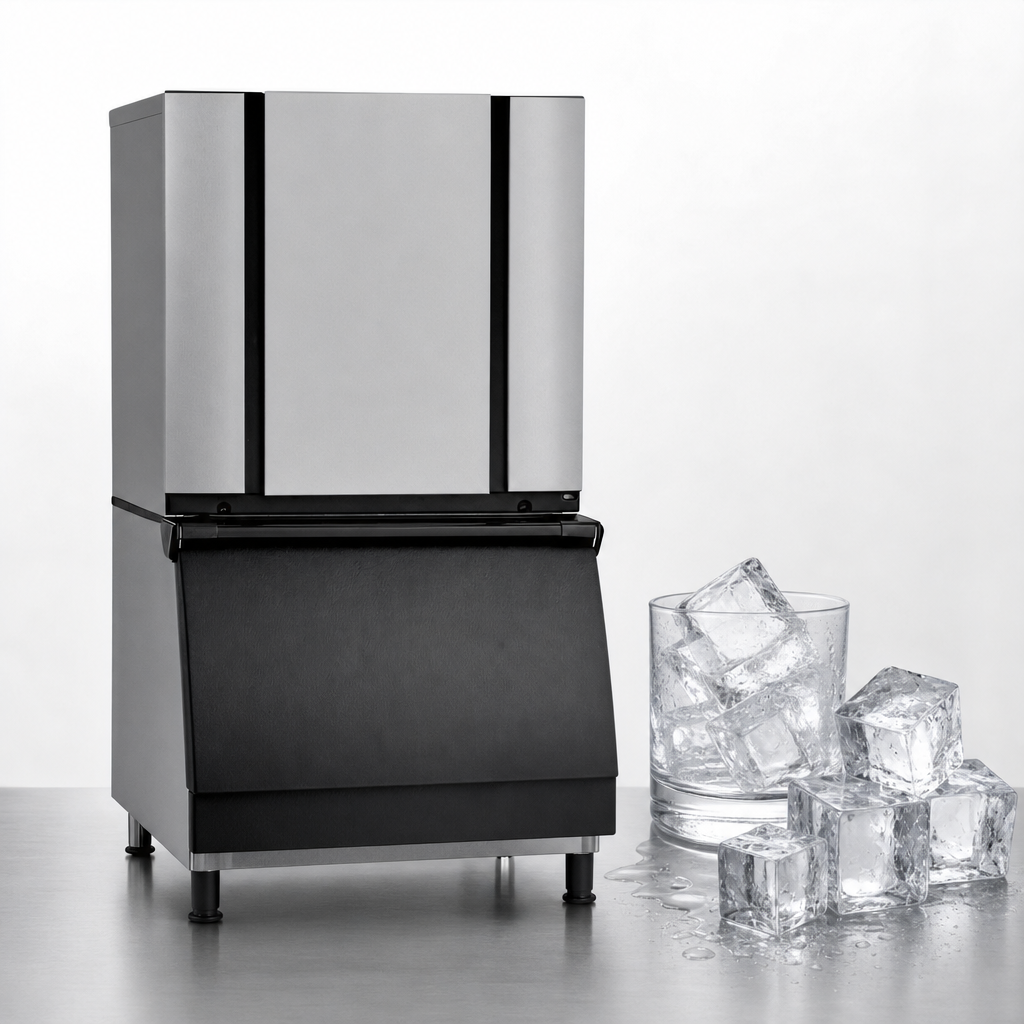

- Full cube output – ⅞" x ⅞" x ⅞" cubes ideal for cocktails, soft drinks & bulk cooling.
- PURE ICE® built-in Agion antimicrobial protection keeps bacteria and slime at bay for the life of the machine.
- One-touch sanitize & descale buttons shorten cleaning time by up to 50 %.
- Bright LED status display tells staff exactly when the unit is making ice or needs attention.
- BPA-free, snap-in / snap-out food-zone parts are dishwasher safe for effortless hygiene.
- Universal Smart Harness™ control board with digital diagnostics speeds up installation & service.
- Water-cooled, self-contained condenser—quiet, reliable performance even in the hottest kitchens.
- cULus, NSF, and CE listed for worldwide safety & sanitation compliance.
Performance & Specs
| Model | CIM0836W (Elevation Series) |
|---|---|
| Ice type | Full cube • ⅞" × ⅞" × ⅞" (22 × 22 × 22 mm) |
| 24-hr production |
896 lb (406 kg) @ 70 °F air / 50 °F water 774 lb (351 kg) @ 90 °F air / 70 °F water |
| Condenser | Self-contained, water-cooled |
| Dimensions (W × D × H) | 30.25" × 24.25" × 26.9" (768 × 616 × 683 mm) |
| Electrical | 208-230 V / 60 Hz / 1-ph • 13.8 A (20 A max. breaker) |
| Water usage | Potable: 4.2 gal / 100 lb ice • Condenser: 140 gal / 100 lb ice |
| Refrigerant | R404A |
| Approx. ship weight | 210 lb (96 kg) |
| Certifications | cULus • NSF • CE • BPA-Free |
| Warranty |
3 yr parts & labor on entire machine 5 yr parts on compressor & evaporator 7 yr parts & labor on evaporator with Ice-O-Matic filter program |
Perfect For
- Restaurants & bars
- Hotels & banquet halls
- Convenience-store fountain stations
- Catering & healthcare facilities
Pair with any 30-inch Ice-O-Matic bin such as the B55PS or B110PS—no adapter kit required.
Pro Tip: Enroll in the Ice-O-Matic water-filter program at installation to
unlock the extended 7-year evaporator warranty and keep every cube tasting fresh.
$6,489.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Ice-O-Matic CIM0836FW Elevation Series: high-capacity 896 lb/day water-cooled cube ice maker with PURE ICE® antimicrobial protection, LED display, NSF.
Manufacturer
Ice-O-Matic
Brand name
Elevation Series™
Certifications
NSF, CE, cULus, BPA Free
Height
33.0in
Width
27.0in
Depth
33.0in
Shipping Weight
212.0lbs
Width (side - side)
30 - 39" wide
Production per 24 hr
801 - 900 lb = 364 - 408 kg
Ice Type
full size / dice cubes
Condenser Type
water-cooled
Refrigeration
self-contained refrigeration
Specifications
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30" W, approximately 896 lb production/24 hours at 70°/50° (798 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
