Ice-O-Matic Elevation Series™ CIM0836FR49 Modular Full Cube Ice Maker, Remote Cooled, 30-Inch Wide

SKU: CIM0836FR49
$6,322.18
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic Elevation Series™ CIM0836FR49 Modular Full Cube Ice Maker, Remote Cooled, 30-Inch Wide

Approx. 850 lb/24 hr; separate remote condenser required

A high-output modular ice maker with remote-cooling flexibility, full-size cube production, and easy-clean food-zone components.

  • Produces about 850 lb of full-size cube ice per day at 70°F air / 50°F water.
  • Remote-condenser cooled design allows flexible refrigeration placement.
  • Modular format installs on bins or dispensers for broad application.
  • Front-facing evaporator and dishwasher-safe food-zone components simplify cleaning.
  • Harvest Assist technology supports consistent production and lower energy use.
  • LED status display and one-touch sanitize/descaling controls make maintenance easier.

Overall Dimensions:

30.25"W x 24.25"D x 26.9"H

Product Weight:

215.0 lb

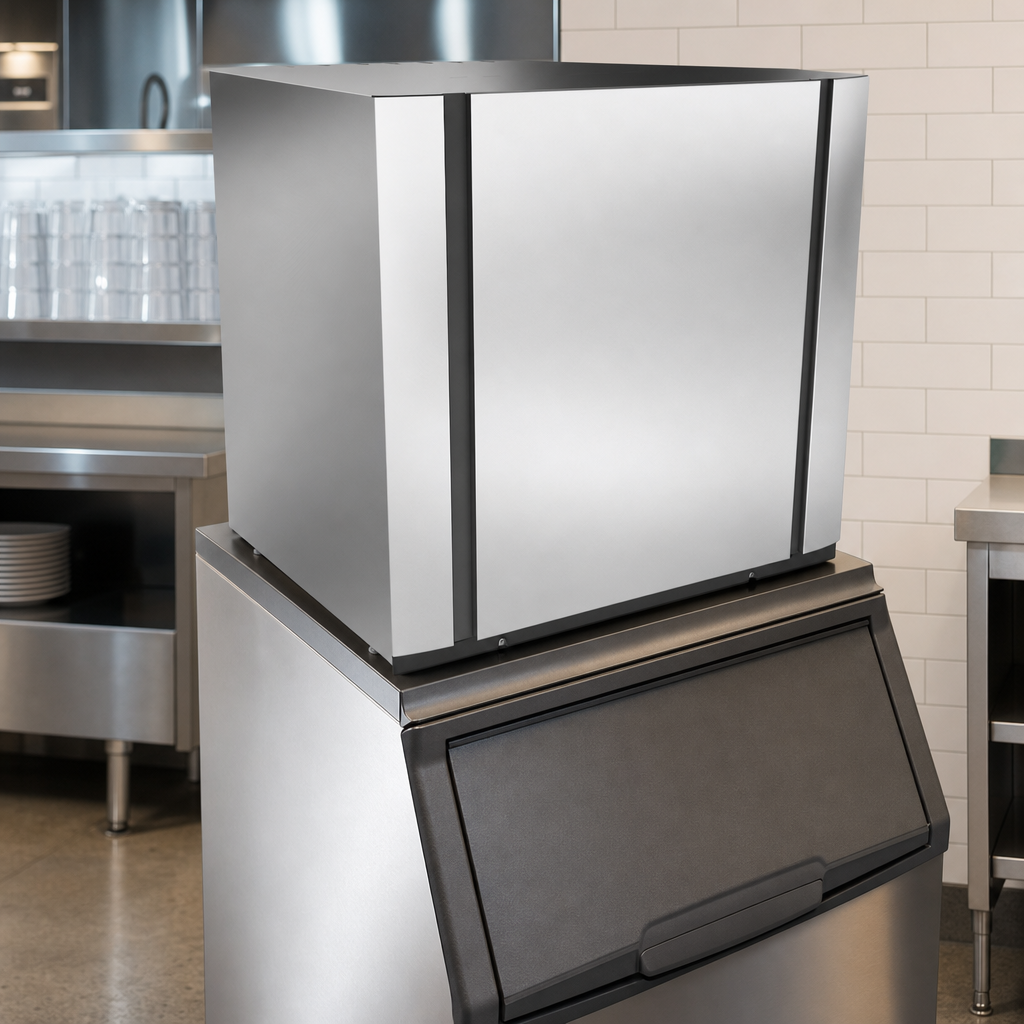

Modular Top-Mount Design

Designed for flexible installation on top of bins or dispensers.

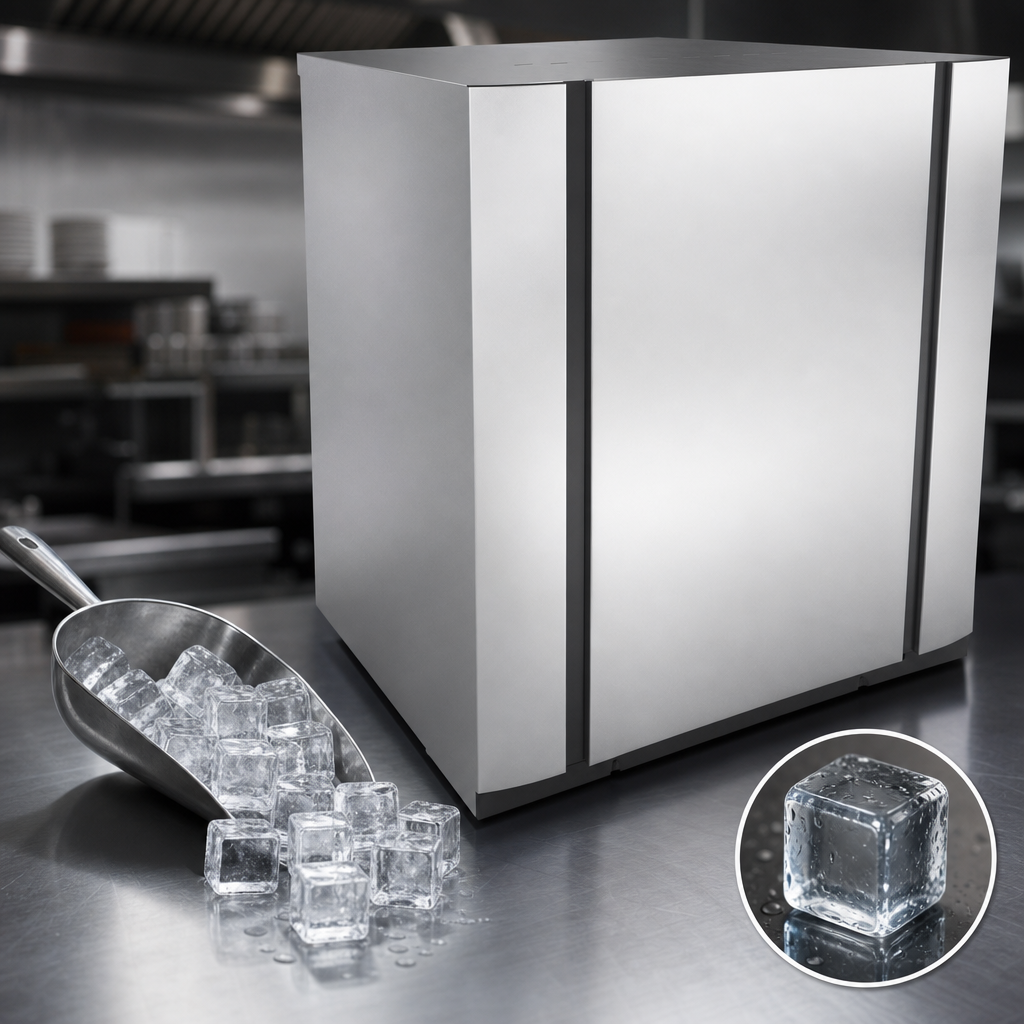

Full Cube Ice Form

Produces 7/8 x 7/8 x 7/8 in. full-size cubes (22 x 22 x 22 mm).

Front-Facing Evaporator

Improves access for cleaning and routine maintenance.

Dishwasher-Safe Food Zone Components

Plastic food-zone components are dishwasher safe up to 180°F.

Harvest Assist Technology

Helps deliver consistent ice production while reducing energy consumption and boosting capacity.

Electroless Nickel-Plated Evaporator Plates

Adds durability and long-term reliability to the ice-making system.

LED Status Display and One-Touch Sanitize/Descaling Controls

Makes operation and cleaning easier with quick status feedback and maintenance controls.

Corrosion-Resistant Aluminum Construction

Fingerprint-proof construction helps maintain a clean appearance.

Remote-Cooled Compatibility

Pairs with RC206C49 remote condenser and RL49-25, RL49-40, and RL49-75 precharged line sets.

Type Cube Ice Maker
Style Modular
Refrigeration Type Remote
Capacity 850 lb per 24 Hours
Voltage 208-230 Volts
Amps 13.7 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 20 Amps
BTU 14,600 BTU per Hour
Refrigerant Type R449A
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Material Aluminum
Controls Electronic
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Options PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces full-size cube ice, measuring 7/8 x 7/8 x 7/8 in. (22 x 22 x 22 mm).
Approximately 850 lb per 24 hours at 70°F air / 50°F water, or 759 lb per 24 hours at 90°F air / 70°F water.
No. This model is remote condenser cooled and pairs with the RC206C49 remote condenser and RL49-25, RL49-40, and RL49-75 line sets.
It requires 208-230V, 60 Hz, single-phase power, draws 13.7 amps, and uses a 20 amp max breaker.
It has a front-facing evaporator, dishwasher-safe food-zone components, and one-touch sanitize/descaling controls.
The documentation lists compatible bins B40, B42, B55, B700-30, B110, B1000-48, B1300-48, B1325-60, and B1660-60.
