Ice-O-Matic CIM0836FR Elevation Series™ Ice Machines
$6,566.00
Unit price
/
Unavailable
Description
Ice-O-Matic Elevation Series™ CIM0836R Modular Cube Ice Maker
Remote air-cooled • 30″ wide • Up to 906 lb of full cubes per dayEngineered for operators who need a lot of crystal-clear ice—not headaches—the Elevation Series™ CIM0836R pairs category-leading production with the easiest cleaning routine in the business.
Key Benefits
- High-volume output: ≈ 906 lb (411 kg) of full cubes every 24 h at 70 °F air / 50 °F water (≈ 793 lb at 90 °F / 70 °F).
- Remote air-cooled condenser (RCA-2061, sold separately) removes heat and noise from the kitchen.
- PURE ICE® built-in antimicrobial protection (Agion®) inhibits bacterial growth for the life of the machine.
- One-touch sanitize & descaling plus smart LED status lights tell staff exactly when service is due.
- Snap-in, dishwasher-safe food-zone components clean up in minutes—no tools required.
- Exceeds 2018 DOE efficiency requirements, using just 4.8 kWh per 100 lb of ice.
- BPA-free, fully recyclable plastics and ENERGY STAR®-level efficiency support your sustainability goals.
Crystal-Clear Full Cubes
Full cubes (7/8″ × 7/8″ × 7/8″) deliver maximum chill with minimal dilution—perfect for cocktails, soft drinks, retail bags, and banquet service.
Specifications
| Model | CIM0836R (Elevation Series) |
|---|---|
| Ice type | Full-size cubes |
| Daily production @ 70 °F / 50 °F | ≈ 906 lb (411 kg) |
| Daily production @ 90 °F / 70 °F | ≈ 793 lb (360 kg) |
| Energy use | 4.8 kWh per 100 lb of ice |
| Water use | 19 gal potable per 100 lb of ice |
| Condenser type | Remote air-cooled • Refrigerant R-404A |
| Electrical | 208-230 V / 60 Hz / 1-phase • 13.8 A • 20 A circuit |
| Dimensions (W × D × H) | 30.25″ × 24.25″ × 26.9″ (768 × 616 × 683 mm) |
| Certifications | cULus • NSF • CE • BPA Free |
Popular Bin Pairings (sold separately)
- B55PS slope-front bin – 510 lb storage, kit not required.
- B700-30 upright bin – 680 lb storage for peak-demand operations.
- B110PS slope-front bin – 854 lb storage, requires kit BPF-1.
Included Features & Options
- Universal Smart Harness™ control board with digital diagnostics.
- Factory-installed LED status display.
- Snap-in/snap-out water system components for rapid maintenance.
- Optional SafeIce™ purification system destroys viruses, mold, and odors (field or factory install).

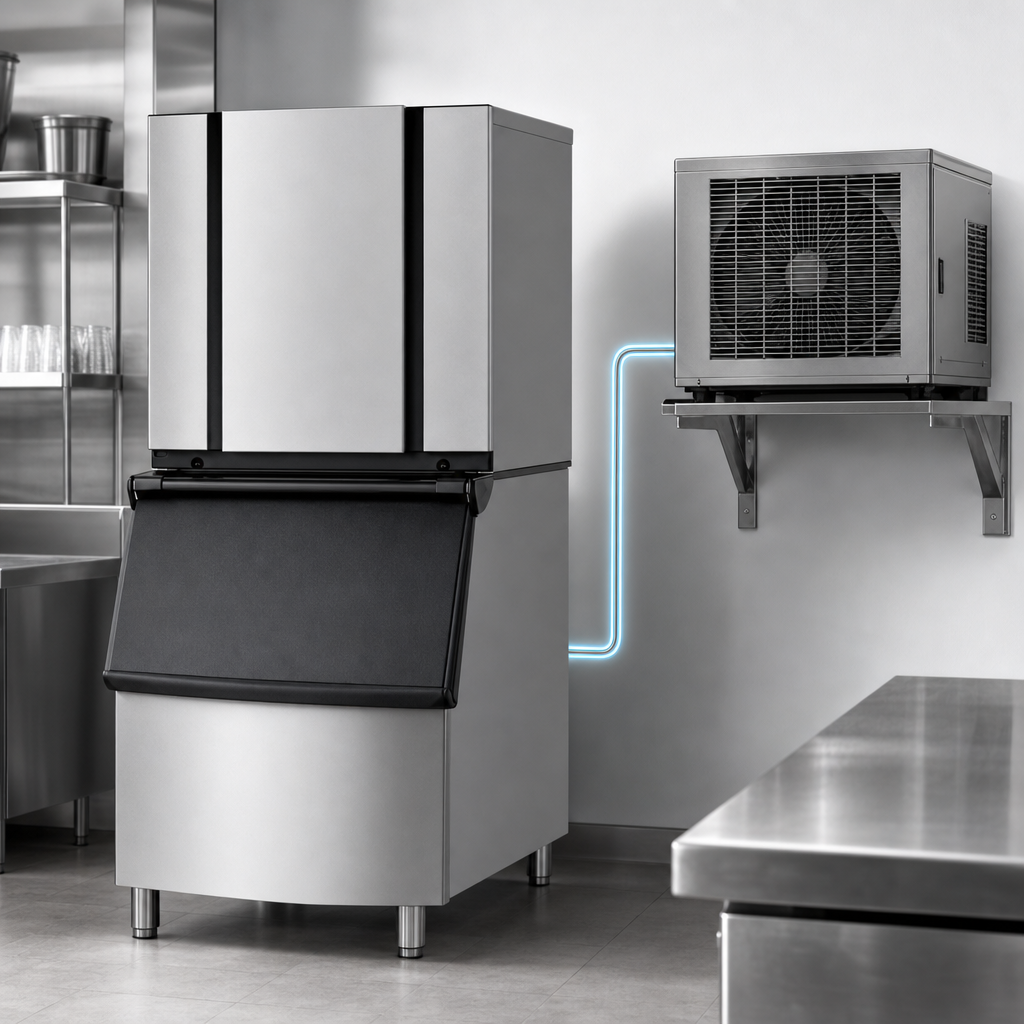

Remote condenser required: This ice maker must be installed with Ice-O-Matic
model RCA-2061 remote condenser and matching pre-charged line set (each sold separately).
Professional installation on a dedicated 20 A circuit is recommended.
Ice-O-Matic covers the CIM0836R with a 3-year parts & labor warranty and up to 7-year
evaporator coverage when enrolled in the Ice-O-Matic water-filter program.
Features & Specs
Features & Specs
Manufacturer
Ice-O-Matic
Brand_name
Elevation Series™
Certifications
NSF, CE, cULus, BPA Free
Height
33.0in
Width
27.0in
Depth
33.0in
Shipping Weight
215.0lbs
Refrigeration
remote (refrigeration not included)
Condenser Type
air-cooled
Width (side - side)
30 - 39" wide
Ice Type
full size / dice cubes
Production per 24 hr
901 - 1000 lb = 409 - 454 kg
Specifications
Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30" W, approximately 906 lb production/24 hours at 70°/50° (793 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
