Ice-O-Matic CIM0836FA Elevation Series™ Ice Machines

SKU: CIM0836FA
$6,043.00
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Ice-O-Matic New Arrivals

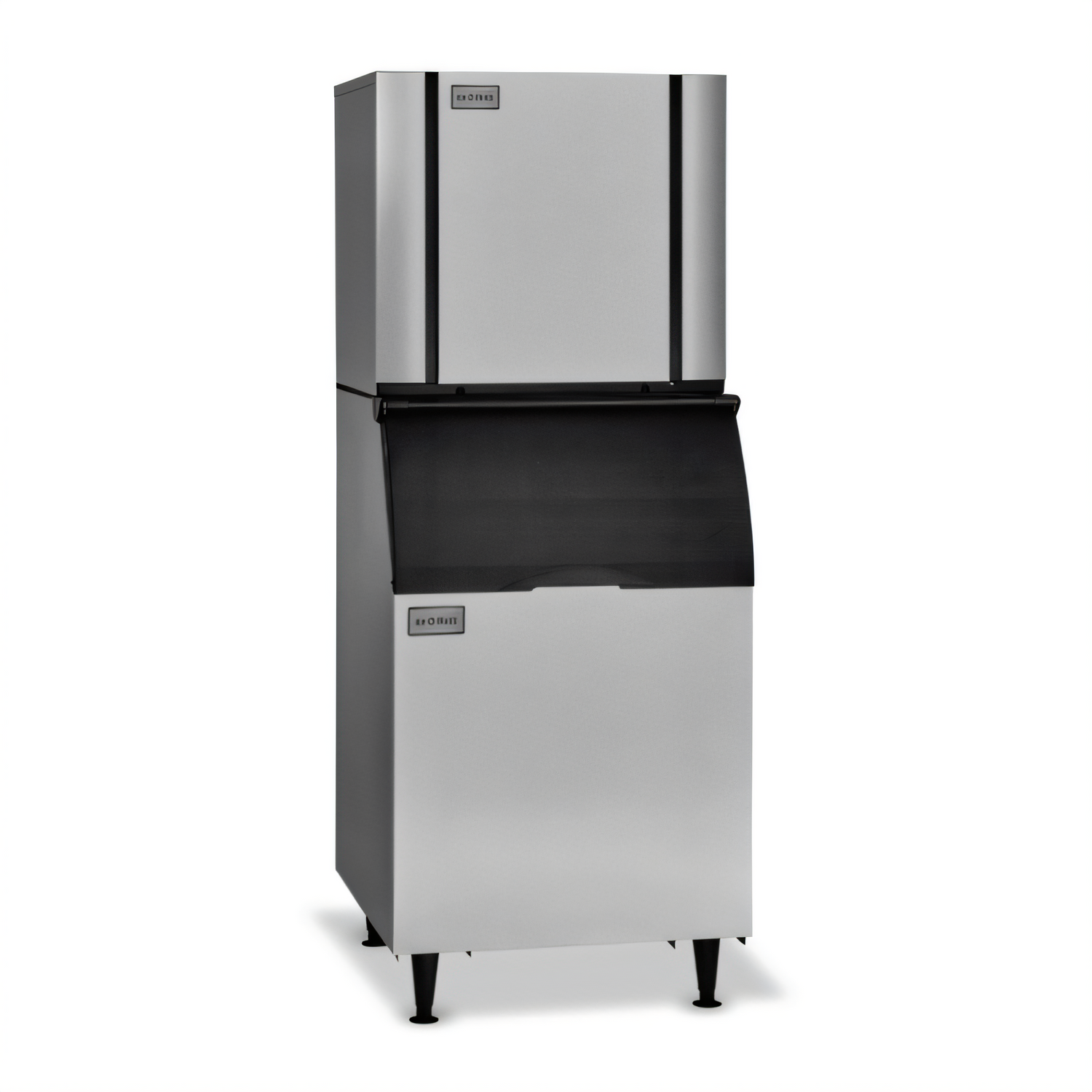

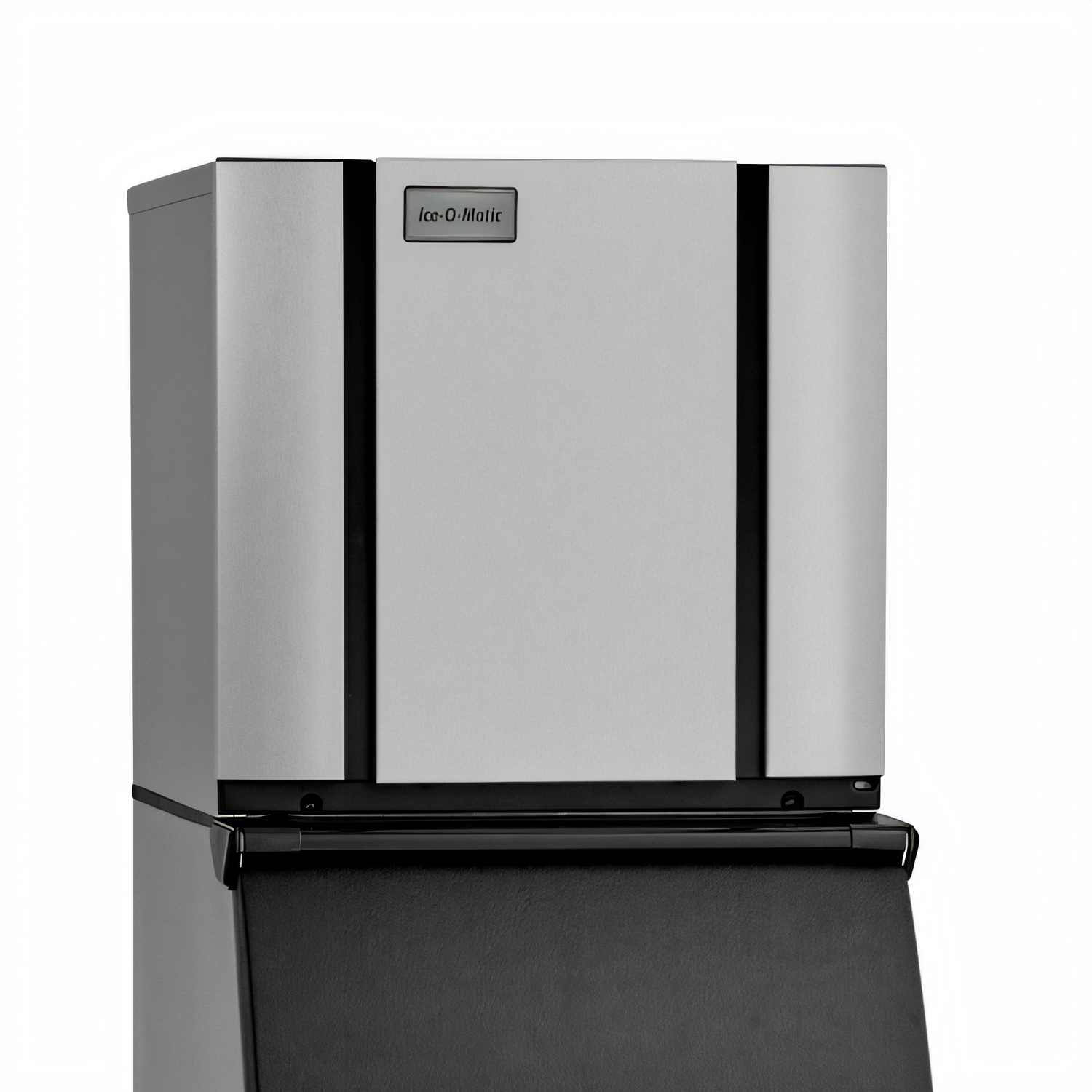

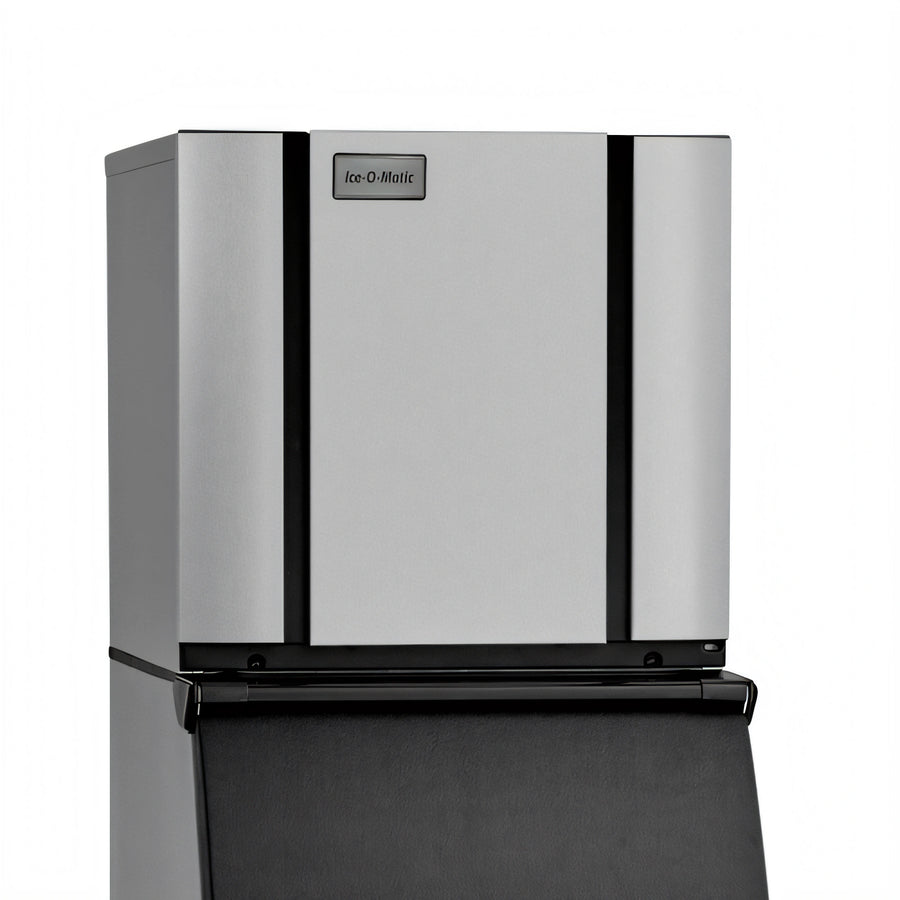

Ice-O-Matic Elevation Series™ CIM0836A Modular Cube Ice Maker – 896 lb / 24 hr

30 in W • Full-Cube • Air-Cooled • Self-Contained Condenser

Engineered for high-volume, worry-free operation, the Ice-O-Matic CIM0836A delivers up to 896 lb of crystal-clear, full-size cubes every day while using up to 20 % less energy than previous generations. A space-saving 30-inch footprint, dual top/side exhaust and tool-free food-zone components make it the perfect choice for kitchens, bars and dispensers where sanitation, efficiency and flexibility matter most.

Why You’ll Love It

  • Powerful production – 896 lb at 70 °F/50 °F; still 668 lb in the hottest kitchens (90 °F/70 °F).
  • Full-size PURE ICE® cubes (⅞ × ⅞ × ⅞ in) – perfect clarity and slower melt for premium drinks.
  • Dual Exhaust (top & side) maximises installation options and prevents hot-air recirculation.
  • Built-in Agion® antimicrobial protection plus removable, BPA-free plastic food-zone parts that are dishwasher safe.
  • Smart LED status display with one-touch sanitize and descale cycles.
  • Universal Smart Harness™ control board – simplified diagnostics and field programming.
  • Exceeds 2018 DOE efficiency standards; Environmentally conscious construction with recyclable & BPA-free components.

Performance & Utilities

Daily ice production @ 70 °F air / 50 °F water 896 lb (406 kg)
Daily ice production @ 90 °F air / 70 °F water 668 lb (303 kg)
Ice type Full Cube – ⅞ × ⅞ × ⅞ in | 22 × 22 × 22 mm
Condenser Air-cooled, self-contained
Water usage 5.2 gal per 100 lb of ice
Energy usage 13.4 kWh per 100 lb of ice
Electrical 208–230 V / 60 Hz / 1-phase  |  MCA 13.4 A  |  Max fuse 20 A
Dimensions (W×D×H) 30.25 × 24.25 × 26.9 in  (768 × 616 × 683 mm)
Refrigerant R404A
Certifications cULus, NSF, CE, BPA-Free

Installation Made Easy

  • Requires only 6 in (152 mm) clearance for air intake/exhaust.
  • 3⁄8 in FPT potable-water inlet & ¾ in FPT drain.
  • Compatible Ice-O-Matic storage bins: B25, B40, B42, B55 (no adapter needed). Hold-down kit BPF-1 recommended for B110 bins.
  • Optional SafeIce™ UV ozone purification system can be factory or field installed.

Rock-Solid Warranty

• 3 years parts & labor on the entire ice maker
• 5 years parts on the compressor & evaporator
• 7 years parts & labor on the evaporator (with Ice-O-Matic filter program registration).

Heads-up: This listing is for the ice-maker head only. Storage bin, water filter and installation accessories are sold separately.

Overall Dimensions:

27.0"W x 33.0"D x 33.0"H

Product Weight:

212.0 lb
Manufacturer Ice-O-Matic
Brand name Elevation Series™
Certifications ["NSF", "CE", "cULus", "BPA Free"]
Height 33.0in
Width 27.0in
Depth 33.0in
Shipping Weight 212.0lbs
Production per 24 hr 801 - 900 lb = 364 - 408 kg
Width (side - side) 30 - 39" wide
Condenser Type air-cooled
Ice Type full size / dice cubes
Refrigeration self-contained refrigeration
Specifications Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Web site PDF Download PDF Service manual PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Slope front storage bins PDF Download PDF Diagram PDF Download PDF Warranty sheet PDF Download
