Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0826HR

Ice-O-Matic CIM0826HR Elevation Series™ Ice Machines

$6,566.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service manual Owner's manual Brochure Web site Slope front storage bins Diagram Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

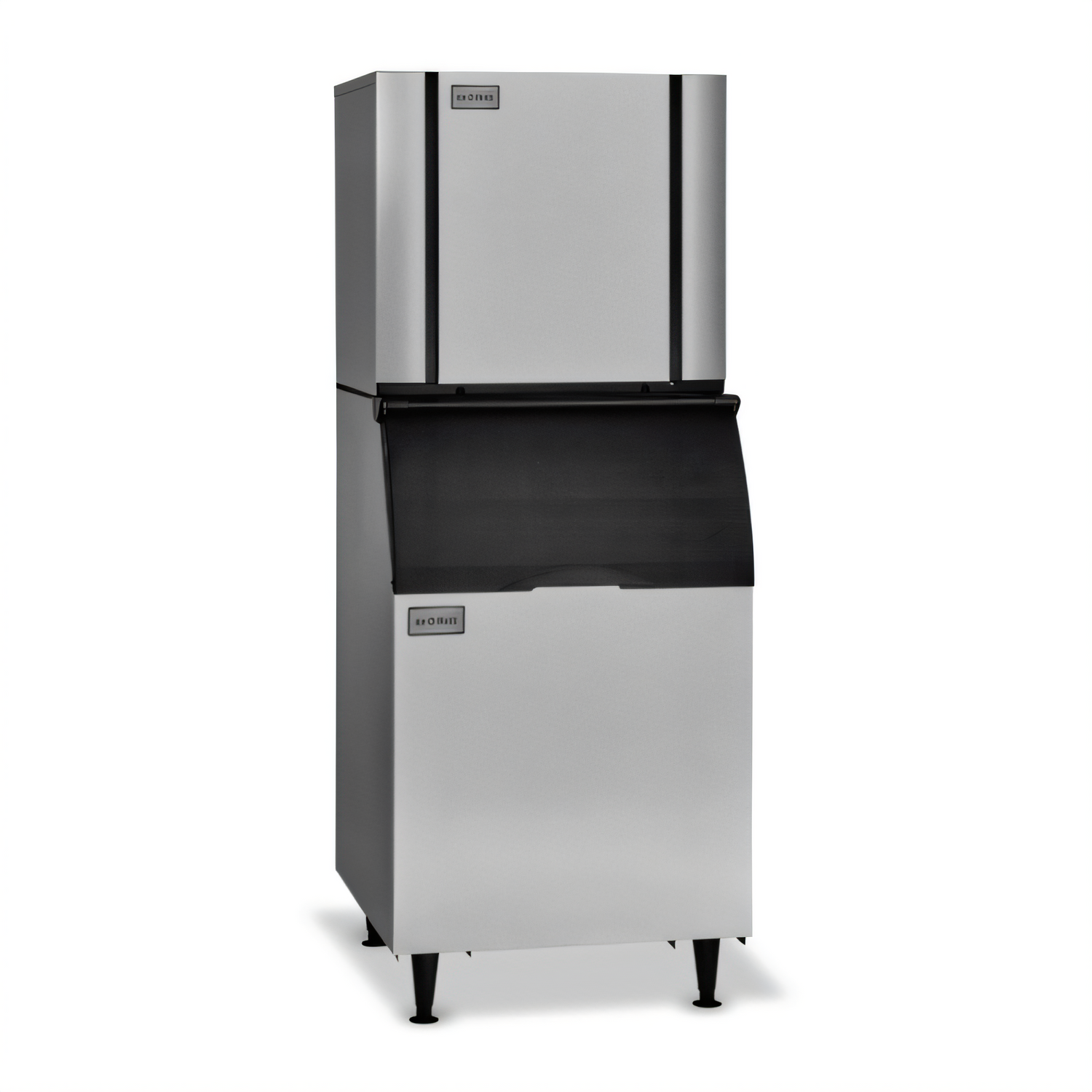

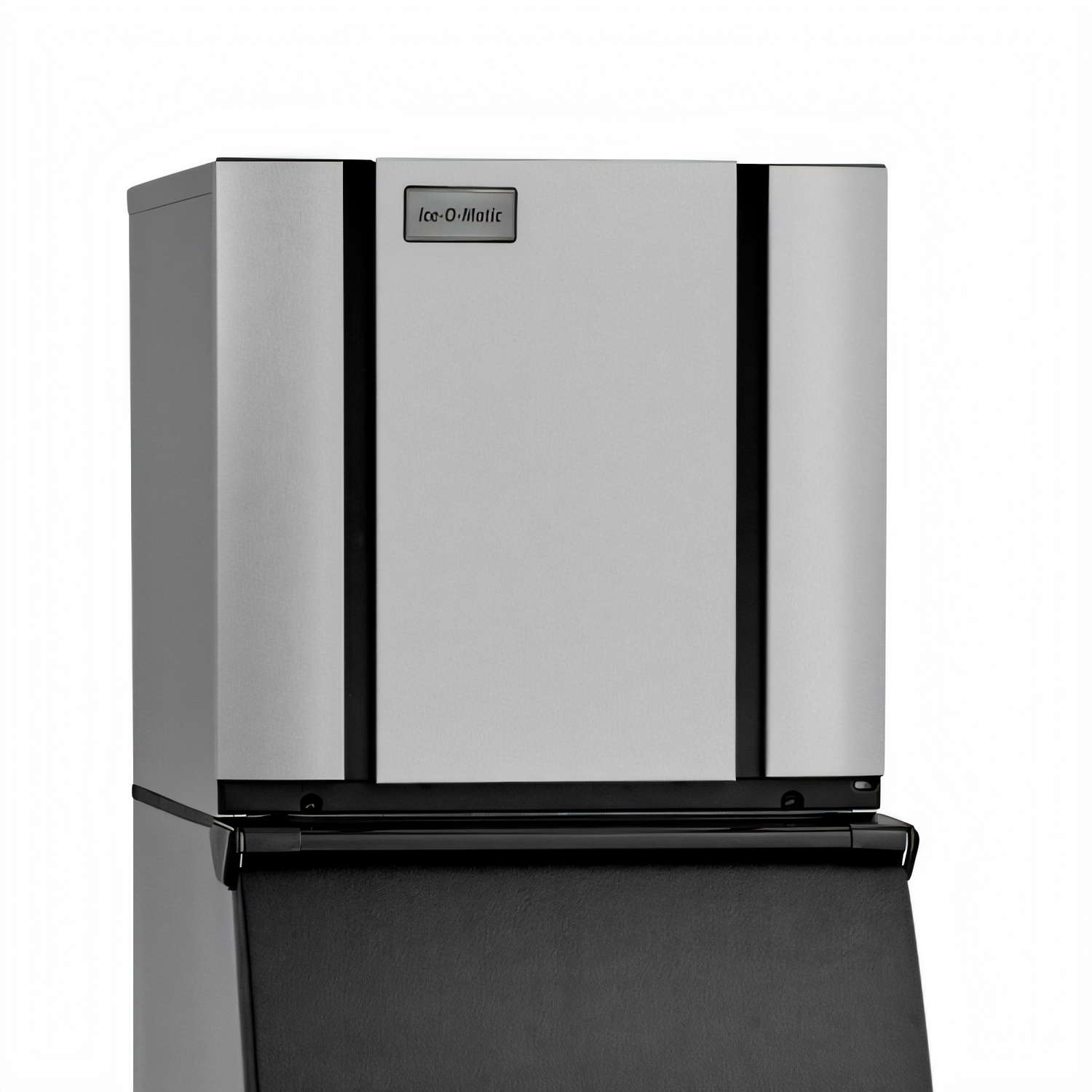

Ice-O-Matic Elevation Series™ CIM0826R Half-Cube Ice Maker

Remote air-cooled modular head – up to 906 lb of ice per day

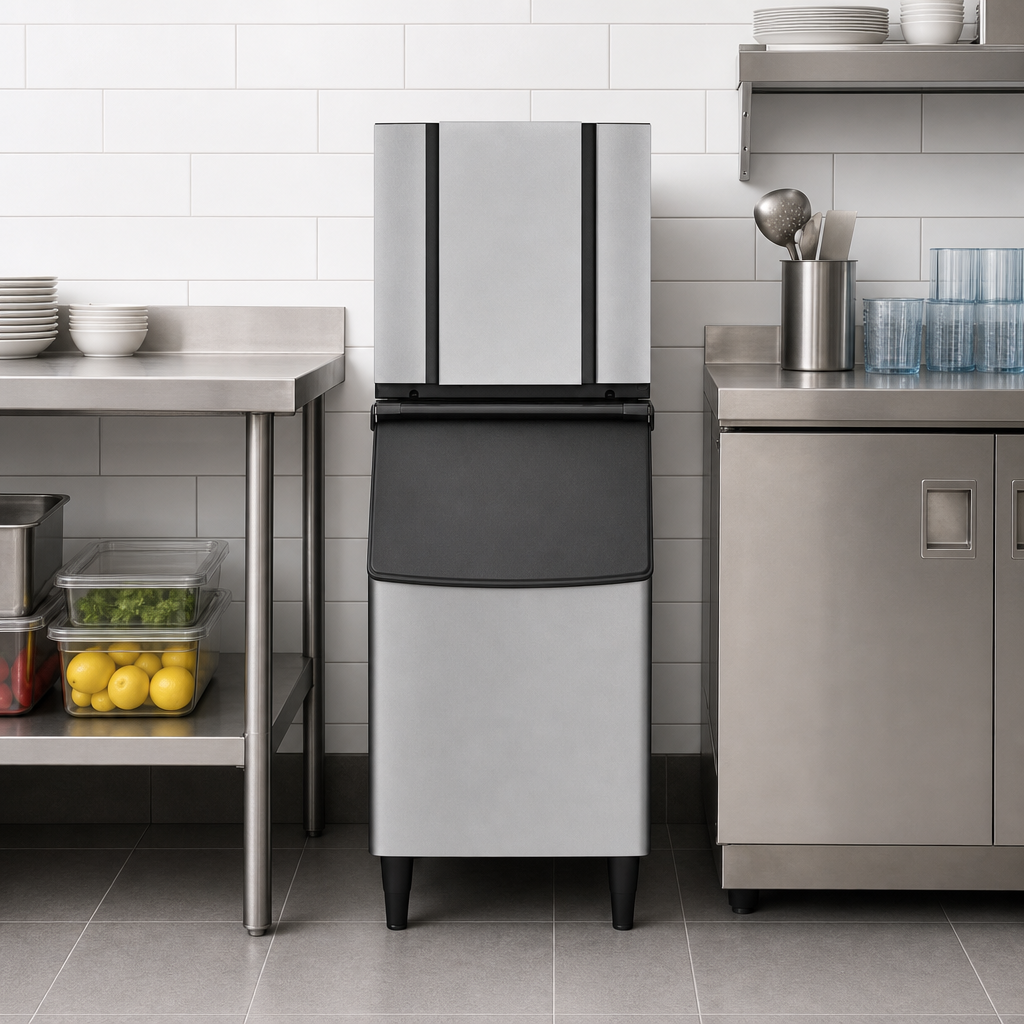

Boost output without expanding your footprint. At just 22 inches wide, the Elevation Series™ CIM0826R churns out nearly half a ton of crystal-clear half cubes every 24 hours while slashing energy, water and labor costs.

Why you’ll love it

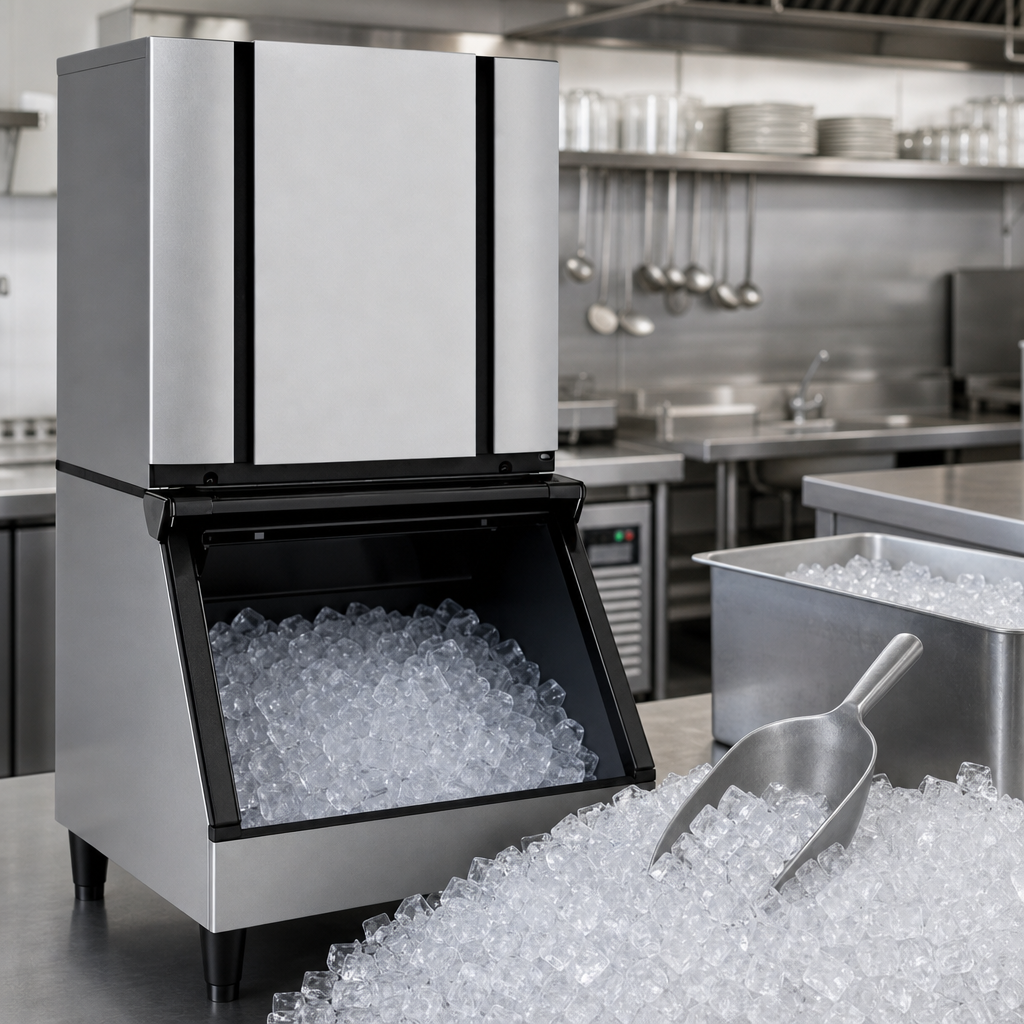

  • High-volume production – 906 lb/day at 70 °F air / 50 °F water.
  • ENERGY STAR® qualified – exceeds 2018 DOE regulations and is up to 20 % more efficient than previous models.
  • Space-saving dual exhaust – hot air may vent from the top or side, eliminating clearance headaches.
  • PURE ICE® antimicrobial protection – Agion®-treated food zone helps prevent mold, slime and bacteria.
  • One-touch sanitize & descale – built-in LED tells you when to clean; push a single button to start.
  • Dishwasher-safe food zone – BPA-free, snap-out parts wash easily, cutting service time.
  • Universal Smart Harness™ – common components and digital diagnostics streamline installation and repair.

Performance

Ice type Half-size cube: 3/8 × 7/8 × 7/8 in (10 × 22 × 22 mm)
24-hr production 906 lb / 411 kg @ 70 °F air / 50 °F water
769 lb / 348 kg @ 90 °F air / 70 °F water
Energy use 4.8 kWh per 100 lb of ice
Water use 19 gal potable per 100 lb of ice
Operating ranges Air 50–100 °F • Water 40–100 °F

Dimensions & utilities

Width × Depth × Height 22.25 × 24.25 × 26.9 in (565 × 616 × 683 mm)
Voltage 208 – 230 V / 60 Hz / 1 ph • MCA 12.3 A • Max breaker 20 A
Refrigerant R404A
Shipping weight ≈ 220 lb / 100 kg
Remote condenser Model RCA-2061 required (sold separately; optional grill-guard available)
Compatible bins B25, B40, B42 (KBT19 kit), B55, B110 and larger Ice-O-Matic bins

Certifications

  • ENERGY STAR®
  • cULus
  • NSF & CE
  • BPA-Free construction

Commercial warranty

Ice maker 3 years parts & labor
Compressor & evaporator 5 years parts
Evaporator (with Ice-O-Matic filter program) 7 years parts & labor
Production ratings are for half-cube configuration. Ice bin, water filtration, remote condenser and installation materials are sold separately.
Installation reminder: Provide a minimum of 6 in (152 mm) clearance for air intake and exhaust, and use the manufacturer’s pre-charged line set to connect the remote condenser.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free, ENERGY STAR

Height

33.0in

Width

27.0in

Depth

25.0in

Shipping Weight

218.0lbs

Refrigeration

remote (refrigeration not included)

Condenser Type

air-cooled

Ice Type

half size / half dice cubes

Width (side - side)

20 - 29" wide

Production per 24 hr

901 - 1000 lb = 409 - 454 kg

Energy Efficiency

ENERGY STAR®

Specifications

Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, dual exhaust top/side air discharge, 22" W, approximately 906 lb production/24 hours at 70°/50° (793 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®
