Ice-O-Matic Elevation Series Modular Half-Size Cube Ice Maker, Air-Cooled, Self-Contained, 900 lb/Day

22.25" W, R290 Refrigerant, LED Status Display

A compact modular ice maker that delivers high-volume half-size cubes with easy-clean components, efficient R290 refrigeration, and flexible top/side exhaust.

  • Produces up to 900 lb of half-size cubes per 24 hours at 70°F air / 50°F water.
  • Self-contained, air-cooled design with dual top/side exhaust for flexible installation.
  • LED status display and one-touch sanitize/descaling controls simplify daily operation.
  • Front-facing evaporator and dishwasher-safe food zone components help speed cleaning.
  • Harvest Assist technology supports consistent production while reducing energy consumption.
  • Corrosion-resistant, fingerprint-proof aluminum construction and nickel-plated evaporator plates improve durability.

Overall Dimensions:

22.25"W x 24.25"D x 26.9"H

Product Weight:

197.0 lb

Half-Size Cube Ice Form

Produces half-size cubes measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).

High Daily Production

Approximate production is 900 lb per 24 hours at 70°F air / 50°F water and 695 lb at 90°F air / 70°F water.

Air-Cooled, Self-Contained Refrigeration

Built with an air-cooled, self-contained condenser for straightforward installation on bins or dispensers.

Dual Exhaust Air Discharge

Top and side exhaust options provide flexible application and easier placement.

Easy-Clean Food Zone

Front-facing evaporator and dishwasher-safe components help simplify cleaning and maintenance.

One-Touch Cleaning Controls

LED status display with one-touch sanitize and descaling controls streamlines routine service.

Harvest Assist Technology

Helps maintain consistent ice production over the life of the machine while reducing energy consumption.

Durable Construction

Constructed from corrosion-resistant, fingerprint-proof aluminum with electroless nickel plating on evaporator plates.

R290 Refrigerant

Uses R290 refrigerant for an efficient, environmentally friendly refrigeration solution.

Type Cube Ice Maker
Style Modular
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Ice Type Half Size Cubes
Capacity 900 lb per 24 Hours at 70°F Air / 50°F Water; 695 lb per 24 Hours at 90°F Air / 70°F Water
Controls Digital
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 12.3 Amps
Breaker Size 20 Amps
BTU 15,840 BTU/Hr
Refrigerant Type R290A
Refrigerant Charge 190 g
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Usage 17.5 Gallons per 100 lb of Ice at 90°F Air / 70°F Water
Material Aluminum
Selling Unit Each
Units Per Case 1
Shipping Width 23 Inches
Shipping Depth 25 Inches
Shipping Height 27 Inches
Shipping Weight 197 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-size cubes measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
Approximately 900 lb per 24 hours at 70°F air / 50°F water, or 695 lb at 90°F air / 70°F water.
Yes. It uses air-cooled, self-contained refrigeration with dual top/side exhaust discharge.
It includes a front-facing evaporator, dishwasher-safe food zone components, LED status display, and one-touch sanitize/descaling controls.

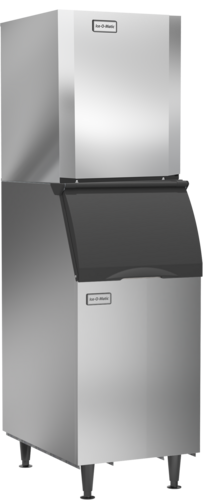

The unit is shown atop a B42 bin sold separately, and the documentation also lists accessories such as KCUBEDISPB, KBT222, and IFQ2.
The documentation lists a 3-year parts and labor warranty on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator if enrolled in the filter program for the US and Canada.
