Ice-O-Matic CIM0826HA Elevation Series™ Ice Machines
Description

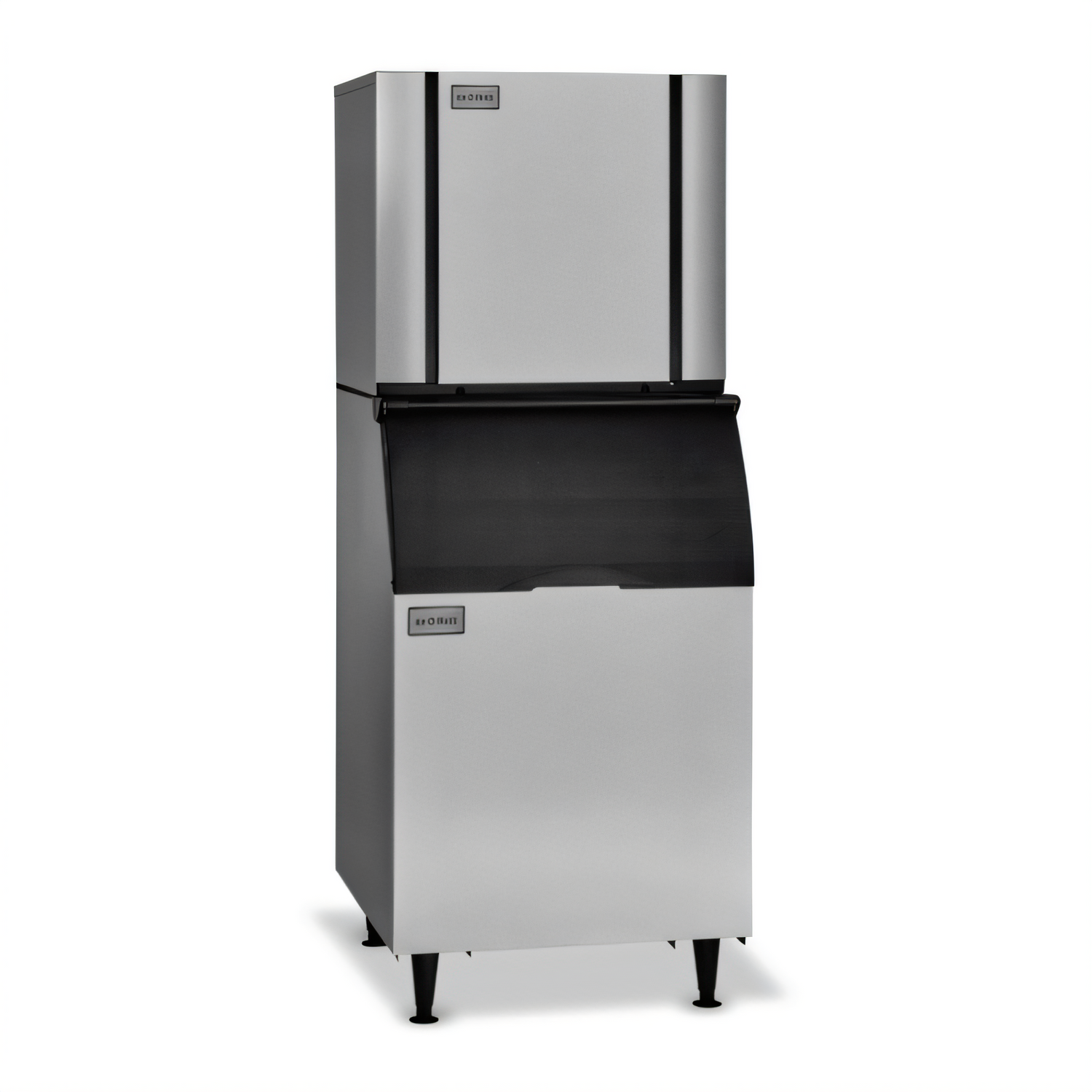

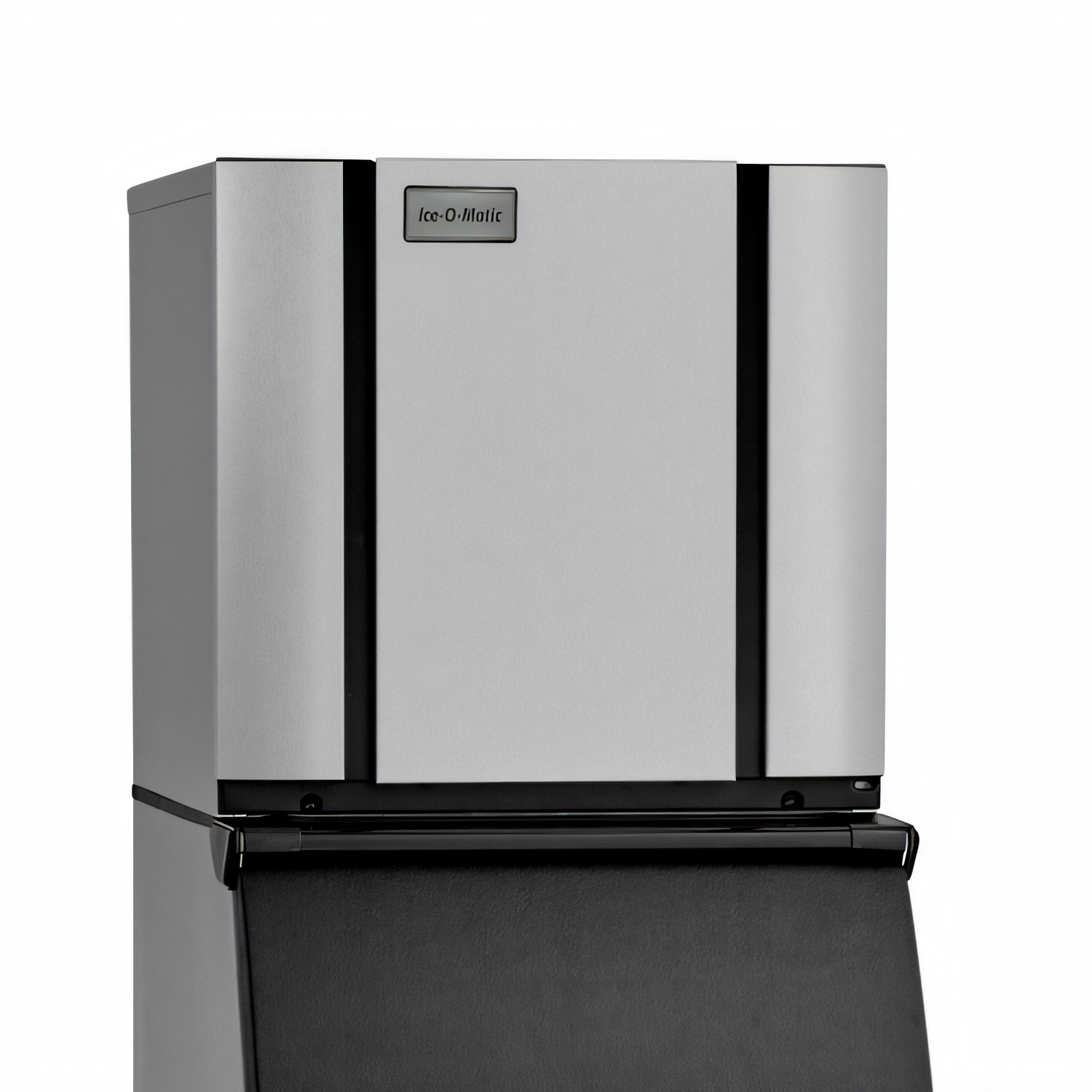

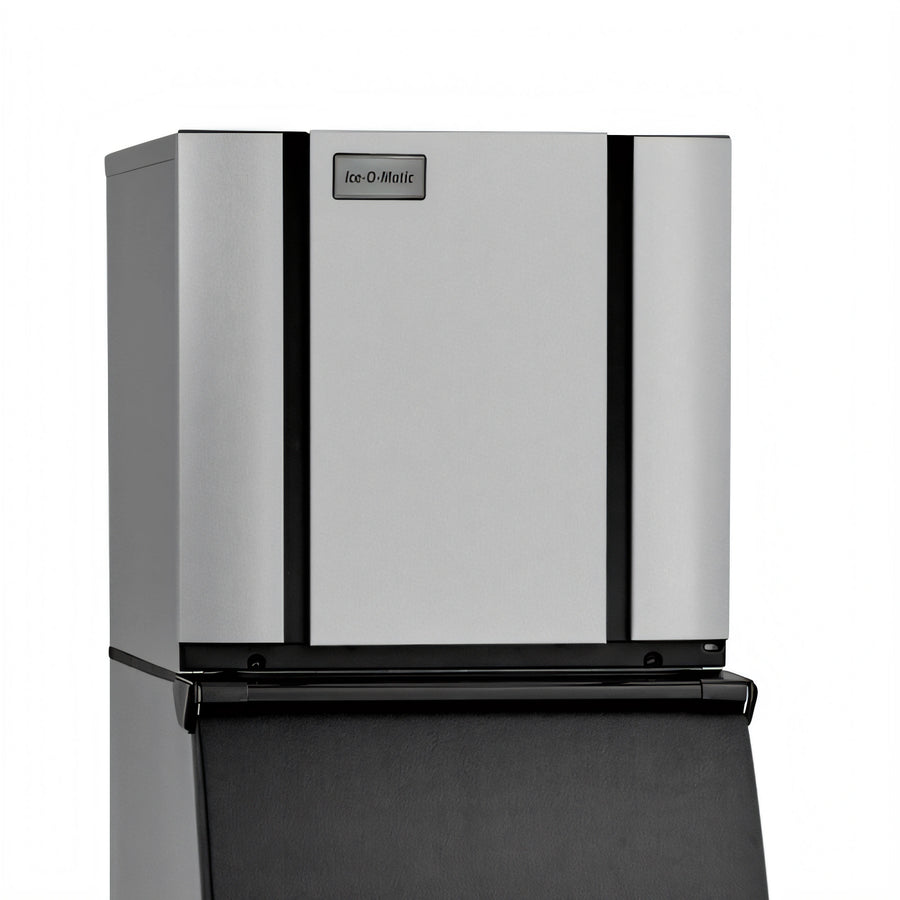

Ice-O-Matic Elevation Series™ Modular Half-Cube Ice Maker – Air-Cooled (CIM0826A)
22 in wide • up to 896 lb of ice every 24 hoursPower, purity and easy maintenance come together in the Elevation Series. The 22-inch-wide CIM0826A packs nearly 900 pounds of crystal-clear half-cube ice into a footprint small enough for tight beverage stations—while one-touch cleaning and built-in antimicrobial protection keep every batch tasting fresh.
Key Advantages
- High-volume output — 896 lb (406 kg) per day at 70 °F air/50 °F water.
- Space-saving 22.25 in (565 mm) cabinet fits most 22 in ice bins and beverage dispensers.
- Half-Cube ice (⅜ × ⅞ × ⅞ in) ideal for soft drinks, cocktails and blended beverages.
- Dual-exhaust air discharge (top & side) increases installation flexibility and prevents hot-air recirculation.
- PURE ICE® Agion® antimicrobial protection molded into the food-zone plastics fights bacteria around the clock.
- Snap-in, snap-out BPA-free food-zone components are 100 % dishwasher safe.
- One-touch sanitize and descale buttons simplify routine maintenance.
- Smart LED status display lets staff see machine condition at a glance.
- Exceeds 2018 DOE efficiency standards—up to 20 % more energy efficient than previous models.
- Universal Smart Harness™ control board speeds up installation and service diagnostics.
Performance & Technical Data
| Model | CIM0826A |
|---|---|
| Ice type | Half Cube (3/8 × 7/8 × 7/8 in) |
| Production @ 70 °F / 50 °F | 896 lb / 406 kg per day |
| Production @ 90 °F / 70 °F | 668 lb / 303 kg per day |
| Condenser | Self-contained, air-cooled |
| Dimensions (W × D × H) | 22.25 × 24.25 × 26.9 in (565 × 616 × 683 mm) |
| Electrical | 208-230 V / 60 Hz / 1-ph – 12.3 A MCA, 20 A breaker |
| Refrigerant | R404A |
| Shipping weight | 220 lb / 100 kg |
| Certifications | cULus, NSF, CE, BPA-Free |
Compatible 22 in Ice Bins
- B25 – 242 lb capacity (requires KBT19 bin-top kit)
- B40 – 344 lb capacity (requires KBT19)
- B42 – 351 lb capacity (no kit required)
- B55 – 510 lb capacity (requires KBT19)
- B110 – 854 lb capacity (requires KBT23C; hold-down securement recommended)
Larger upright bins (B700-B1600) are also available for high-volume storage.
Options & Accessories
- IFQ2 water-filter manifold with IOMQ2 cartridges – extends evaporator warranty to 7 years.
- SafeIce™ purification system – factory or field install to neutralize viruses, mold and odors.
- Ozone delivery system for additional sanitation (manufacturer-approved).
Warranty
- 3-Year parts & labor on the entire ice maker
- 5-Year parts on the evaporator & compressor
- 7-Year parts & labor on the evaporator when enrolled in Ice-O-Matic’s water-filter program (USA/Canada)
Need a remote-cooled or full-cube model? Explore the full Elevation Series or chat with our equipment specialists.
