Ice-O-Matic CIM0826FW Elevation Series™ Ice Machines
Description

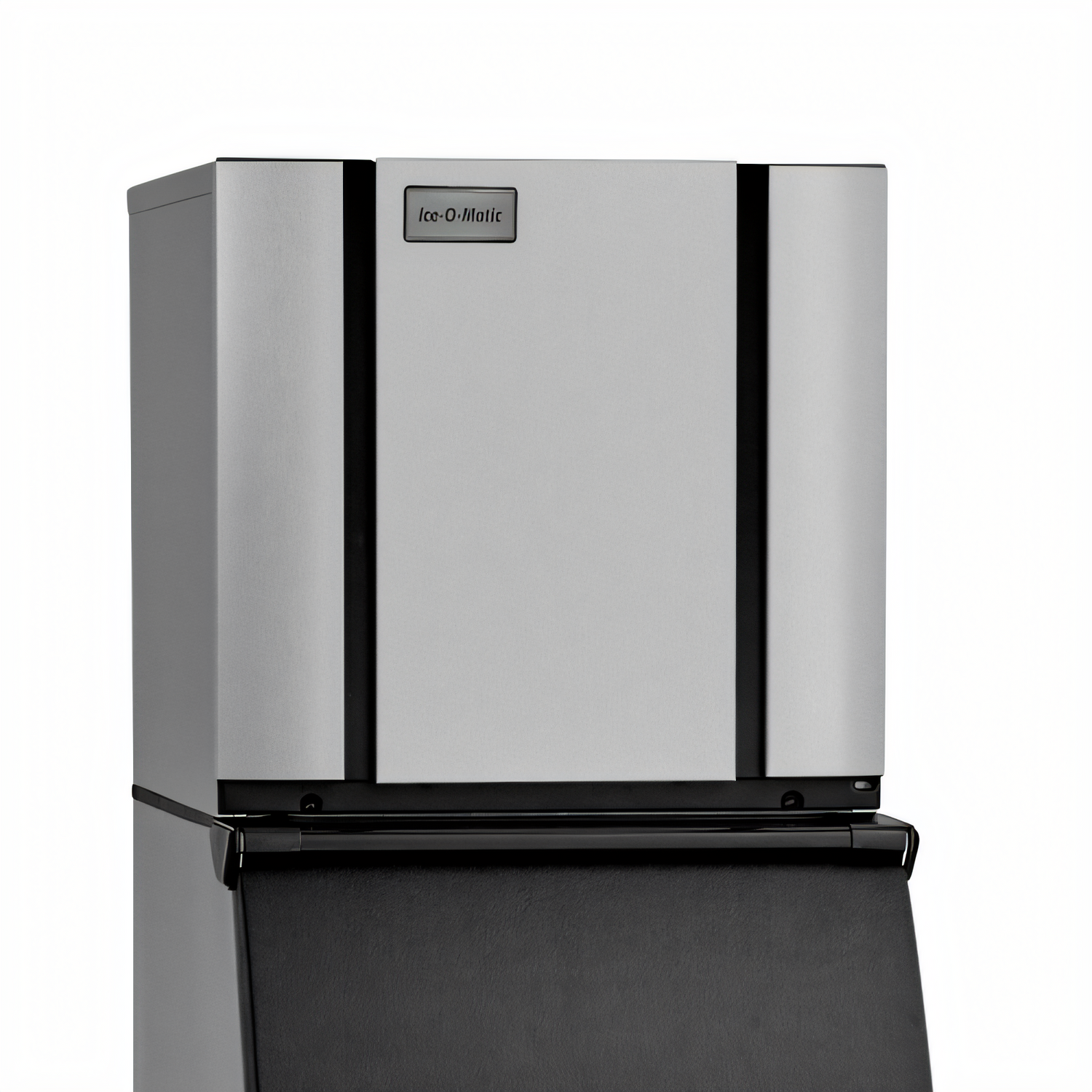

Elevation Series™ Modular Cube Ice Maker – Water-Cooled
Model CIM0826W | Full-Size Cubes | ≈ 896 lb daily productionPurpose-built for high-volume food-service, hospitality, and healthcare operations, the Ice-O-Matic Elevation Series™ CIM0826W delivers nearly half a ton of crystal-clear, full-size cubes every 24 hours from a compact 22 inch footprint. With PURE ICE® antimicrobial protection, simple one-touch cleaning, and dishwasher-safe food-zone components, it keeps your ice program safe, sustainable, and effortlessly reliable.
Why You’ll Love It
- High Output, Small Footprint – Produces ≈ 896 lb (406 kg) of full cubes at 70 °F air / 50 °F water.
- Water-Cooled, Self-Contained condenser for quiet operation with no hot-air discharge into the kitchen.
- PURE ICE® Protection – Agion® antimicrobial is molded into key components for lifelong defense against microbes.
- One-Touch Sanitize & Descale – Integrated controls slash maintenance time.
- Dishwasher-Safe Food Zone – BPA-free, snap-in parts remove in seconds for deep cleaning.
- LED Status Display signals power, production, and cleaning alerts at a glance.
- Universal Smart Harness™ control board with digital diagnostics simplifies installation and service.
- Do More, Waste Less – Exceeds 2018 DOE efficiency standards and uses recyclable, BPA-free plastics.
Performance & Dimensions
| Ice production (70 °F air / 50 °F water) | ≈ 896 lb | 406 kg per 24 hr |
|---|---|
| Ice production (90 °F air / 70 °F water) | ≈ 774 lb | 351 kg per 24 hr |
| Ice type & cube size | Full cube – ⅞ in × ⅞ in × ⅞ in (22 mm) |
| Cooling method | Water-cooled, self-contained condenser |
| Potable water use | Approx. 4.2 gal (15.9 L) per 100 lb of ice |
| Condenser water use | Approx. 11.3 gal (42.8 L) per 100 lb of ice |
| Energy consumption | ≈ 4.2 kWh per 100 lb of ice |
| Electrical | 208-230 V / 60 Hz / 1-phase – 11.3 A MCA |
| Exterior dimensions | 22.25 W × 24.25 D × 26.9 H in (565 × 616 × 683 mm) |
| Net / shipping weight | ≈ 210 lb / 220 lb (100 kg) |
Built-In Food Safety
- Agion® antimicrobial and BPA-free materials throughout the food zone.
- Tool-free removal of water trough, distribution tube, curtain, and sensors – all dishwasher safe.
- LED prompts tell staff exactly when cleaning is required, reducing downtime and labor.
Certifications & Warranty
- cULus, NSF, CE listed – compliant for global food-service codes.
- BPA Free construction.
- 3-year parts & labor warranty on the entire ice maker.
- 5-year parts warranty on compressor & evaporator.
- 7-year parts & labor evaporator coverage when enrolled in the Ice-O-Matic filter program.

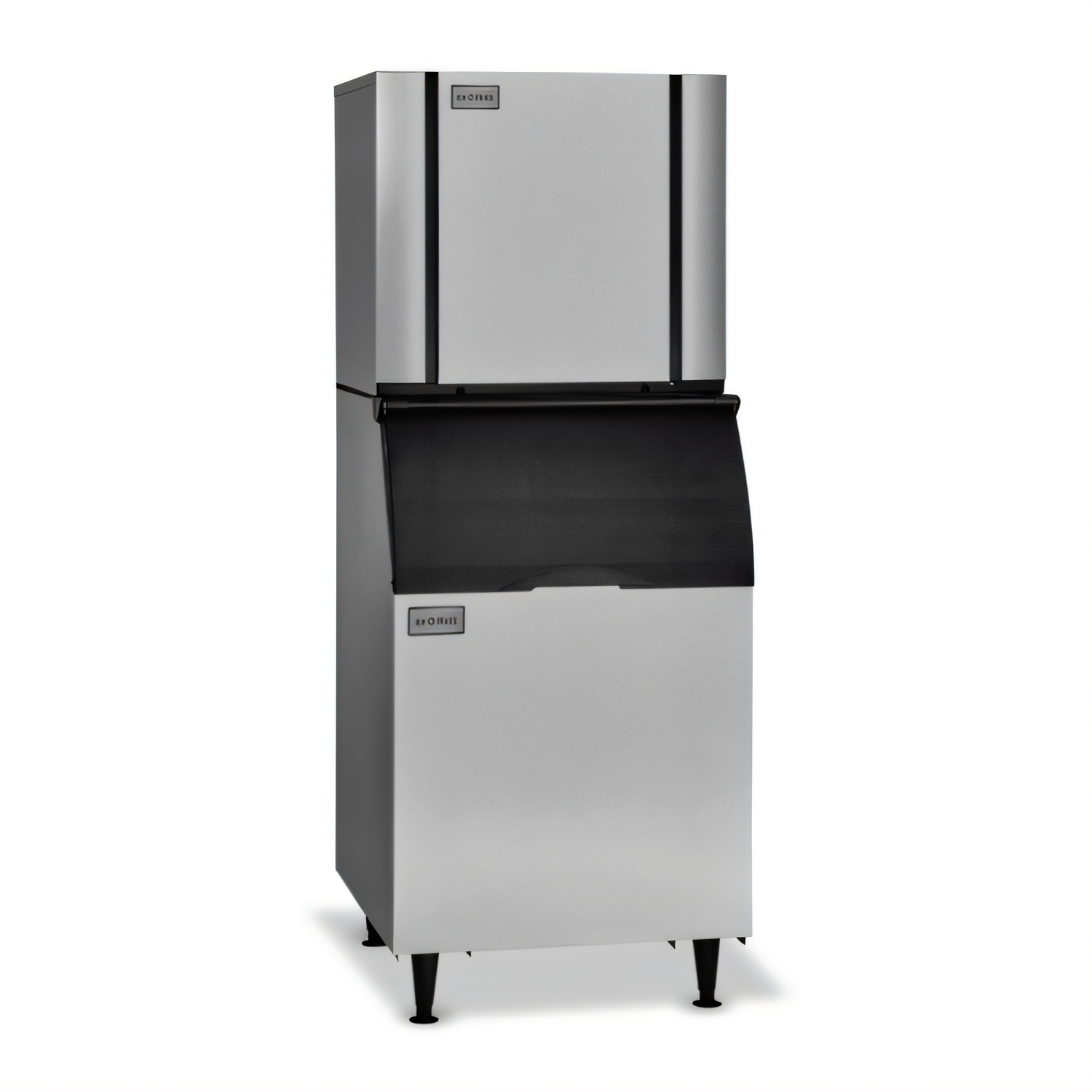

Recommended Ice Storage Bins (sold separately)
| Model | Bin Capacity | Adapter Kit |
|---|---|---|
| B25 or B40 | 242 – 344 lb | KBT19 |
| B42 | 351 lb | Kit not required |
| B55 | 510 lb | KBT19 |
| B110 | 854 lb | KBT23C |
Optional Upgrades
- SafeIce™ Purification System – destroys viruses, mold, and odors, extending machine life up to 30 %.
- IFQ2 water-filter manifold with IOMQ cartridges for maximum ice quality and extended evaporator warranty.
Daily production ratings are based on AHRI test conditions. Actual capacity will vary with ambient temperature, water temperature, and installation variables.
