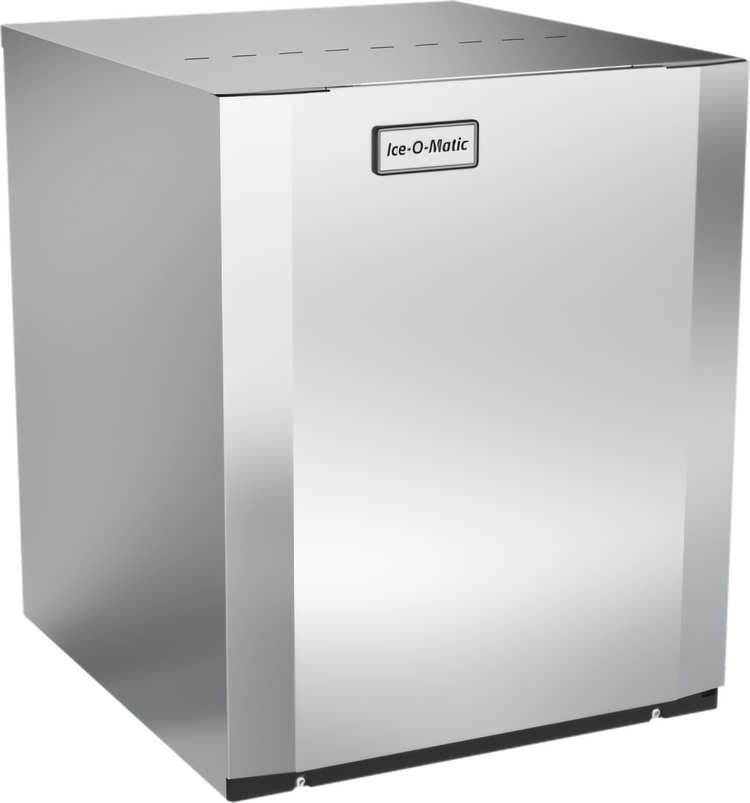

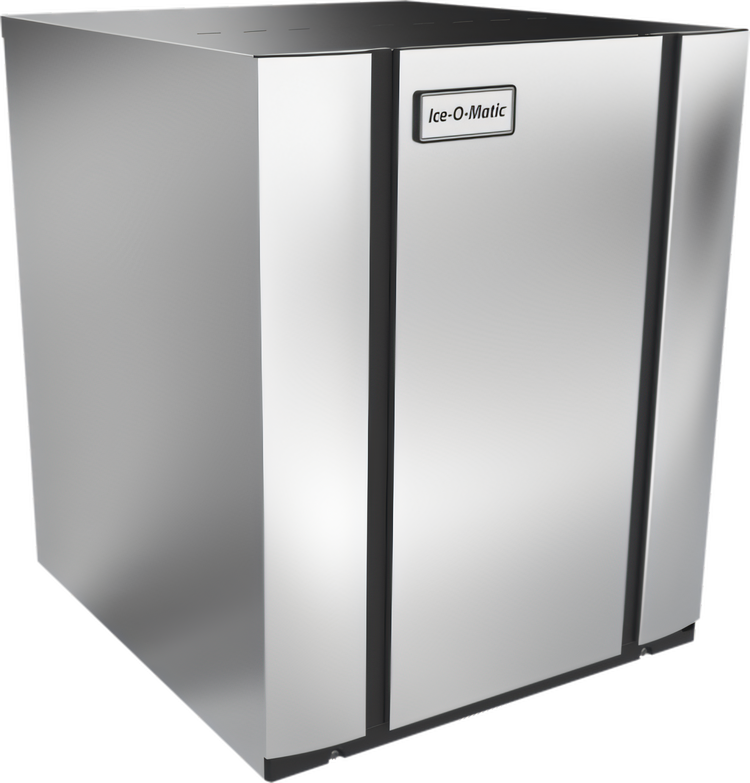

Ice-O-Matic Elevation Series Modular Full-Size Cube Ice Maker, Remote Cooled, 22-1/4 Inch Wide

Approx. 850 lb per 24 hrs; 208-230V/1-phase; R449A

A compact modular ice maker that delivers full-size cubes, remote-cooling flexibility, and easy-clean operation for busy beverage programs.

  • Compact 22.25-inch-wide modular head installs on compatible bins or dispensers.
  • Produces about 850 lb of full-size cube ice per 24 hours, with 759 lb per 24 hours in hotter conditions.
  • Remote condenser cooling provides flexible refrigeration placement.
  • LED status display and one-touch sanitize/descaling controls simplify daily operation.
  • Front-facing evaporator and dishwasher-safe food-zone components help speed cleaning.
  • Corrosion-resistant, fingerprint-proof aluminum construction supports long-term durability.

Overall Dimensions:

22.25"W x 24.25"D x 26.9"H

Product Weight:

193.0 lb

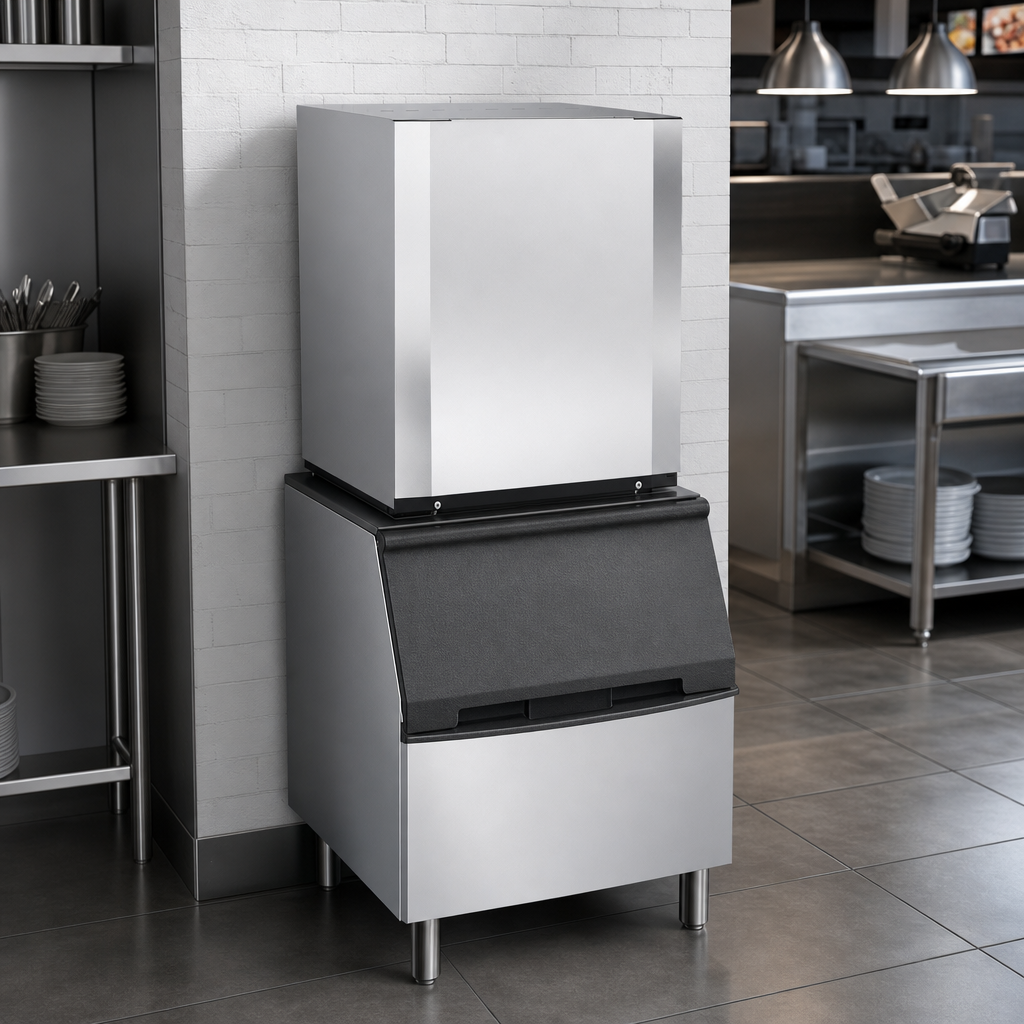

Modular Design

Designed to install on top of a compatible bin or dispenser for flexible applications.

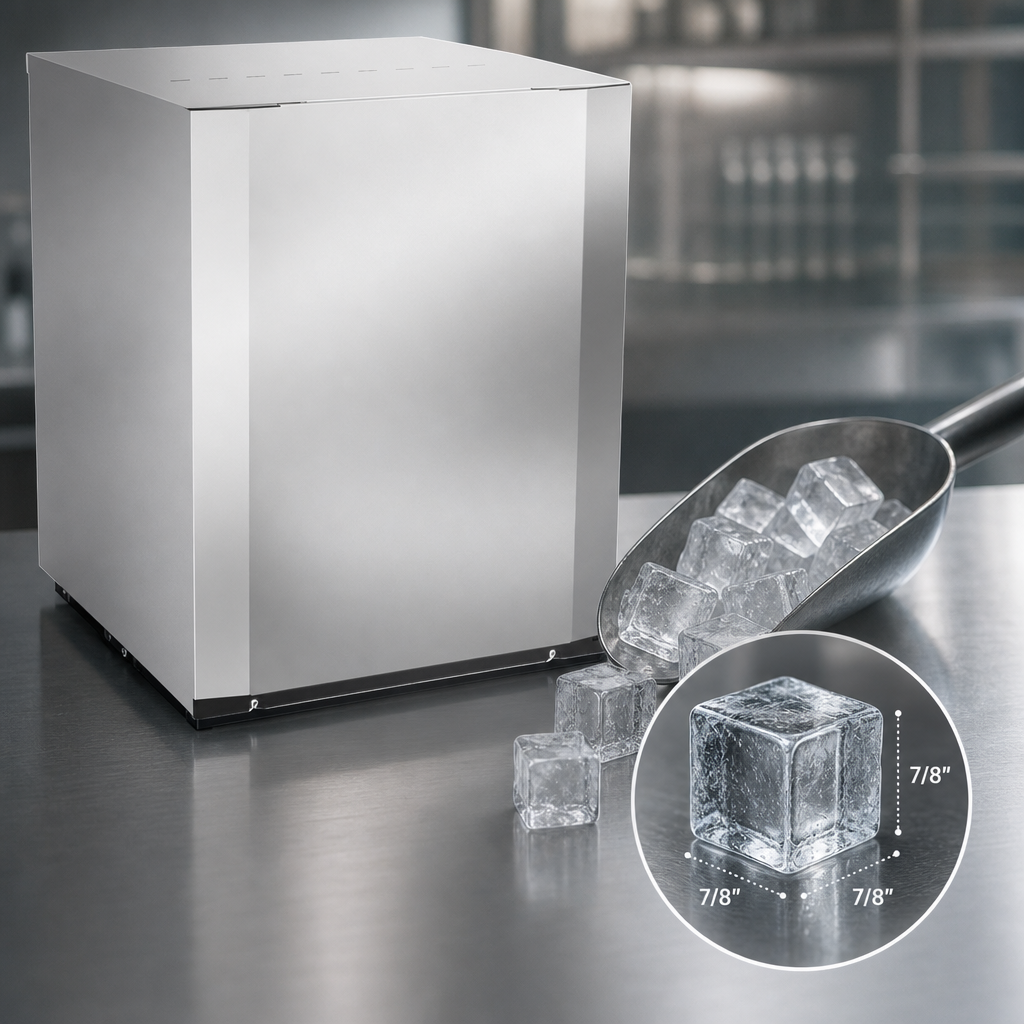

Full-Size Cube Ice

Produces full cubes sized 7/8 x 7/8 x 7/8 in. (22 x 22 x 22 mm).

High Daily Output

Rated for approximately 850 lb of ice per 24 hours at 70°F air / 50°F water, and 759 lb per 24 hours at 90°F air / 70°F water.

Remote Condenser Cooled

Uses remote refrigeration for flexible installation and pairs with RC206C49 remote condenser and RL49 series precharged linesets.

Easy-Clean Food Zone

Front-facing evaporator and dishwasher-safe plastic components help simplify routine cleaning; components are dishwasher safe up to 180°F.

One-Touch Sanitize and Descale

One-touch sanitize/descaling controls make routine maintenance faster and easier.

LED Status Display

Provides quick-at-a-glance operating status.

Harvest Assist Technology

Supports consistent ice production while helping reduce energy consumption and increase capacity.

Durable Construction

Corrosion-resistant, fingerprint-proof aluminum construction and electroless nickel-plated evaporator plates improve durability and reliability.

Service-Friendly Design

Uses many common parts across CIM machines to help simplify service and reduce downtime.

Type Cube Ice Maker
Style Modular
Installation Type Top-Mounted
Ice Type Full-Size Cube
Capacity 850 lb per 24 Hours
Refrigeration Type Remote Cooled
Refrigerant Type R449A
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 13.7 Amps
Breaker Size 20 Amps
BTU 14,600 BTU Per Hour
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Material Aluminum
Selling Unit Each
Units Per Case 1
Shipping Width 23 Inches
Shipping Depth 25 Inches
Shipping Height 27 Inches
Shipping Weight 193 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Options PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces full-size cube ice, sized 7/8 x 7/8 x 7/8 in. (22 x 22 x 22 mm).
The rated production is approximately 850 lb per 24 hours at 70°F air / 50°F water and 759 lb per 24 hours at 90°F air / 70°F water.
It requires 208-230V, 60 Hz, single-phase power, with a 13.7 A minimum circuit and a 20 A maximum breaker size.
It includes a front-facing evaporator, dishwasher-safe plastic food-zone components, and one-touch sanitize/descaling controls.
The cutsheet lists the RC206C49 remote condenser, RL49-25, RL49-40, and RL49-75 precharged linesets, and KCUBEDISPB ice level control for a dispenser.
The line drawing shows a 3/8 in. FPT potable water inlet and a 3/4 in. FPT ice maker drain.
