Ice-O-Matic CIM0826FR Elevation Series™ Ice Machines
Ice-O-Matic CIM0826FR Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM0826FR Elevation Series™ Ice Machines
Description

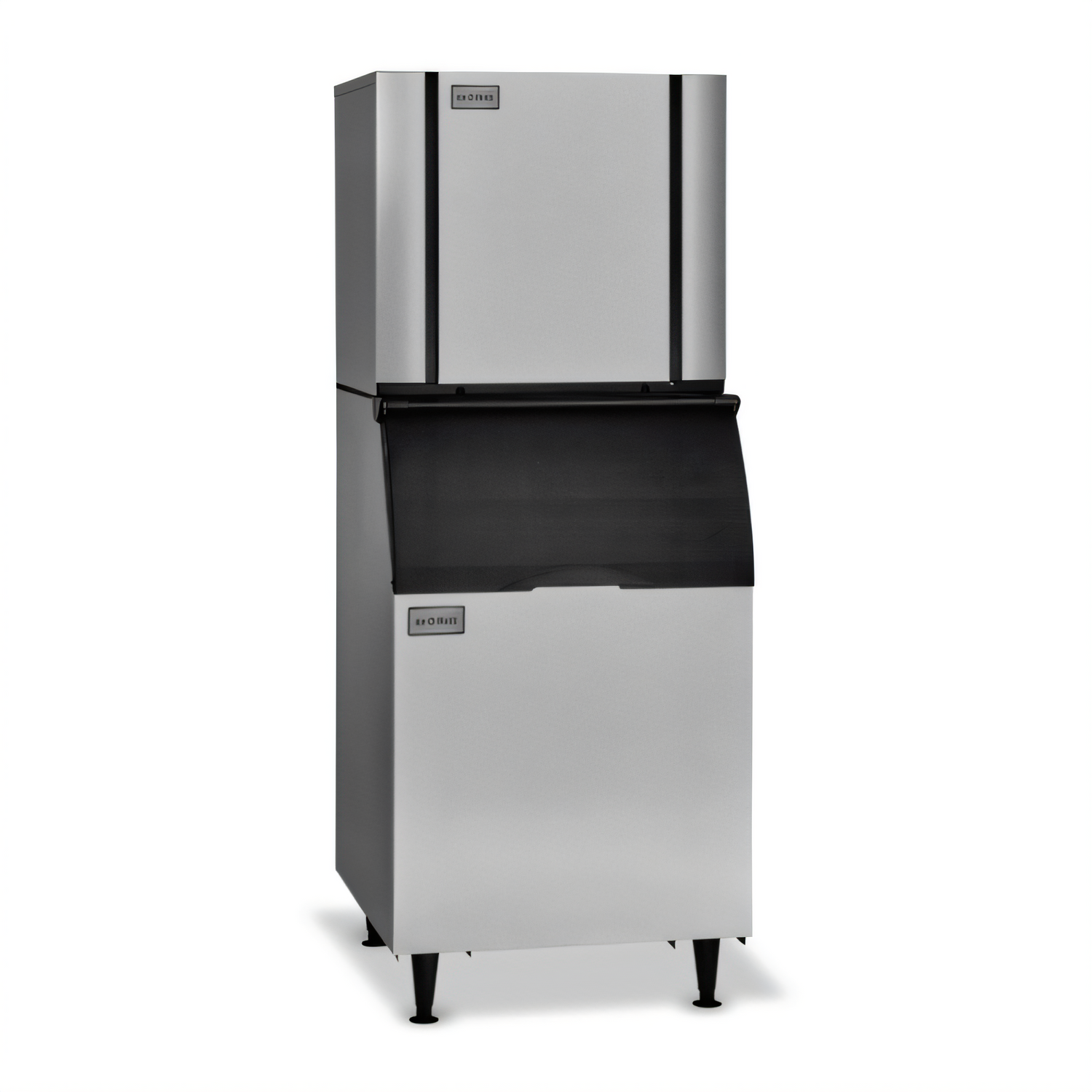

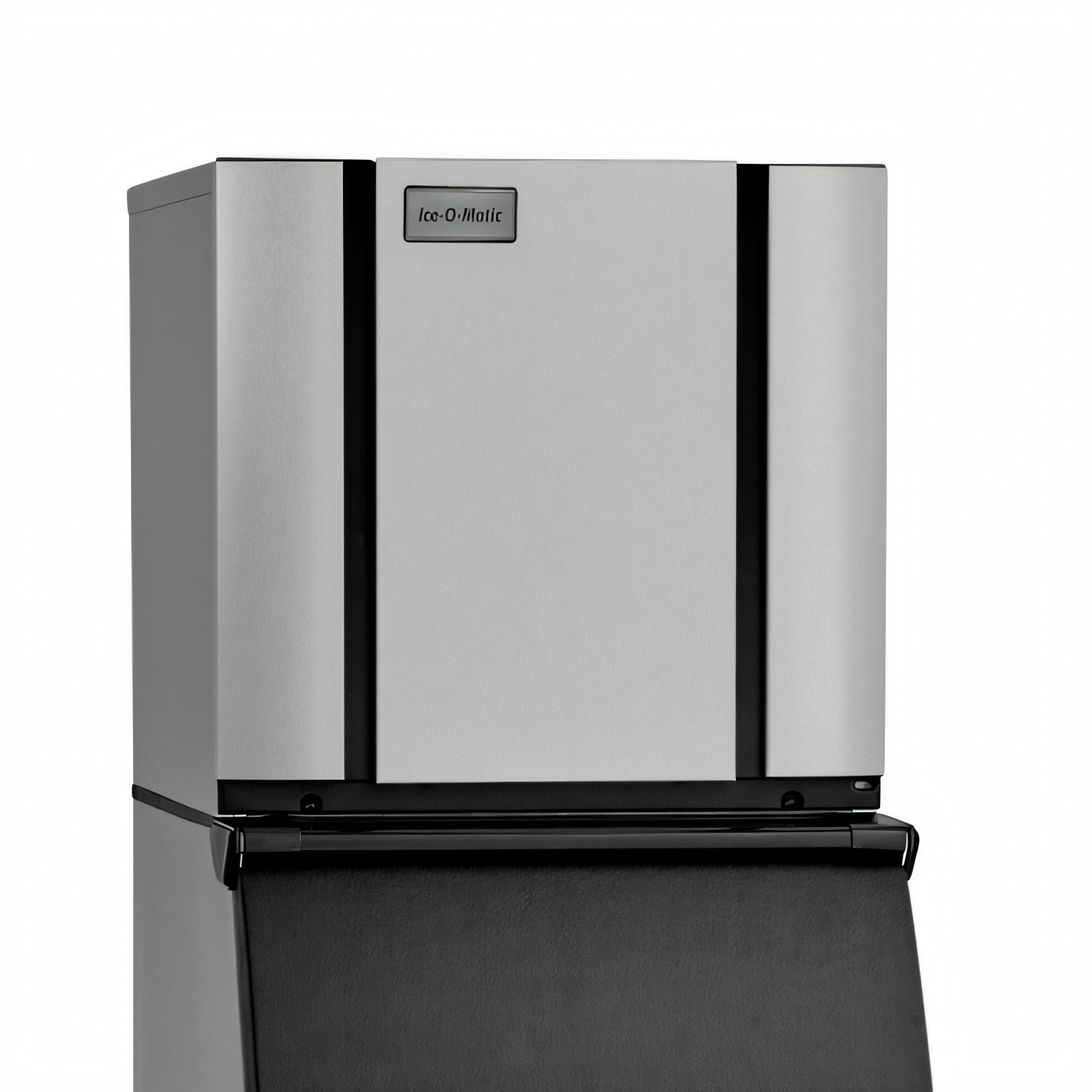

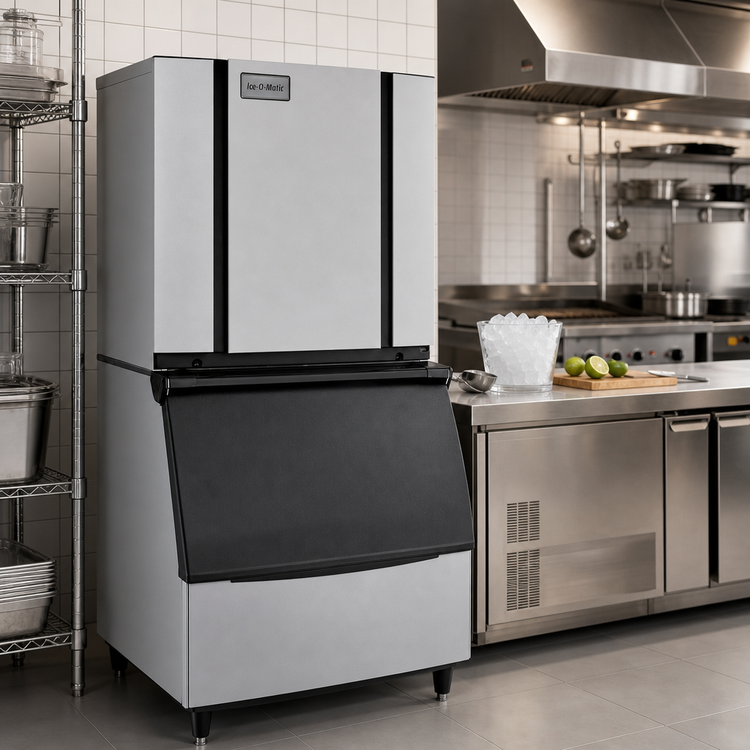

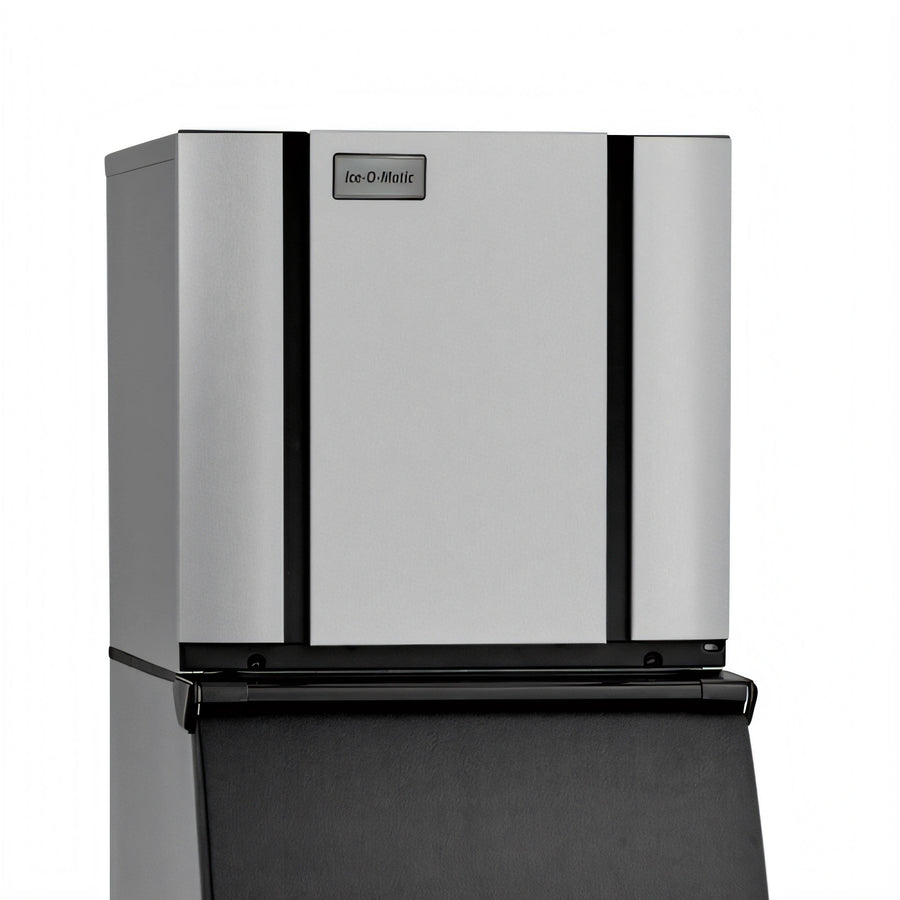

Ice-O-Matic Elevation Series™ CIM0826R Remote Cube Ice Maker
906 lb / 24 hr • Full-Size Cubes • 22″ Modular Head • ENERGY STAR®Built for busy kitchens that demand crystal-clear, great-tasting ice around the clock, the Elevation Series™ CIM0826R pairs unmatched performance with the industry’s simplest sanitation system. A remote air-cooled condenser (sold separately) removes heat and noise from the kitchen while advanced PURE ICE® antimicrobial protection keeps every cube fresh and safe.
Why You’ll Love It

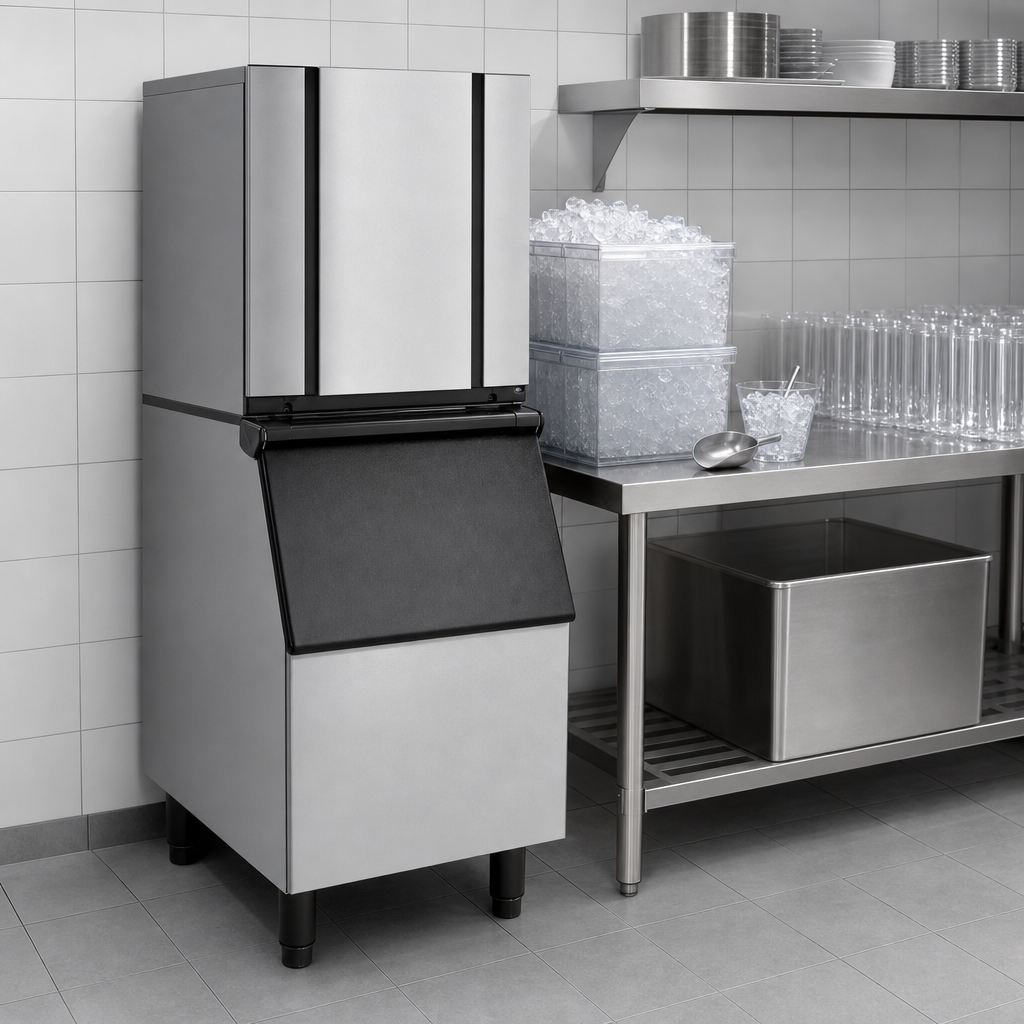

- High-Volume Output – Produces up to 906 lb of full cubes in 24 hours (793 lb at 90 °F / 70 °F).
- ENERGY STAR® Qualified – Exceeds 2018 DOE regulations and is up to 20 % more efficient than previous models.
- PURE ICE® Protection – Agion® antimicrobial is built directly into food-zone components to inhibit bacteria for the life of the machine.
- One-Touch Clean – Sanitize or descale with a single button; LED lights tell you exactly when service is due.
- Dishwasher-Safe Food Zone – BPA-free, snap-in parts remove in seconds for a thorough, tool-free clean.
- Universal Smart Harness™ – Digital diagnostics and common components speed up installation and service.
- Remote Condenser Design – Utilizes the RCA-2061 (sold separately) to keep heat and fan noise outside the customer area.
- Compact Footprint – Only 22.25″ wide to pair perfectly with Ice-O-Matic 22″ storage bins and beverage dispensers.
- Dual agency listings: cULus, NSF, CE • 100 % BPA-Free plastics.
Performance at a Glance
| Ice Production @ 70 °F Air / 50 °F Water | 906 lb (411 kg) / 24 hr |
|---|---|
| Ice Production @ 90 °F Air / 70 °F Water | 793 lb (360 kg) / 24 hr |
| Ice Type | Full Cube – ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm) |
| Condenser Configuration | Remote air-cooled (RCA-2061, line-set quick connects) |
| Electrical | 208-230 V / 60 Hz / 1-phase • 12.3 A • 20 A circuit |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 22.25″ × 24.25″ × 26.9″ (565 × 616 × 683 mm) |
| Water In / Drain Connections | 3⁄8″ FPT / ¾″ FPT |
| Operating Limits | Ambient 50 – 100 °F • Water 40 – 100 °F • Water Pressure 20 – 80 psi |
Recommended Ice Storage Bins (22″ Wide)
| Model | Application Capacity |
|---|---|
| B25 | 242 lb (110 kg) |
| B40 | 344 lb (156 kg) |
| B42 | 351 lb (160 kg) |
| B55 | 510 lb (232 kg) |
Bin tops/adapter kits may be required for certain configurations.
Peace-of-Mind Warranty
- Ice Maker: 3 Years parts & labor
- Compressor & Evaporator: 5 Years parts
- Extended 7-Year evaporator parts & labor when enrolled in Ice-O-Matic’s filter program (USA & Canada)
ENERGY STAR® | cULus | NSF | CE | BPA Free
