Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0826FA

Ice-O-Matic CIM0826FA Elevation Series™ Ice Machines

$4,896.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Slope front storage bins Web site Brochure Service manual Owner's manual Diagram Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

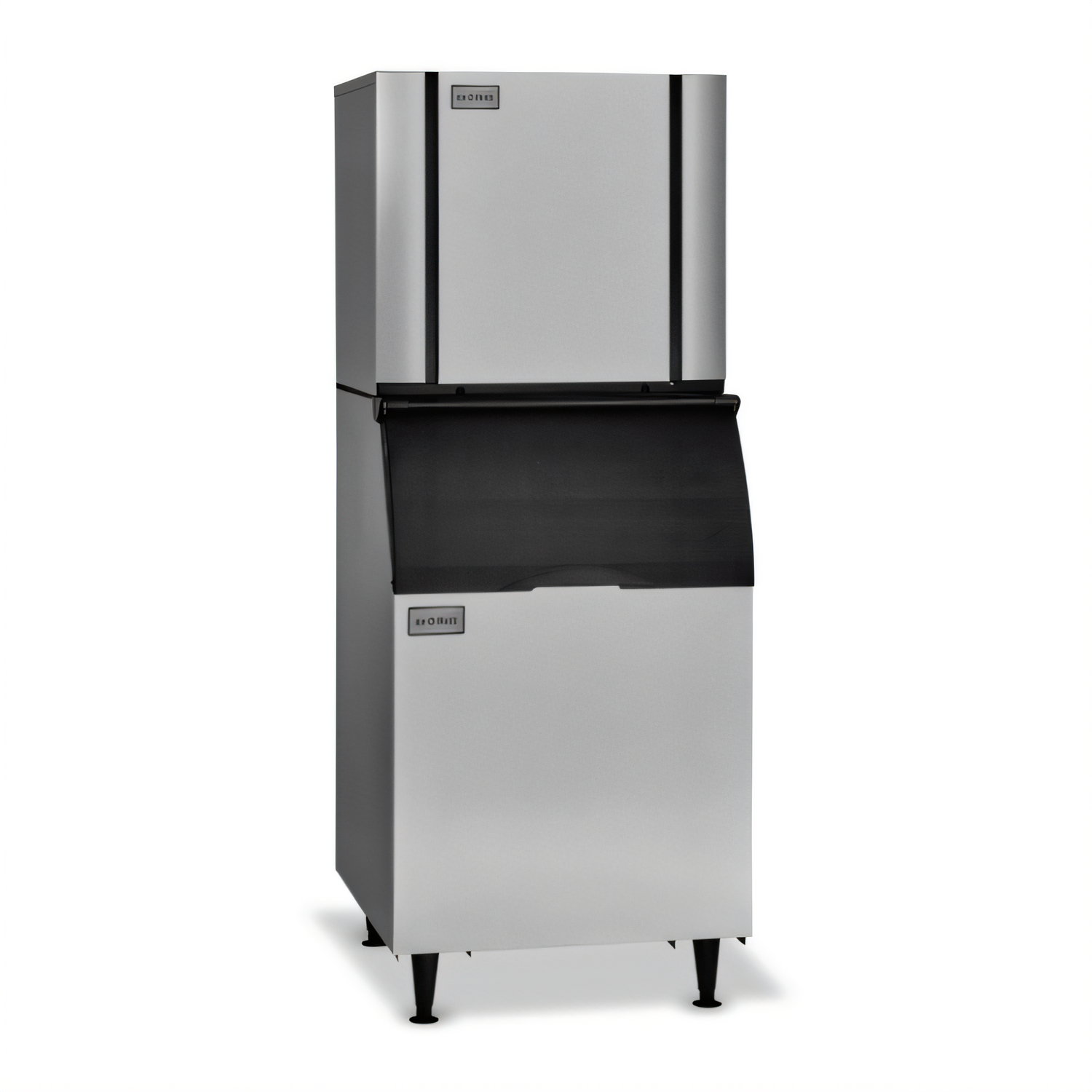

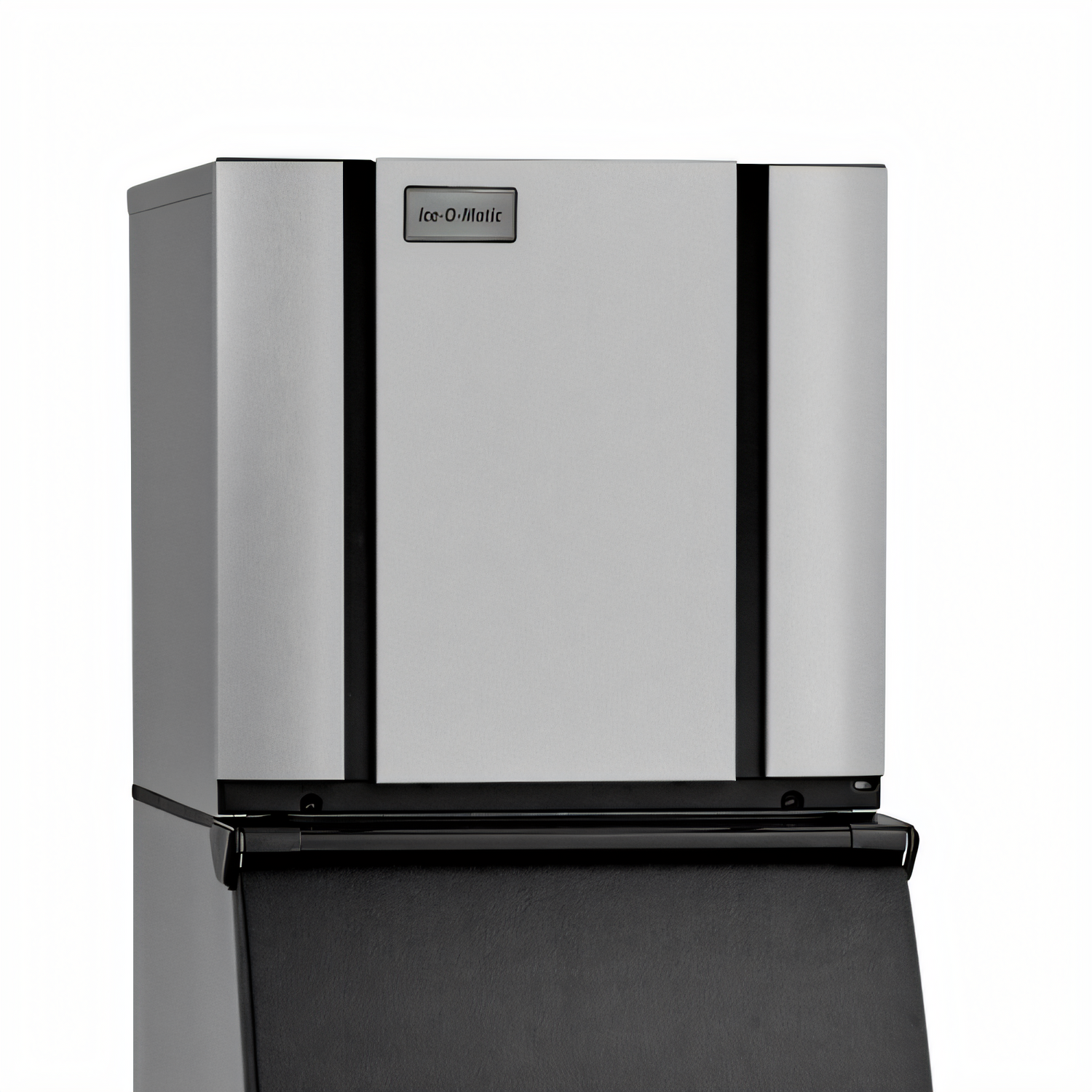

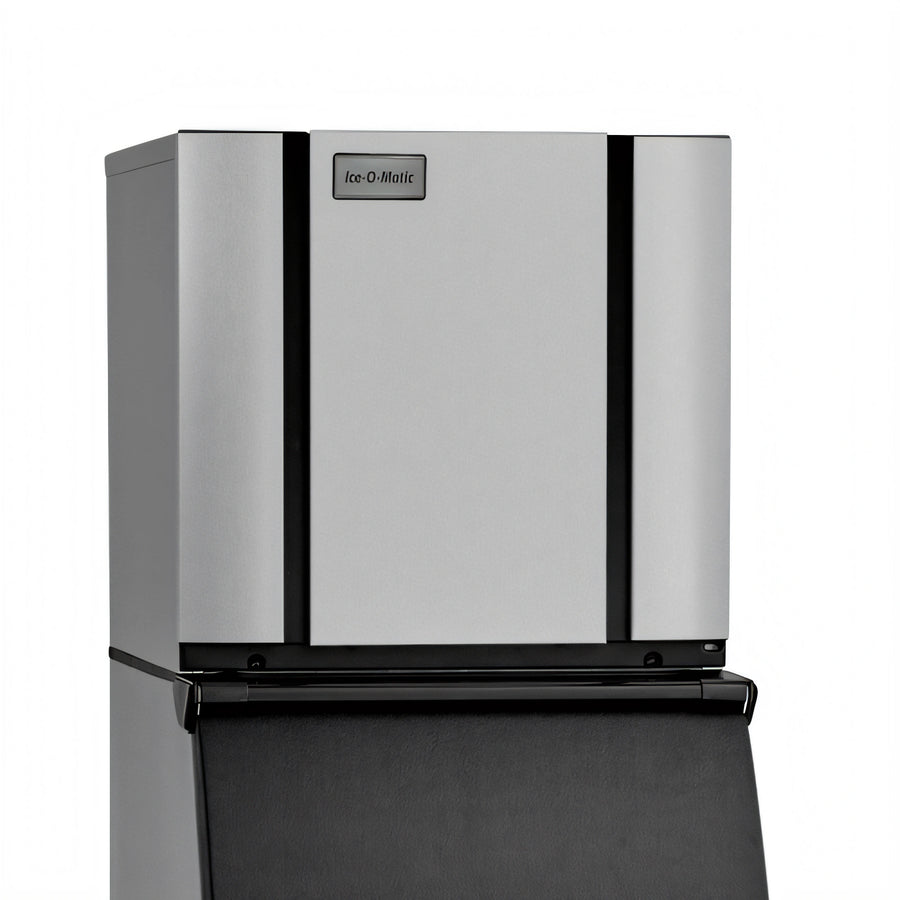

Ice-O-Matic Elevation Series™ CIM0826A Modular Full-Cube Ice Maker

Air-cooled | 22 in wide | Up to 896 lb of ice every 24 hours

Engineered for high-volume hospitality, the Elevation Series™ CIM0826A delivers crystal-clear, full-size cubes while using up to 20 % less energy than previous generations. Its compact 22 inch footprint and unique top/side dual exhaust let you slide it into tight kitchen, bar, or beverage station layouts without worrying about airflow obstructions.

Why You’ll Love It

  • Powerful output: 896 lb/24 hr at 70 °F air / 50 °F water.
  • Full-cube excellence: ⅞ x ⅞ x ⅞ in cubes ideal for cocktails, soft drinks & ice displays.
  • Dual Exhaust Design: Hot air discharges from the top and side for unmatched installation flexibility.
  • PURE ICE® protection: Agion®-infused food zone and BPA-free plastics inhibit microbes for the life of the machine.
  • One-Touch Cleaning: LED status light plus sanitize & descale buttons slash preventative-maintenance time.
  • Snap-out parts: Water distribution tube, curtain, sensors & more are dishwasher-safe for fast turnarounds.
  • Universal Smart Harness™: Digital diagnostics and common components simplify service and cut downtime.
  • DOE 2018 & ENERGY STAR® qualified: 5.2 kWh per 100 lb keeps operating costs in check.

Product Specifications

Model CIM0826A (air-cooled, self-contained condenser)
Ice Production (70 °F air / 50 °F water) 896 lb (406 kg) per 24 hr
Ice Production (90 °F air / 70 °F water) 668 lb (303 kg) per 24 hr
Ice Type Full Cube – ⅞ x ⅞ x ⅞ in (22 x 22 x 22 mm)
Dimensions (W × D × H) 22.25 × 24.25 × 26.9 in (565 × 616 × 683 mm)
Electrical 208-230 V / 60 Hz / 1 Ph  •  12.3 MCA  •  20 A max fuse
Energy Usage 5.2 kWh per 100 lb of ice (90 °F/70 °F)
Refrigerant R404A
Approx. Shipping Weight 220 lb (100 kg)
Certifications cULus • NSF • CE • BPA-Free • ENERGY STAR®

Compatible Ice Storage Bins (sold separately)

  • B25, B40, B42, B55 – space-saving slope-front bins (242 – 510 lb storage)
  • B110 upright bin – 854 lb storage
  • Adapter kits available for drink dispensers and wider bins

Need help sizing a bin? Send us a message and we’ll match the perfect storage solution for your volume.

Warranty Coverage

  • 3 years parts & labor on the entire ice maker
  • 5 years parts on evaporator & compressor
  • 7 years parts & labor on the evaporator when enrolled in Ice-O-Matic’s filter program
Installation note: Air-cooled units require 6 in (152 mm) of clear space at the top and sides for proper air intake and exhaust. Always connect to a potable-water line with 20–80 PSI pressure and use a dedicated electrical circuit.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free

Height

33.0in

Width

27.0in

Depth

25.0in

Shipping Weight

193.0lbs

Production per 24 hr

801 - 900 lb = 364 - 408 kg

Refrigeration

self-contained refrigeration

Width (side - side)

20 - 29" wide

Ice Type

full size / dice cubes

Condenser Type

air-cooled

Specifications

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
