Ice-O-Matic CIM0636HW Elevation Series™ Ice Machines
Description

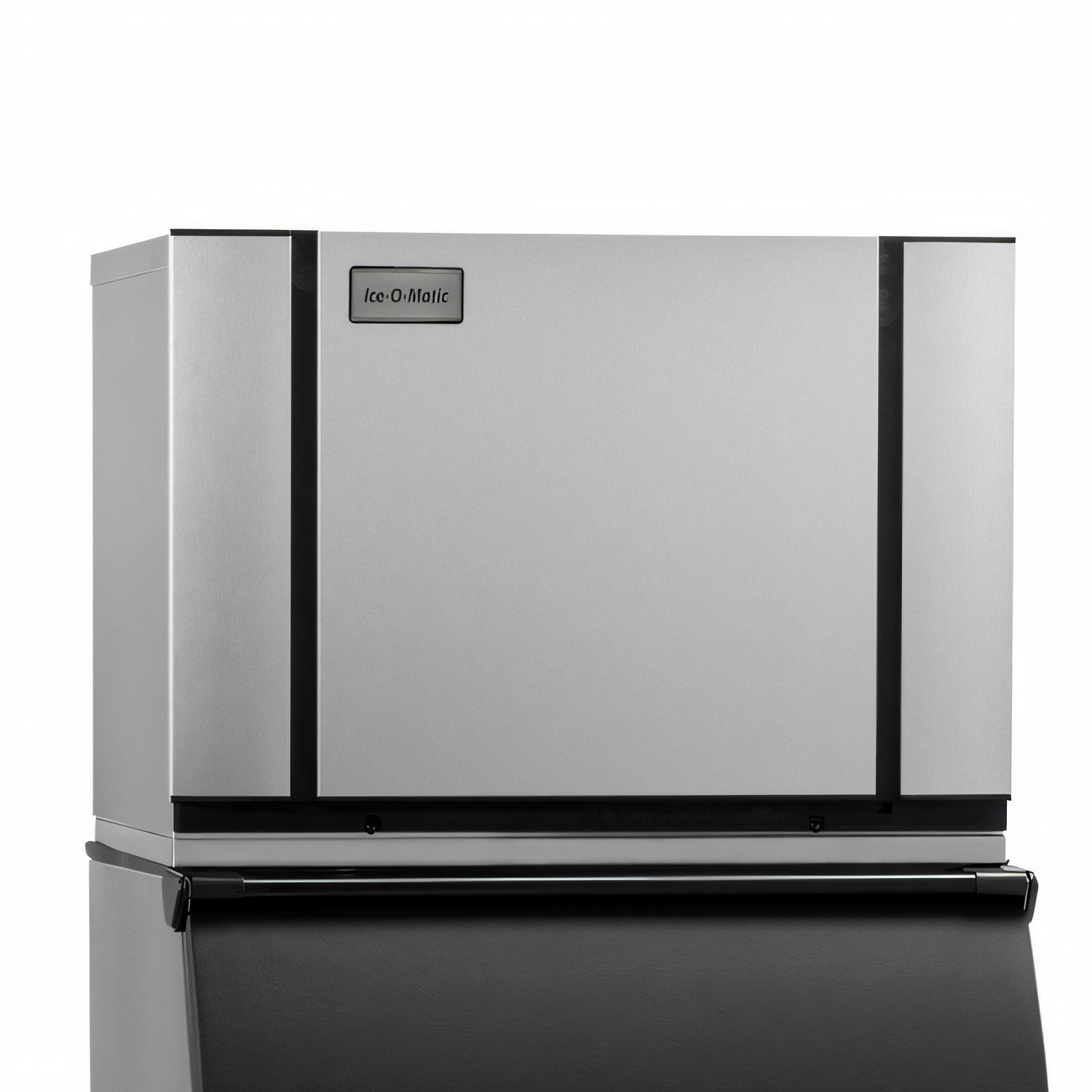

Ice-O-Matic Elevation Series™ Modular Half-Cube Ice Maker
Model CIM0636W – Water-Cooled, Self-Contained CondenserEngineered for demanding food-service environments, the Elevation Series™ CIM0636W delivers crystal-clear half cubes at industry-leading efficiency while making daily cleaning as simple as pushing a button.
Why You’ll Love It

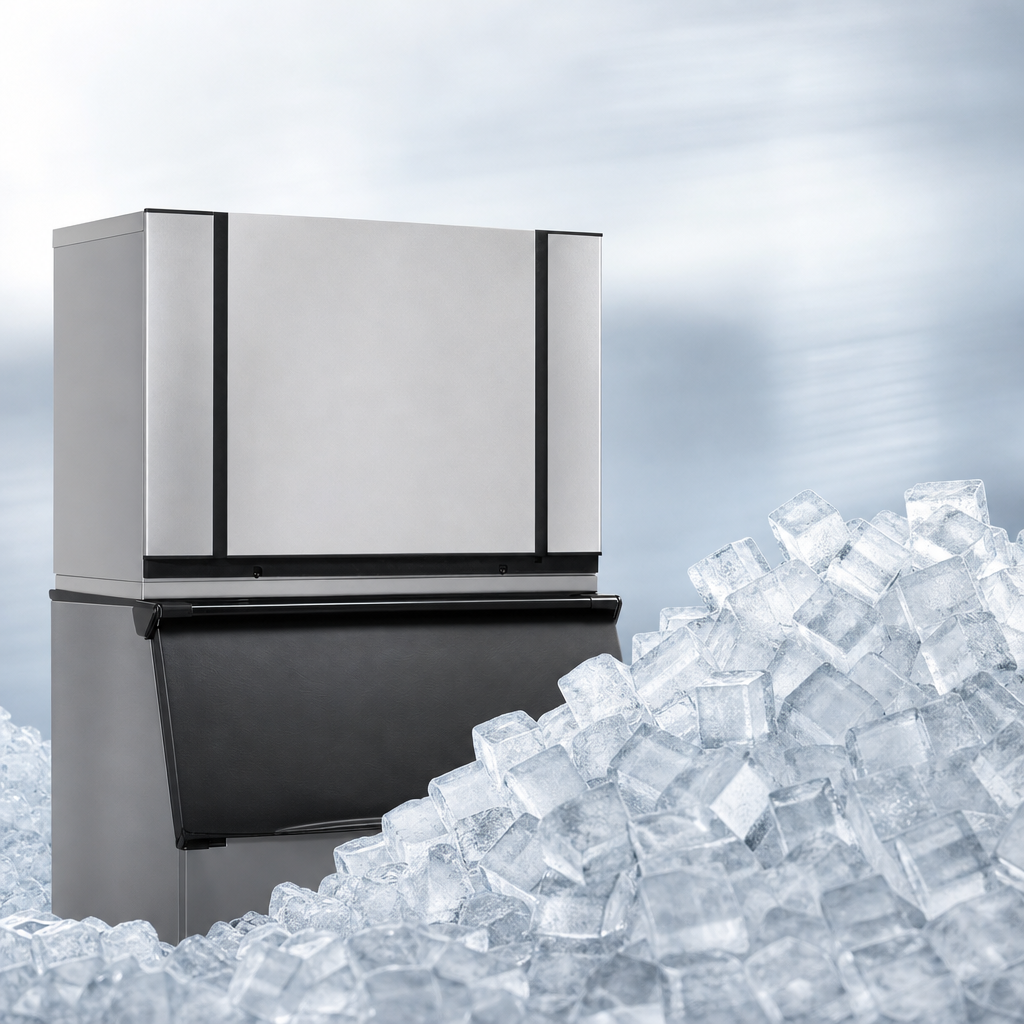

- High-Volume Production: Up to 620 lb (281 kg) of ice every 24 h at 70 °F/50 °F.
- PURE ICE® built-in antimicrobial protection powered by Agion® silver ion technology.
- One-Touch Sanitize & Descale—no tools, no guesswork, no downtime.
- Dishwasher-safe food zone: BPA-free snap-in/snap-out components eliminate brushes and soak tanks.
- Smart LED status display tells staff exactly when it’s time to clean or call for service.
- Universal Smart Harness™ control board with digital diagnostics simplifies installation & service.

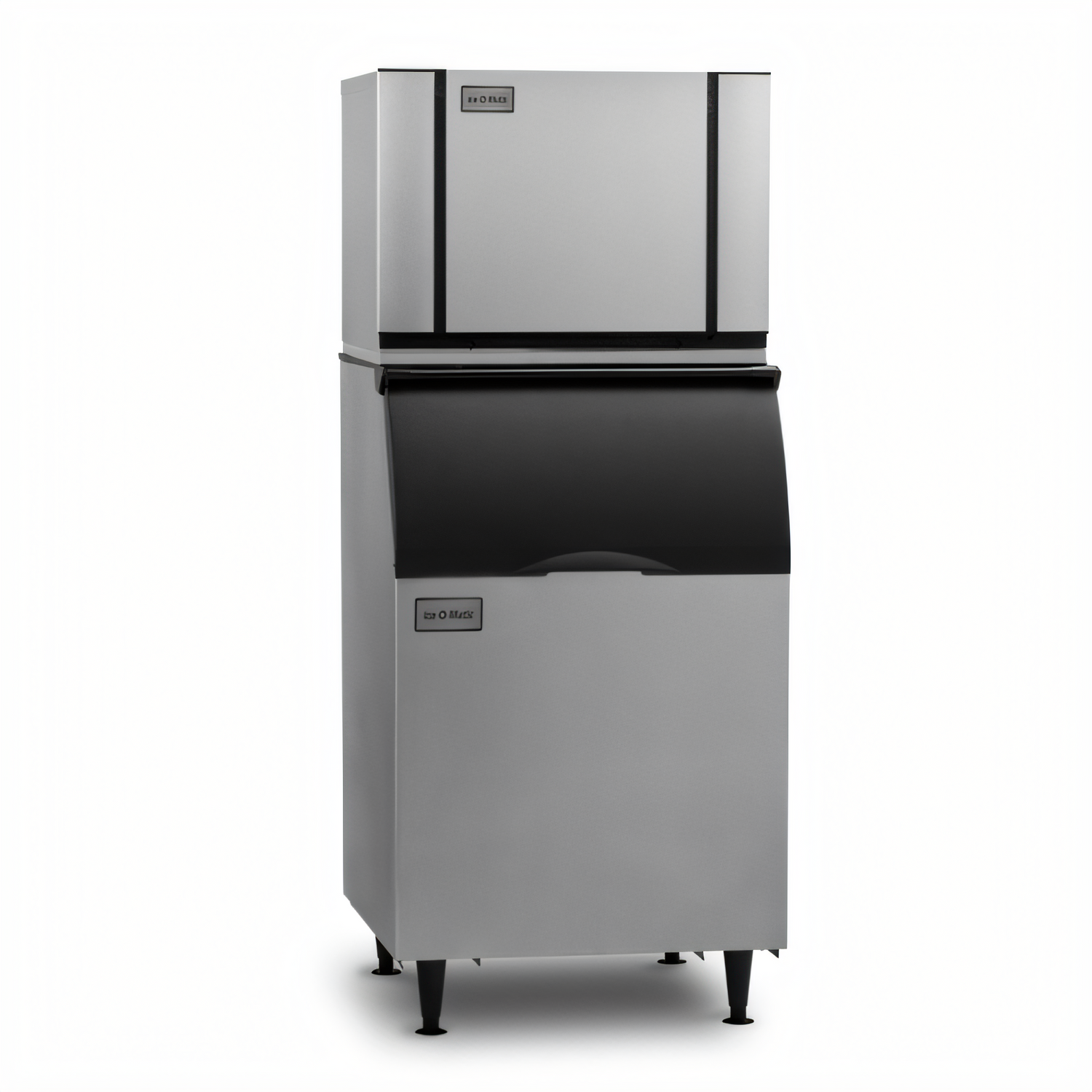

- Space-saving 30 in (768 mm) footprint—pairs with Ice-O-Matic B55PS or most 30 in bins (adapter-free).
- Environmentally responsible: exceeds 2018 DOE efficiency standards, BPA-free plastics, recyclable parts.

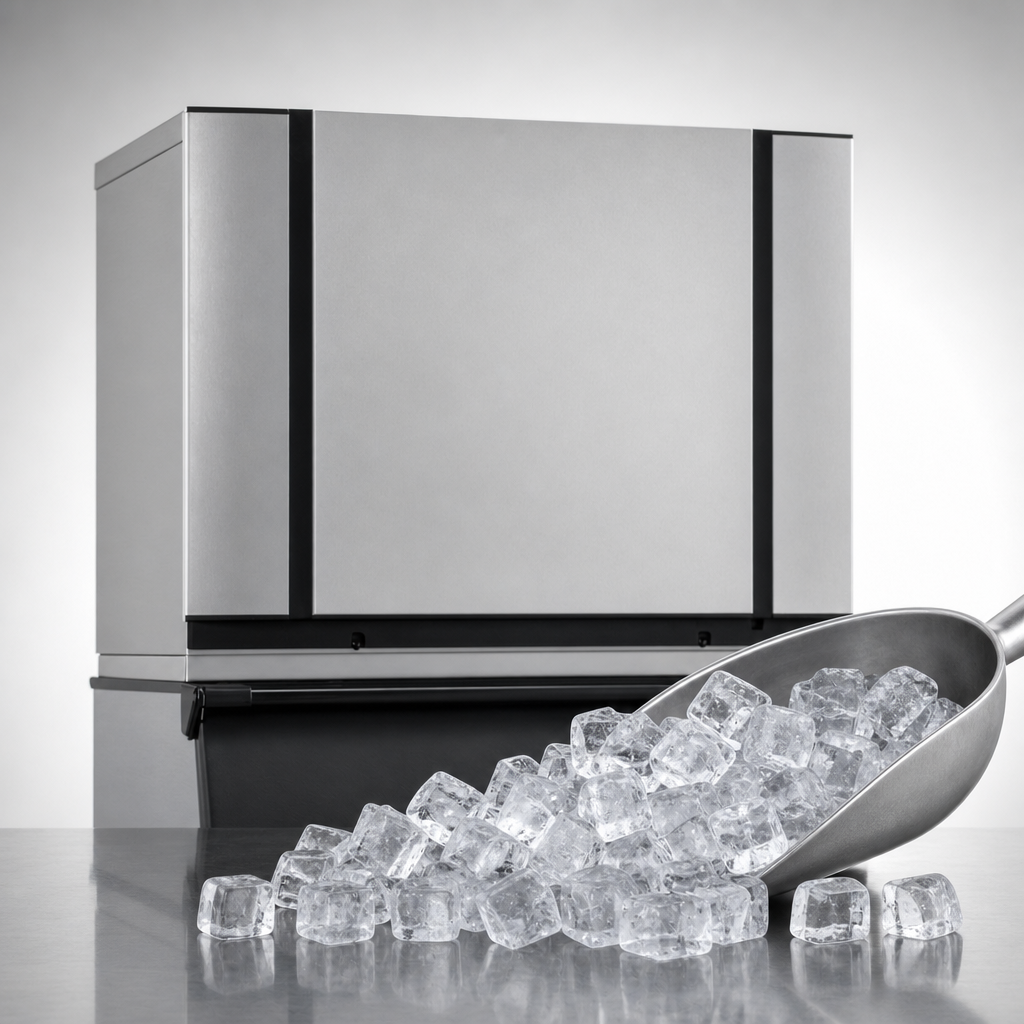

The Perfect Half Cube
Ideal for soft drinks, cocktails and retail bagging, the Elevation half cube measures ⅜ in × ⅞ in × ⅞ in (10 × 22 × 22 mm) for maximum liquid displacement without compromising pour-through.
Performance at a Glance
| Ice production (70 °F air / 50 °F water) | ≈ 620 lb / 24 h (281 kg) |
|---|---|
| Ice production (90 °F air / 70 °F water) | ≈ 535 lb / 24 h (243 kg) |
| Ice form | Half-cube (H-dice) – ⅜″ × ⅞″ × ⅞″ |
| Condenser type | Water-cooled, self-contained |
Technical Specifications
| Model | CIM0636W |
|---|---|
| Unit dimensions (W × D × H) | 30.25 × 24.25 × 21.25 in (768 × 616 × 540 mm) |
| Electrical | 208-230 V / 60 Hz / 1-phase • 9 A MCA • 15 A breaker |
| Potable water usage | 19.2 gal per 100 lb of ice |
| Condenser water usage | 180 gal per 100 lb of ice |
| Refrigerant | R404A |
| Clearances | Top & sides: 6 in (152 mm) recommended for service access |
| Certifications | cULus • NSF • CE • BPA-Free |
| Warranty | 3 yrs parts & labor (ice maker) • 5 yrs parts (evaporator/compressor) |
Ice storage bin, water filtration and SafeIce™ purification systems are sold separately. For approved bins and adapter kits, contact our team.
PURE ICE® is a registered trademark of Ice-O-Matic. Specifications subject to change without notice.
