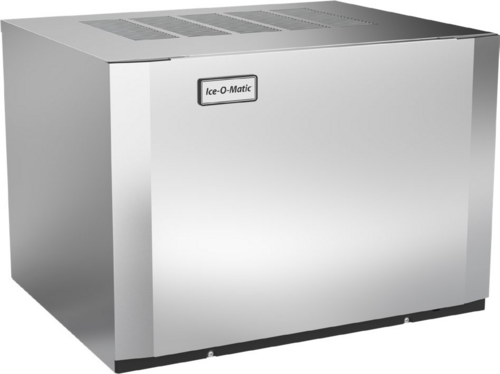

Ice-O-Matic Elevation Series Modular Half-Size Cube Ice Maker, 30-Inch Wide, Remote-Cooled, 615 lb/Day

Air-Cooled Remote Condenser, 208-230 Volts, 1-Phase

Built for high-volume beverage service, this modular remote-cooled ice maker delivers half-size cubes with easy-clean sanitation features and flexible installation.

  • Makes half-size cube ice for fast cooling and consistent presentation.
  • Produces up to 615 lb of ice per 24 hours.
  • Modular top-mounted design installs on compatible bins or dispensers.
  • Remote-condenser setup helps move heat away from the kitchen.
  • PURE ICE antimicrobial protection, BPA-free parts, and dishwasher-safe food-zone components support sanitation.
  • One-touch sanitize/descale controls, LED status display, and Dual Exhaust design simplify daily operation and installation.

Overall Dimensions:

27.0"W x 33.0"D x 27.0"H

Product Weight:

167.0 lb

Modular Top-Mounted Design

Designed to install on top of a compatible bin or dispenser for flexible ice service setups.

Half-Size Cube Ice Production

Produces half-size cubes measuring 3/8 x 7/8 x 7/8 inches (10 x 22 x 22 mm) for fast chilling and versatile beverage use.

Harvest Assist Technology

Helps deliver consistent ice production while reducing energy consumption and increasing capacity.

PURE ICE Antimicrobial Protection

Built-in antimicrobial protection supports a cleaner ice-making environment.

Easy-Clean Food Zone

Front-facing evaporator and smooth food-zone components make cleaning simpler and more thorough.

Dishwasher-Safe BPA-Free Components

Snap-in plastic food-zone parts are dishwasher safe up to 180°F and made with BPA-free plastics.

One-Touch Cleaning Controls

One-touch sanitize and de-lime functions, plus LED indicators, simplify routine maintenance.

Dual Exhaust And Durable Construction

Dual Exhaust allows side or top hot-air discharge, while corrosion-resistant, fingerprint-proof aluminum and electroless nickel-plated evaporator plates add durability.

Type Modular Cube Ice Maker
Style Half Cube
Installation Type Top-Mounted
Condenser Type Air-Cooled
Refrigeration Type Remote
Controls Digital
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 10 Amps
Breaker Size 15 Amps
BTU 10,720 BTU per Hour
Refrigerant Type R449A
Capacity 615 lb per 24 Hours
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Material Aluminum
Shipping Width 33 Inches
Shipping Depth 27 Inches
Shipping Height 27 Inches
Shipping Weight 165 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor; 5 years parts on evaporator and compressor; 7 years parts and labor on evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Diagram PDF Download PDF Slope front storage bins PDF Download PDF Web site PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-size cube ice, sized 3/8 x 7/8 x 7/8 inches (10 x 22 x 22 mm).
It produces up to about 615 lb of ice per 24 hours under 70°F air / 50°F water conditions, and about 535 lb per 24 hours under 90°F air / 70°F water conditions.
No. It is a remote-cooled model and pairs with the RC106C49 remote condenser and RL49 series precharged linesets.
It requires 208-230 Volts, 60 Hz, single-phase power, with a 10 Amp minimum circuit and a 15 Amp maximum breaker.
Cleaning is simplified with front-facing evaporator access, dishwasher-safe food-zone components, and one-touch sanitize and de-lime controls with LED indicators.
The ice maker has a 3-year parts and labor warranty, the evaporator and compressor have a 5-year parts warranty, and the evaporator has a 7-year parts and labor warranty if enrolled in the filter program.
