Ice-O-Matic CIM0636HR Elevation Series™ Ice Machines
Ice-O-Matic CIM0636HR Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM0636HR Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ CIM0636R Modular Cube Ice Maker
615 lb Remote-Cooled Half-Cube Head | 30 in WBuilt for operators who demand high output, impeccable hygiene, and effortless upkeep, the Elevation Series™ CIM0636R produces up to 615 lb of half-size cubes every 24 hours while keeping energy costs and maintenance time to a minimum.
Why You’ll Love It
- Pure, Safe Ice – Agion® antimicrobial protection is molded into the Food Zone and Ice-O-Matic’s exclusive PURE ICE® technology inhibits bacteria for the life of the machine.
- One-Touch Cleaning – Sanitize or descale at the push of a button; LED lights tell staff exactly when service is due.
- Snap-In, Dishwasher-Safe Parts – BPA-free Food Zone components remove without tools for fast, thorough cleaning.
- Energy & Environmental Stewardship – Exceeds 2018 DOE regulations and is up to 20 % more efficient than previous models; built with recyclable, BPA-free plastics.
- Universal Smart Harness™ – Digital diagnostics and common components simplify installation and reduce service calls.

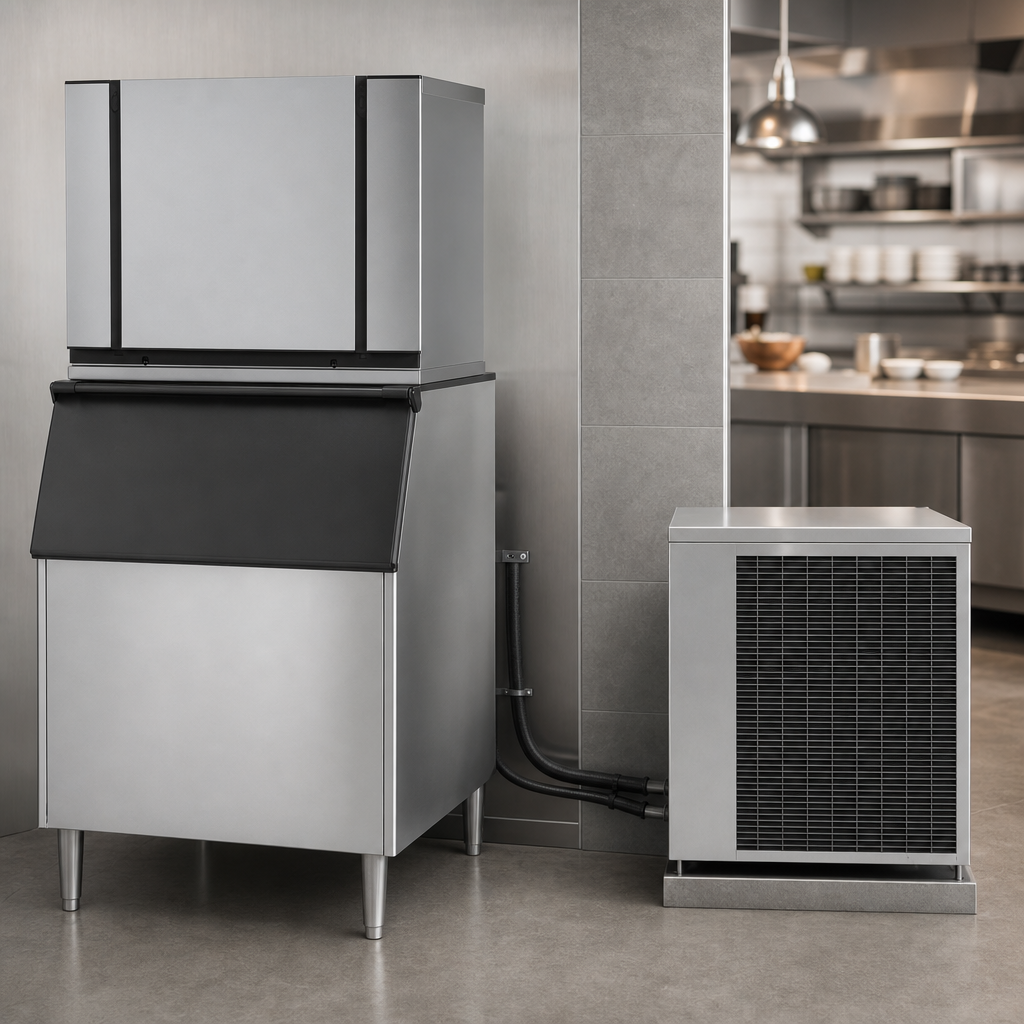

- Remote Condenser Advantage – Moves heat and noise outside the kitchen for cooler, quieter operation (RCA-1061 condenser sold separately).
Performance at a Glance

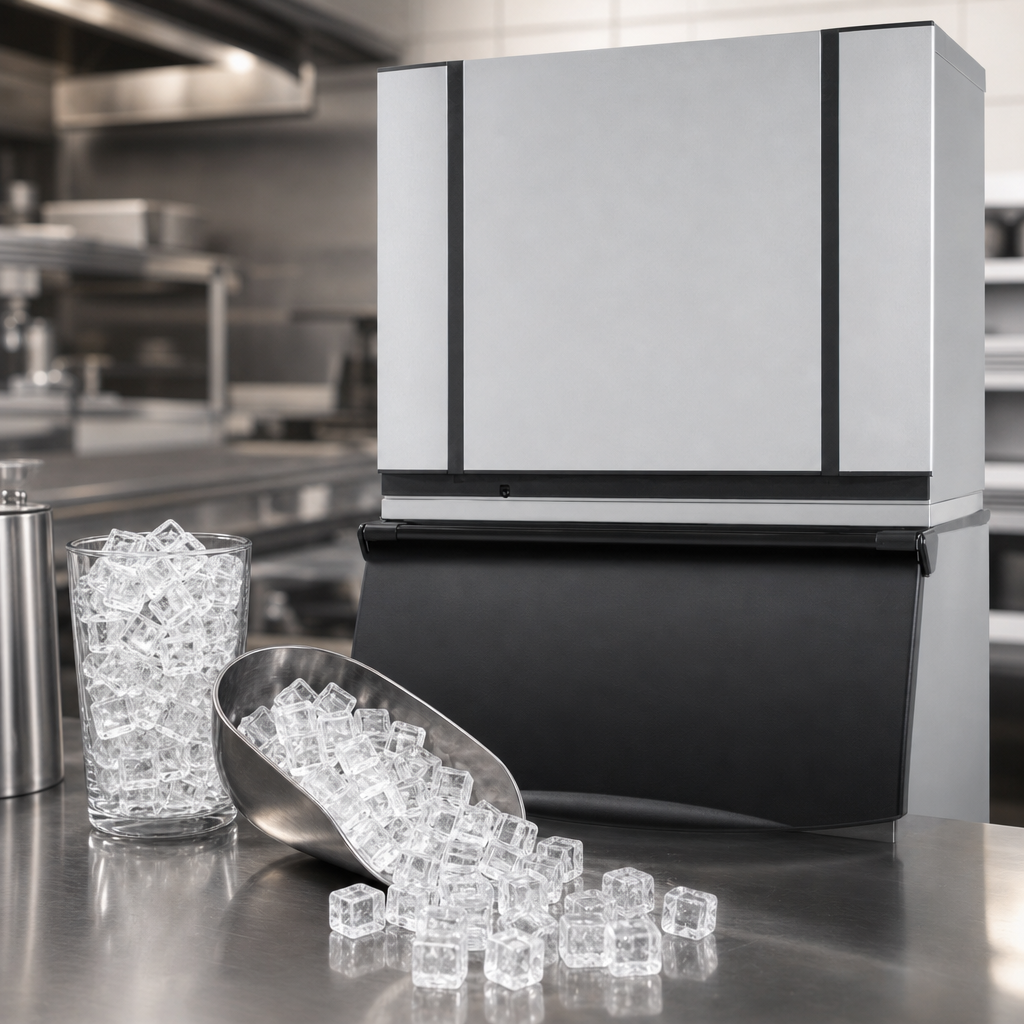

| Ice type | Half Cube – ⅜ in × ⅞ in × ⅞ in (10 × 22 × 22 mm) |
|---|---|
| Maximum production* | 615 lb (279 kg) / 24 hr @ 70 °F air / 50 °F water |
| AHRI production* | 520 lb (235 kg) / 24 hr @ 90 °F air / 70 °F water |
| Water usage | 19.0 gal per 100 lb of ice |
| Energy usage | 5.3 kWh per 100 lb of ice |
| Electrical | 208-230 V / 60 Hz / 1-ph | 10.0 A MCA |
| Dimensions (W × D × H) | 30.25 in × 24.25 in × 21.25 in (768 × 616 × 540 mm) |
| Refrigerant | R404A |
| Certifications | cULus, NSF, CE, BPA-Free |
*Ice production ratings are based on half-cube configuration.
Bin & Dispenser Compatibility
- 30-inch Ice-O-Matic slope-front bins: B55PS, B110PS (BPF-1 hold-down kit recommended)
- 48-inch upright bins: B700-30, B1000-48, B1300-48, B1325-60, B1600-60
- Adaptor kits available for most fountain dispensers – ask our team for the right kit.
Recommended Accessories
- RCA-1061 Remote Condenser – Required for operation; keeps heat and noise outdoors.
- IFQ1-XL Water Filter System – Extend component life and qualify for the 7-year parts & labor evaporator warranty.
- SafeIce™ Purification System – Optional ozone treatment that reduces viruses, mold, and odors.
- 82 oz or 16 oz ice scoops, shovel and paddle kits available.
Rock-Solid Warranty
| Ice Maker | 3 years parts & labor |
|---|---|
| Compressor & Evaporator | 5 years parts |
| Evaporator (with filter program) | 7 years parts & labor |
Heads-Up: This is an ice-maker head only. A compatible remote condenser, ice storage bin, and water filtration system are required for a complete installation.
Dependable, efficient, and refreshingly simple—choose the Ice-O-Matic Elevation Series™ CIM0636R and keep the cubes coming.
