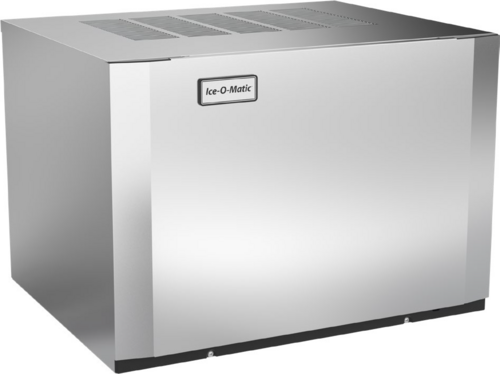

Ice-O-Matic Elevation Series CIM0636HA90 30-Inch Air-Cooled Self-Contained Half Cube Modular Ice Maker

Approx. 600 lb/day, Dual Exhaust, R290 Refrigerant

A high-output modular ice maker that delivers half-size cubes, flexible dual-exhaust installation, and easy-clean sanitation features in a compact 30-inch footprint.

  • Produces up to 600 lb of half-size cube ice per 24 hours under ideal conditions.
  • Air-cooled, self-contained design with top or side exhaust fits more installation spaces.
  • PURE ICE antimicrobial protection and BPA-free, dishwasher-safe food-zone parts simplify sanitation.
  • LED status display plus one-touch sanitize and de-lime controls help streamline maintenance.
  • Harvest Assist technology and ENERGY STAR efficiency support consistent, cost-conscious operation.

Overall Dimensions:

27.0"W x 33.0"D x 27.0"H

Product Weight:

159.0 lb

Dual Exhaust Air Discharge

Vent hot air from the top or side of the unit for flexible placement without needing an airflow kit.

Harvest Assist Technology

Helps maintain consistent ice production while reducing energy consumption and increasing capacity.

PURE ICE Antimicrobial Protection

Built-in antimicrobial protection helps support a cleaner ice-making food zone.

Smart LED Status Display

LED indicators provide operating and cleaning status at a glance.

One-Touch Sanitize and De-Lime Controls

Simplifies routine cleaning with quick sanitize and de-scaling functions.

BPA-Free Dishwasher-Safe Food Zone Components

Snap-in food-zone parts are easy to remove, BPA-free, and dishwasher-safe up to 180°F.

Front-Facing Evaporator

Improves access for faster cleaning and simpler day-to-day service.

Durable, Service-Friendly Construction

Corrosion-resistant aluminum construction and common parts help simplify maintenance and reduce downtime.

R290 Refrigerant

Uses an environmentally friendlier refrigerant for efficient operation.

Type Modular Cube Ice Maker
Style Half Cube
Refrigeration Type Self-Contained
Condenser Type Air-Cooled
Ice Production 600 lb per 24 Hours
Controls Digital
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 8.03 Amps
Breaker Size 15 Amps
BTU 10,300 BTU/Hr
Refrigerant Type R290
Material Aluminum
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Shipping Width 33 Inches
Shipping Depth 27 Inches
Shipping Height 27 Inches
Shipping Weight 163 lb
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor; 5 years parts on evaporator and compressor; 7 years parts and labor on the evaporator if enrolled in the filter program.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Diagram PDF Download PDF Web site PDF Download PDF Slope front storage bins PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-size cube ice measuring 3/8 x 7/8 x 7/8 in. (10 x 22 x 22 mm).
It can produce about 600 lb of ice per 24 hours under 70°F air / 50°F water conditions.
No. Dual exhaust lets the unit discharge hot air from the top or side without an airflow kit.
Very easy. It includes one-touch sanitize and de-lime controls, dishwasher-safe food-zone components, and a front-facing evaporator for better access.
The unit requires 208-230 Volts, 60 Hz, 1-Phase power, draws 8.03 Amps, and uses a 15 Amp breaker.
It uses R290 refrigerant.
