Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0636HA

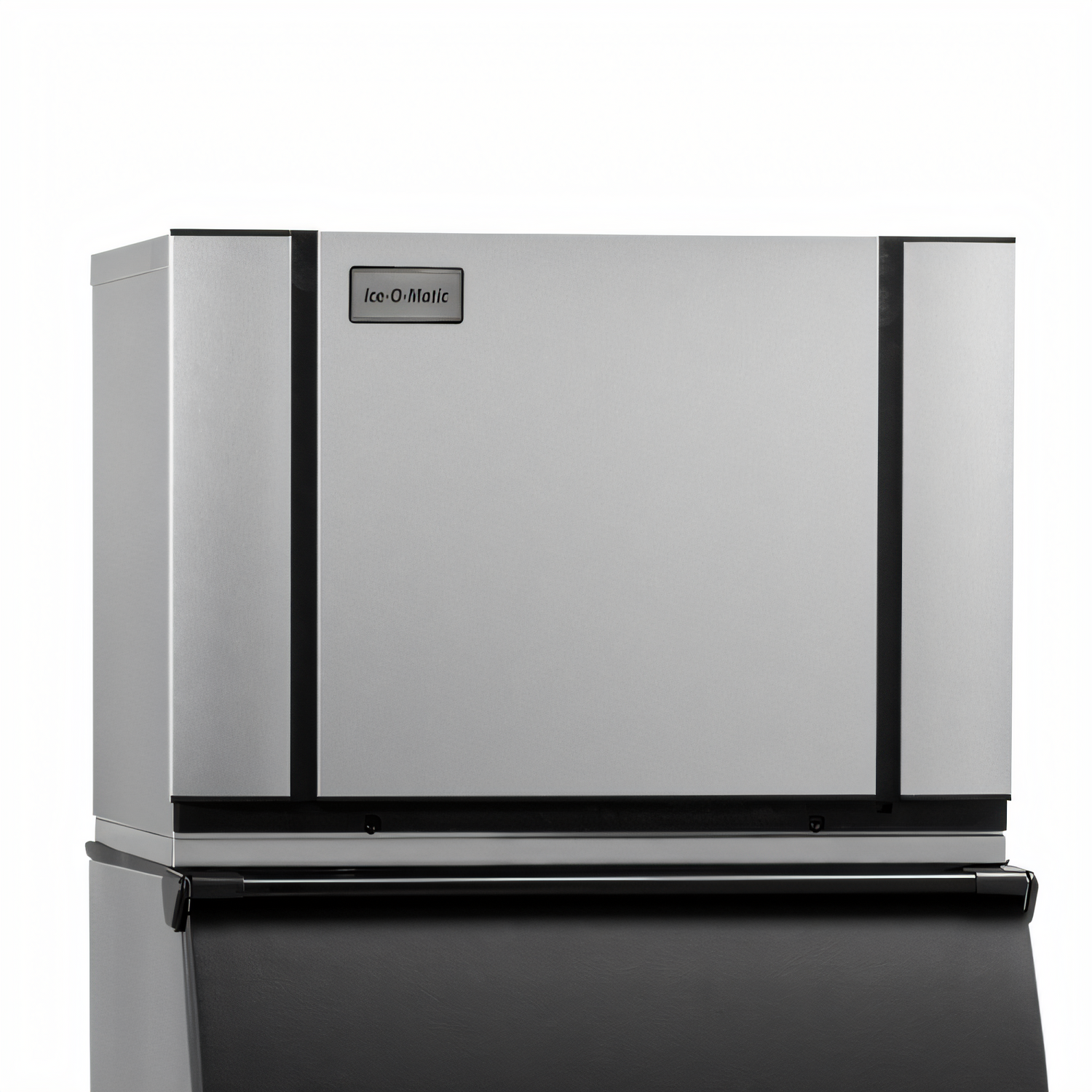

Ice-O-Matic CIM0636HA Elevation Series™ Ice Machines

$5,186.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service manual Slope front storage bins Diagram Owner's manual Brochure Web site Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Ice-O-Matic Elevation Series™ CIM0636A

Modular Half-Cube Ice Maker • Air-Cooled • ≈ 600 lb/24 hr

Give your bar, restaurant or convenience store a constant supply of crystal-clear half-cube ice without the headaches of difficult maintenance. The Elevation Series CIM0636A is built for maximum production, effortless sanitation and unmatched installation flexibility—in only 30 inches of horizontal space.

Why operators love the Elevation Series

  • High output – up to 600 lb of ice every 24 hours (at 70 °F/50 °F).
  • Dual Exhaust™ design vents hot air from the top or side, solving clearance issues in tight locations.
  • PURE ICE® built-in Agion® antimicrobial protection helps inhibit bacteria, mold and slime.
  • One-touch sanitize & descale buttons and an intuitive LED status light keep cleaning simple.
  • Seamless BPA-free plastic Food Zone – snap-in parts are dishwasher safe.
  • Up to 20 % more energy efficient than previous models; exceeds 2018 DOE standards.
  • Universal Smart Harness™ control board with digital diagnostics cuts service time and costs.
  • ENERGY STAR® qualified, cULus, NSF, CE & BPA-Free listed for worry-free code compliance.

Technical Specifications

Model CIM0636A (air-cooled, self-contained condenser)
Ice type / size Half Cube  |  ⅜ in × ⅞ in × ⅞ in (10 × 22 × 22 mm)
Production @ 70 °F air / 50 °F water ≈ 600 lb (272 kg) per 24 hr
Production @ 90 °F air / 70 °F water ≈ 440 lb (199 kg) per 24 hr
Energy use 5.45 kWh per 100 lb of ice
Water use 18.6 gal potable per 100 lb of ice
Electrical 208-230 V / 60 Hz / 1-ph  |  MCA 9.2 A  |  Max fuse 15 A
Refrigerant R404A
Unit dimensions (W × D × H) 30.25 in × 24.25 in × 21.25 in (768 × 616 × 540 mm)
Minimum air clearance 6 in (152 mm) on air intake sides/top
Shipping weight ≈ 139 lb (63 kg)
Certifications cULus, NSF, CE, ENERGY STAR®, BPA-Free

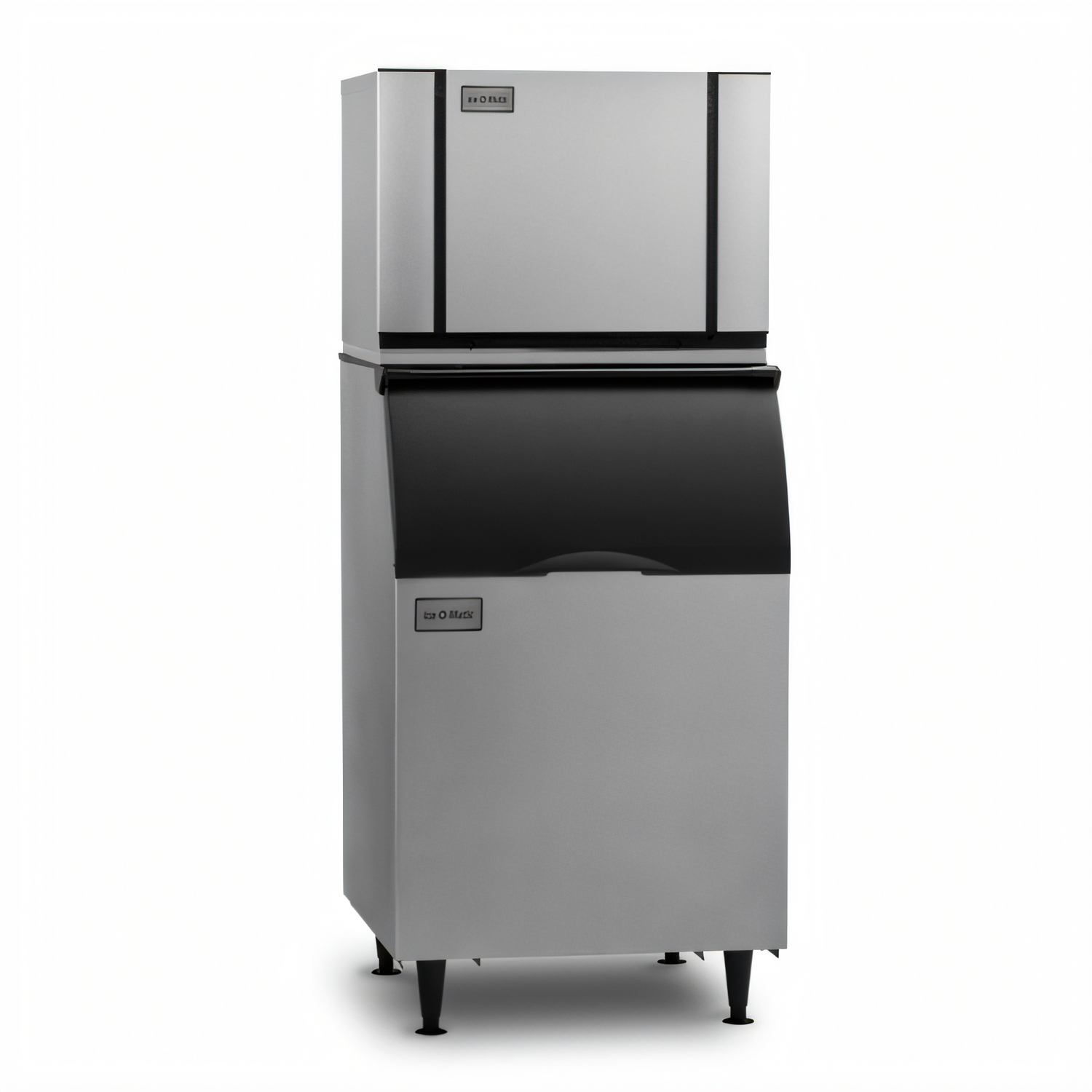

Bin & Filter Pairings

  • 30 in slope-front bins: B25, B40, B42, B55 (recommended).
  • Upright bins: B700-30, B1100-48 and larger (bin top kits may be required).
  • Water filtration: IFQ1-XL manifold with IOMQXL replacement cartridge (extends warranty).

Ice storage bin and filtration system sold separately.

Commercial Warranty

Ice maker 3-year parts & labor
Compressor & evaporator 5-year parts
Evaporator (with filter program) 7-year parts & labor
Installation note: Provide a dedicated 208-230 V electrical circuit, potable water inlet, drain line and a minimum of 6 in (152 mm) of clearance for proper airflow. For dispenser applications, use bin top kit KCUBEDISPB.

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free

Height

27.0in

Width

27.0in

Depth

33.0in

Shipping Weight

159.0lbs

Production per 24 hr

501 - 600 lb = 228 - 272 kg

Width (side - side)

30 - 39" wide

Condenser Type

air-cooled

Ice Type

half size / half dice cubes

Refrigeration

self-contained refrigeration

Specifications

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
