Ice-O-Matic CIM0636FW Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ CIM0636 – Modular Cube Ice Maker
Water-Cooled • 30″ Wide • Up to 620 lb Full-Cube Ice DailyBuilt for high–volume bars, restaurants and beverage stations, the Elevation Series™ CIM0636 water-cooled cuber packs serious production power into a compact 30-inch footprint. Pure Ice® antimicrobial protection, snap-out dishwasher-safe components and one-touch sanitizing make it the easiest, cleanest and most dependable way to keep the drinks – and profits – flowing.
Why You’ll Love It

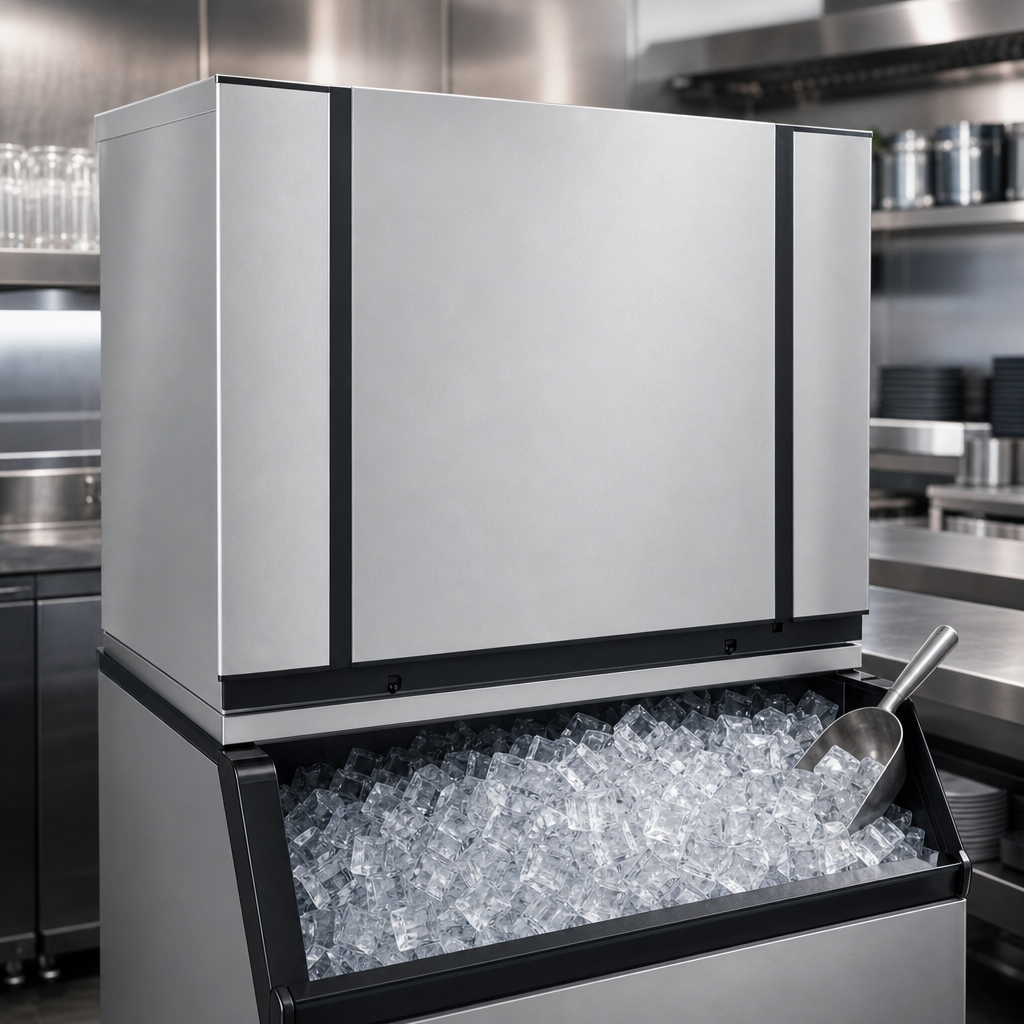

- 620 lb / 24 hr output at 70 °F air / 50 °F water (535 lb @ 90 °F / 70 °F) – perfect for mid-to-large demand.

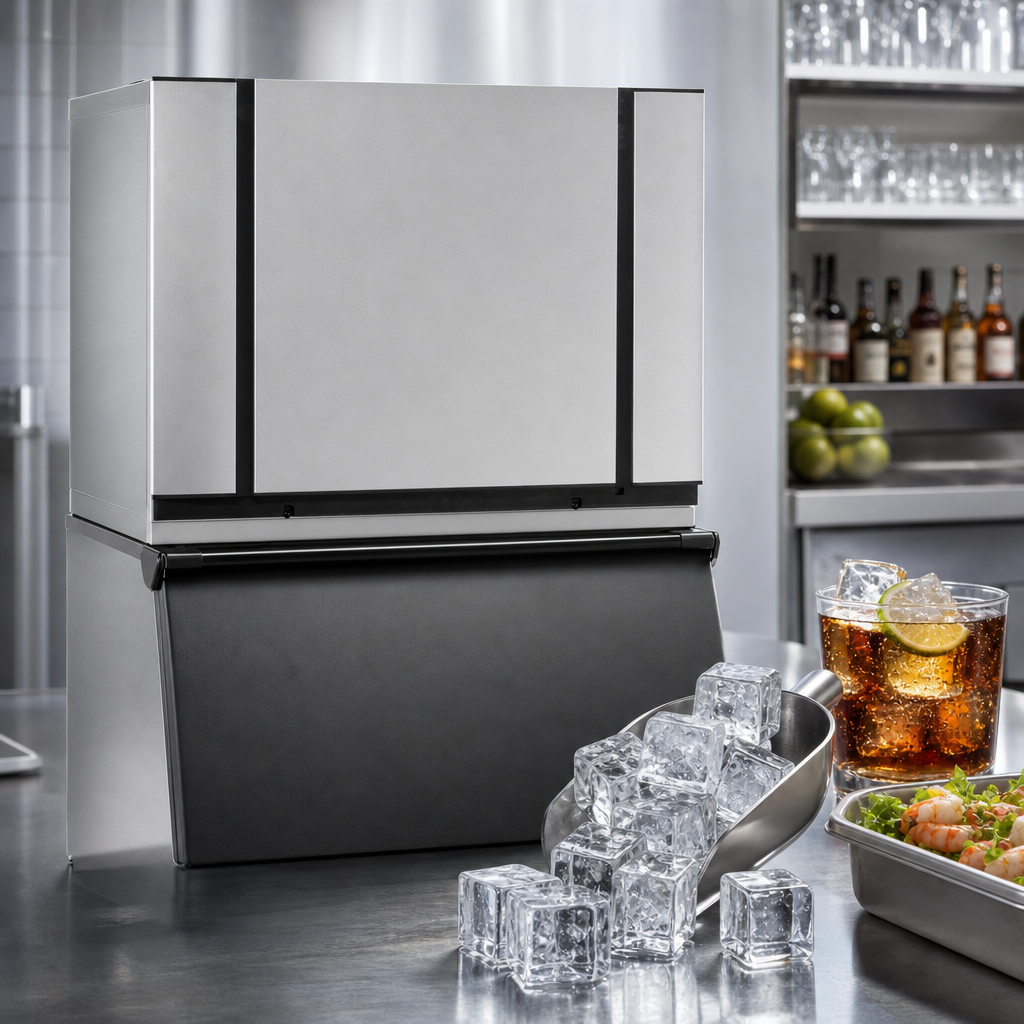

- Full-size cubes (⅞" × ⅞" × ⅞") deliver maximum cooling with minimum dilution.
- PURE ICE® protection – Agion® antimicrobial is molded into the food zone for lifelong defense against bacteria and mold.
- One-touch sanitize & descale buttons slash cleaning time and labour costs.
- LED status panel flashes easy-to-read alerts so staff know exactly when maintenance is needed.
- Snap-in / snap-out plastic food zone parts are dishwasher safe – no tools, no scrubbing, no bottle brushes.
- Universal Smart Harness™ control board with digital diagnostics simplifies installation and service calls.
- Energy & eco smart – exceeds 2018 DOE regulations, up to 20 % more energy-efficient, BPA-free and fully recyclable plastics.
- Rock-solid warranty – 3 yr parts & labour on the ice maker, 5 yr parts on compressor & evaporator (7 yr parts & labour on the evaporator when enrolled in Ice-O-Matic’s filter program).
Food Safety Made Simple
- Seamless, crevice-free food zone prevents dirt traps.
- BPA-Free plastics throughout the machine.
- Optional SafeIce™ ozone system (factory or field install) destroys viruses, mould and odours to extend machine life by up to 30 %.
Technical Specifications
| Model | CIM0636W (Elevation Series™) |
|---|---|
| Ice Form | Full Cube – ⅞" × ⅞" × ⅞" (22 × 22 × 22 mm) |
| Daily Production | 620 lb / 281 kg @ 70 °F air / 50 °F water 535 lb / 243 kg @ 90 °F air / 70 °F water |
| Condenser | Self-contained water-cooled |
| Dimensions (W × D × H) | 30.25″ × 24.25″ × 21.25″ (768 × 616 × 540 mm) |
| Electrical | 208–230 V / 60 Hz / 1-phase • 9.0 A MCA • 15 A breaker |
| Energy Consumption | 4.2 kWh per 100 lb of ice |
| Water Usage (per 100 lb ice) | 19.2 gal potable • 180 gal condenser |
| Refrigerant | R404A |
| Certifications | cULus • NSF • CE • BPA Free |
| Compatible Ice Bins | B25, B40, B42, B55, B700, B110 & larger (adapter kit may be required – see chart) |
| Shipping Weight | ≈ 160 lb / 72.5 kg |
Built for the Planet
- Meets or exceeds 2018 DOE energy standards.
- BPA-free, recyclable plastics reduce environmental impact.
- Manufactured in a facility committed to recycling and carbon-offset programs.
Ice storage bin, water filtration system and SafeIce™ purification kit are sold separately. Performance data based on manufacturer testing. Specifications subject to change without notice.
