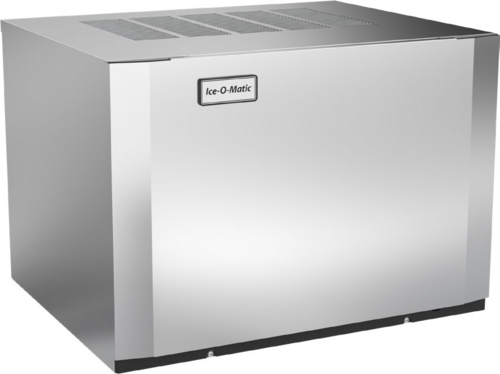

Ice-O-Matic Elevation Series Modular Full Cube Ice Maker, Air-Cooled Remote Condenser, 30-Inch Wide

SKU: CIM0636FR49
$4,943.32
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic Elevation Series Modular Full Cube Ice Maker, Air-Cooled Remote Condenser, 30-Inch Wide

Approx. 610 lb/Day, 208-230V, Single-Phase

High-output modular ice maker delivers full-size cubes with remote-condenser flexibility, easy-clean food-zone parts, and sanitation-focused controls.

  • Produces approximately 610 lb of full cube ice per 24 hours at 70°F air / 50°F water conditions.
  • Remote-cooled design works with a separate air-cooled remote condenser to help keep heat out of the work area.
  • Front-facing evaporator and dishwasher-safe food-zone components make routine cleaning faster and easier.
  • PURE ICE antimicrobial protection, BPA-free plastic parts, and one-touch sanitize/descale controls help support sanitation.
  • Harvest Assist technology helps maintain consistent production while reducing energy consumption.
  • LED status display and common CIM parts simplify monitoring, service, and maintenance.

Overall Dimensions:

27.0"W x 33.0"D x 27.0"H

Product Weight:

165.0 lb

Modular Design

Built for flexible installation on top of bins or dispensers.

Full Cube Ice Form

Produces full-size cubes measuring 7/8 inch x 7/8 inch x 7/8 inch.

Front-Facing Evaporator

Improves access to cleaning surfaces and helps simplify maintenance.

Dishwasher-Safe Food Zone Components

Snap-in plastic food-zone parts are easy to remove and can be washed in a dishwasher up to 180°F.

One-Touch Sanitize and Descale Controls

Dedicated cleaning controls and LED indicators help keep sanitation tasks simple and on schedule.

PURE ICE Antimicrobial Protection

Built-in antimicrobial protection helps support a cleaner ice-making environment.

Harvest Assist Technology

Helps provide consistent ice production while reducing energy consumption and increasing capacity.

Service-Friendly Platform

Common parts across CIM machines make servicing and installation easier.

Durable Aluminum Construction

Corrosion-resistant, fingerprint-proof aluminum construction and electroless nickel-plated evaporator plates improve durability.

Remote Condenser Compatibility

Pairs with the RC106C49 remote condenser and RL49-25, RL49-40, and RL49-75 precharged linesets.

Type Cube Ice Maker
Style Modular
Installation Type Top-Mount
Ice Type Full Cube
Capacity 610 lb. per 24 Hours
Condenser Type Air-Cooled
Refrigeration Type Remote
Controls Digital
Material Aluminum
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Voltage 208-230 Volts
Amps 10 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 15 Amps
BTU 10,720 BTU/Hr
Refrigerant Type R449A
Shipping Width 33 Inches
Shipping Depth 27 Inches
Shipping Height 27 Inches
Shipping Weight 165 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor; 7 years parts and labor on the evaporator with filter program enrollment.

Documents

PDF Cutsheet PDF Download PDF Web site PDF Download PDF Owner's manual PDF Download PDF Service manual PDF Download PDF Diagram PDF Download PDF Slope front storage bins PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It makes full cube ice measuring 7/8 inch x 7/8 inch x 7/8 inch.
The unit produces about 610 lb per 24 hours at 70°F air / 50°F water and about 528 lb per 24 hours at 90°F air / 70°F water.
No. This is a remote-cooled model and the remote condenser and linesets are sold separately.
It includes a front-facing evaporator, dishwasher-safe food-zone components, and one-touch sanitize and descale controls with LED reminders.
The machine operates on 208-230 Volts, 60 Hz, single-phase power and uses a 10 Amp minimum circuit with a 15 Amp max breaker.
The cutsheet lists 3 years parts and labor on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator if enrolled in the filter program.
