Ice-O-Matic CIM0636FR Elevation Series™ Ice Machines
Ice-O-Matic CIM0636FR Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM0636FR Elevation Series™ Ice Machines
Description

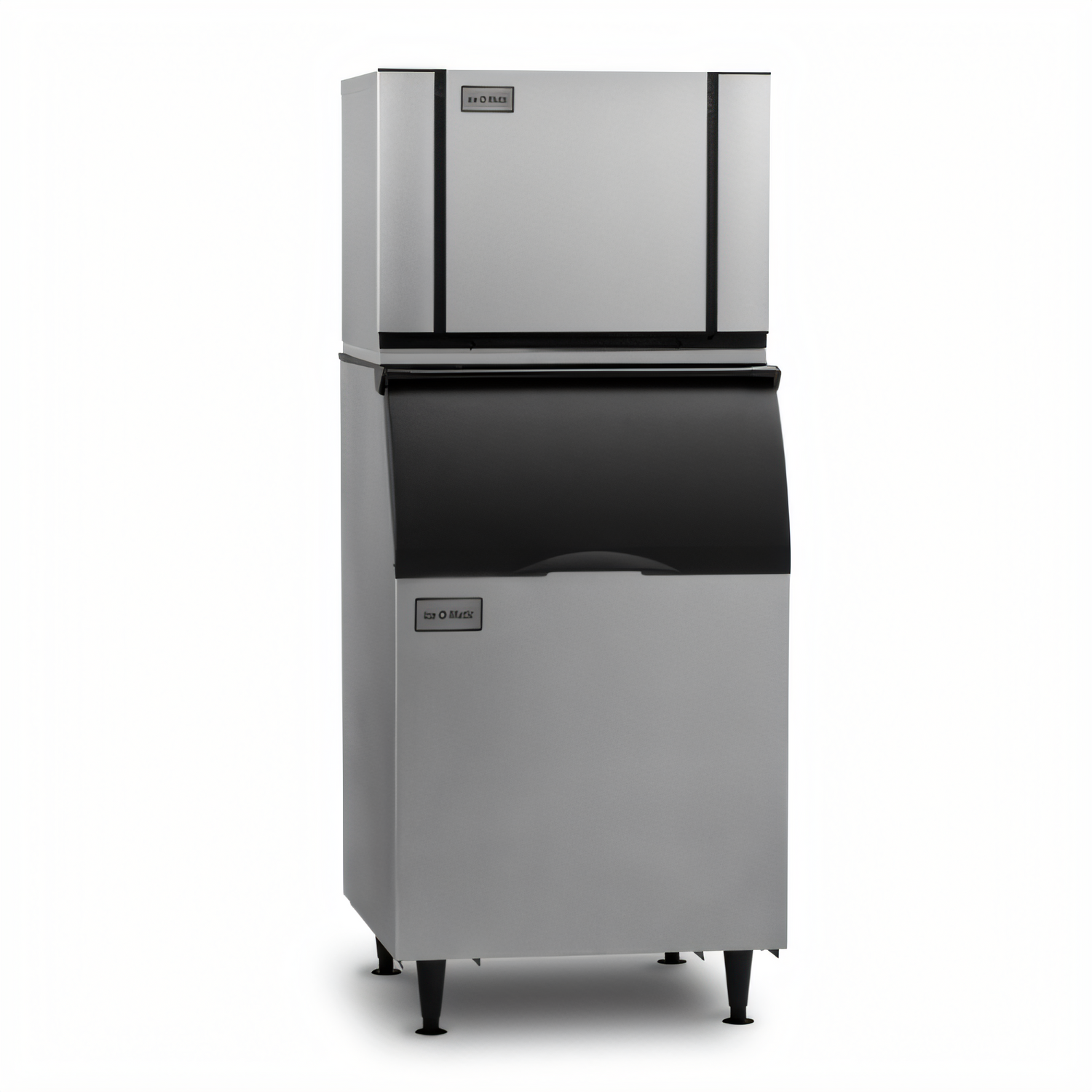

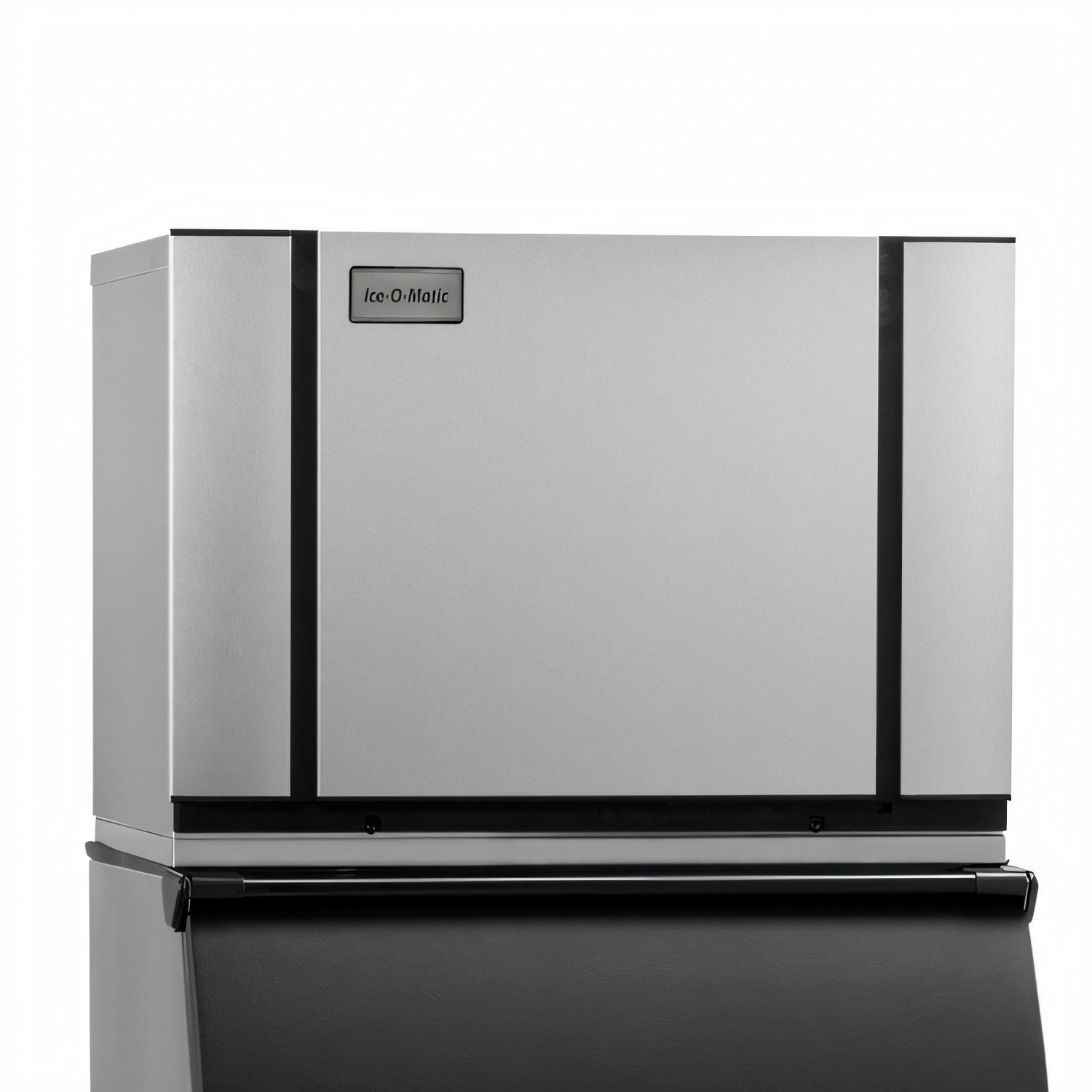

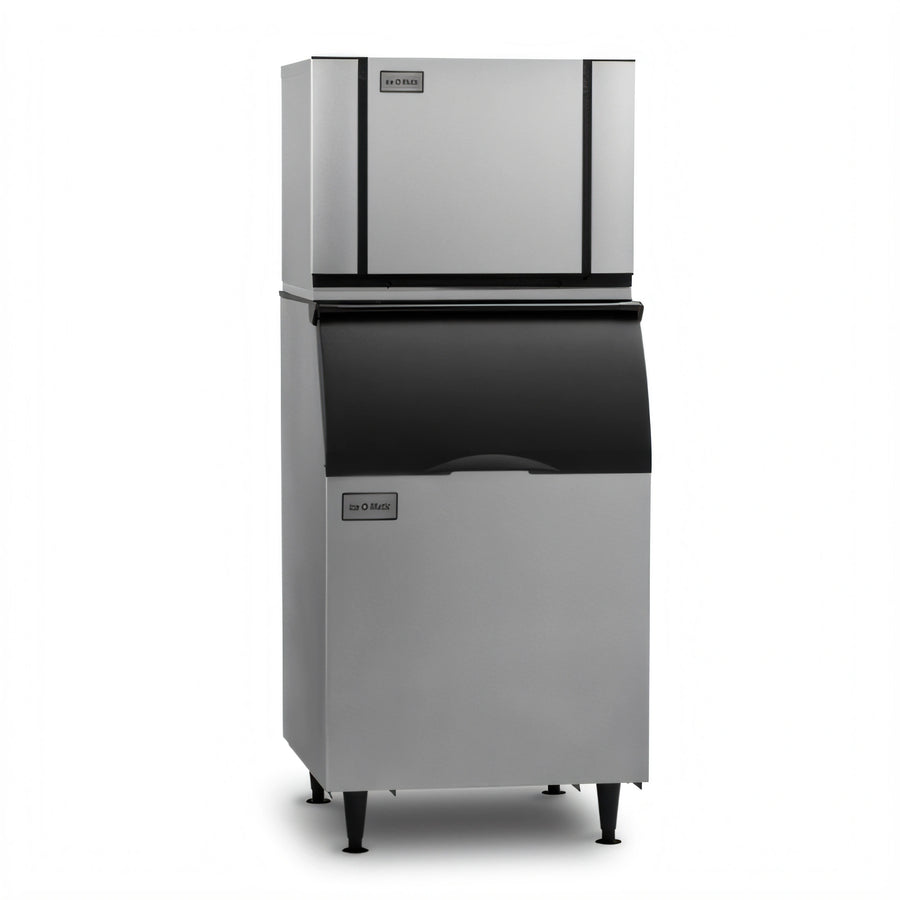

Elevation Series™ CIM0636R Full-Cube Ice Maker | Remote Condenser
≈ 615 lb of crystal-clear ice every 24 hours – ENERGY STAR® certifiedBuilt for busy kitchens, bars and beverage stations, the Ice-O-Matic Elevation Series™ CIM0636R delivers mountains of full-size cubes while keeping heat and noise outside with a remote condenser system. From its food-safe design to one-touch cleaning, this 30" wide workhorse makes Pure Ice® simple, safe and energy-efficient.
Why you’ll love it
- High production, small footprint — up to 615 lb (279 kg) in 24 h at 70 °F/50 °F.
- Premium full cubes (⅞ x ⅞ x ⅞ in) that chill drinks longer without dilution.
- Remote condenser ready (Ice-O-Matic RCA-1061) to remove heat, reduce kitchen noise and cut A/C load.
- PURE ICE® antimicrobial protection with Agion® surfaces inhibits mold and bacteria growth for life.
- Seamless plastic Food Zone – no crevices, snaps apart and is dishwasher-safe.
- One-touch sanitize & descale buttons plus smart LED that tells staff exactly when to clean.
- Universal Smart Harness™ control board with digital diagnostics speeds up installation & service.
- ENERGY STAR® listed – exceeds 2018 DOE standards and cuts energy use up to 20 % vs. prior models.
- BPA-free plastics & recyclable parts support sustainable operations.
Performance data
| Model | CIM0636R (remote-cooled) |
|---|---|
| Ice type | Full cube – ⅞ in × ⅞ in × ⅞ in | 22 mm × 22 mm × 22 mm |
| 24 h production | 615 lb @ 70 °F air / 50 °F water | 535 lb @ 90 °F / 70 °F |
| Water usage | 19 gal per 100 lb of ice |
| Energy usage | 5.3 kWh per 100 lb of ice |
| Electrical | 208-230 V / 60 Hz / 1-ph, 10 A (15 A breaker) |
| Dimensions | 30.25 W × 24.25 D × 21.25 H in | 768 × 616 × 540 mm |
| Refrigerant | R404A |
| Required condenser | Ice-O-Matic RCA-1061 (sold separately) |
| Shipping weight | ≈ 160 lb / 72.5 kg |
| Certifications | cULus, NSF, CE, ENERGY STAR®, BPA-Free |
| Warranty | 3 yr parts & labor (ice maker) • 5 yr parts (evaporator & compressor) 7 yr parts & labor on evaporator when enrolled in Ice-O-Matic filter program |
Pair it with the right bin
30 in-wide Ice-O-Matic slope-front bins such as B25, B40, B55 or upright bins B700-30 and larger mount directly; wider bins require adapter kits (see chart). Bin, condenser & line-set are sold separately.
Recommended accessories (sold separately)
- RCA-1061 remote air-cooled condenser & pre-charged line set
- IFQ1-XL water filtration manifold + IOMQXL cartridge
- SafeIce™ UV/Cabinet purification system for additional sanitation
- Ice scoops, paddles and shovel kits for selected bins
Manufactured in Denver, Colorado by Ice-O-Matic – a proud partner of American Forests & Global ReLeaf offsetting 40 % of factory carbon footprint.
