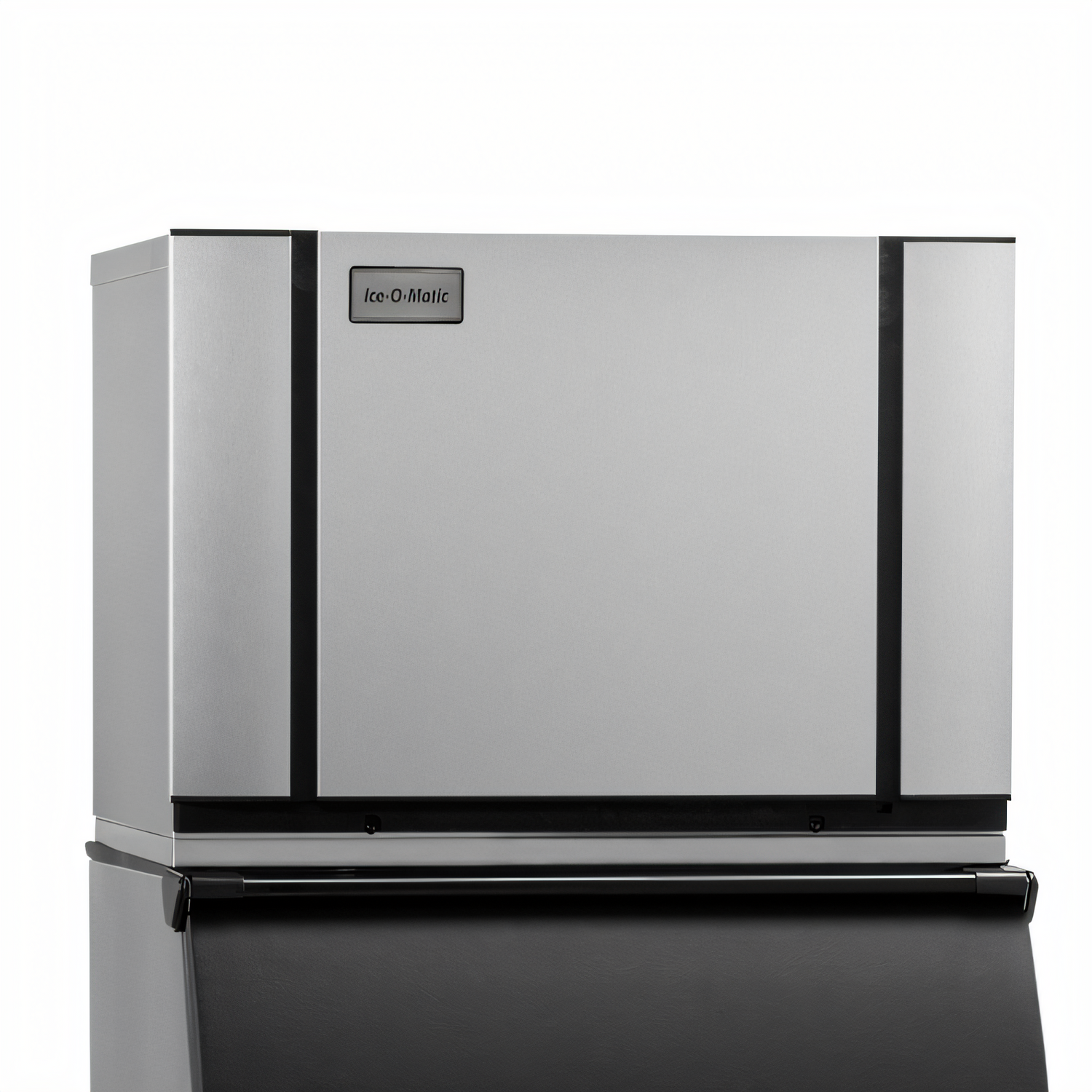

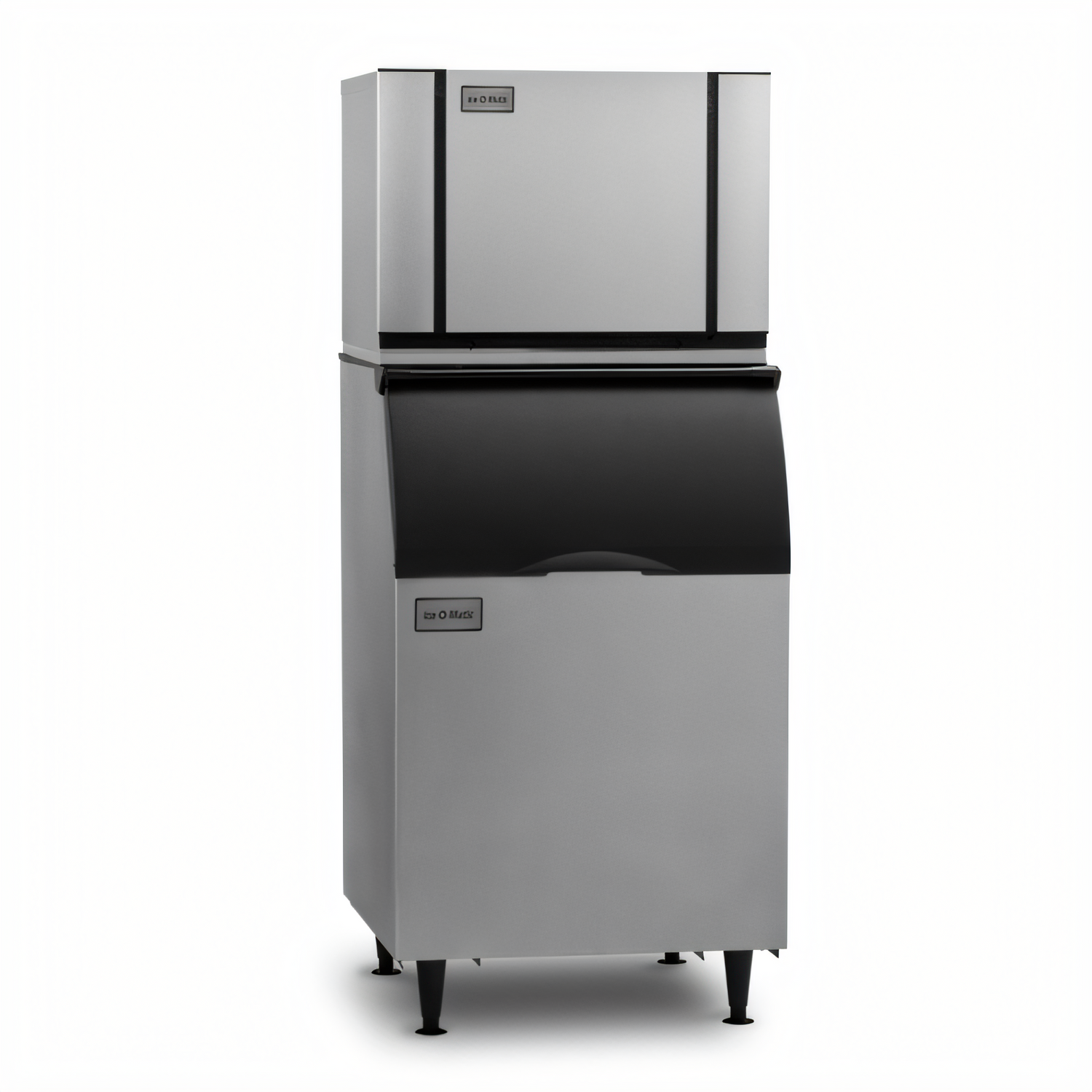

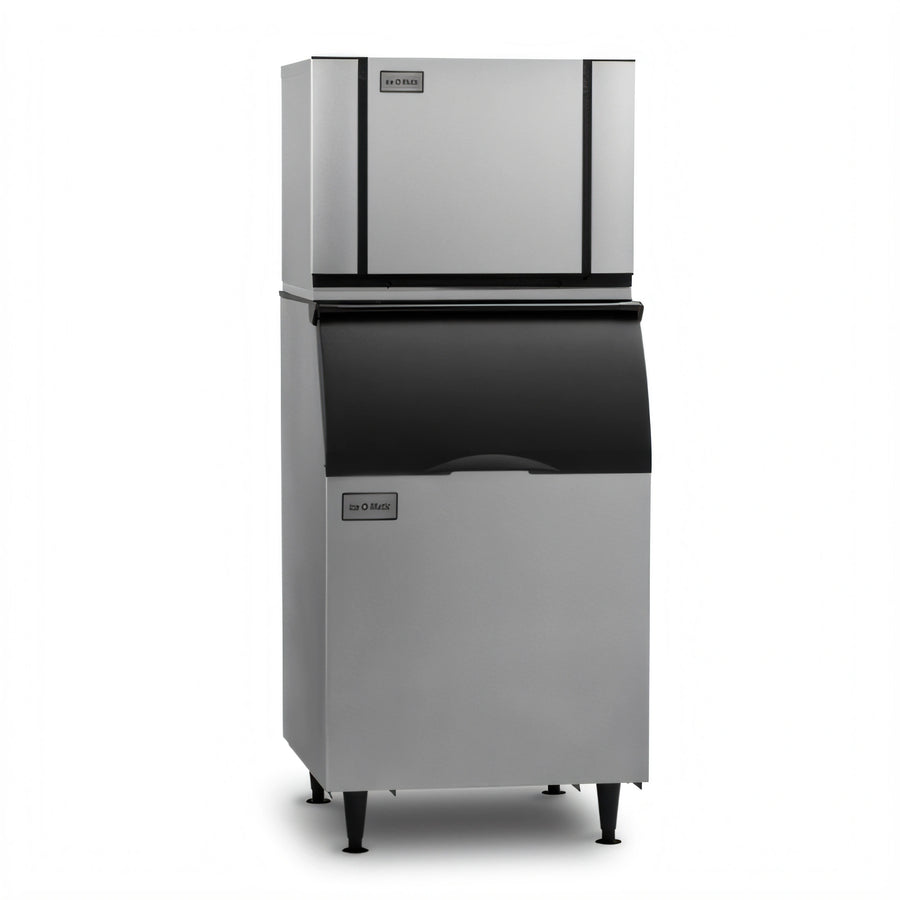

Ice-O-Matic Elevation Series™ CIM0636A Modular Cube Ice Maker
Air-Cooled · Self-Contained · Up to 600 lb of Full-Cube Ice per DayThe 30″-wide Elevation Series™ CIM0636A delivers an impressive 600 lb of crystal-clear, full-size cubes every 24 hours—all while using less energy, simplifying sanitation and fitting where competing machines can’t. If you’re looking for dependable ice production with minimal downtime and maximum food-safety peace of mind, this is the head you want above your bin or beverage dispenser.
Key Features & Benefits
- Dual Exhaust — patented top- and side-air discharge lets you install flush against walls or beneath low ceilings without obstructing ventilation.
- PURE ICE® / Agion® Antimicrobial Protection — built-in treatment suppresses bacteria, mold and slime growth for the life of the unit.
- One-Touch Clean & Descale — LED panel initiates automatic sanitize or de-lime cycles; all snap-in components are BPA-free and dishwasher-safe.
- ENERGY STAR® Qualified — exceeds 2018 DOE standards and is up to 20 % more energy-efficient than prior models (just 5.45 kWh/100 lb).
- Universal Smart Harness™ control board offers front-facing digital diagnostics and common parts for faster, easier service.
- Space-Saving Design — 30.25″ W x 24.25″ D x 21.25″ H head pairs perfectly with Ice-O-Matic B-series bins—no airflow kits required.
- Eco-Focused Construction — BPA-free plastics, recyclable parts and low-GWP refrigerant underscore Ice-O-Matic’s commitment to sustainability.
Performance at a Glance
| Model | CIM0636A (60 Hz) |
|---|---|
| Ice type | Full Cube – ⅞″ × ⅞″ × ⅞″ (22 × 22 × 22 mm) |
| Production @ 70 °F air / 50 °F water | Up to 600 lb (272 kg) / 24 hr |
| Production @ 90 °F air / 70 °F water | Approx. 440 lb (199 kg) / 24 hr |
| Condenser type | Air-cooled, self-contained |
| Electrical | 208–230 V / 60 Hz / 1 ph – 9.2 A (15 A max breaker) |
| Energy usage | 5.45 kWh per 100 lb of ice |
| Water usage (potable) | 18.6 gal per 100 lb of ice |
| Dimensions (W × D × H) | 30.25″ × 24.25″ × 21.25″ (768 × 616 × 540 mm) |
| Shipping weight | 139 lb (63 kg) |
| Refrigerant | R404A |
| Certifications | ENERGY STAR®, cULus, NSF, CE, BPA Free |
Cleaner Ice with Less Effort
- Crevice-free plastic Food Zone wipes down in seconds—no brushes, no fuss.
- Color-coded, tool-free parts snap out for commercial-dishwasher sanitation.
- Smart LED status light tells staff exactly when maintenance or cleaning is needed.
Recommended Accessories
- Ice-O-Matic B-Series slope-front bins (242 – 510 lb capacities)
- IFQ1-XL water filtration manifold with IOMQXL cartridge
- SafeIce™ ozone purification system for continuous microbial control
Ice production ratings are based on AHRI standard test conditions; actual results will vary with ambient temperature, water temperature and installation. Provide at least 6″ (152 mm) clearance at the rear, top and each side for proper airflow.
Overall Dimensions:
27.0"W x 33.0"D x 27.0"HProduct Weight:
161.0 lbCertifications & Compliance
