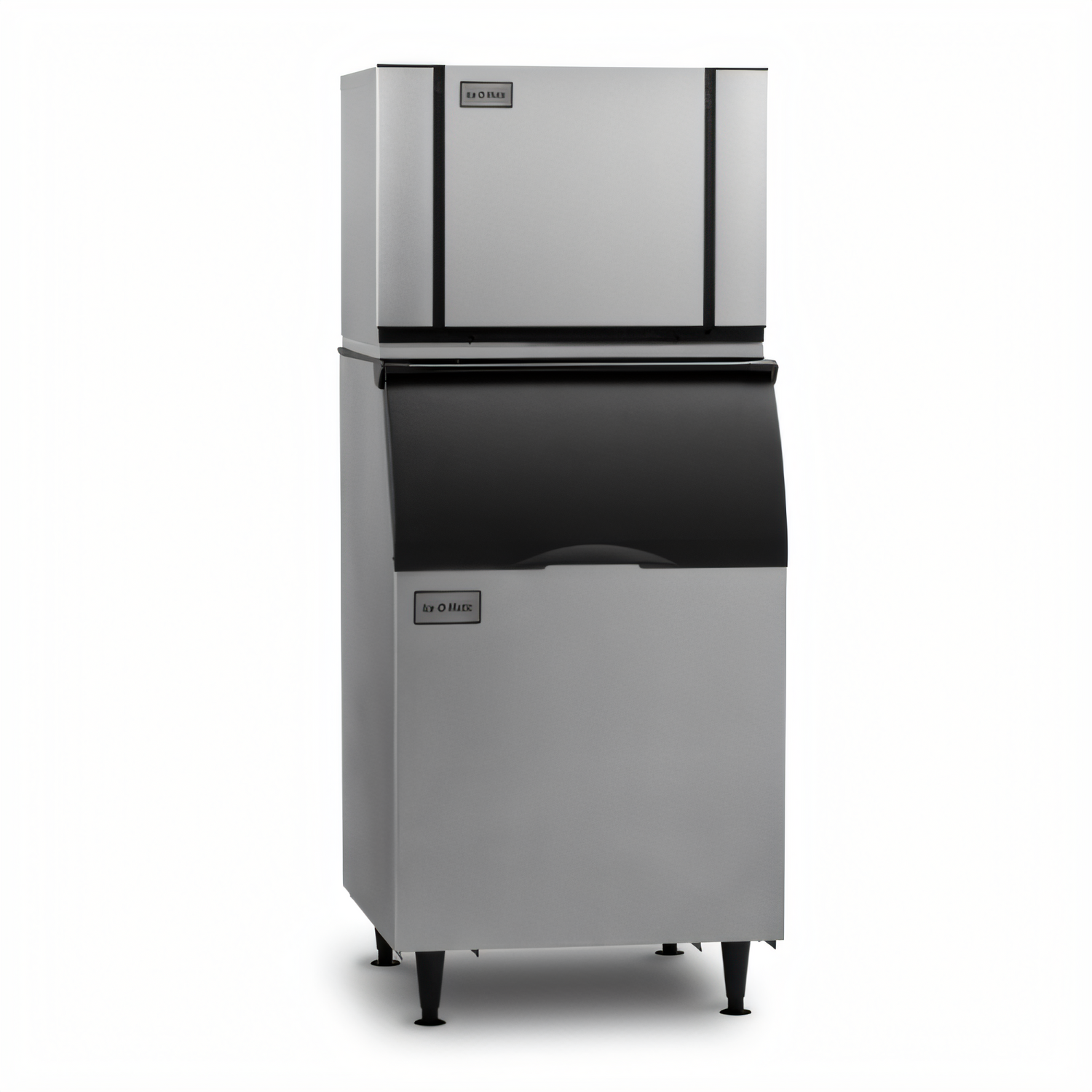

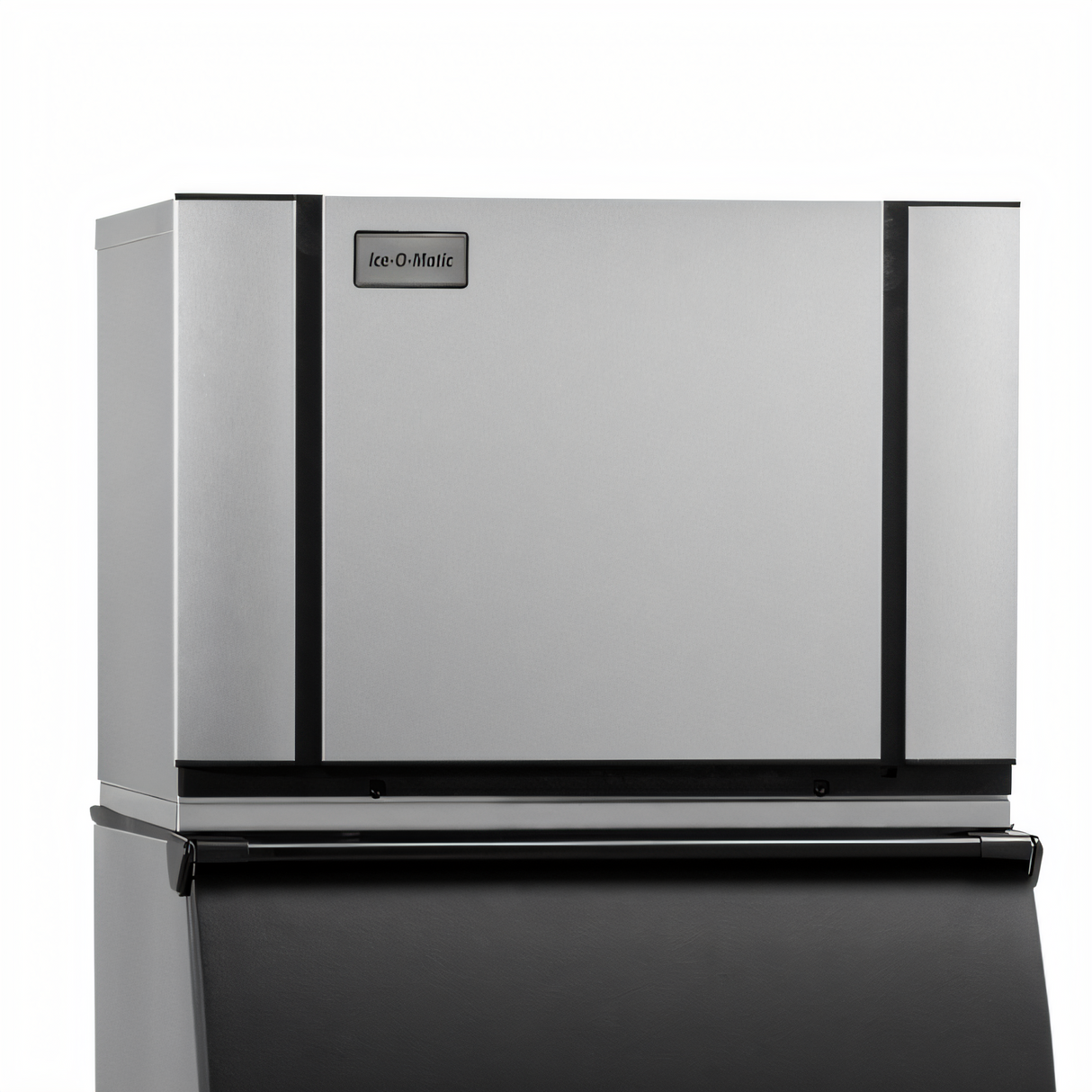

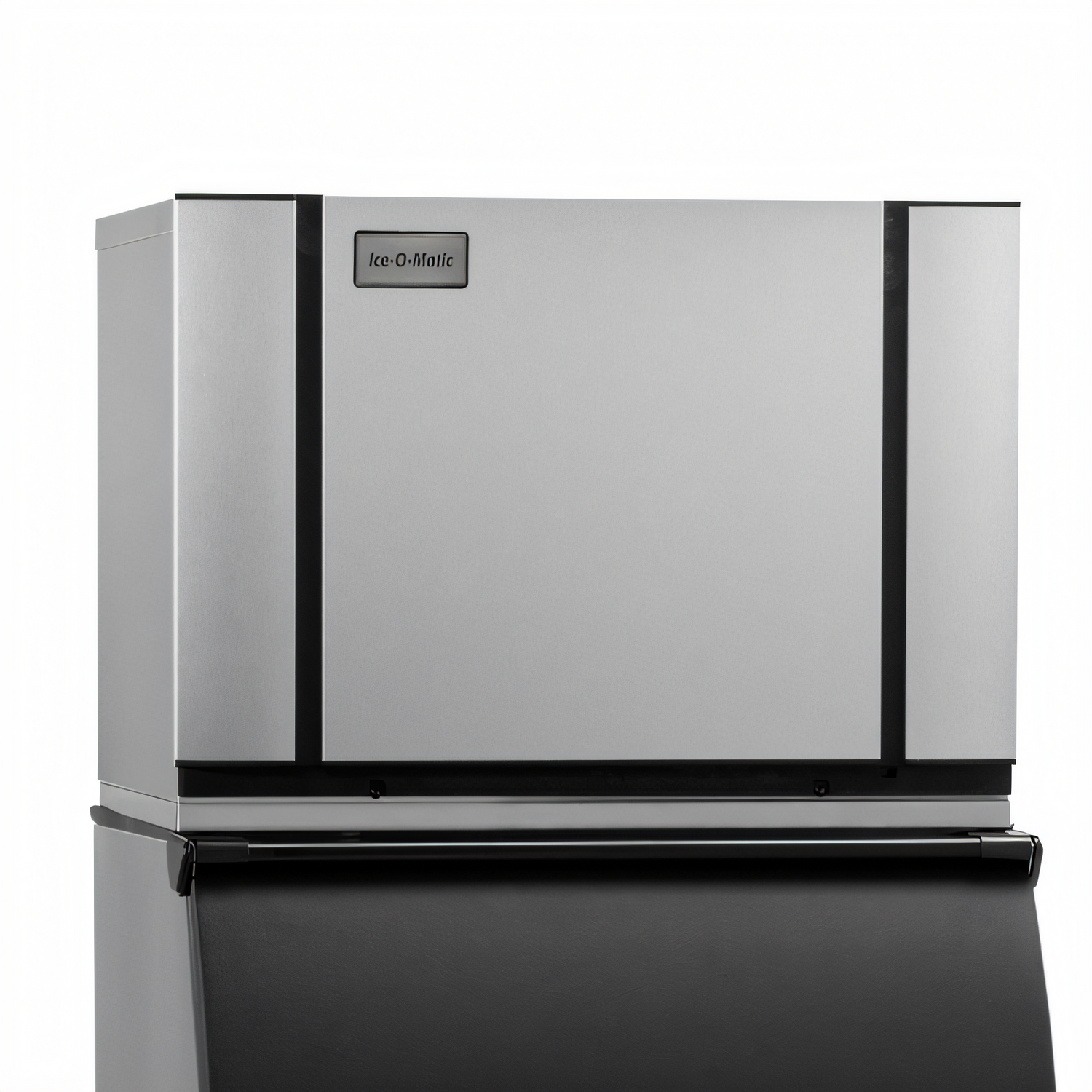

Ice-O-Matic CIM0530HW Elevation Series™ Ice Machines
Description
Elevation Series™ Modular Cube Ice Maker – 30" Water-Cooled
Ice-O-Matic | Model CIM0530W (Half Cube)Produce up to 586 lb of crystal-clear half-cube ice every day in a compact 30" footprint. The Elevation Series™ combines industry-leading efficiency, food-safe design and effortless maintenance—so you always have pure, great-tasting ice when you need it.
Why You’ll Love It
- High output: ≈ 586 lb (266 kg) per 24 hr at 70 °F air / 50 °F water.
- Water-cooled, self-contained condenser—quiet, reliable and perfect for hot kitchens.

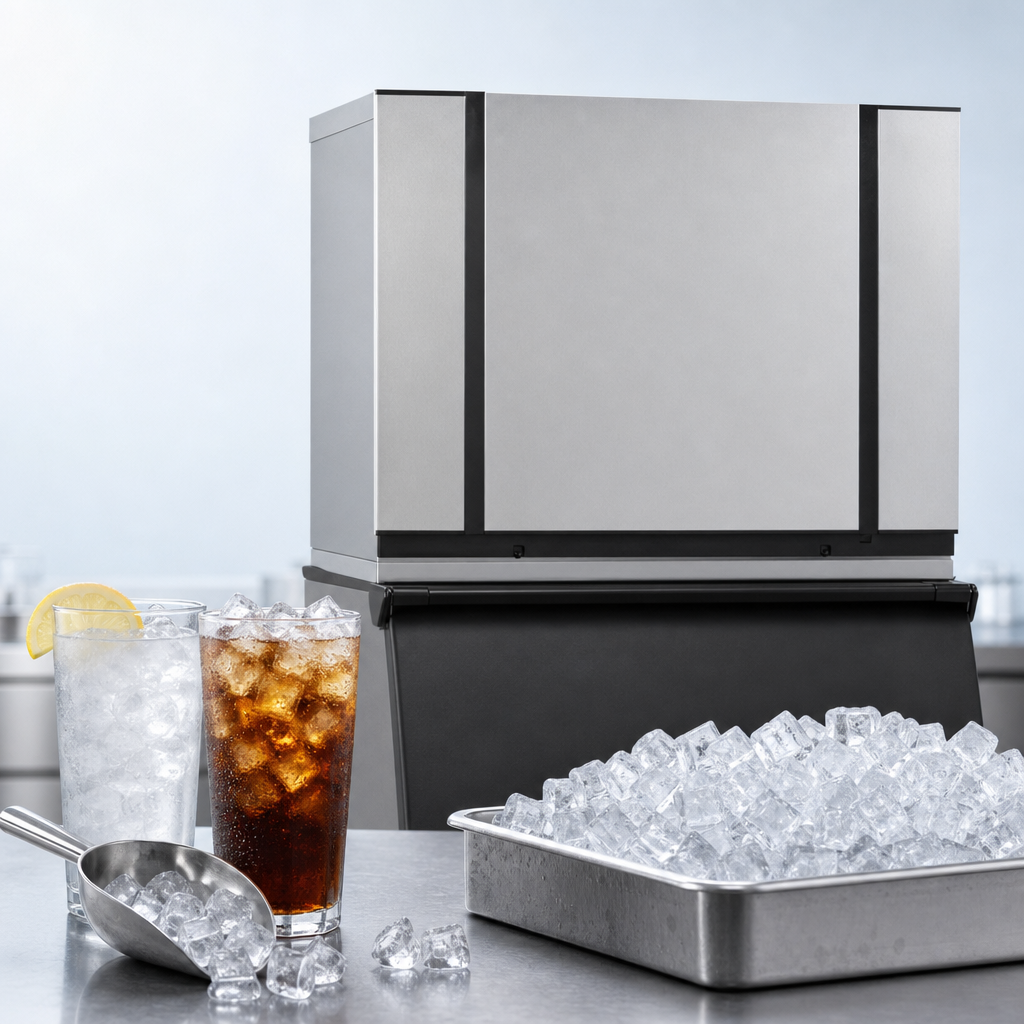

- Half-size cubes (⅜" × ⅞" × ⅞") ideal for soft drinks, cocktails & high-volume beverage service.
- PURE ICE® Agion antimicrobial built into the food zone helps inhibit bacteria & slime for the life of the machine.
- One-touch sanitize & descale controls with smart LEDs that tell you exactly when cleaning is due.
- Snap-in, snap-out food-zone components are BPA-free and dishwasher safe—no tools, no bottle brushes.
- Universal Smart Harness™ control board with digital diagnostics speeds up installation and service calls.
- Exceeds 2018 DOE regulations—up to 20 % more energy efficient than previous models.
- cULus, NSF & CE listed; BPA-Free construction.
Performance & Utilities
| Daily ice production (70 °F air / 50 °F water) | ≈ 586 lb / 266 kg |
|---|---|
| Daily ice production (90 °F air / 70 °F water) | ≈ 533 lb / 242 kg |
| Condenser type | Water-cooled, self-contained |
| Potable water use | ≈ 20 gal per 100 lb ice |
| Condenser water use | ≈ 181 gal per 100 lb ice |
| Electrical | 115 V / 60 Hz / 1-phase (other voltages available) |
| Refrigerant | R404A |
| Dimensions (W × D × H) | 30.25" × 24.25" × 21.25" (768 × 616 × 540 mm) |
| Approx. shipping weight | 155 lb / 70 kg |

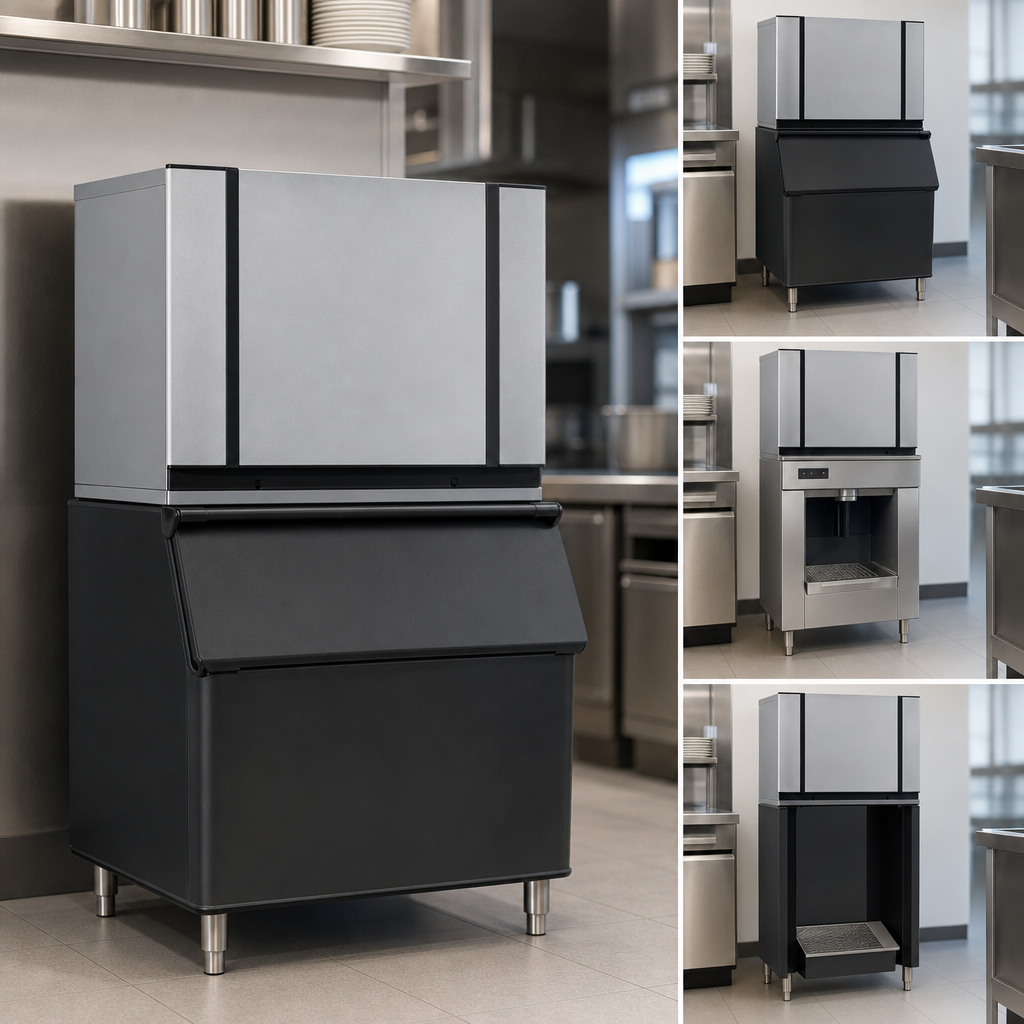

Compatible Ice Storage Bins (sold separately)
- B25, B40, B42 & B55 slope-front bins (no adapter kit required)
- B700-30, B1000-48, B1300-48 upright bins
- B110 bin—use hold-down kit BPF-1 for best fit
Commercial Warranty
| Ice maker | 3 years parts & labor |
|---|---|
| Compressor & evaporator | 5 years parts |
| Evaporator (with Ice-O-Matic filter program) | 7 years parts & labor |
Want the ultimate in clean ice? Ask about the optional SafeIce™ UV Purification System that destroys viruses, mold and odors—extending machine life by up to 30 %.
