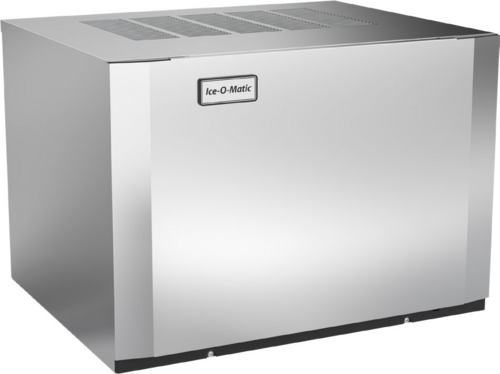

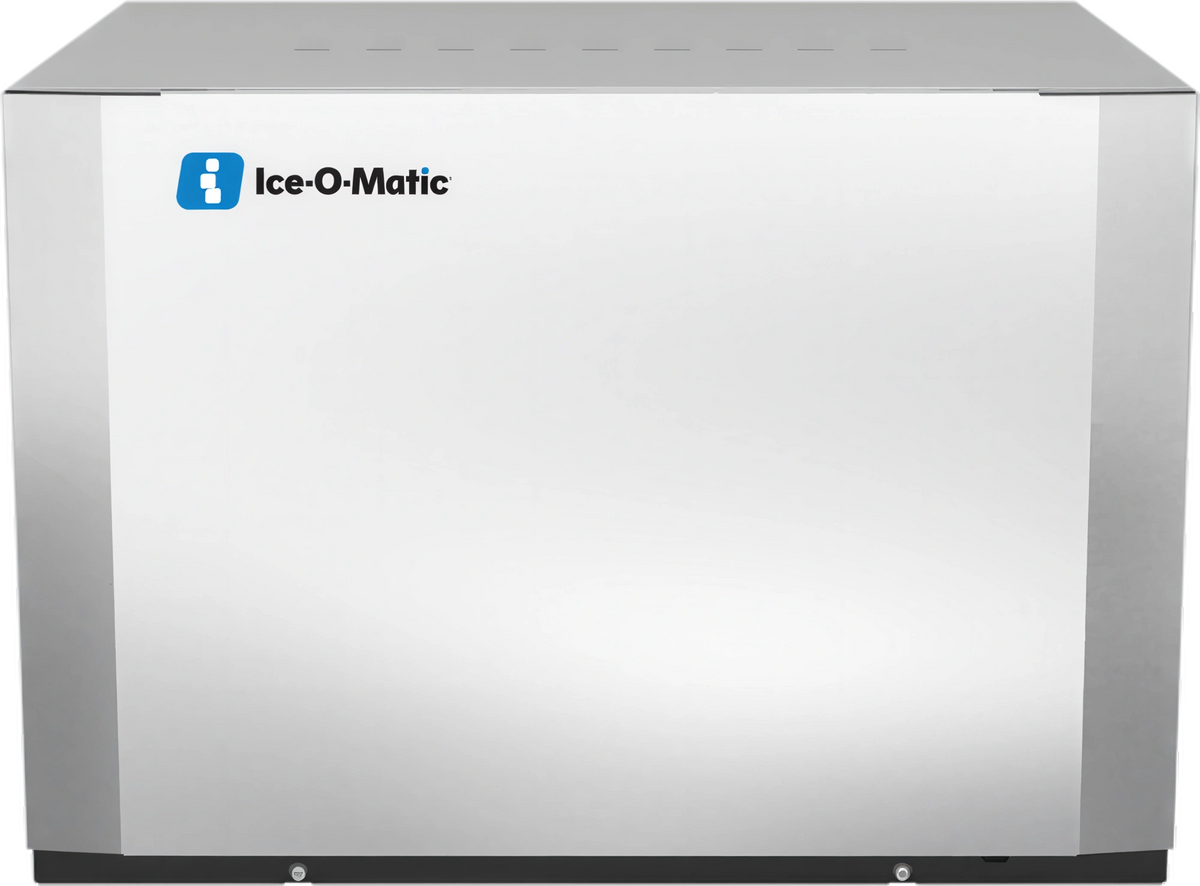

Ice-O-Matic Elevation Series™ Modular Half-Size Cube Ice Maker

Air-Cooled, Remote Condenser Required, 30.25 Inch Wide

This space-saving modular ice maker delivers reliable half-size cube production with easy-clean sanitation features and remote condenser flexibility.

  • Produces half-size cube ice for fast cooling and consistent beverage presentation.
  • Modular design mounts on compatible bins or dispensers for flexible installation.
  • Remote-cooled, air-cooled setup keeps heat away from the ice maker location.
  • Front-facing evaporator and dishwasher-safe food zone parts simplify cleaning.
  • One-touch sanitize and de-lime controls with LED status indicators help streamline maintenance.
  • BPA-free components, Harvest Assist technology, and durable aluminum construction support efficient operation.

Overall Dimensions:

30.25"W x 24.25"D x 21.25"H

Product Weight:

160.0 lb

Modular Design

Designed to mount on top of compatible bins or dispensers for flexible commercial installation.

Half-Size Cube Ice

Produces half-size cubes measuring 3/8 x 7/8 x 7/8 in. for versatile beverage service.

Harvest Assist Technology

Helps maintain consistent ice production while reducing energy consumption and improving capacity.

Easy-Clean Food Zone

Front-facing evaporator and dishwasher-safe plastic food zone components make routine cleaning easier.

One-Touch Cleaning Controls

One-touch sanitize and de-lime functions, along with LED indicators, help simplify upkeep.

Dual Exhaust

Allows hot-air discharge from the side or the top for more flexible installation options.

Durable Construction

Built with corrosion-resistant, fingerprint-proof aluminum and electroless nickel-plated evaporator plates.

BPA-Free Components

Uses BPA-free plastics and recyclable parts to support more responsible operation.

Type Modular Cube Ice Maker
Style Half-Size Cube
Refrigeration Type Remote
Condenser Type Air-Cooled
Water Connection Required
Drain Connection Required
Ice Production 500 Pounds per 24 Hours at 70°F Air / 50°F Water
Ice Production - High Ambient 442 Pounds per 24 Hours at 90°F Air / 70°F Water
Voltage 115 Volts
Amps 20.1 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 30 Amps
BTU 8,110 BTU Per Hour
Refrigerant Type R449A
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Material Aluminum
Shipping Width 33 Inches
Shipping Depth 27 Inches
Shipping Height 27 Inches
Shipping Weight 173 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Diagram PDF Download PDF Slope front storage bins PDF Download PDF Service manual PDF Download PDF Brochure PDF Download PDF Web site PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces half-size cube ice, measuring 3/8 x 7/8 x 7/8 in.
No. This model is remote-cooled and pairs with the RC100C49 remote condenser and RL49-25, RL49-40, or RL49-75 precharged linesets.
It is rated at 500 lb per 24 hours at 70°F air / 50°F water, and 442 lb per 24 hours at 90°F air / 70°F water.
Cleaning is simplified with a front-facing evaporator, dishwasher-safe food zone components, and one-touch sanitize and de-lime controls.
It requires 115 Volts, 60 Hz, single-phase power, with a 20.1 amp minimum circuit and a 30 amp breaker.
The bin chart lists compatibility with B40, B42, B55, B700-30, B110, B1000-48, B1300-48, B1325-60, and B1660-60 bins.
