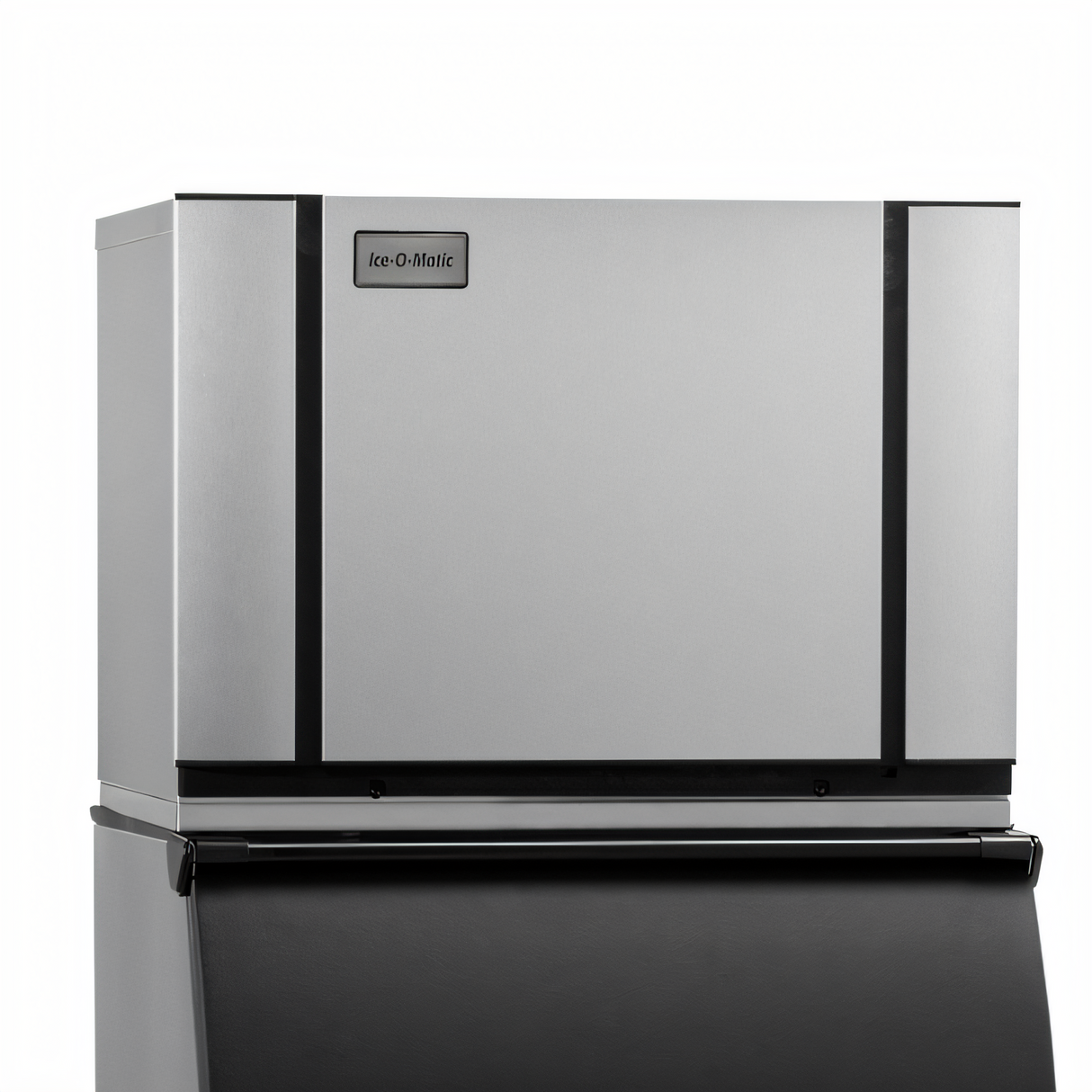

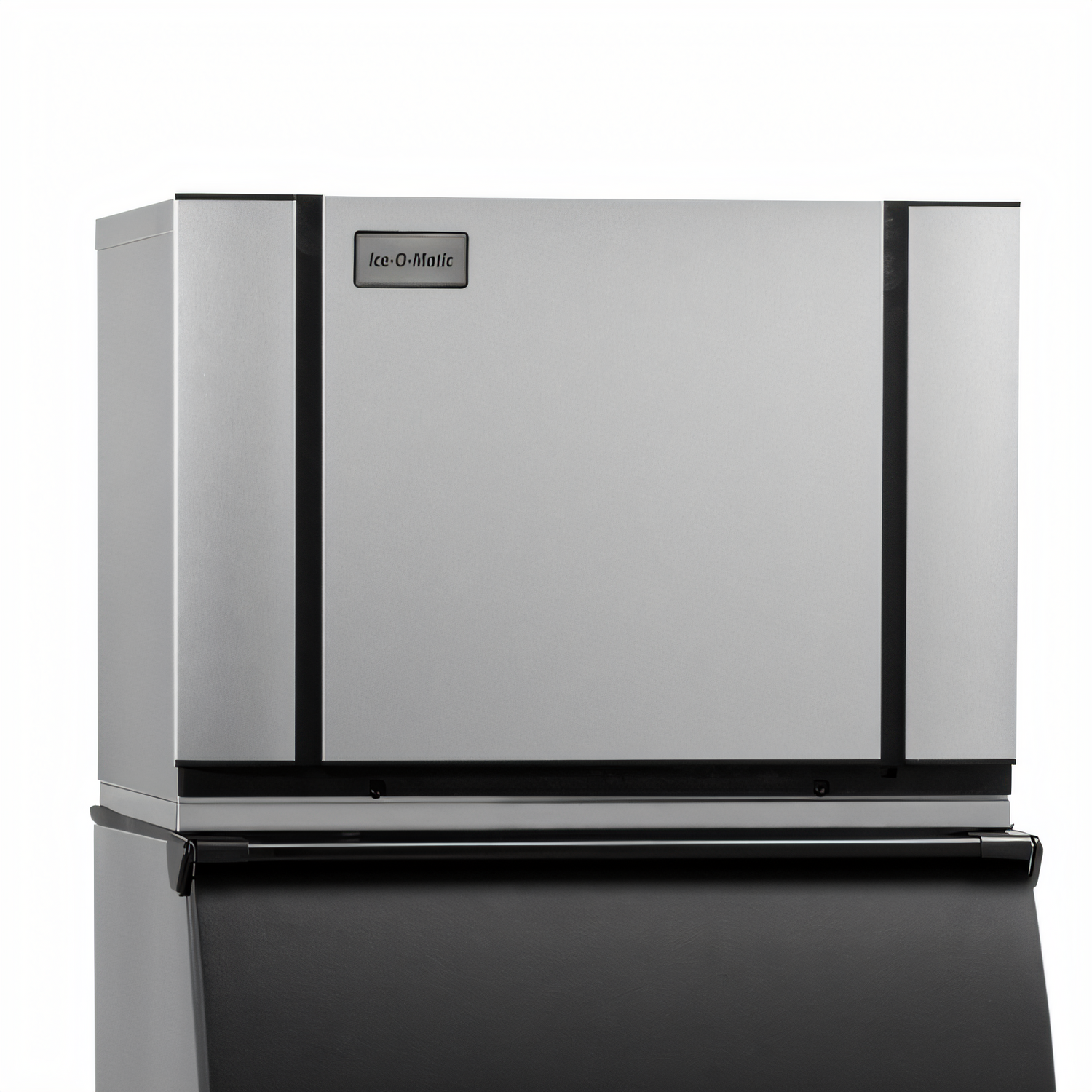

Ice-O-Matic CIM0530HR Elevation Series™ Ice Machines
Ice-O-Matic CIM0530HR Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM0530HR Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ CIM0530R
30" Remote Air-Cooled Modular Cube Ice Maker • Half-Cube | ≈570 lb/24 hrProduce a mountain of fresh, great-tasting ice while keeping heat and noise outside the kitchen. The Elevation Series CIM0530R pairs Ice-O-Matic’s industry-leading PURE ICE® antimicrobial protection with a remote condenser for maximum capacity, energy savings and effortless sanitation.
Why You’ll Love It

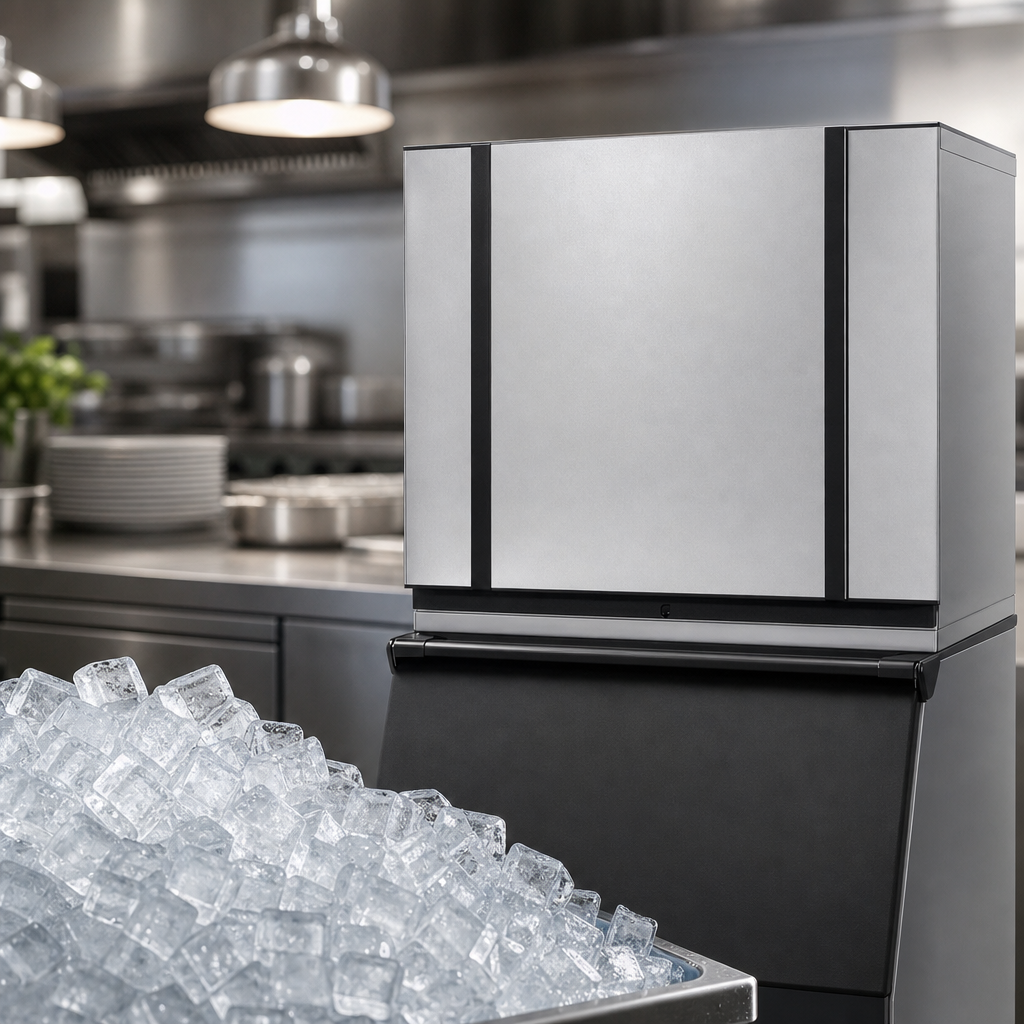

- High output, compact footprint – up to 570 lb of half-cube ice daily from a 30 in (768 mm) wide head.
- Remote condenser comfort – move heat & noise outdoors (RCA-1001 condenser & line-set sold separately).
- PURE ICE® antimicrobial food-zone – Agion®-treated surfaces inhibit microbes 24/7.
- One-touch sanitize & descale with LED reminders—no guessing, no tools.
- Snap-in / snap-out dishwasher-safe parts—no nooks, crannies or bottle brushes.
- Universal Smart Harness™ control board for fast install, digital diagnostics and fewer service calls.
- Energy & eco leadership – exceeds 2018 DOE standards, uses BPA-free recyclable plastics.
- Certified cULus, NSF, CE and BPA Free for worry-free food safety worldwide.
Perfect For
- Full-service & QSR kitchens looking to relocate heat loads
- Bars, convenience stores & beverage stations needing crystal-clear half cubes
- Hotels & resorts adding redundancy to large upright bins
- Institutional cafeterias focused on strict sanitation protocols

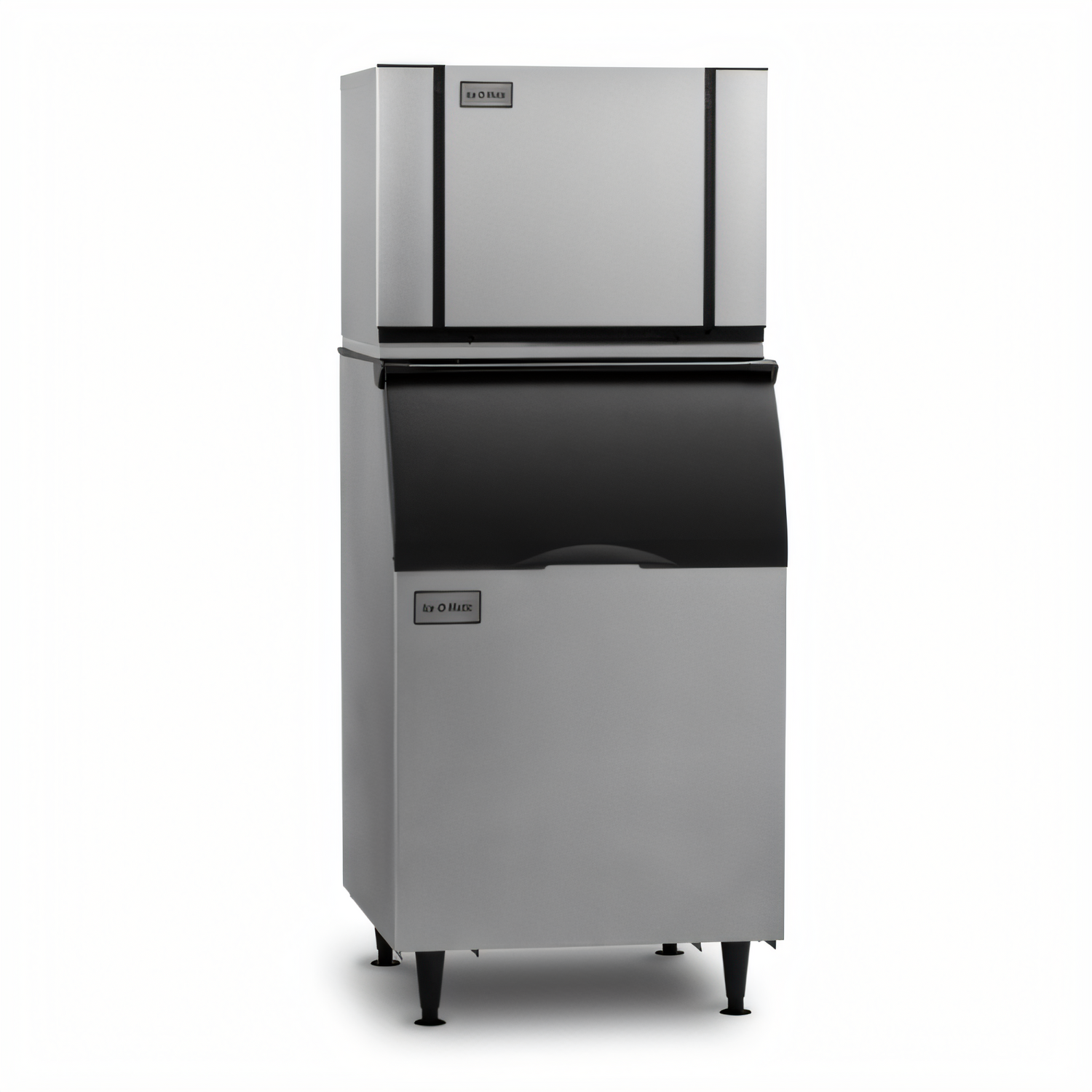

Recommended Ice Storage Bins (no adapter kit required)
- Ice-O-Matic B25, B40, B42, B55 slope-front bins
- B110 upright bin (use hold-down bracket BPF-1)
Technical Specifications
| Daily Production (70 °F air / 50 °F water) | Approx. 570 lb | 259 kg |
|---|---|
| Daily Production (90 °F air / 70 °F water) | Approx. 405 lb | 184 kg |

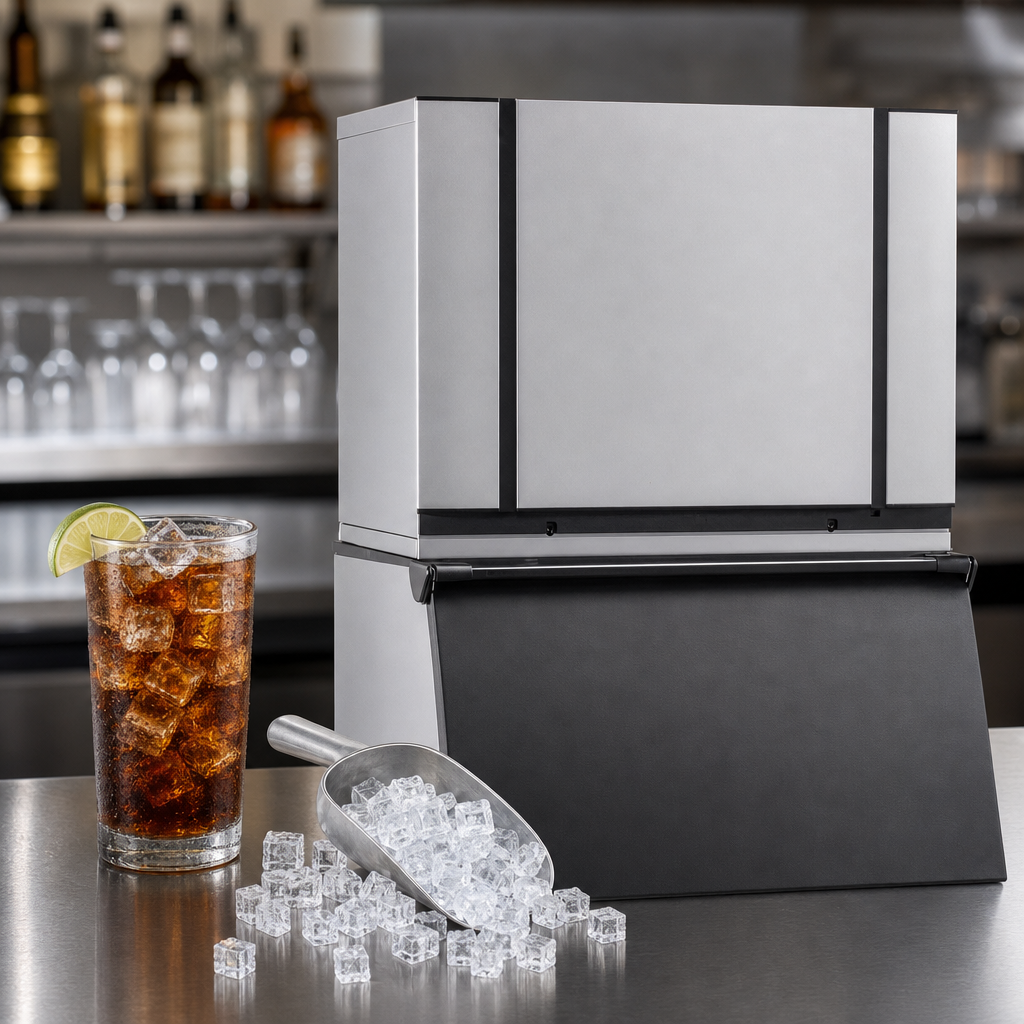

| Ice Type | Half-Cube (⅜ in × ⅞ in × ⅞ in | 10 × 22 × 22 mm) |
| Unit Dimensions (W × D × H) | 30.25 in × 24.25 in × 21.25 in 768 mm × 616 mm × 540 mm |
| Electrical | 115 V / 60 Hz / 1-ph · MCA 20.1 A · Max Breaker 30 A |
| Energy Consumption | 6.3 kWh per 100 lb of ice |
| Water Usage | 19.6 gal per 100 lb of ice |
| Potable Water Inlet | ⅜ in FPT |
| Drain Connection | ¾ in FPT |
| Refrigerant | R404A |
| Operating Ambient | 50 °F – 100 °F | 10 °C – 38 °C |
| Water Pressure | 20 – 80 PSI | 1.4 – 5.5 bar |
| Shipping Weight | ≈160 lb | 73 kg |
| Warranty | 3 yrs parts & labor · 5 yrs parts on evaporator & compressor 7 yrs parts & labor on evaporator when using Ice-O-Matic water filter program |
Need a water-filtration bundle or adapter for a beverage dispenser? Contact us for curated accessory kits that keep your ice Pure and Simple.
