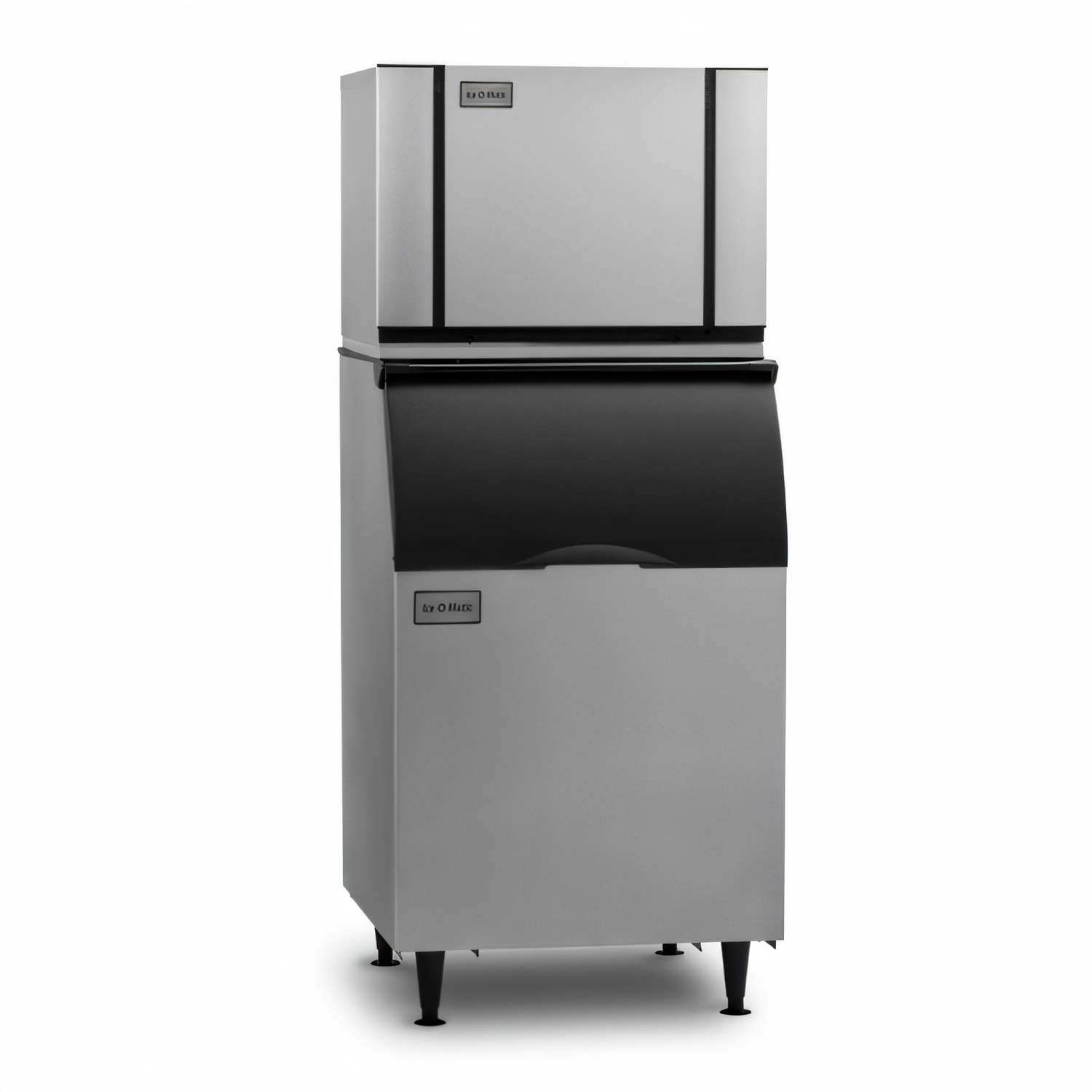

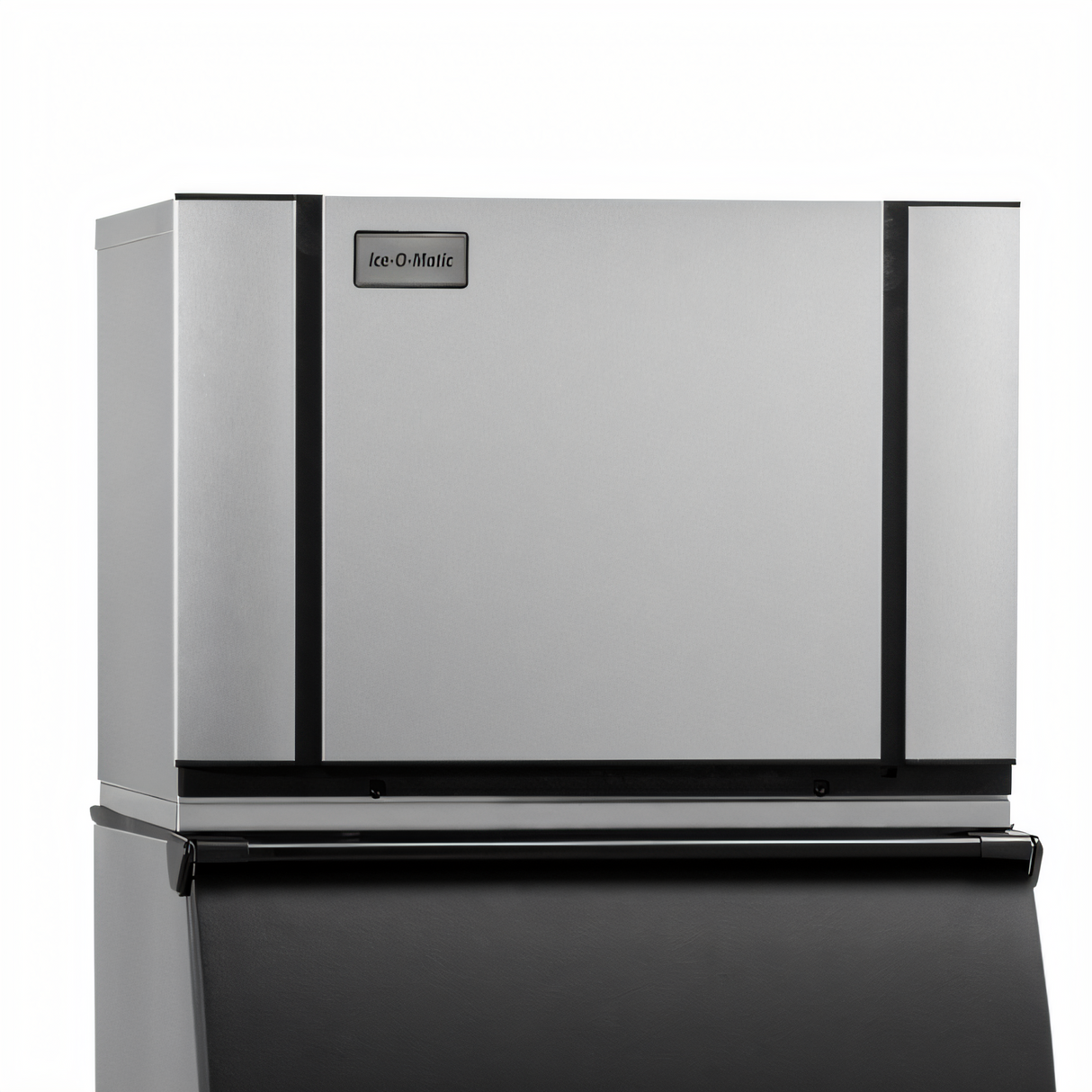

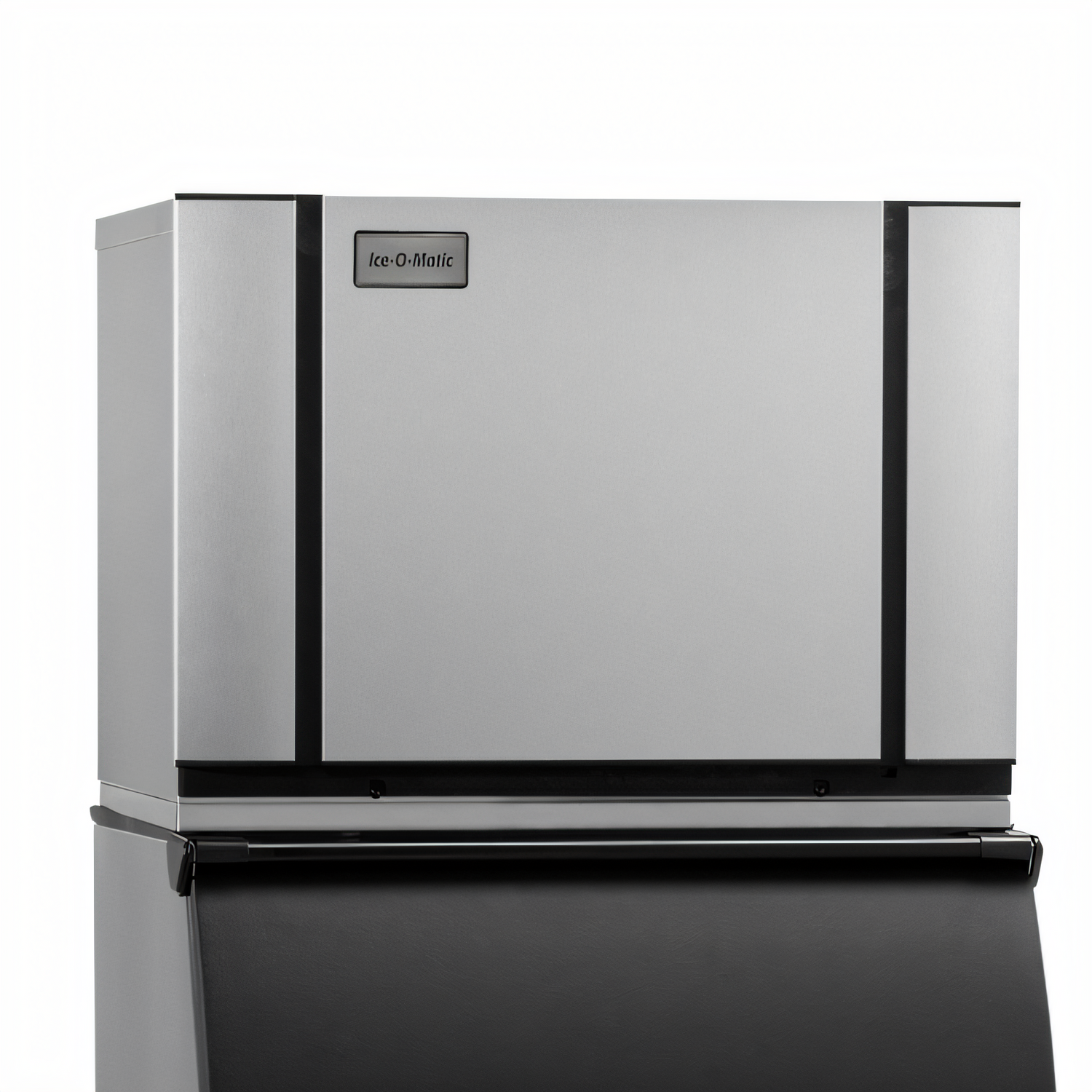

Ice-O-Matic CIM0530FW Elevation Series™ Ice Machines
Ice-O-Matic CIM0530FW Elevation Series™ Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Ice-O-Matic CIM0530FW Elevation Series™ Ice Machines
Description
Ice-O-Matic Elevation Series™ CIM0530W Modular Cube Ice Maker
586 lb / 24 hr • Water-Cooled • Full-Size CubesHarness 30 inches of countertop into a productive powerhouse. The CIM0530W delivers an impressive 586 lbs of crystal-clear full cubes every day while its water-cooled design keeps heat and noise out of the kitchen. Built-in antimicrobial protection, one-touch cleaning and dishwasher-safe components mean ice that’s as safe as it is abundant.
Key Advantages
- High output – up to 586 lb of ice in 24 hours (470 lb at 90 °F air / 70 °F water).
- Water-cooled, self-contained condenser for quiet operation with zero hot-air discharge.

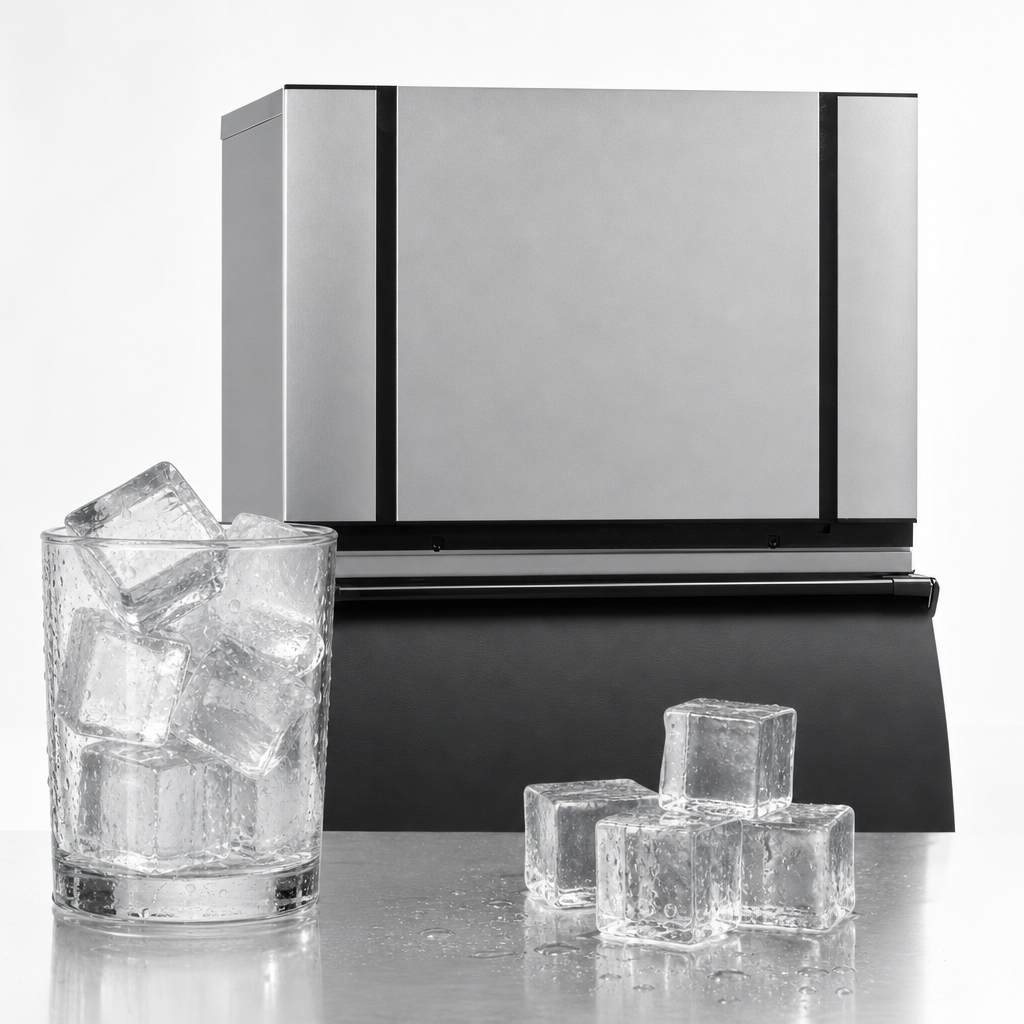

- Produces Ice-O-Matic full cubes (⅞ × ⅞ × ⅞ in) ideal for drinks and bulk cooling.
- PURE ICE® (Agion®) antimicrobial is molded into the food zone for lifelong protection.
- BPA-free plastic food zone with snap-in / snap-out parts—all dishwasher safe.
- LED status display plus one-touch sanitize & descale cut cleaning time dramatically.
- Universal Smart Harness™ board provides plug-and-play installation & digital diagnostics.
- Constructed with recyclable materials and meets 2018 DOE efficiency standards.
- Listings: cULus, NSF, CE • BPA Free.
Performance & Utilities
| Ice production (70 °F air / 50 °F water) | 586 lb / 24 hr (266 kg) |
|---|---|
| Ice production (90 °F air / 70 °F water) | 470 lb / 24 hr (213 kg) |
| Ice type | Full cube – ⅞ × ⅞ × ⅞ in • 22 × 22 × 22 mm |
| Condenser | Water-cooled, self-contained |
| Electrical | 115 V / 60 Hz / 1-phase (see spec sheet for ampacity & breaker size) |
| Dimensions (W × D × H) | 30.25 × 24.25 × 21.25 in • 768 × 616 × 540 mm |
| Refrigerant | R404A |
| Water usage (90 °F air / 70 °F water) | 20 gal potable + 181 gal condenser water per 100 lb of ice |
| Compatible storage bins | B25, B40, B42, B55, B700 & larger (adapter kit may be required) |
| Factory warranty |
3-yr parts & labor ice maker • 5-yr parts evaporator & compressor 7-yr parts & labor evaporator when enrolled in Ice-O-Matic filter program |
Perfect For
- High-volume restaurants and bars
- Hotel pantries and banquet service
- Corporate, healthcare & educational cafeterias
Want next-level hygiene? Add the optional SafeIce™ Purification System to neutralize viruses, mold and odors—extending machine life by up to 30 %.
