Ice-O-Matic

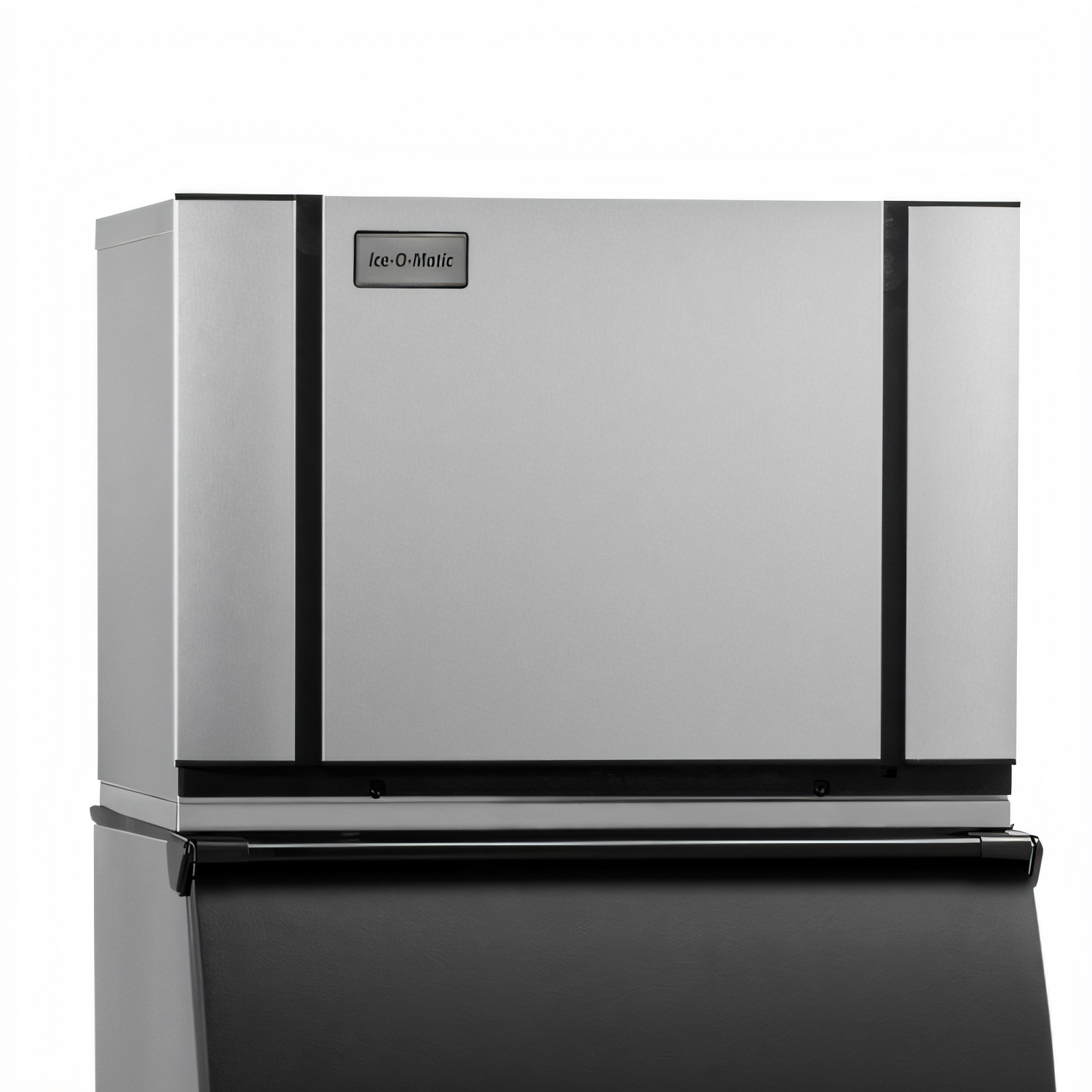

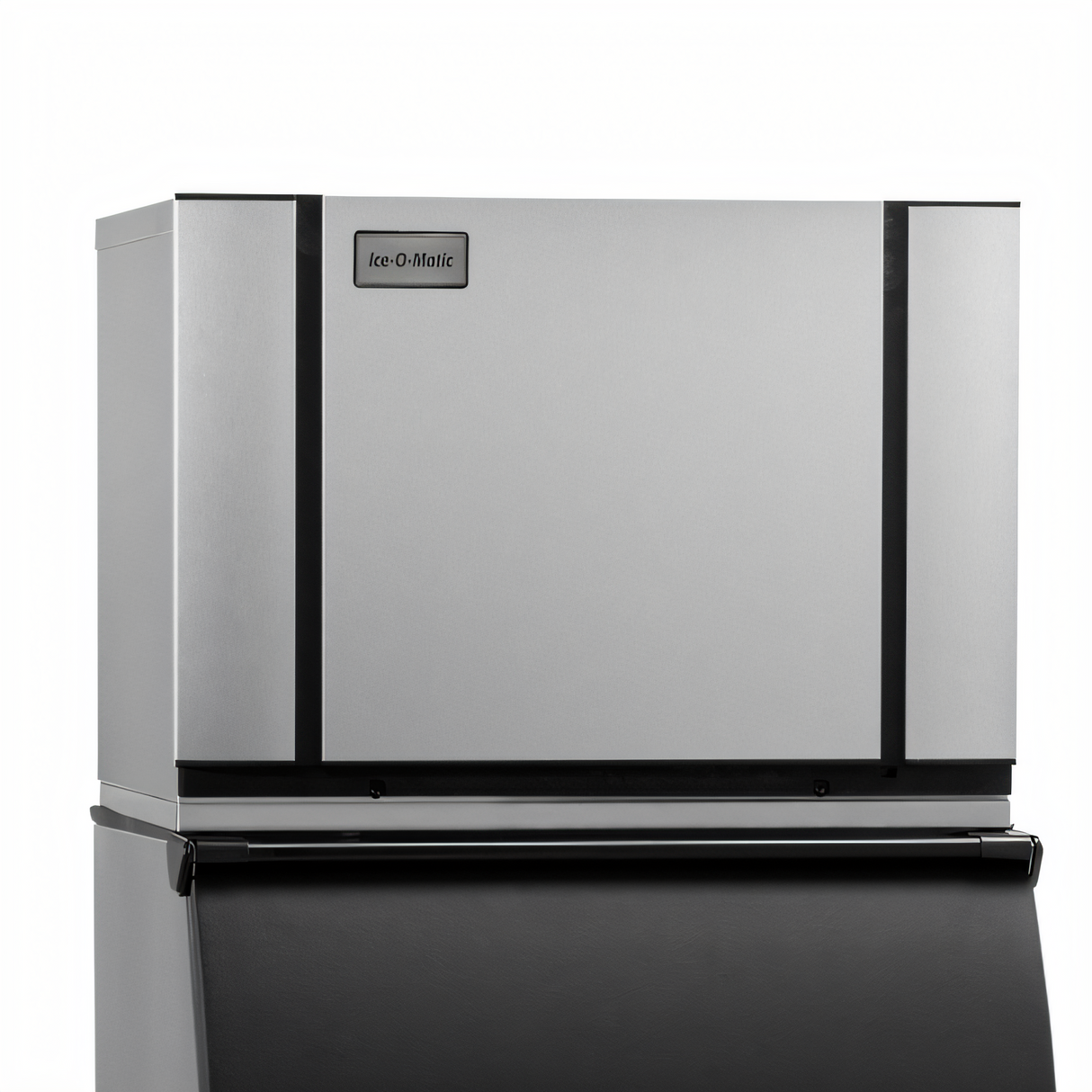

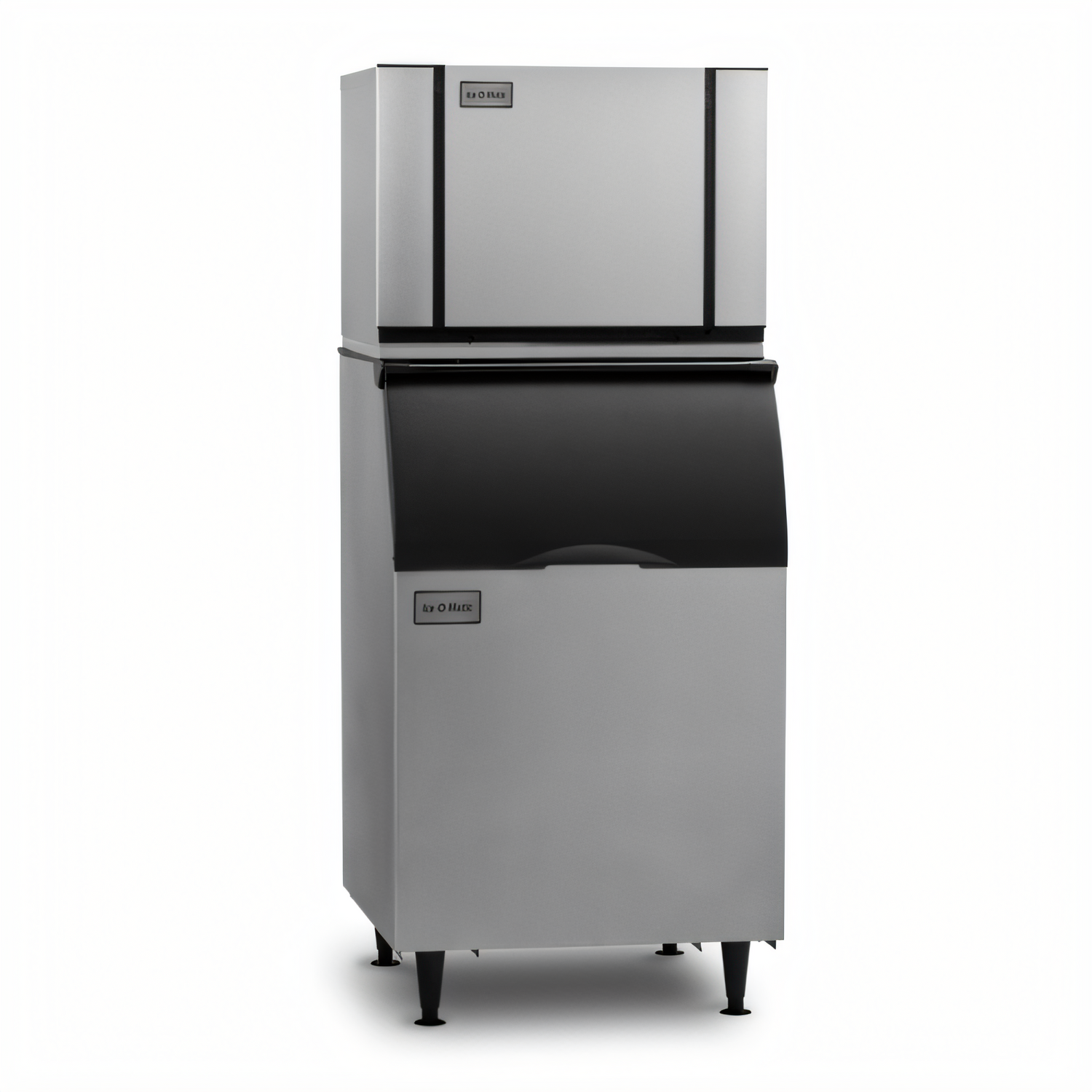

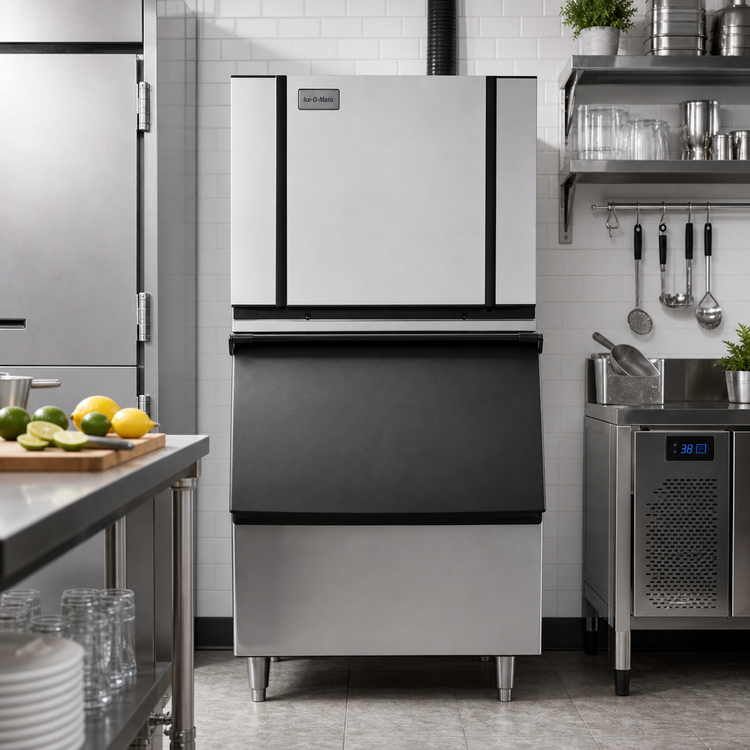

Ice-O-Matic Elevation Series Modular Full-Size Cube Ice Maker, 30-Inch Wide, Air-Cooled, Remote Condenser

SKU: CIM0530FR
$4,397.54
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Ice-O-Matic New Arrivals Restaurant Equipment

Ice-O-Matic Elevation Series Modular Full-Size Cube Ice Maker, 30-Inch Wide, Air-Cooled, Remote Condenser

Remote refrigeration required; 570 lb/day production and easy-clean sanitation features.

A space-saving 30-inch modular head that delivers full-size cube ice, remote refrigeration flexibility, and easy-clean sanitation features.

  • Produces up to 570 lb of full-size cube ice per 24 hours
  • 30-inch-wide modular design saves valuable back-of-house space
  • Remote condenser setup helps move heat-generating components away from the machine body
  • PURE ICE antimicrobial protection supports cleaner ice production
  • LED status display and one-touch sanitize/descale controls simplify maintenance
  • Dishwasher-safe, BPA-free food-zone parts make cleaning faster
  • Dual exhaust airflow improves installation flexibility in tight spaces

Overall Dimensions:

27.0"W x 33.0"D x 27.0"H

Product Weight:

173.0 lb

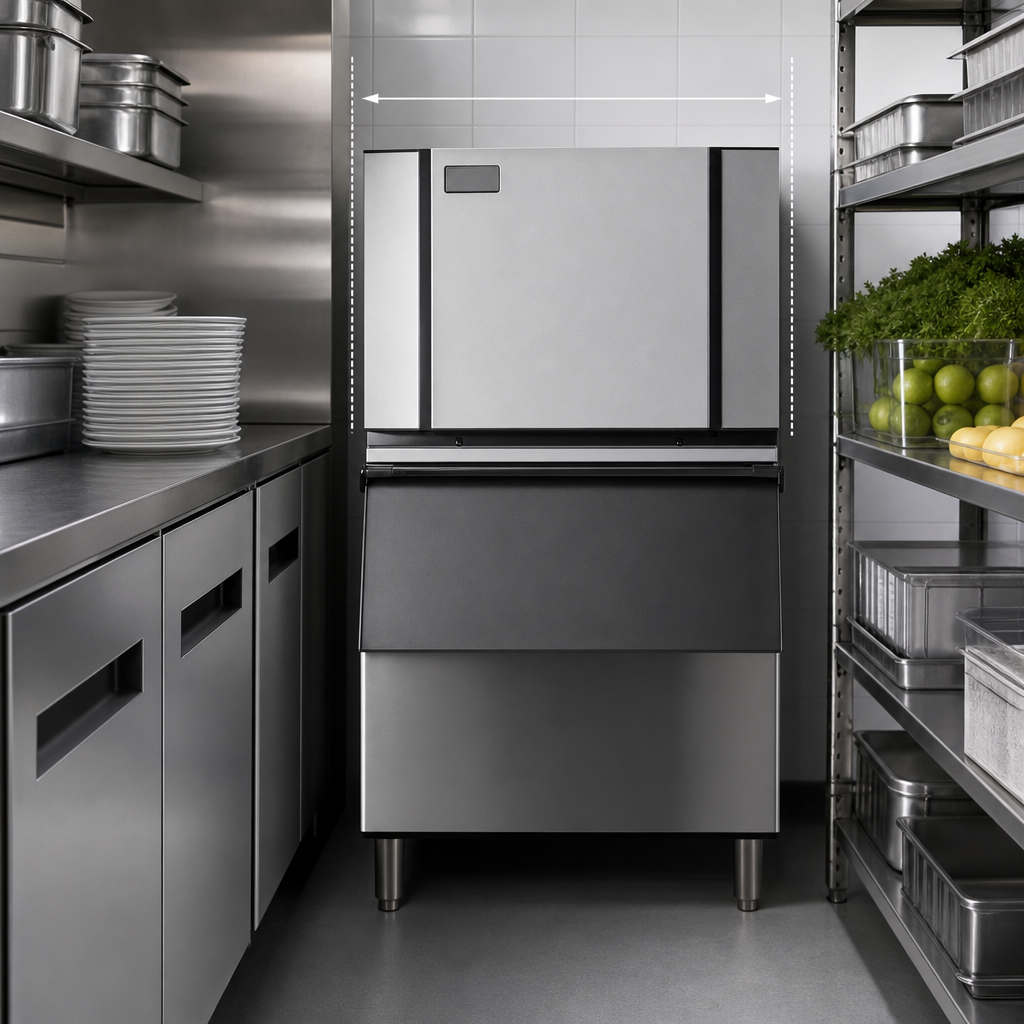

Space-Saving 30-Inch Design

The 30-inch-wide modular head is built to fit tighter spaces while supporting high-volume cube ice production.

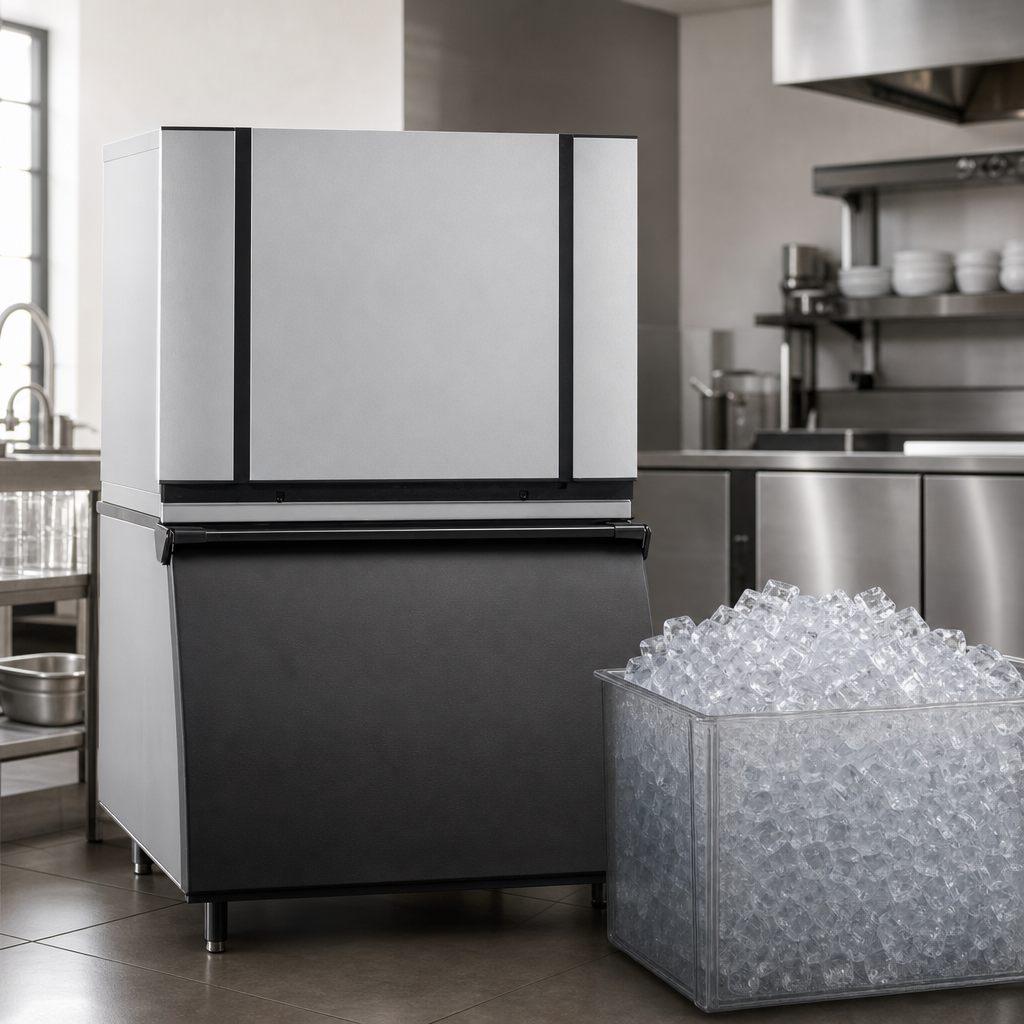

High Daily Ice Output

Produces approximately 570 lb per day at 70°F air and 50°F water; output varies with operating conditions.

Full-Size Cube Ice

Makes full-size cube ice suited for beverage service and dispenser applications.

Remote Condenser Configuration

Uses a remote condenser setup, so the refrigeration component is located separately from the ice maker head.

PURE ICE Antimicrobial Protection

Built-in antimicrobial protection helps support a cleaner ice-making food zone.

Smart LED Status Display

LED indicators show machine status and let operators know when cleaning is needed.

One-Touch Sanitize and Descale Controls

Simple one-touch controls help streamline routine sanitizing and de-liming.

Dishwasher-Safe Food Zone Components

Snap-in, snap-out BPA-free food-zone parts are dishwasher safe for easier cleaning.

Dual Exhaust Airflow

Hot air can discharge from either the side or the top, improving installation flexibility.

Universal Smart Harness Control Board

Simplifies installation and servicing with digital diagnostics and common components.

Type Modular Cube Ice Maker
Style Full Cube
Condenser Type Air-Cooled
Refrigeration Type Remote
Capacity 570 lb per 24 Hours
Controls Digital
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 3/4 Inch FPT
Water Connection Required
Drain Connection Required
Refrigerant Type R404A
Shipping Weight 173 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor on the ice maker; 5 years parts on the evaporator and compressor.

Documents

PDF Cutsheet PDF Download PDF Diagram PDF Download PDF Brochure PDF Download PDF Web site PDF Download PDF Service manual PDF Download PDF Owner's manual PDF Download PDF Slope front storage bins PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces full-size cube ice.
It is rated at approximately 570 lb per 24 hours at 70°F air and 50°F water, with actual output varying by conditions.
No. This is a remote condenser model, so refrigeration is not included and a compatible remote condenser is required.
It includes PURE ICE antimicrobial protection, a smart LED status display, one-touch sanitize/descale controls, and dishwasher-safe food-zone components.
The ice maker uses a 3/8" FPT potable water inlet and a 3/4" FPT water outlet/drain connection.
Air-cooled units require 6 inches of clearance for air intake and exhaust, and the dual exhaust design allows top or side hot-air discharge.
