Ice-O-Matic  |  Elevation Series™  |  SKU: CIM0530FA

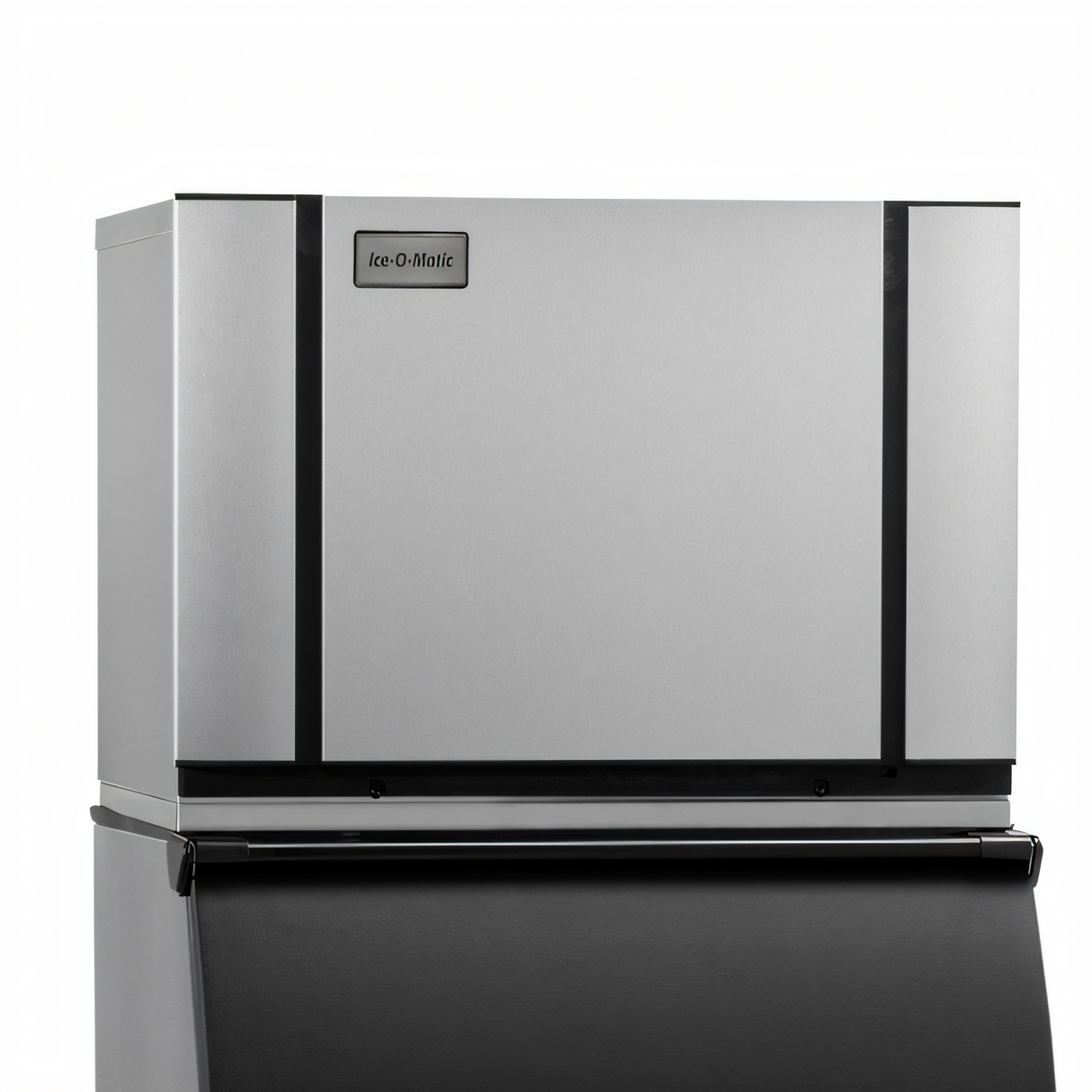

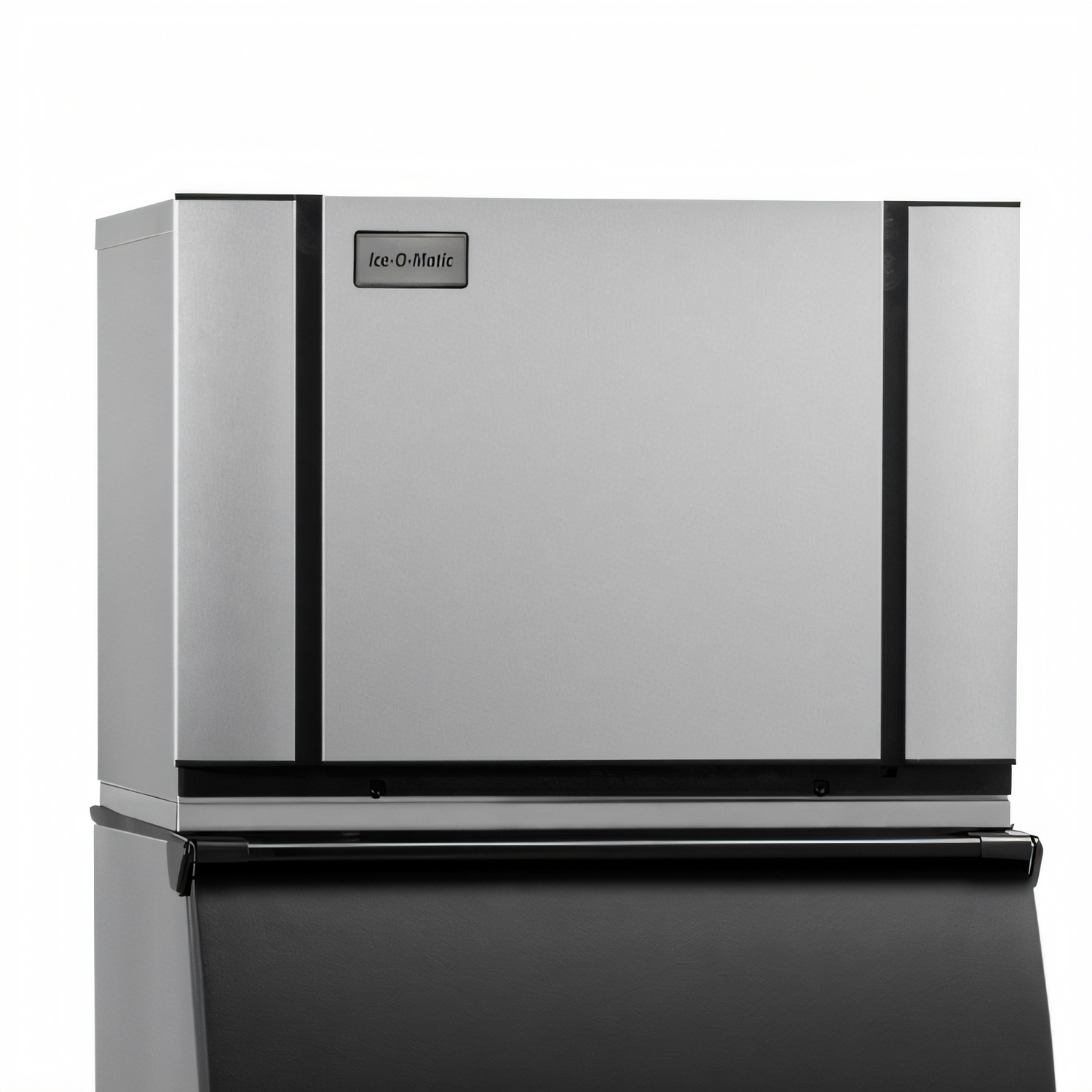

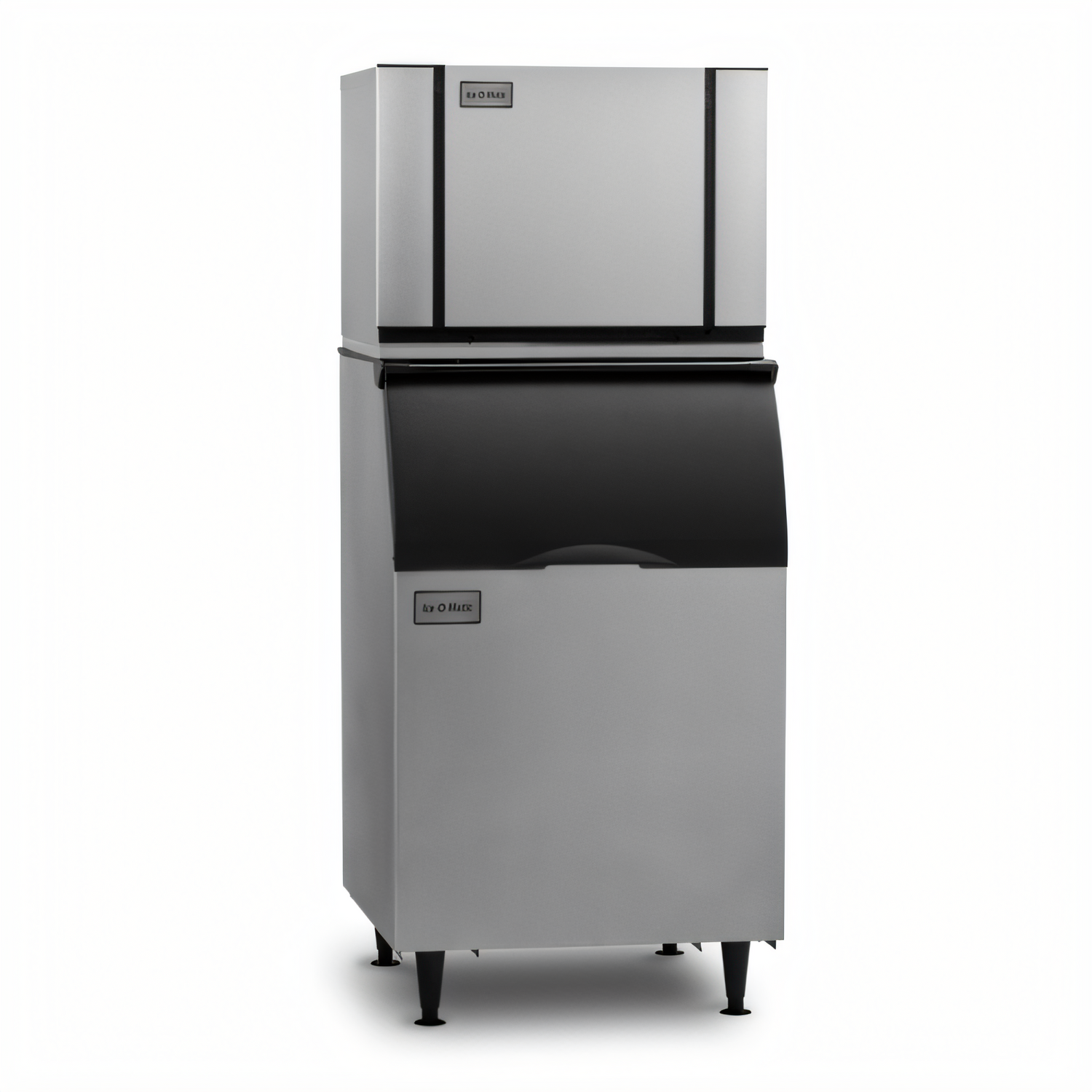

Ice-O-Matic CIM0530FA Elevation Series™ Ice Machines

$4,394.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Slope front storage bins Diagram Web site Brochure Service manual Owner's manual Warranty sheet
Related Searches
Ice Machines Ice Makers & Bins

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Elevation Series™ Modular Cube Ice Maker – Air-Cooled (CIM0530A)

561 lb of full-size cubes every 24 hours in a 30" footprint

Built for high-volume foodservice, the Ice-O-Matic Elevation Series™ CIM0530A delivers pure, crystal-clear cubes while making life easier for operators. Its space-saving 30-inch width, exclusive Dual Exhaust™ (top or side) and ENERGY STAR® performance let you place it almost anywhere and run it for less.

Key Advantages

  • High output, small space – up to 561 lb (254 kg) of ice per day at 70 °F/50 °F.
  • Full-cube format (⅞" × ⅞" × ⅞") ideal for soft drinks, cocktails and bulk cooling.
  • Dual Exhaust™ vents hot air from the side or the top—no add-on kits required.
  • PURE ICE® antimicrobial protection with built-in Agion® for the life of the machine.
  • One-touch sanitize & descale with LED reminders; food-zone parts pop out and go straight in the dishwasher.
  • Universal Smart Harness™ board speeds installation, diagnostics and service.
  • Efficient by design – 5.5 kWh and 19.9 gal of water per 100 lb; exceeds 2018 DOE standards.
  • Environmentally responsible BPA-free, fully recyclable plastics.

Performance & Utilities

Ice production (70 °F air / 50 °F water) 561 lb / 24 hr (254 kg)
Ice production (90 °F air / 70 °F water) 420 lb / 24 hr (190 kg)
Cube size Full cube – ⅞" × ⅞" × ⅞" (22 × 22 × 22 mm)
Dimensions (W × D × H) 30.25" × 24.25" × 21.25" (768 × 616 × 540 mm)
Electrical 115 V / 60 Hz / 1-ph • 17.8 A MCA • 30 A max breaker
Energy use 5.5 kWh per 100 lb of ice
Water use 19.9 gal potable per 100 lb of ice
Refrigerant R404A
Operating ambient 50 °F – 100 °F (10 °C – 38 °C)
Water pressure 20 – 80 PSI (1.4 – 5.5 bar)
Approx. heat rejection 6,252 BTU/hr

Certifications & Compliance

  • ENERGY STAR® qualified
  • cULus listed
  • NSF certified
  • CE marked
  • BPA-Free construction
Bin required: Ice storage bin or dispenser sold separately. Compatible 30" Ice-O-Matic bins include B40PS, B42PS, B55PS and B110PS (adapter kits may apply).

Production ratings are AHRI certified and vary with installation conditions.
Model reference: Ice-O-Matic CIM0530A (Elevation Series™).

Features & Specs

Manufacturer

Ice-O-Matic

Brand_name

Elevation Series™

Certifications

NSF, CE, cULus, BPA Free, ENERGY STAR

Height

27.0in

Width

27.0in

Depth

33.0in

Shipping Weight

156.0lbs

Production per 24 hr

501 - 600 lb = 228 - 272 kg

Refrigeration

self-contained refrigeration

Condenser Type

air-cooled

Width (side - side)

30 - 39" wide

Energy Efficiency

ENERGY STAR®

Ice Type

full size / dice cubes

Specifications

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®
